Harbour Status Chrome 3 Hole Bath Mixer with Pull Out Handset

Rated 4.40/5 from 10 customer reviews

RRP £294 save 46%

£159.99

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £53.33 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £40.00 with Clearpay Learn more about Clearpay

What's great about it?

  • Bath shower mixer and handset with recessed deck-mounted design to suit modern bathrooms
  • Manufactured from reliable solid brass in a Polished Chrome finish that adds sleek appeal
  • Fitted with ceramic disc cartridge valves for easy turning and leak-free longevity
  • Single lever allows for control of temperature and flow rate while holding the handset
  • Lifetime manufacturer's guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Harbour Status Chrome 3 Hole Bath Mixer with Pull Out Handset

Features:
  • Includes square pull out handset and hose
  • Made from solid brass with a polished chrome finish
  • Also available in a matt black finish
  • Ceramic disc technology - long lasting and no drips
  • 1m long shower handset hose
  • Minimum 0.5 bar water pressure required
  • Single lever design - Control the water flow and temperature whilst holding the shower in your other hand
  • Handset diverter located at the back of the spout
  • Lifetime guarantee

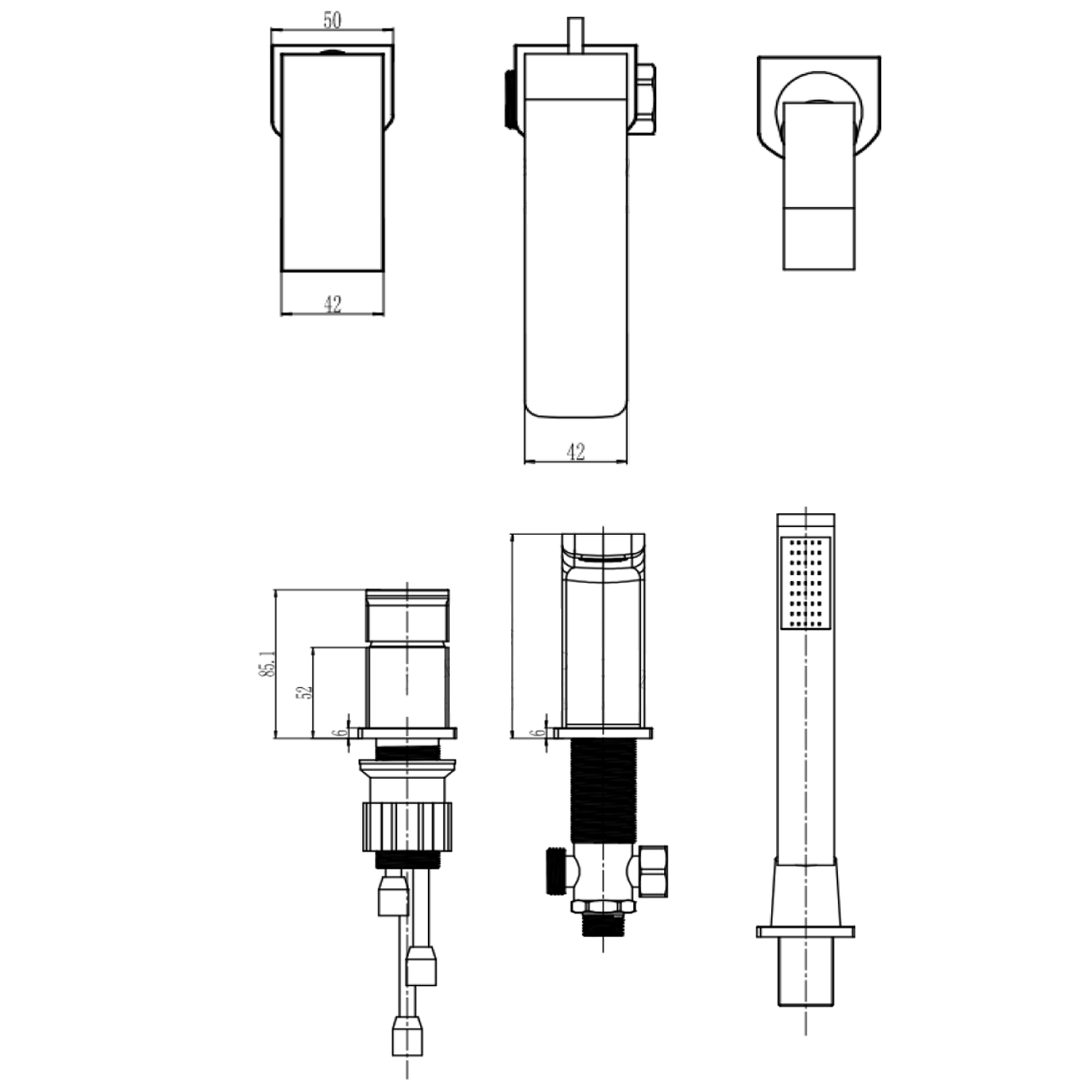

Dimensions:
  • Height: 117mm
  • Width: 150mm
  • Depth: 183mm
  • Projection: 120.5mm

Product Overview
Product Code TAP246L
Global Trade Item Number 5056585242095
Type Bath Shower Mixers, Concealed Bath Taps
Brand Harbour
Brand Range Harbour Status
GuaranteeMore information Lifetime

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material Brass
Number of Outlets 2 Outlets
Temperature Control Manual
Cartridge TypeMore information Ceramic Disc
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Style
Mounting Type Deck Mounted
Finish Chrome
Shape Square, Round
Handle Type Lever, Single Control
Spout Type L-Shaped Spout
Texture Polished
Tap Holes 3 Holes
Style Modern
Dimensions
Width (mm) 150
Height (mm) 117
Depth (mm) 183
Projection (mm) 120
Flow Rate
Flow Rate at 0.5 Bar (l/min) 7.4
Flow Rate at 1 Bar (l/min) 10.5
Flow Rate at 2 Bar (l/min) 14.9
Flow Rate at 3 Bar (l/min) 18.2
Minimum Water PressureMore information 1

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
