Villeroy & Boch Universal Cool Touch Exposed Square Thermostatic Shower Mixer

No reviews yet - Write one
Please select an option

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £93.33 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £70.00 with Clearpay Learn more about Clearpay

What's great about it?

  • Modern, minimalist thermostatic shower bar valve
  • Made from brass for robustness
  • CoolTap function - provides reliable protection from scalding
  • Thermostatic valve with integrated scald protection that automatically kicks in from a water temperature of 38°C
  • 5 year manufacturer’s guarantee

Read full product description

Features:
  • A modern, square one outlet, dual control bar valve - one handle controls the temperature and the other controls the water flow intensity
  • Crafted from brass - designed to withstand everyday use whilst looking high-quality
  • Equipped with CoolTap - this feature ensures the valve is insulated, preventing it from becoming hot and causing scalding, making it an ideal addition to a family bathroom
  • Thermostatic valve with integrated scald protection that automatically kicks in from a water temperature of 38°C
  • An exposed unit is a great option for shower installations after tiles have been laid and allows for easy cleaning and maintenance of all areas of your bar valve
  • Shower head and handset sold separately, please see our recommended extras
  • 5 year manufacturer’s guarantee

Downloads
Technical Specifications
Product Overview
Product Code vb-uni-expo-square-shwr
Type Bar Shower Valves, Exposed Shower Valves
Brand Villeroy & Boch
Brand Range Villeroy & Boch Universal
GuaranteeMore information 5 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material Brass
Number of Outlets 1 Outlet
Temperature Control Thermostatic
Cartridge TypeMore information Ceramic Disc
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Style
Mounting Type Wall Mounted
Shape Square
Handle Type Dual Control, Square
Style Modern
Orientation Landscape
Finish Select an option first
Texture Select an option first

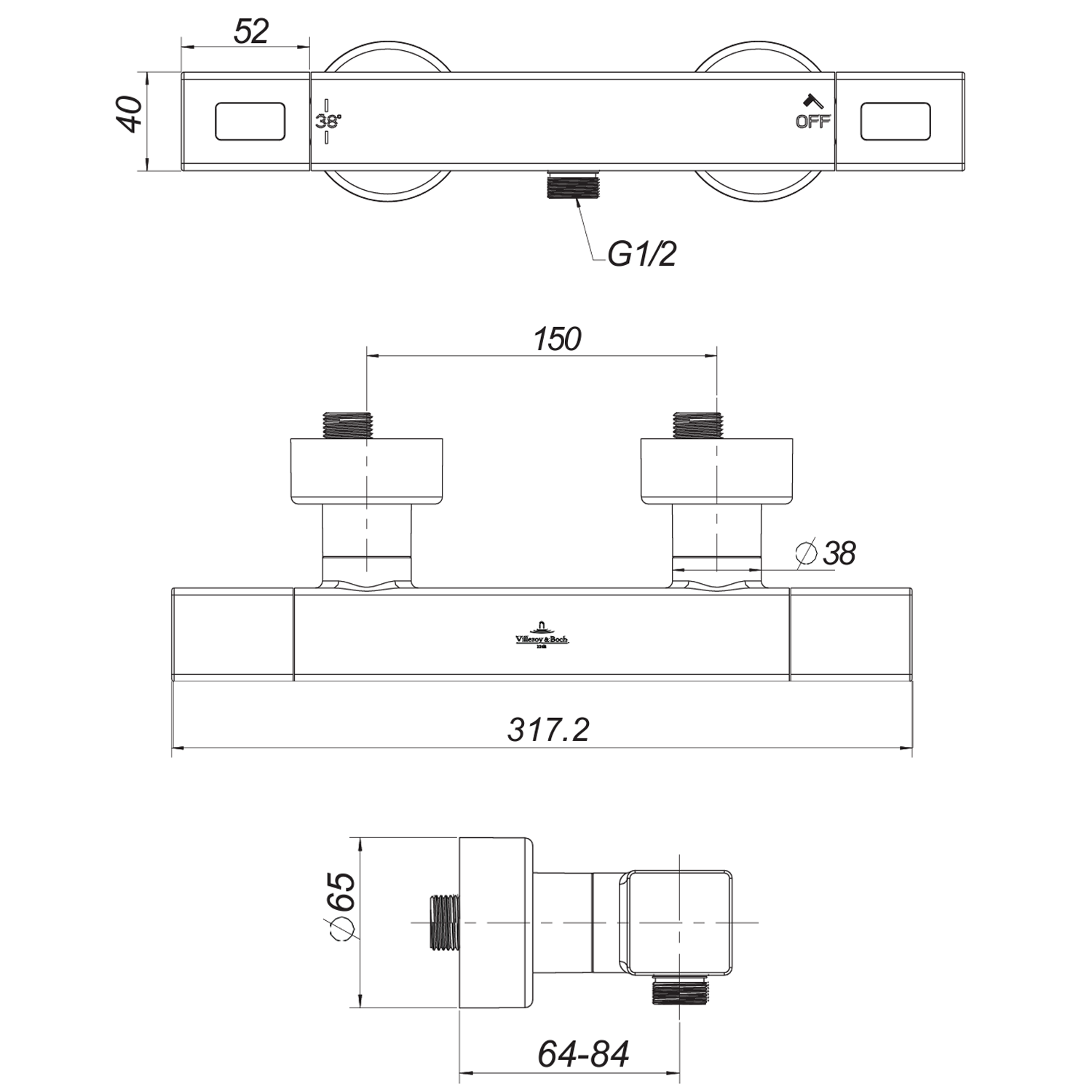

Dimensions
Width (mm) 318
Height (mm) 65
Depth (mm) 64
Projection (mm) 104
Flow Rate
Minimum Water PressureMore information 1

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
