Toasty Electric Underfloor Heating Mat 160W per m2

No reviews yet - Write one
New
Select an option:

Loading delivery estimate...

Pay in 3 interest-free payments of £19.99.
Klarna
Pay in 3 interest-free payments of £19.99. Learn more

Quick look

Heat Output (Watts∆t 50ºC) Select an option first
IP Rating More information IPX7
Guarantee More information 20 Years

What's great about it?

  • 160W per m2 electric underfloor heating mat
  • Pre-spaced cable on flexible mesh
  • Cut-and-turn layout for easier fitting
  • Approximate 4mm low-profile build height
  • Suitable beneath tile, stone and other floor coverings
  • Compatible with Toasty thermostat controllers

Full details

Features:
  • 160W per m2 electric underfloor heating mat for floor warming and room heating applications
  • Suitable for use as floor warming in all rooms, or as the sole heat source in well-insulated areas
  • Pre-spaced heating cable fixed to a flexible mesh mat for faster installation than loose cable systems
  • Cut-and-turn mesh layout allows the mat to be positioned around room shapes without cutting the heating cable
  • Suitable for direct installation beneath tile and stone floor finishes
  • Suitable beneath many other floor coverings when installed below a 12mm layer of flexible levelling compound
  • Works with thermostats that include floor temperature limiting for use with sensitive floor finishes
  • Approximate 4mm mat height for a low-profile installation
  • 0.5m mat width supports straightforward layout planning
  • Multiple mats can be combined for larger heated areas, as long as the mats have the same W/m2 output

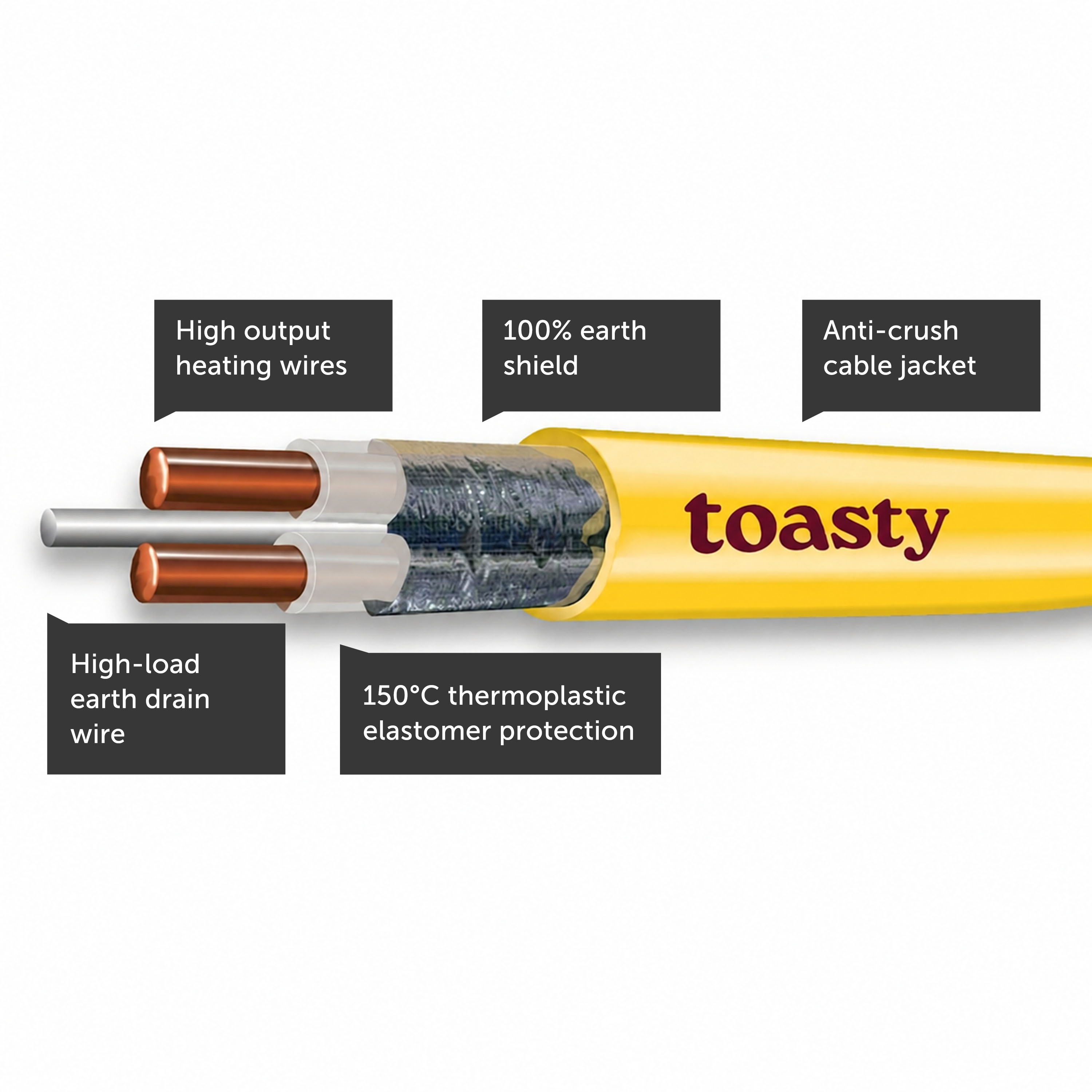

  • Anti-crush cable jacket and 100% earth shield for added installation confidence
  • 2.5m coldtail supplied for connection to a compatible thermostat
  • Compatible with the Toasty Programmable Thermostat Controller or Toasty WiFi Thermostat Controller
  • UKCA marked and tested to BS/EN60335-2-96
  • 20 year guarantee

Downloads
Installation Instructions
Product Overview
Product Code toasty-elec-ufh-160W/sqm-pv
Type Underfloor Heating
Brand Toasty
GuaranteeMore information 20 Years
Global Trade Item Number Select an option first

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
IP RatingMore information IPX7
Material Copper, PVC
Temperature Control Thermostatic

IP Rating

IP stands for ingress protection. It is a measure of the effectiveness of sealing electrical enclosures from foreign bodies such as tools and water.

IP ratings are given in two digits:

1st digit: A number between 0-6 which gives an indication of the protection from solid objects such as tools, dirt and dust. The higher the number, the better the protection.

2nd digit: A number 0-9 which indicates the protection of the electrical enclosures from moisture ingress. The higher the number, the better the protection against moisture.

If you see an X instead of a number (e.g., IPX7 or IP6X), it means the product has not been officially tested for that specific category, as it may not be applicable.

Style
Mounting Type Underfloor
Dimensions
Width (mm) 500
Height (mm) 4
Cable Thickness (mm) 4
Cold Tail Length (mm)More information 2500
Length (mm) Select an option first
Area M2 Select an option first

Cold Tail Length (mm)

The non-heating cable that connects your system to the power supply.

The length shows how far it can reach to your connection point — with longer lengths giving you more flexibility during installation, without the need for extra wiring.

Heat Output
Fuel Source Electric
Heat Output (BTU∆t 50ºC) Select an option first
Heat Output (Watts∆t 50ºC) Select an option first
