Hudson Reed Tec Lever Wall Mounted Bath Filler

No reviews yet - Write one

RRP £236.00 save 49%

£119.99

Estimated delivery 3-7 working days Help?

Too long to wait? View similar products with next day shipping

Delivery from £3.99. Spend £250+ for free delivery*. Read full delivery info

What's great about it?

  • Wall-mounted bath spout and modern, curved mono tap handle to suit contemporary bathrooms
  • Manufactured from reliable solid brass and finished in Polished Chrome adding sleek appeal
  • H: 100mm, W: 205mm, P: 213mm
  • Fitted with ceramic disc valve technology for easy turning and leak-free longevity
  • Wall mounting and small overall form preserve precious bath ledge space and add refinement

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Hudson Reed Tec Lever Wall Mounted Bath Filler

Hudson Reed Tec Lever Wall Mounted Bath Filler or Basin Mixer


With the Single Lever Wall Mounted Basin/Bath Filler, you have not only a functional tap and bath filler, but also one that is pleasing to the eye. This particular fixture has a contemporary look with its single handle and long spout, and it can be used for a basin or a bath, whichever you prefer. This beautiful basin/bath filler will be one purchase that you will not regret with the 20 year guarantee and comfortable function.

Features:
• Can be used as a basin mixer or bath filler
• High quality brass internals with luxury chrome finish
• Wall-mount for a space-saving design
• One-hand operation: water flow & temperature controlled by single lever
• Ceramic disc technology for long life and smooth operation
• Minimum 0.5 bar pressure required
• 20 year guarantee

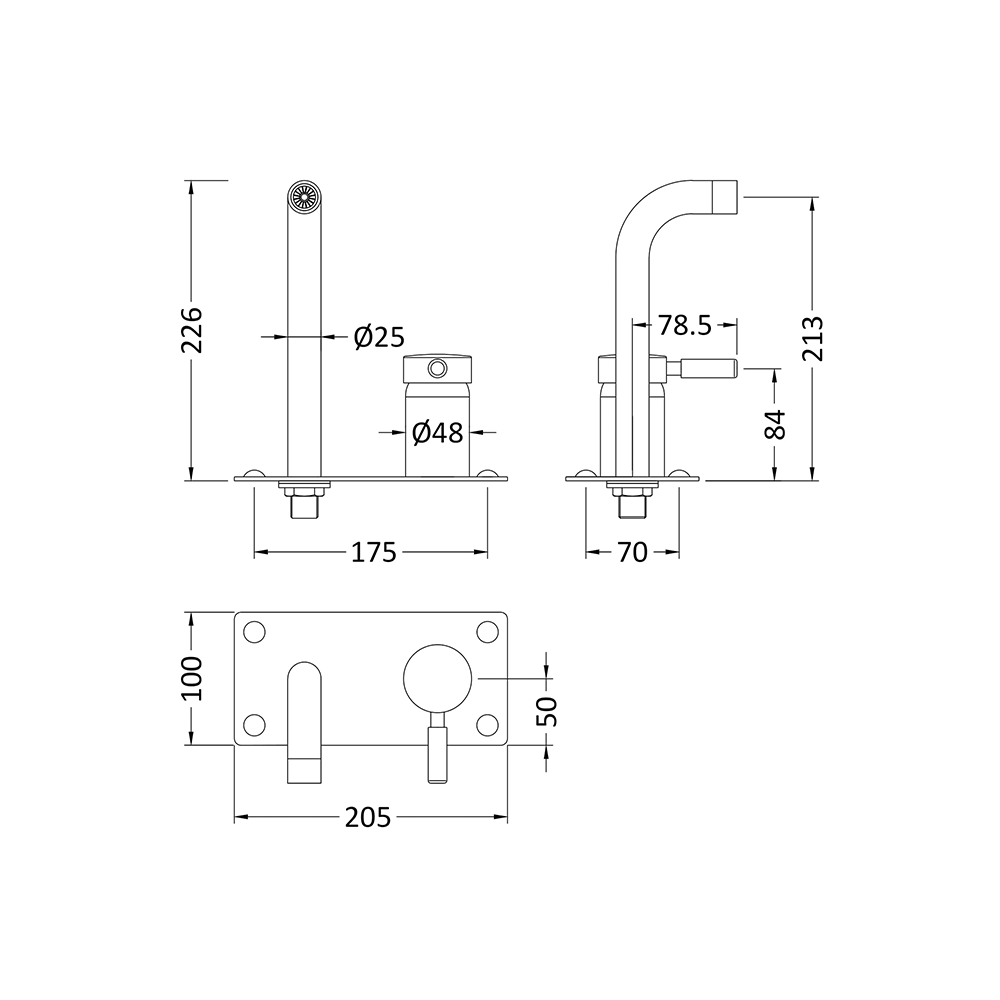

Dimensions:
• Projection - 213mm
• Height - 100mm
Downloads Product PDF
Product Code PK328
Global Trade Item Number 5055146121862
Type Bath Fillers, Concealed Bath Taps
Brand Hudson Reed
Brand Range Hudson Reed Tec Lever
Minimum Water PressureMore information 0.5
Shape Rectangular, Round
Finish Polished Chrome
Style Modern
Mounting Type Wall Mounted
Tap Holes 2 Holes
Spout Type Curved Spout
Handle Type Lever, Single Control
Cartridge TypeMore information Ceramic Disc
Temperature Control Manual
Number of Outlets 1 Outlet
Orientation Landscape
Height (mm) 100
Width (mm) 205
Projection (mm) 213
Popular Features Slimline Design
GuaranteeMore information 20 Years
Flow Rate at 0.1 Bar (l/min) 3.5
Flow Rate at 0.5 Bar (l/min) 8
Flow Rate at 1 Bar (l/min) 12
Flow Rate at 2 Bar (l/min) 17
Flow Rate at 3 Bar (l/min) 20.5

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
