Drench Square Thermostatic Bar Valve - Bottom Outlet

Rated 5.00/5 from 4 customer reviews

RRP £175.96 save 49%


Loading delivery estimate...

Pay 3 interest-free instalments of £29.99 with Klarna Learn more about Klarna
Pay 4 interest-free instalments of £22.50 with Clearpay Learn more about Clearpay

What's great about it?

  • Stylish chrome plated bar shower valve
  • Thermostatically controlled to keep you and your family safe
  • Full thermal protection to prevent scalding
  • Highly resistant to limescale buildup
  • Minimum water pressure required: 1 bar

Read full product description


Recommended extras

We've hand-picked these items because they are a great choice alongside the Drench Square Thermostatic Bar Valve - Bottom Outlet

Drench Square Thermostatic Bar Valve - Bottom Outlet

Raise the bar for your shower experience with this wall-mounted thermostatic bar shower valve from Drench - a stunning mix of razor-sharp design and modern shower technology. Water temperature is thermostatically controlled to prevent scalding and those shocking cold spells, even if the incoming water temperature or pressure should fluctuate, ensuring shower safety for the whole family.

Crafted from high-quality materials and plated with chrome, it is backed by a 10 year manufacturer's guarantee.

• Precise control over water flow and temperature even if the water pressure fluctuates
• Temperature thermostatically controlled to prevent scalding
• The valve will shut down in the event of hot or cold water failure
• Minimum water pressure required: 1.0 bar
• Constructed from high quality brass and ABS
• Suitable for unvented mains pressure systems
• Shower hose sold separately
• 10 year guarantee

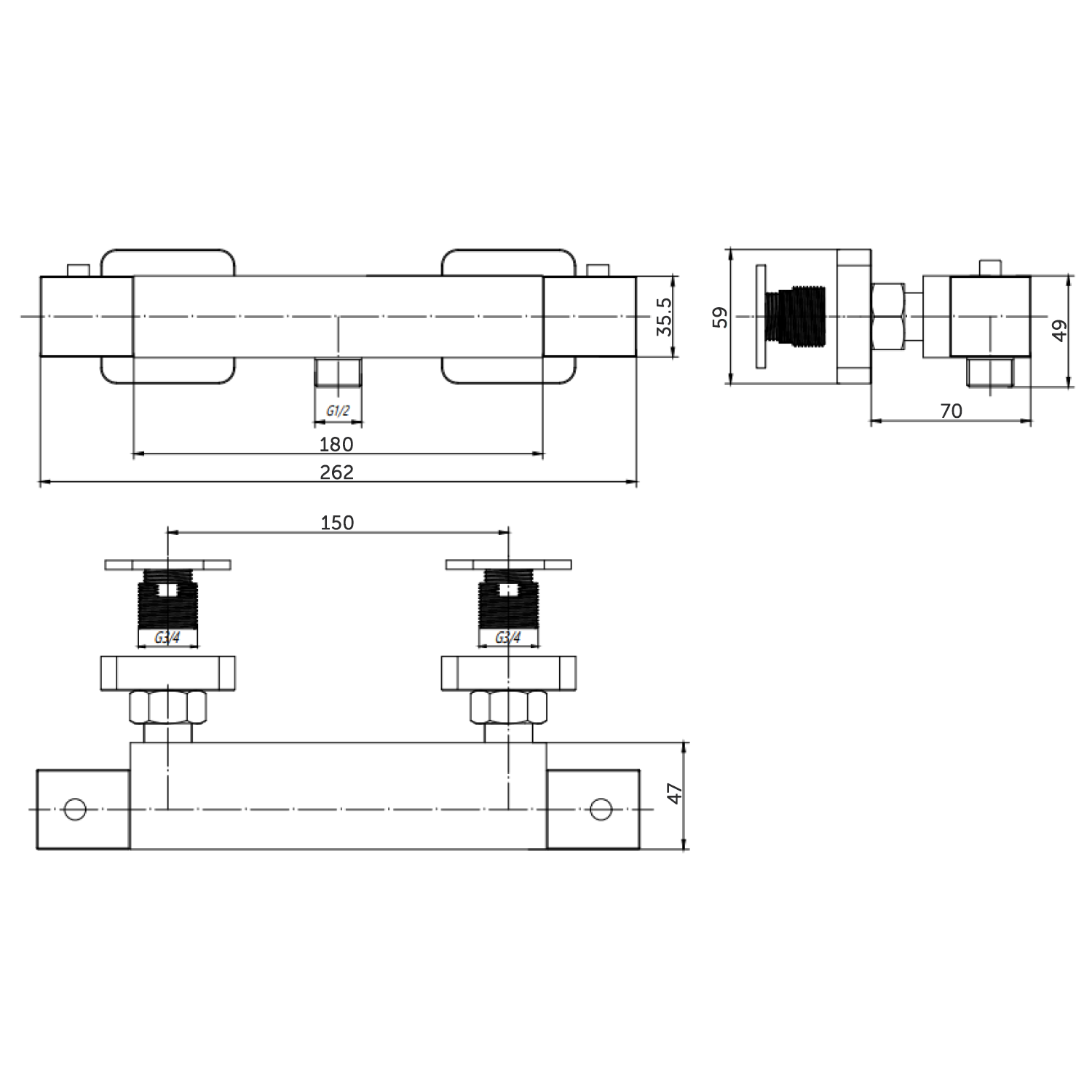

• Height: 58mm
• Width: 263mm
• Projection: 75mm
Product Code DRVLV01
Global Trade Item Number 7081247854406
Type Exposed Shower Valves, Bar Shower Valves
Brand Drench
Width (mm) 263
Height (mm) 58
Mounting Type Wall Mounted
Finish Chrome
Shape Square
Handle Type Square, Dual Control
Minimum Water PressureMore information 1.0
Style Modern
Material Brass, ABS Plastic
Orientation Landscape
GuaranteeMore information 10 Years
Projection (mm) 75
Number of Outlets 1 Outlet
Temperature Control Thermostatic
Flow Rate at 1 Bar (l/min) 12.0
Flow Rate at 1.5 Bar (l/min) 14.0
Flow Rate at 2 Bar (l/min) 18.5
Flow Rate at 3 Bar (l/min) 22.0

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.


All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.
