Features:
- Thermostatic control stops sudden scalding or freezing temperature shocks for a comfortable shower
- Reaches your desired temperature almost instantly, saving time and reducing water waste

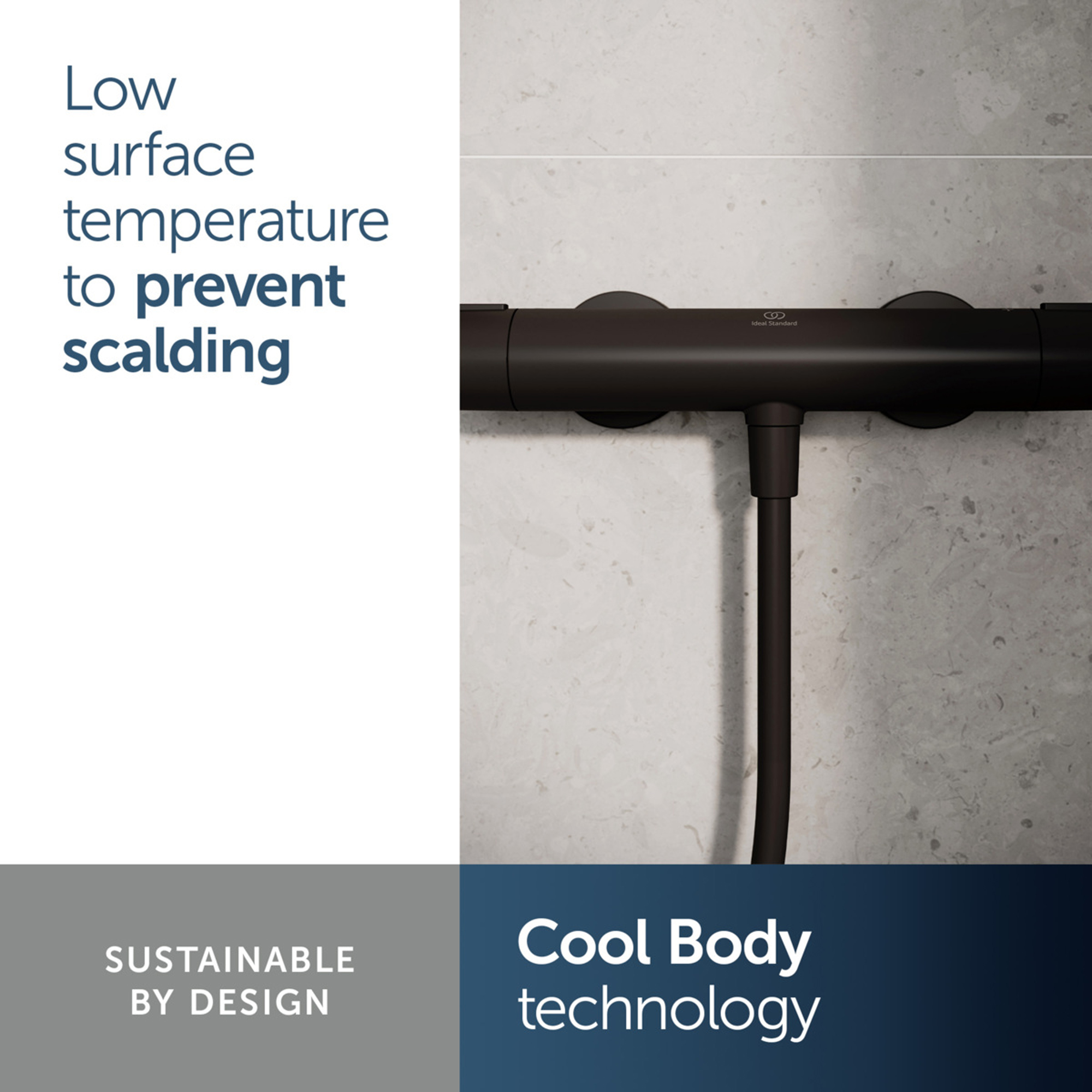

- CoolBody technology ensures the mixer stays cool to the touch, even during hot showers
- Smooth-turn dials allow for precise control over water flow and temperature, even with soapy hands

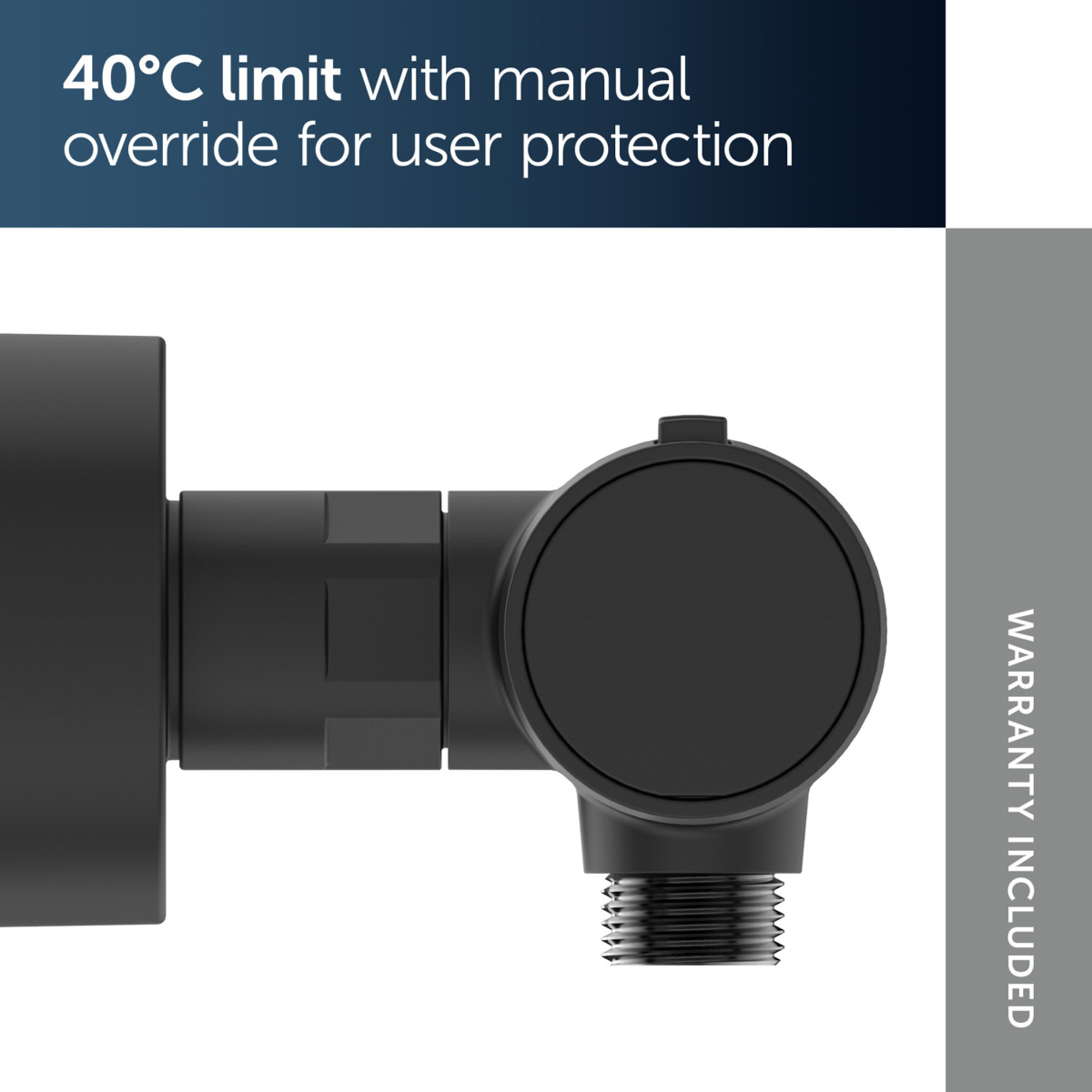

- Prevents the water from accidentally getting too hot with a 40°C safety lock, a great choice for families
- Optimised for systems with 0.5 bar pressure or more to deliver a steady and reliable water flow
- Ceramic discs ensure the controls turn smoothly and stop the shower from dripping when turned off
- Wipe-clean surface makes cleaning easy, helping to prevent limescale and water spot buildup

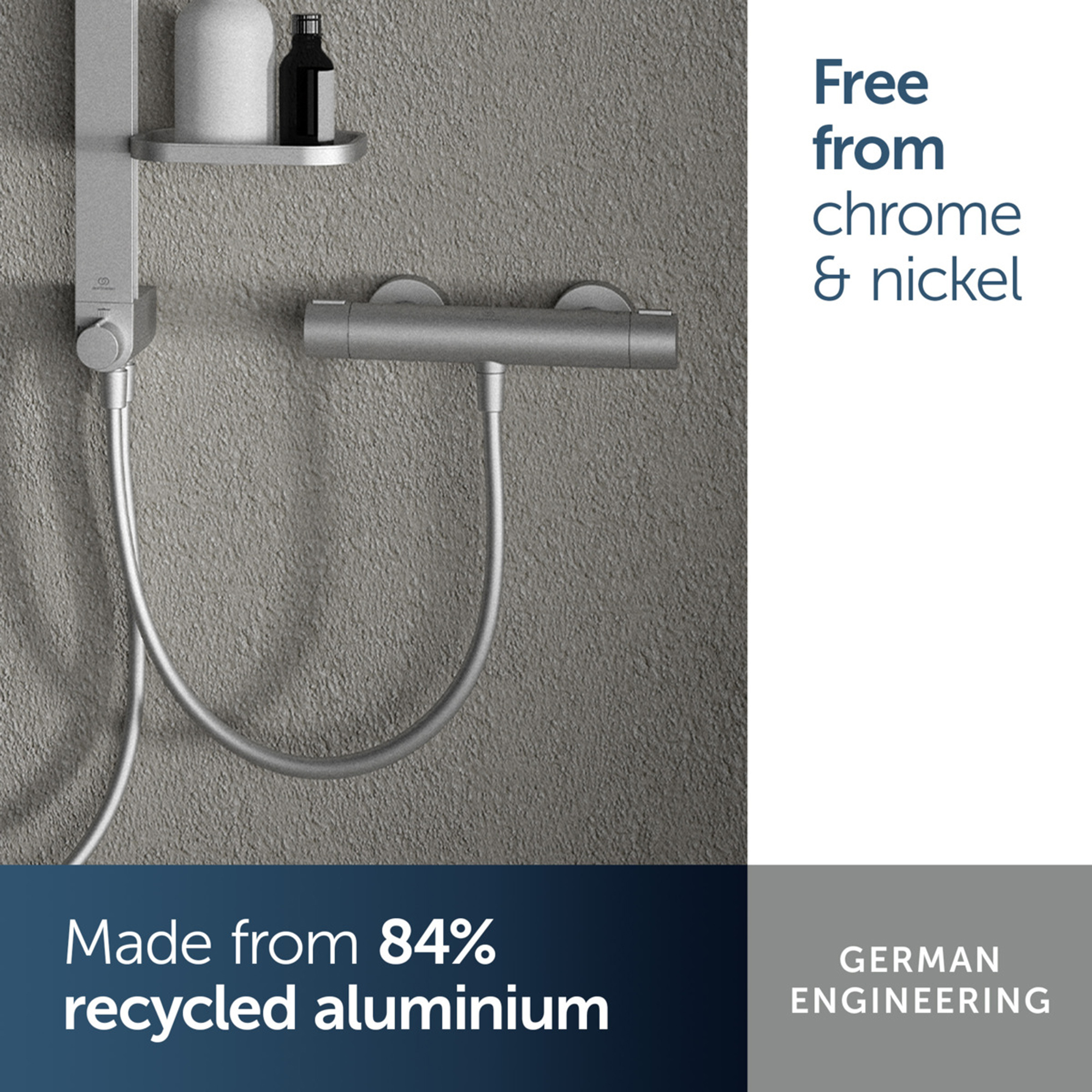

- Core elements are made from recycled anodised aluminium to prevent wear and rust
- Choice of neutral finishes pair well with a variety of different bathroom styles
- WRAS approved and free from chromium, lead and nickel for maximum safety and water purity
- 2 year manufacturer’s guarantee
 Installation Instructions
|
|---|
| Product Code | is-cera-alu-expo-therm-vlv |
|---|---|
| Type | Bar Shower Valves, Exposed Shower Valves |
| Brand | Ideal Standard |
| Brand Range | Ideal Standard Alu+ |
| GuaranteeMore information | 2 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Material | Aluminium |
|---|---|
| Number of Outlets | 1 Outlet |
| Temperature Control | Thermostatic |
| Cartridge TypeMore information | Ceramic Disc |
| Popular Features | WRAS Approved |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
| Mounting Type | Wall Mounted |
|---|---|
| Shape | Round |
| Handle Type | Dual Control, Round |
| Style | Modern |
| Finish | Select an option first |
| Texture | Select an option first |

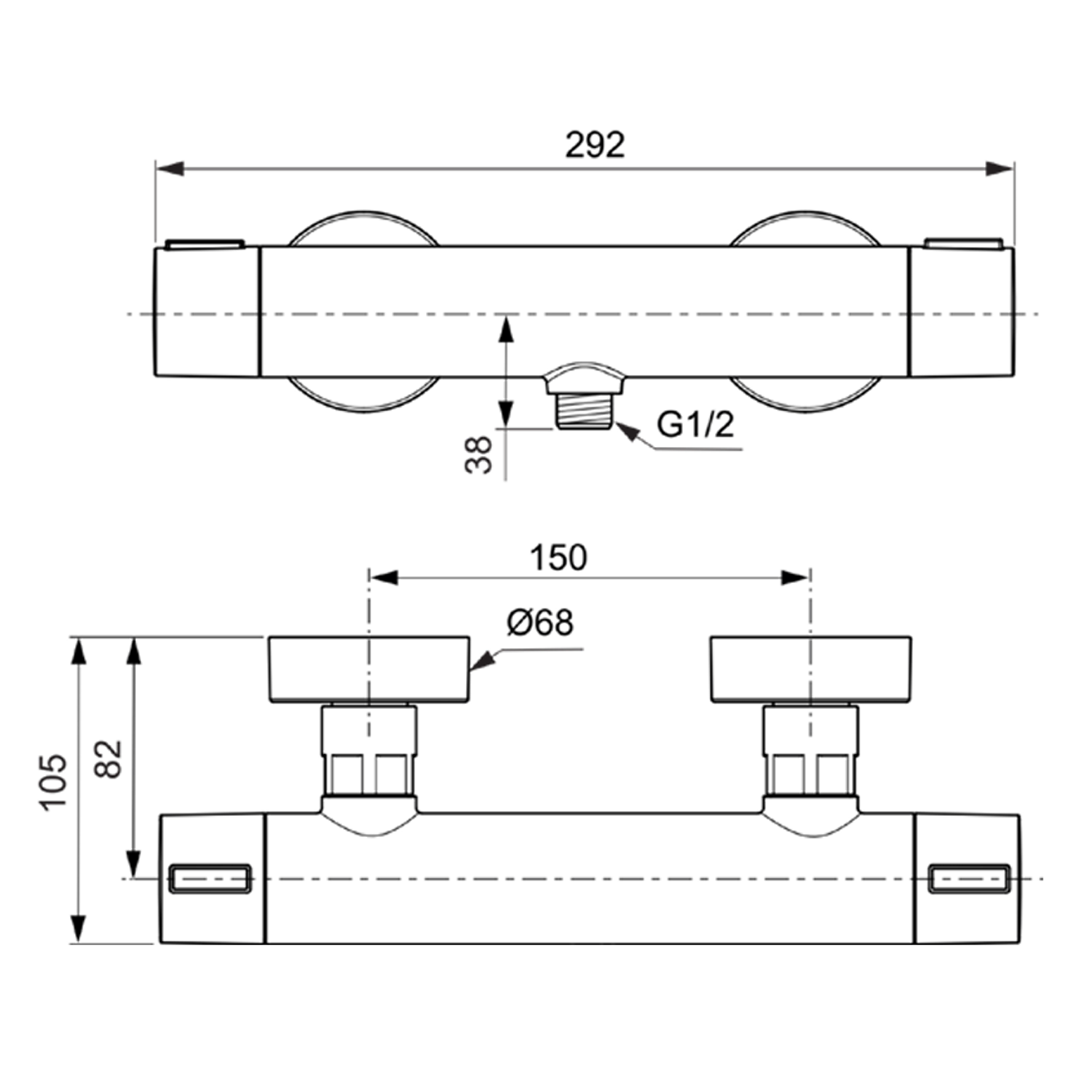

| Width (mm) | 292 |
|---|---|
| Height (mm) | 72 |
| Depth (mm) | 105 |
| Projection (mm) | 105 |
| Pipe Centres (mm) | 150 |
| Minimum Water PressureMore information | 0.5 |
|---|
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
