Sagittarius Ergo Concentric 1 Outlet Concealed Thermostatic Shower Valve

Rated 5.00/5 from 1 customer review

RRP £486 save 30%

£339.99

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £113.33 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £85.00 with Clearpay Learn more about Clearpay

What's great about it?

  • Sleek concealed 1 outlet design
  • Minimum water pressure: 0.5 bar
  • WRAS & TMV2 approved
  • 10 year manufacturer's guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Sagittarius Ergo Concentric 1 Outlet Concealed Thermostatic Shower Valve

The Sagittarius Ergo concealed thermostatic shower valve is part of the sleek Sagittarius Ergo Range designed to look great with a modern décor with the added benefit of being easy to use.

Features:
  • Modern Concealed one outlet shower valve
  • Anti-scald function thanks to thermostatic cartridge
  • Temperature pre-set maximum at 62.7 degree celsius
  • 0.5 bar minimum operating pressure suitable for medium and high pressure systems
  • WRAS and TMV2 approved
  • Complies with BSEN 1111
  • 10 year manufacturer's guarantee

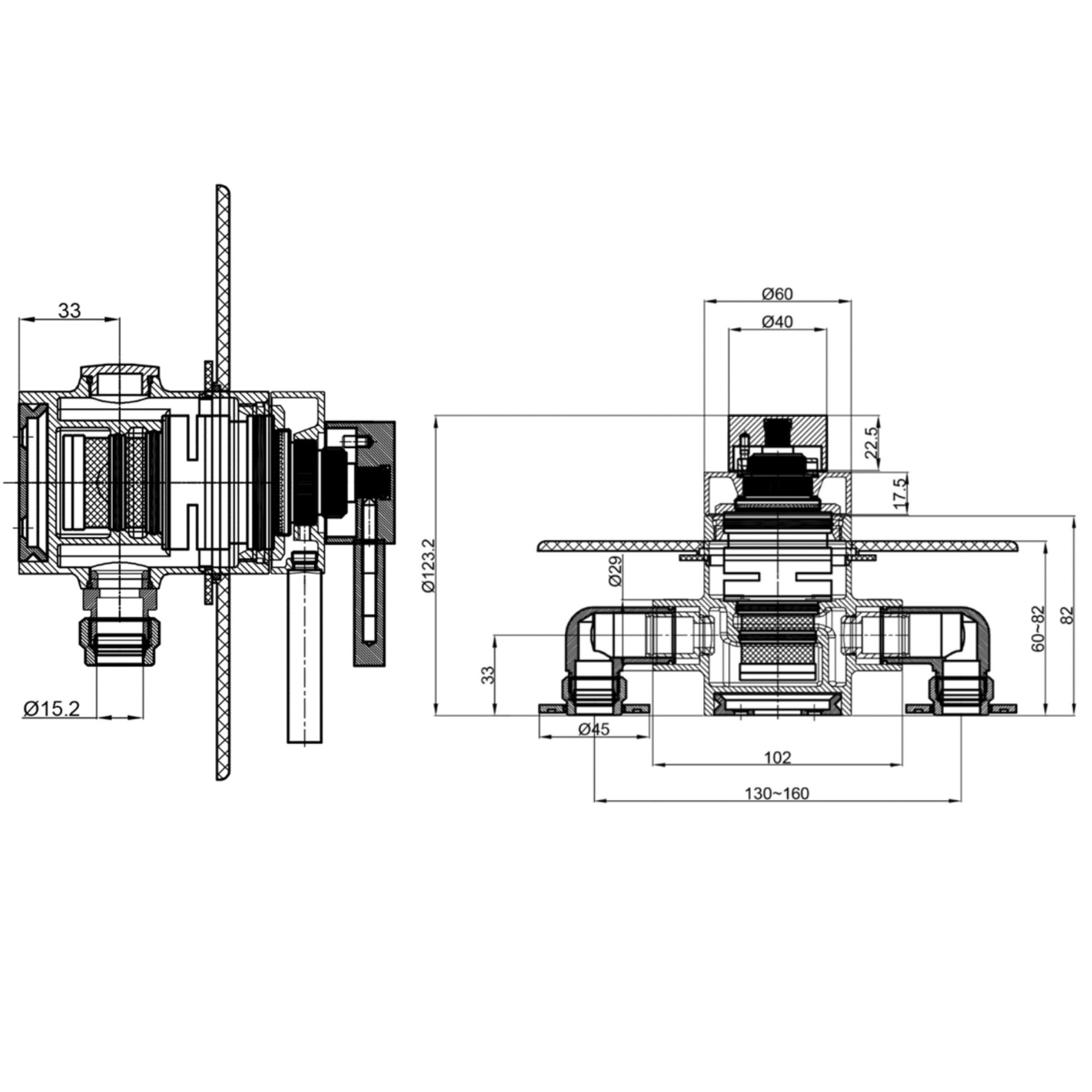

Dimensions:
  • Height: 196.1mm
  • Width: 196.1mm
  • Pipe Centres: 130-160mm

Product Overview
Product Code EL/574/C
Type Concealed Shower Valves
Brand Sagittarius
Brand Range Sagittarius Ergo
GuaranteeMore information 10 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Number of Outlets 1 Outlet
Temperature Control Thermostatic
Style
Mounting Type Wall Mounted
Finish Polished Chrome
Shape Round
Handle Type Lever, Round, Dual Control
Texture Polished
Style Modern
Orientation Landscape, Portrait
Dimensions
Width (mm) 196
Height (mm) 196
Flow Rate
Flow Rate at 0.5 Bar (l/min) 5.7
Flow Rate at 1 Bar (l/min) 12.4
Flow Rate at 2 Bar (l/min) 19.6
Flow Rate at 3 Bar (l/min) 25
Flow Rate at 4 Bar (l/min) 29.6
Flow Rate at 5 Bar (l/min) 33
Minimum Water PressureMore information 0.5

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.

(1)
Rated 5.00/5 from 1 customer review

£339.99
