Valve Features:
Crossbox Features:
- Made from high grade 316 stainless steel which offers more resistance against corrosion than 304 steel
- The extra corrosion resistance makes grade 316 stainless steel more suitable for use in the bathroom where the steel will get wet
- The brushed stainless steel finish also makes the 3ONE6 range less prone to fingerprints
- Three outlet shower valve - ideal for pairing with the 3ONE6 200mm or 300mm fixed shower head and a 3ONE6 mini shower kit
- Intricately detailed handles allow for easy use, even with wet hands
- Thermostatic technology provided by Vernet cartridges keeps the temperature exactly where you set it, even if the pressure fluctuates
- WRAS Approved - read more about the WRAS approval scheme in our blog
- Suitable for portrait mounting only
- Minimum 1 bar water pressure required
- 15 year guarantee from Crosswater 15 year guarantee from Crosswater (subject to online registration - please click here)
Crossbox Features:
- Front or rear mounting options and clearly marked depth guides for a quick and easy installation
- Built-in "easy switch" thermostatic module allows for simple, quick flow reversal if feeds are plumbed in the wrong way round
- Two stage fixing allows the installation of the in-wall components and final trim separately
- Improved flow dynamics allow 90-degree elbows to be fitted directly to outlets to create a more compact piping footprint
- Slimline installation depth of 60mm (maximum 85mm)
- Super slim 60mm minimum installation depths requires reduced solid wall preparation for quicker installation time
- 'Flush-block' testing plate included for easy pressure testing
- Quietest Crosswater shower available
| Product Code | cw-3one6-3-outlet-valve-bp |
|---|---|
| Global Trade Item Number | 5056553403718 |
| Type | Concealed Shower Valves |
| Brand | Crosswater |
| Brand Range | Crosswater 3ONE6 |
| Guarantee |
15 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Material | 316 Stainless Steel |
|---|---|
| Number of Outlets | 3 Outlets |
| Temperature Control | Thermostatic |
| Mounting Type | Wall Mounted |
|---|---|
| Finish | Stainless Steel |
| Shape | Square |
| Handle Type | Lever |
| Texture | Brushed |
| Style | Modern |
| Orientation | Portrait |

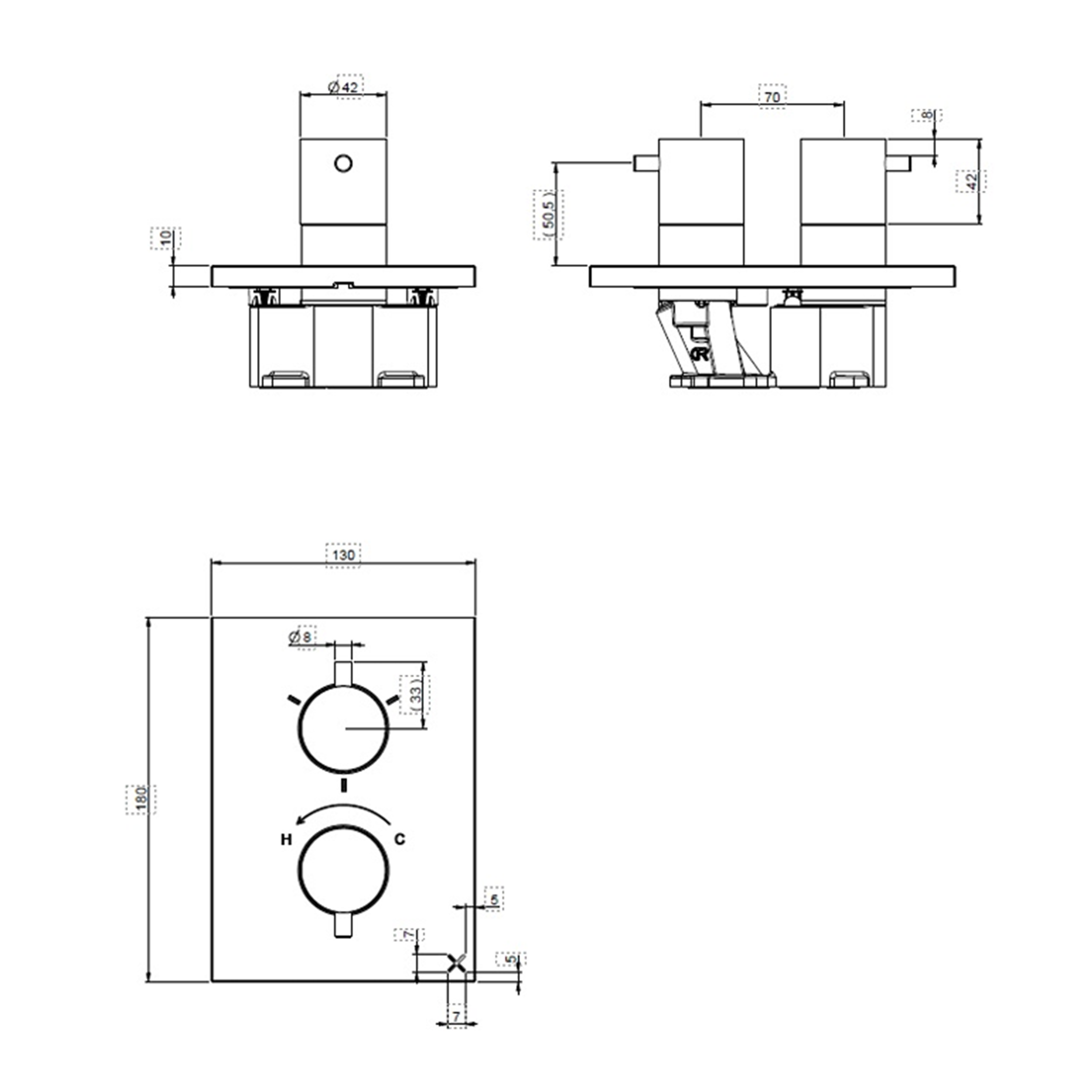

| Width (mm) | 130 |
|---|---|
| Height (mm) | 180 |
| Flow Rate at 1 Bar (l/min) | 11.6 |
|---|---|
| Flow Rate at 2 Bar (l/min) | 16.6 |
| Flow Rate at 3 Bar (l/min) | 20.5 |
| Flow Rate at 4 Bar (l/min) | 23.8 |
| Flow Rate at 5 Bar (l/min) | 26.6 |
| Minimum Water Pressure |
1 |
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
