This Sagittarius Churchman wall mounted three hole bath gold is ideal for bathrooms of all designs and colour schemes. The taps are a classical Italian design, with hot and cold labels to avoid confusion. The central gold-plated spout gradually widens towards the mouth, giving you more efficient water delivery.
| Technical Specifications |
|---|
| Cleaning Instructions |
| Product Code | CH-127-G |
|---|---|
| Type | Bath Fillers, Concealed Bath Taps |
| Brand | Sagittarius |
| Brand Range | Sagittarius Churchman |
| Number of Outlets | 1 Outlet |
|---|---|
| Temperature Control | Manual |
| Cartridge TypeMore information | Compression Washer |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
| Mounting Type | Wall Mounted |
|---|---|
| Finish | Polished Gold |
| Shape | Round |
| Handle Type | Crosshead, Dual Control |
| Spout Type | Curved Spout |
| Texture | Polished |
| Tap Holes | 3 Holes |
| Style | Traditional |

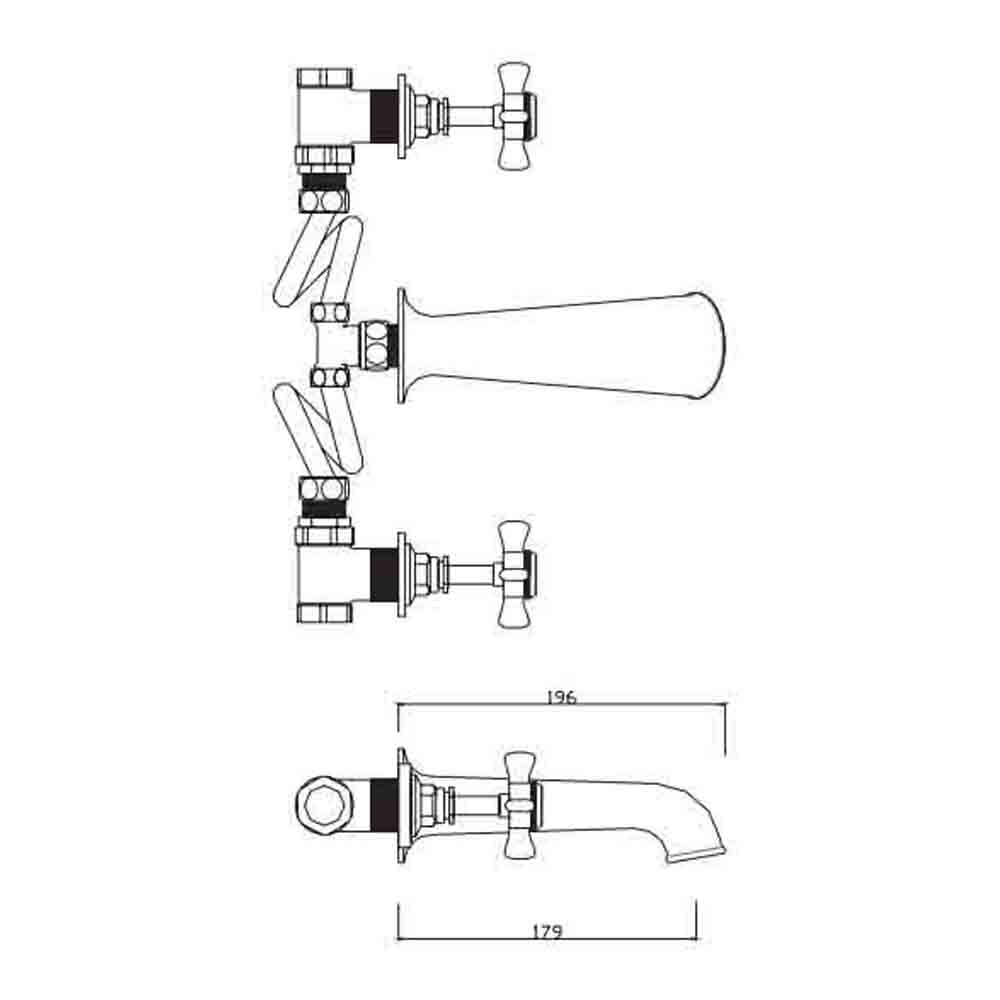

| Projection (mm) | 179 |
|---|
| Minimum Water PressureMore information | 0.2 |
|---|
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
