nuie Sinclair Waterfall Bath Mixer Tap with Shower Kit

No reviews yet - Write one

RRP £336 save 52%


Loading delivery estimate...

Pay 3 interest-free instalments of £53.33 with Klarna Learn more about Klarna
Pay 4 interest-free instalments of £40.00 with Clearpay Learn more about Clearpay

What's great about it?

  • Deck-mounted bath shower mixer and handset with angular design to suit modern bathrooms
  • Manufactured from reliable solid brass and finished in Polished Chrome adding sleek appeal

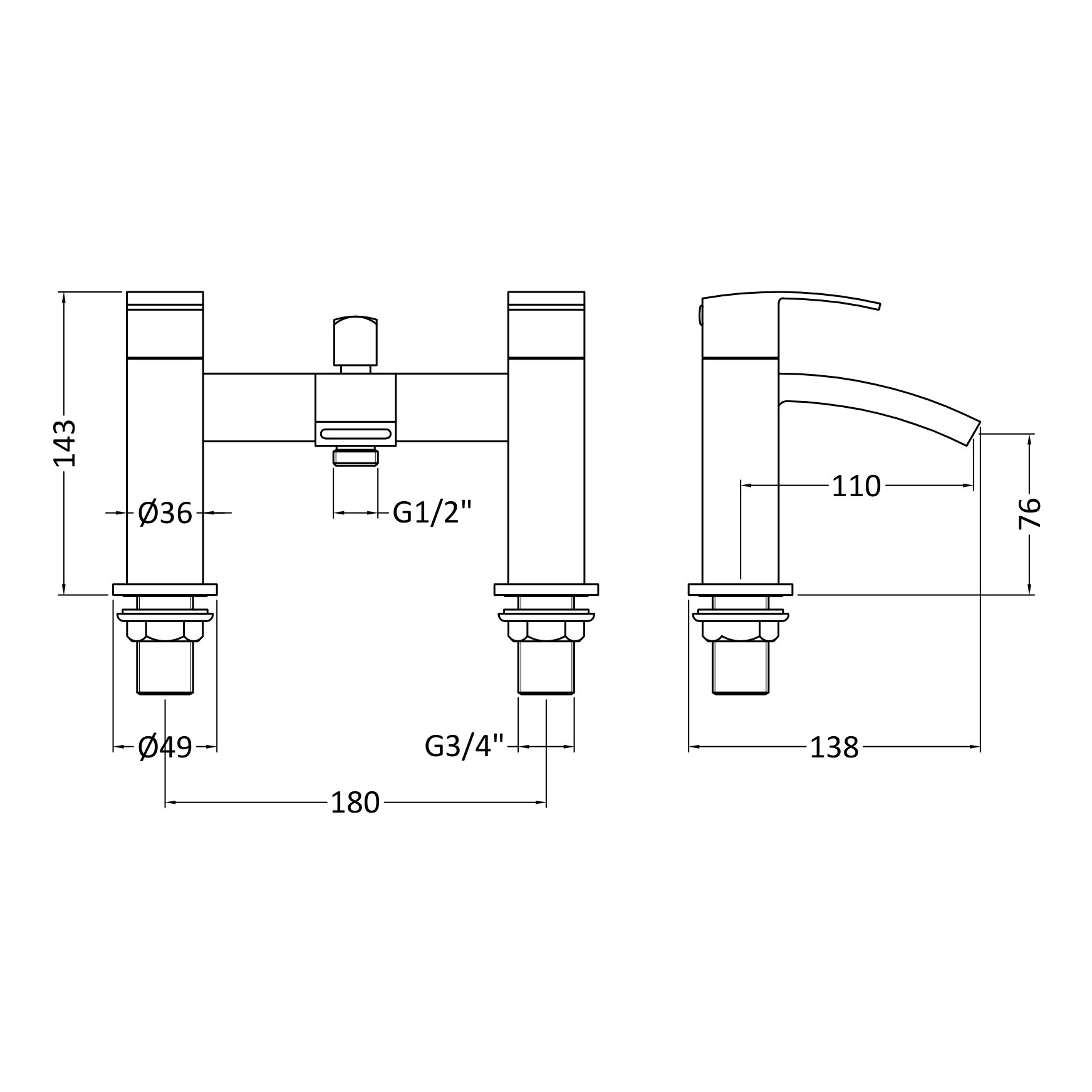

  • H: 154mm, W: 230mm, D: 157mm
  • Fitted with ceramic disc valve technology for easy turning and leak-free longevity
  • Waterfall spout opening produces a graceful, fanned flow of water when in use

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the nuie Sinclair Waterfall Bath Mixer Tap with Shower Kit

When you update your bath with the nuie Sinclair Bath Shower Mixer with Shower Kit & Wall Bracket, you are adding value to your room both monetarily and emotionally. Nothing is more relaxing than a spa-like bath and this mixer gives you that high-end look at a price that you can afford.

The bath shower mixer includes:
  • Fixed bath spout with waterfall-style flow
  • 2 hole deck-mounted bridge mixer with hose attachment
  • Single function microphone handshower
  • Wall bracket handset holder
  • Twin lever for independent control over hot & cold water supply
  • Integrated diverter to switch from bath filler to shower outlet
  • Flexible shower hose

  • Clear and clean lines with ultra-modern waterfall spout
  • Crafted from hard-wearing brass and ABS with anti-corrosion high-shine chrome finish
  • Quarter turn ceramic disc technology for ease of operation and extended life span
  • Minimum 0.2 bar water pressure is recommended
  • Supplied with deck plate and fitting kit
  • Waste sold separately
  • 5 year warranty

Product Overview
Product Code TSI304
Global Trade Item Number 5055369025541
Type Bath Shower Mixers, Bridge Bath Taps
Brand nuie
Brand Range nuie Sinclair
GuaranteeMore information 5 Years


All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Number of Outlets 2 Outlets
Temperature Control Manual
Cartridge TypeMore information Ceramic Disc

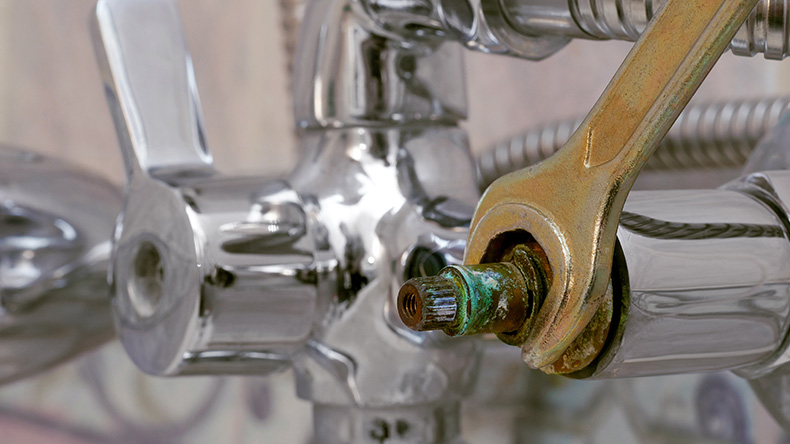

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Mounting Type Deck Mounted
Finish Polished Chrome
Shape Square, Microphone
Handle Type Lever, Dual Control
Spout Type Waterfall Spout, Curved Spout
Texture Polished
Tap Holes 2 Holes
Style Modern
Height (mm) 143
Projection (mm) 138
Flow Rate
Flow Rate at 0.1 Bar (l/min) 8
Flow Rate at 0.5 Bar (l/min) 24
Flow Rate at 1 Bar (l/min) 34
Minimum Water PressureMore information 0.2

Minimum Water Pressure

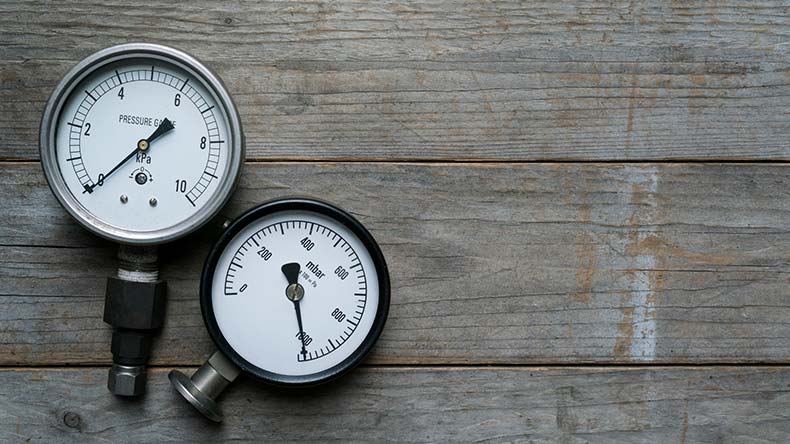

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
