Hudson Reed Tec Crosshead 3 Hole Basin Mixer

Rated 4.80/5 from 5 customer reviews

RRP £212.00 save 48%

£109.99

In stock | Get it tomorrow

Order by 4pm and select Next Day (S)

Delivery from £3.99. Spend £250+ for free delivery*. Read full delivery info

What's great about it?

  • Swan neck basin mixer with twin crosshead handles for improved temperature control
  • Hard-wearing brassware with corrosion-resistant chrome plating
  • Quarter turn ceramic disc valves included
  • Suitable for low water pressure systems
  • 20 year manufacturer's guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Hudson Reed Tec Crosshead 3 Hole Basin Mixer

Hudson Reed Tec Crosshead 3 Tap Hole Basin Mixer


Hudson Reed's Tec three tap hole basin mixer delivers once again with unique design and solid construction to help set your look. The old school design of the taps and longer faucet bring distinction, while the quality build and pop-up waste ensure high efficiency.

Features
• Chrome finish
• Swivel spout
• Ceramic disc technology
• Minimum water pressure required 0.1 bar
• Waste included
• Supplied with rigid inlet connectors
• 20 year manufactures guarantee
Downloads Product PDF
Product Code TEX337
Global Trade Item Number 5055146192015
Type 3 Hole Basin Mixers
Brand Hudson Reed
Brand Range Hudson Reed Tec Crosshead
Minimum Water PressureMore information 0.1
Shape Round
Finish Polished Chrome
Style Modern
Mounting Type Deck Mounted
Tap Holes 3 Holes
Spout Type Swan Neck Spout, Swivel Spout
Handle Type Crosshead, Dual Control
Cartridge TypeMore information Ceramic Disc

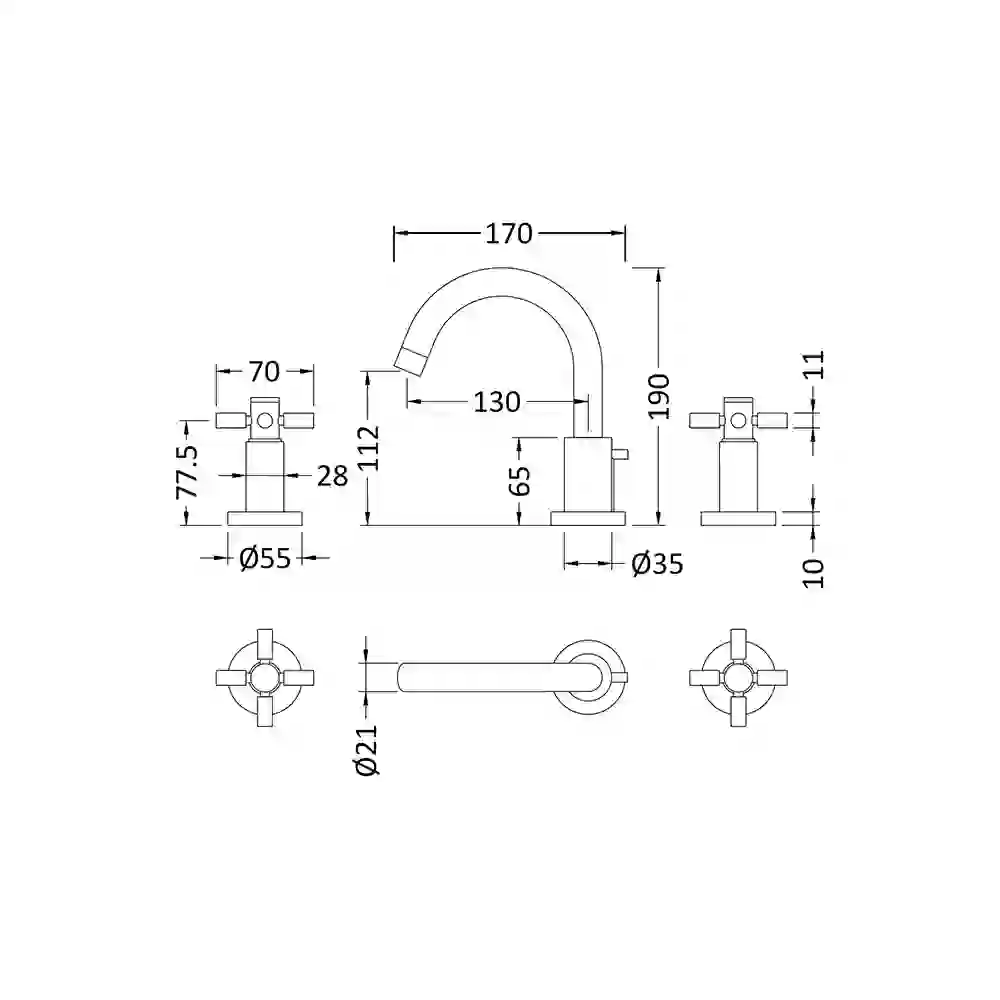

Height (mm) 190
Width (mm) 170
Projection (mm) 130
GuaranteeMore information 20 Years
Flow Rate at 0.1 Bar (l/min) 4
Flow Rate at 0.5 Bar (l/min) 14
Flow Rate at 1 Bar (l/min) 22
Flow Rate at 2 Bar (l/min) 28
Flow Rate at 3 Bar (l/min) 32

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

Guarantee

All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.
