Hudson Reed Tec Crosshead 4 Hole Deck Mounted Bath Shower Mixer with Pull Out Handset

Rated 4.33/5 from 6 customer reviews

RRP £388 save 51%


Loading delivery estimate...

Pay 3 interest-free instalments of £63.33 with Klarna Learn more about Klarna
Pay 4 interest-free instalments of £47.50 with Clearpay Learn more about Clearpay

What's great about it?

  • Deck-mounted bath shower mixer with modern, minimalist design to suit contemporary baths
  • Manufactured from reliable solid brass and finished in Polished Chrome adding sleek appeal

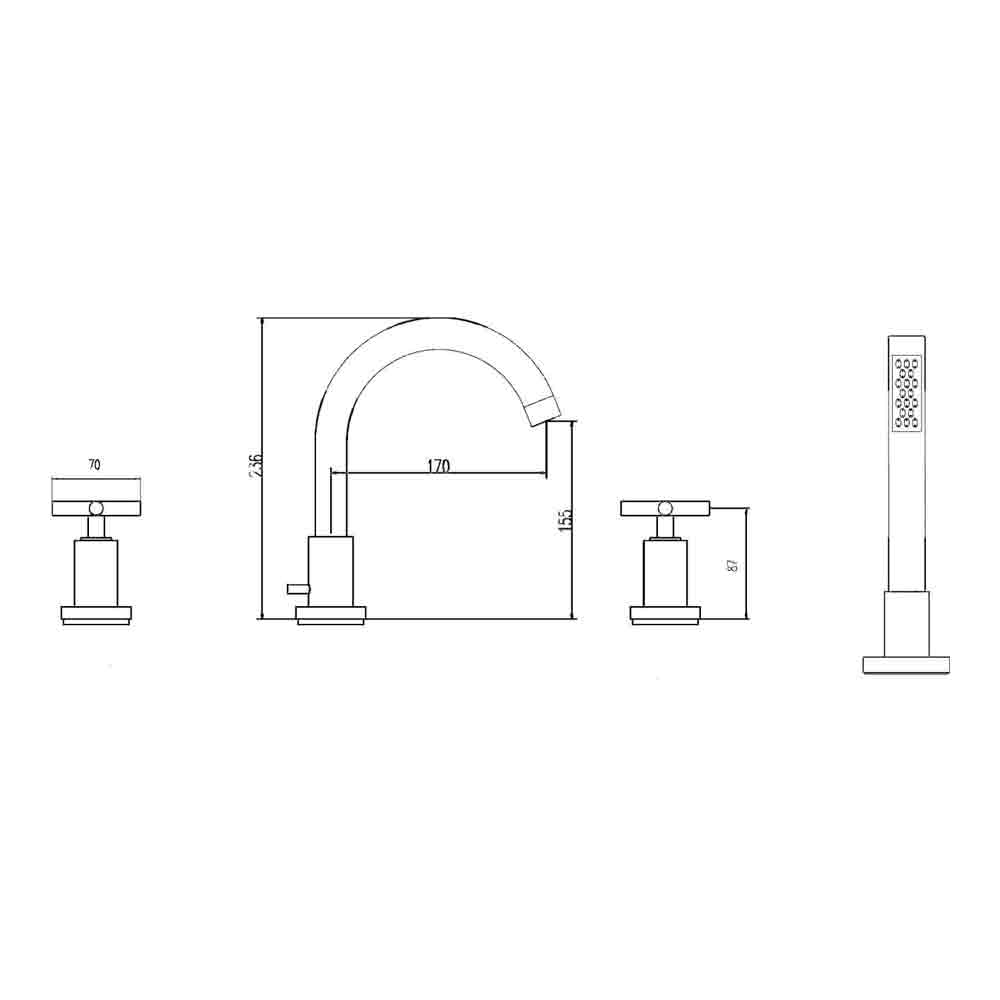

  • H: 236mm, W: 345mm, D: 207mm
  • Fitted with ceramic disc valve technology for easy turning and leak-free longevity
  • Recessed ledge mounting allows shower hose to retract and stay hidden when not in use

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Hudson Reed Tec Crosshead 4 Hole Deck Mounted Bath Shower Mixer with Pull Out Handset

Hudson Reed's Tec 4 tap hole bath mixer fixture is a complete set of products that will complete your bathroom in simple style. From the easy operability of the tap design to the handy hidden hose style of the shower kit retainer, this is the perfect product for any home owner who doesn't want their bathroom cluttered with gadgetry.

  • 4 piece bath set
  • Timeless symmetric design with crosshead handles
  • Crafted from durable brass with anti-corrosion polished chrome finish
  • Quarter turn ceramic disc technology for a smooth and leak-free performance
  • 2-way divert lever integrated into rear of spout
  • Pull out handshower with hose retainer
  • Independent control over hot and cold water supply
  • Minimum 1.0 bar water pressure is recommended
  • Includes flexible hose and fitting kit
  • Waste sold separately
  • 20 year warranty

PDF Product PDF
Product Overview
Product Code TEX334
Global Trade Item Number 5055146192039
Type Bath Shower Mixers, Concealed Bath Taps
Brand Hudson Reed
Brand Range Hudson Reed Tec Crosshead
GuaranteeMore information 20 Years


All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.

Number of Outlets 2 Outlets
Temperature Control Manual
Cartridge TypeMore information Ceramic Disc
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Mounting Type Deck Mounted
Finish Polished Chrome
Shape Round, Microphone
Handle Type Crosshead, Dual Control
Spout Type Swan Neck Spout
Texture Polished
Tap Holes 4 Holes
Style Modern
Width (mm) 70
Height (mm) 236
Projection (mm) 170
Flow Rate
Minimum Water PressureMore information 1

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
