Hudson Reed Tec Lever Deck Mounted Bath Shower Mixer with Handset Kit

No reviews yet - Write one

RRP £292.00 save 49%

£149.99

Estimated delivery 3-7 working days Help?

Too long to wait? View similar products with next day shipping

Delivery from £3.99. Spend £250+ for free delivery*. Read full delivery info

What's great about it?

  • Deck-mounted bath shower mixer with modern lever handles, ideal in contemporary bathrooms
  • Manufactured from reliable solid brass and finished in Polished Chrome adding sleek appeal

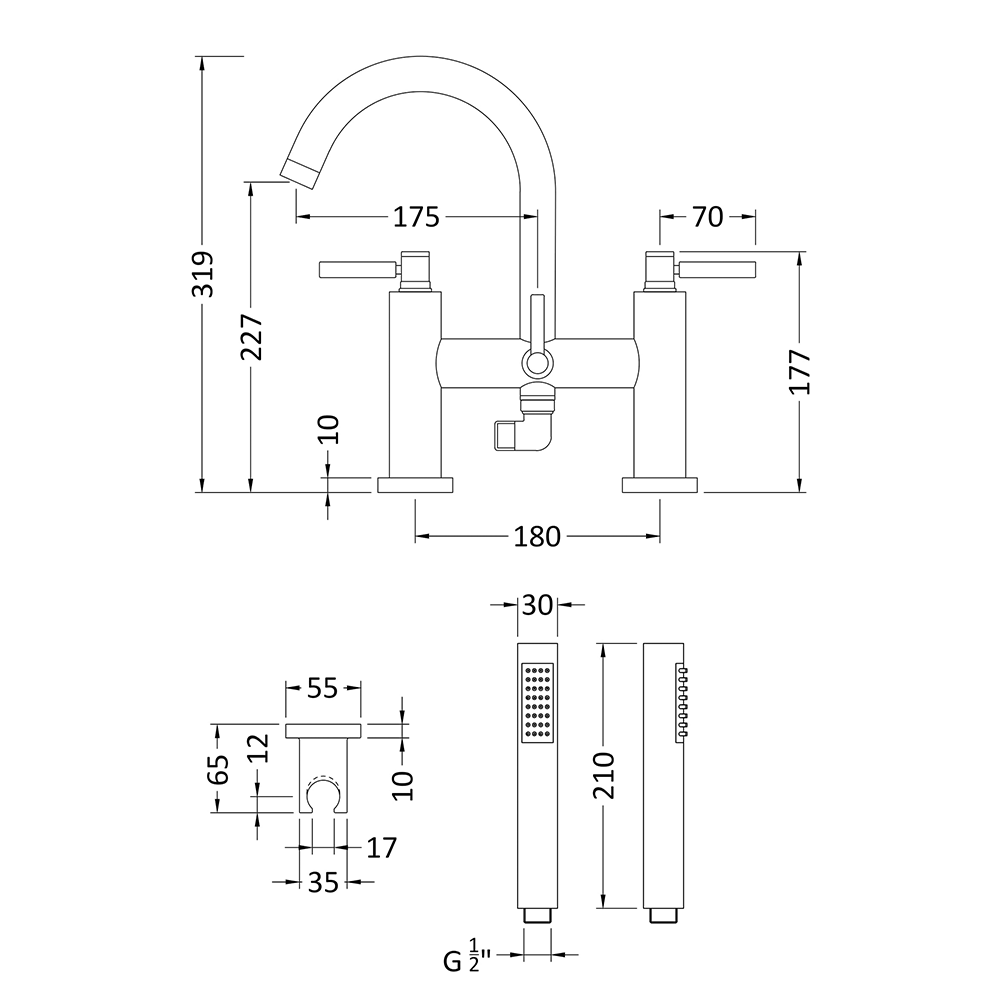

  • H: 319mm x W: 180mm
  • Fitted with ceramic disc valve technology for easy turning and leak-free longevity
  • Separate hot and cold water flows allows for easier control over your bath's temperature

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Hudson Reed Tec Lever Deck Mounted Bath Shower Mixer with Handset Kit

Hudson Reed Tec Lever Deck Mounted Bath Shower Mixer with Handset Kit


The Hudson Reed Tec bath shower mixer delivers a complete fixture for your bathing experience with a layout that makes it stand alone. The long necked small spout tap stands guard over the chrome of the taps, while the shower extension notches easily in to a separate wall bracket that helps to keep everything less obtrusive.

The bath shower mixer includes:
• Swivel swan-neck bath spout
• 2 tap hole deck-mounted bridge mixer
• Single function microphone handshower
• Wall bracket handset holder
• Twin levers for independent control over hot & cold water supply
• Integrated divert lever to switch from bath filler to shower outlet
• Flexible hose

Features:
• Crafted from durable brass with anti-corrosion polished chrome finish
• Quarter turn ceramic disc technology for a smooth and leak-free performance
• Minimum 0.2 bar water pressure is recommended
• Supplied with deck plate and fitting kit
• Waste sold separately
• 20 year warranty
Downloads Product PDF
Product Code TEL354
Global Trade Item Number 5055146198086
Type Bath Shower Mixers, Bridge Bath Taps
Brand Hudson Reed
Brand Range Hudson Reed Tec Lever
Minimum Water PressureMore information 0.2
Shape Round, Microphone
Finish Polished Chrome
Style Modern
Mounting Type Deck Mounted
Tap Holes 2 Holes
Spout Type Swan Neck Spout
Handle Type Lever, Dual Control
Cartridge TypeMore information Ceramic Disc
Temperature Control Manual
Number of Outlets 2 Outlets
Height (mm) 319
Projection (mm) 175
GuaranteeMore information 20 Years
Flow Rate at 0.1 Bar (l/min) 7
Flow Rate at 0.5 Bar (l/min) 22
Flow Rate at 1 Bar (l/min) 29
Flow Rate at 2 Bar (l/min) 39
Flow Rate at 3 Bar (l/min) 44

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

Guarantee

All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.
