Hudson Reed Tec Lever 4 Hole Deck Mounted Bath Shower Mixer with Pull Out Handset

Rated 3.86/5 from 7 customer reviews

RRP £311.00 save 49%

£159.99

In stock | Get it tomorrow

Order by 4pm and select Next Day (S)

Delivery from £3.99. Spend £250+ for free delivery*. Read full delivery info

What's great about it?

  • Deck-mounted bath shower mixer with modern, minimalist design to suit contemporary baths
  • Manufactured from reliable solid brass and finished in Polished Chrome adding sleek appeal

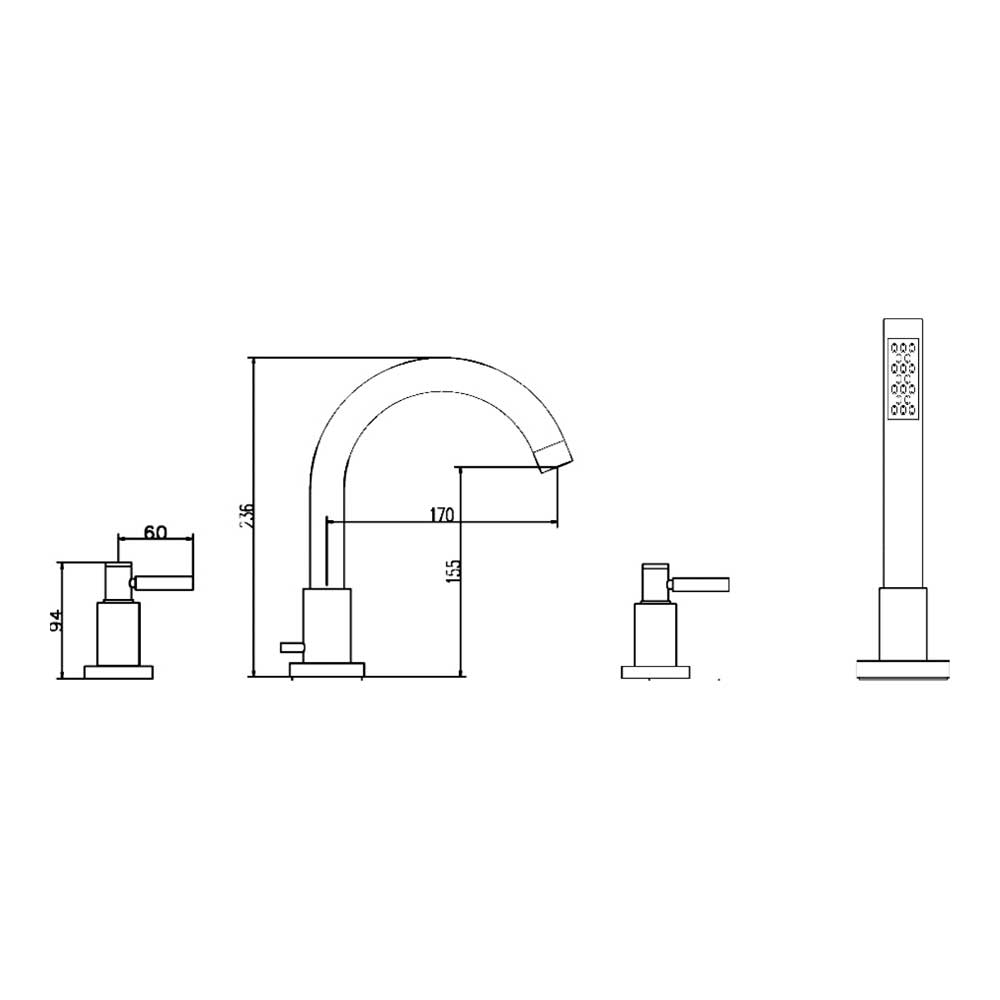

  • H: 237mm, W: 325mm, D: 207mm
  • Fitted with ceramic disc valve technology for easy turning and leak-free longevity
  • Recessed ledge mounting allows shower hose to retract and stay hidden when not in use

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Hudson Reed Tec Lever 4 Hole Deck Mounted Bath Shower Mixer with Pull Out Handset

Hudson Reed Tec Lever 4 Hole Deck Mounted Bath Shower Mixer with Pull Out Handset


The Hudson Reed Tec Lever 4 Piece Bath Filler Set brings the complete package to your bathroom. The swivel swan neck spout adds a graceful slope to your bathroom appearance. Simplicity of design is truly the winner here.

Features:
• 4 piece bath set
• Timeless symmetric design with lever handles
• Crafted from durable brass with anti-corrosion polished chrome finish
• Quarter turn ceramic disc technology for a smooth and leak-free performance
• 2-way divert lever integrated into rear of spout
• Pull out handshower
• Independent control over hot and cold water supply
• Minimum 1.0 bar water pressure is recommended
• Waste sold separately
• 20 year warranty
Downloads Product PDF
Product Code TEL334
Global Trade Item Number 5055146192084
Type Bath Shower Mixers, Concealed Bath Taps
Brand Hudson Reed
Brand Range Hudson Reed Tec Lever
Minimum Water PressureMore information 1
Shape Round, Microphone
Finish Polished Chrome
Style Modern
Mounting Type Deck Mounted
Tap Holes 4 Holes
Spout Type Swan Neck Spout
Handle Type Lever, Dual Control
Cartridge TypeMore information Ceramic Disc
Temperature Control Manual
Number of Outlets 2 Outlets
Height (mm) 236
Projection (mm) 170
GuaranteeMore information 20 Years

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

Guarantee

All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.
