Vado Phase 2 Hole Bath Filler

Rated 5.00/5 from 2 customer reviews

RRP £340.00 save 19%

£273.99

Expected delivery from 1st November Help?

Too long to wait? View similar products with next day shipping

FREE standard delivery*. Read full delivery info

What's great about it?

  • Deck-mounted bath filler bridge tap with contemporary design to suit modern bathrooms
  • Made from a solid brass core with a corrosion-resistant Polished Chrome finish

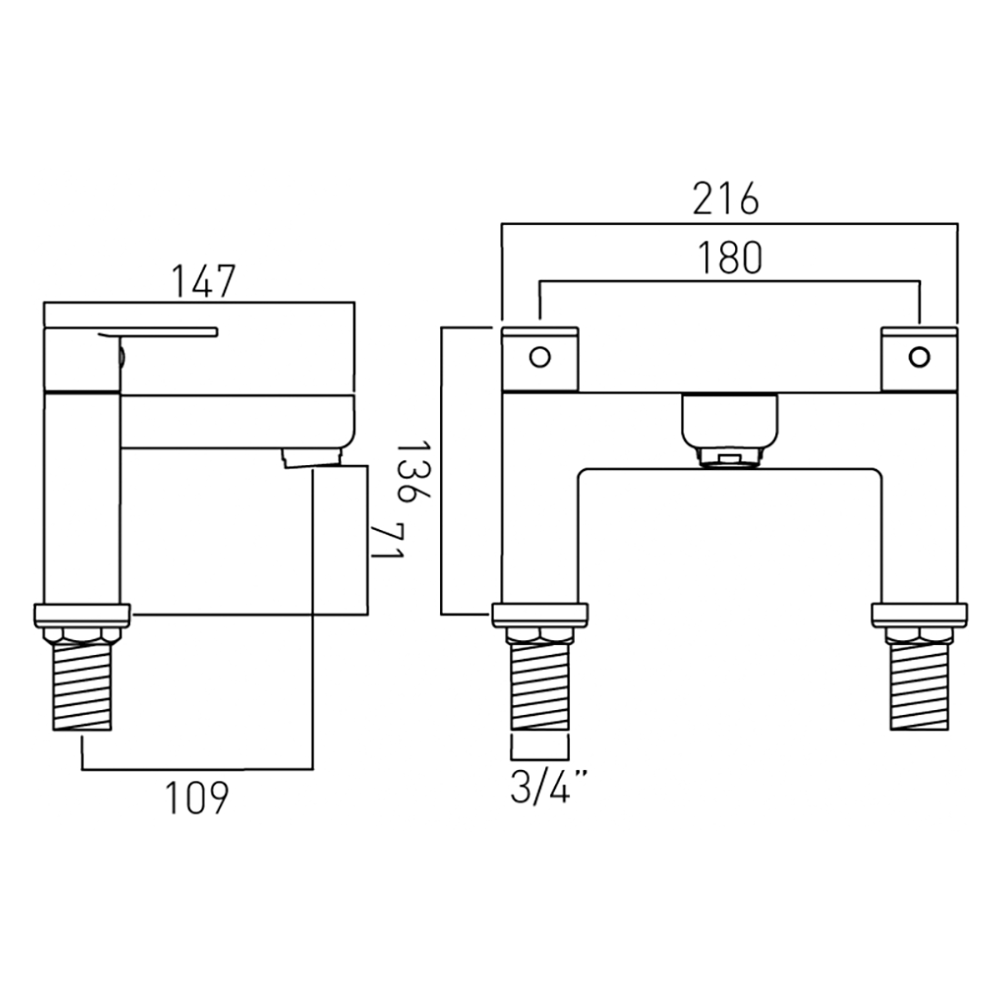

  • H: 136mm, W: 216mm, D: 147mm
  • Fitted with ceramic disc valve technology for easy turning and leak-free longevity
  • Separate hot and cold water flows allows for easier control over your bath's temperature

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Vado Phase 2 Hole Bath Filler

Vado Phase 2 Hole Bath Filler


If you cannot decide if you want something rounded or something sleek and straight, you can choose to purchase the Vado Phase 2-Hole Bath Filler. The valve bodies have a square shape and they are joined by an equally sized central piece which then extends to the bath filler. It has a pair of slim valve levers and you can experience exact control of your water temperature and flow when you choose this bath filler. Furthermore, you can heighten the style of your bathroom because it has a long-lasting and high-shine chrome-plated finish which you can easily maintain for many years!

Features:
• WRAS approved
• Twin lever for independent control over hot & cold water supply
• Quarter turn ceramic disc technology for improved performance & longer life span
• Hard wearing and durable brass construction
• Anti-corrosion high-shine chrome coating
• Minimum of 0.2 bar water pressure
• Maximum of 3.0 bar water pressure
• Waste not included
• 15 year warranty

WRAS Approved
Downloads Product PDF
Product Code PHA-137-C/P
Global Trade Item Number 5052120143766
Type Bath Fillers, Bridge Bath Taps
Brand Vado
Brand Range Vado Phase
Minimum Water PressureMore information 0.2
Shape Round, Square
Finish Polished Chrome
Style Modern
Mounting Type Deck Mounted
Tap Holes 2 Holes
Spout Type Straight Spout
Handle Type Lever, Dual Control
Cartridge TypeMore information Ceramic Disc
Temperature Control Manual
Number of Outlets 1 Outlet
Height (mm) 136
Projection (mm) 109
GuaranteeMore information 15 Years
Flow Rate at 3 Bar (l/min) 46

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

Guarantee

All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.
