Crosswater KH Zero 3 Concealed 2 Outlet Thermostatic Shower Valve - Portrait

No reviews yet - Write one

RRP £480.00 save 29%

£339.99

Estimated delivery 3-7 working days Help?

Too long to wait? View similar products with next day shipping

FREE standard delivery*. Read full delivery info

Recommended extras

We've hand-picked these items because they are a great choice alongside the Crosswater KH Zero 3 Concealed 2 Outlet Thermostatic Shower Valve - Portrait

Crosswater KH Zero 3 Concealed 2 Outlet Thermostatic Shower Valve - Portrait


Operating two outlets in your bathroom at the same time is becoming increasingly trendy, and thanks to concealed valves like Crosswater's KH Zero range, it's also increasingly easy as well. Another option is to operate it in conjuction with one of Crosswater's stunning multifunction recessed fixed shower heads, where you can get the ultimate showering experience in the comfort of your own home. The KH Zero 3 is designed to be recessed in the wall for a sleek, streamlined look and features the latest thermostatic technology for the safest possible shower.

Features:
• Minimum 0.2 bar pressure
• WRAS and TMV2 approved
• Ceramic disc technology
• Fully serviceable from the front
• Portrait orientation only
• 15 year guarantee

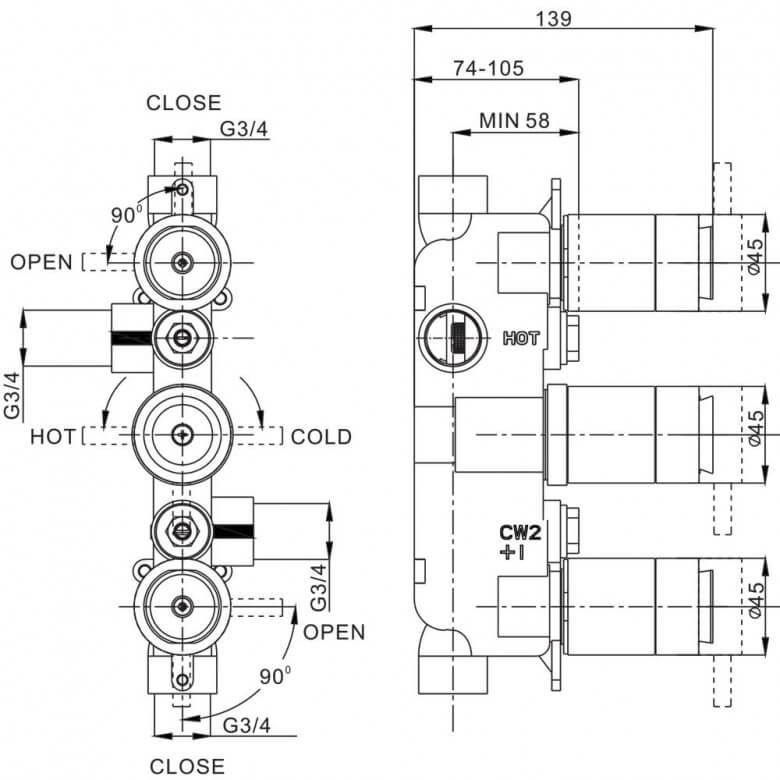

Dimensions:
• Height - 275mm
• Width - 120mm

Product Code ZR03_2000RC
Type Concealed Shower Valves
Brand Crosswater
Brand Range Crosswater KH Zero 3
Minimum Water PressureMore information 0.2
Shape Rectangular
Finish Polished Chrome
Style Modern
Mounting Type Wall Mounted
Handle Type Square, Triple Control
Cartridge TypeMore information Ceramic Disc
Temperature Control Thermostatic
Number of Outlets 2 Outlets
Orientation Portrait
Height (mm) 275
Width (mm) 120
GuaranteeMore information 15 Years

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.

Guarantee

All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.
