nuie Minimalist Lever Dual Exposed Thermostatic Shower Valve

Rated 5.00/5 from 1 customer review

RRP £486 save 52%

£234.99

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £78.33 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £58.75 with Clearpay Learn more about Clearpay

What's great about it?

  • Minimalist lever dual exposed thermostatic shower valve
  • Attractive polished chrome finish
  • Smooth round design makes it a great addition in modern and traditional bathrooms alike
  • Single control handle for temperature and water pressure control
  • Wall mounted installation

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the nuie Minimalist Lever Dual Exposed Thermostatic Shower Valve

Features:
  • Minimalist sleek design
  • Accurate flow control
  • Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • Valve can deliver 5.5 litres per minute at 0.1 bar pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from solid brass
  • 20 year guarantee

Downloads
PDF Product PDF
Product Overview
Product Code JTY026
Global Trade Item Number 5055146191193
Type Exposed Shower Valves
Brand nuie
Brand Range nuie Minimalist
GuaranteeMore information 20 Years

Guarantee

All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Number of Outlets 1 Outlet
Temperature Control Thermostatic
Style
Mounting Type Wall Mounted
Finish Polished Chrome
Shape Round
Handle Type Round, Single Control
Texture Polished
Style Modern
Orientation Landscape

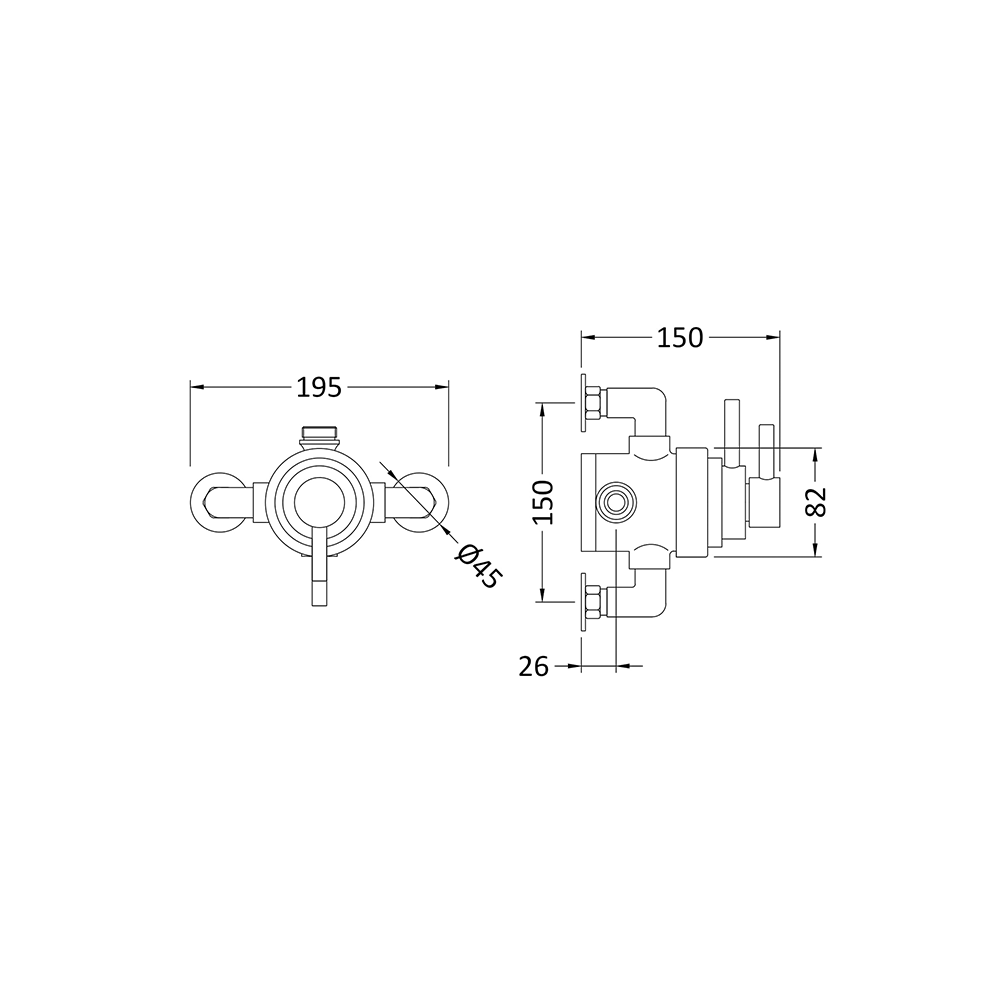

Dimensions
Width (mm) 195
Projection (mm) 150
Flow Rate
Flow Rate at 0.1 Bar (l/min) 5.5
Flow Rate at 0.5 Bar (l/min) 14.5
Flow Rate at 1 Bar (l/min) 22
Flow Rate at 2 Bar (l/min) 30
Flow Rate at 3 Bar (l/min) 35
Minimum Water PressureMore information 0.1

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
