Harbour Status Matt Black 2 Outlet Concealed Thermostatic Shower Valve

Rated 4.00/5 from 1 customer review

£199.99

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £66.66 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £50.00 with Clearpay Learn more about Clearpay

What's great about it?

  • 2 outlet concealed thermostatic shower valve
  • Matt Black finish
  • Ceramic disc technology
  • 0.2 bar minimum pressure required
  • 10 year manufacturer's guarantee

Read full product description

Recommended extras

We've hand-picked these items because they are a great choice alongside the Harbour Status Matt Black 2 Outlet Concealed Thermostatic Shower Valve

Features:
  • Modern 2 outlet concealed design with triple handle control
  • Stunning Matt Black finish
  • Thermostatic valve with auto-shut off mechanism protects you from sudden changes in temperature, helping prevent scalding
  • Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
  • Ceramic disc technology prevents any unwanted leaks or drips
  • Triple handle control - top and bottom handles direct the flow of water between outlets & the middle handle controls the water temperature
  • Interchangeable backplate design allows portrait or landscape orientation
  • Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
  • Minimum water pressure required: 0.5 bar
  • WRAS Approved
  • Complies with BSEN 1111
  • Shower head or shower handset sold separately, please see our recommended extras
  • Covered by a 10 year manufacturer’s guarantee

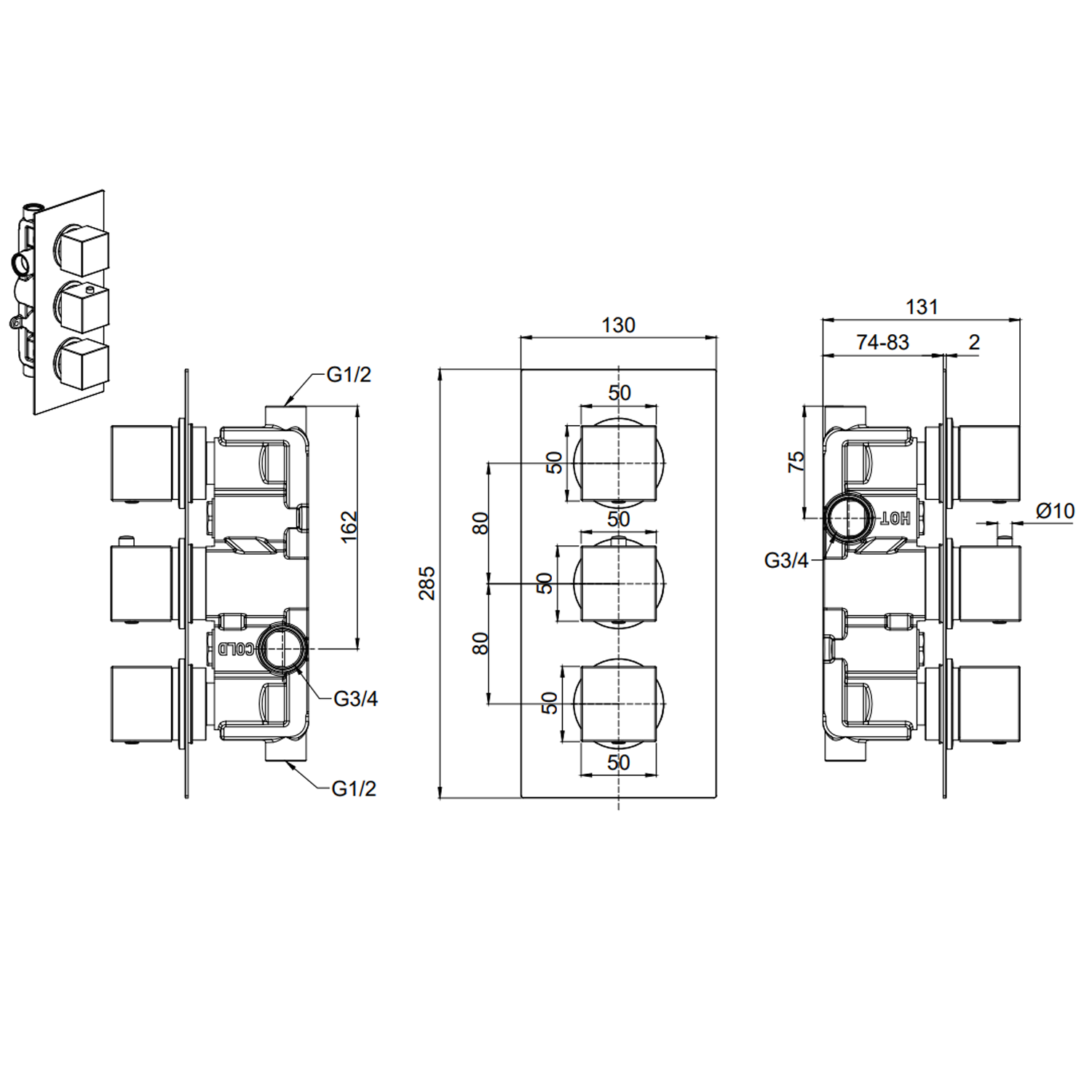

Dimensions:
  • Height: 285mm
  • Width: 130mm
  • Depth: 131mm

Flow rates:
  • 0.5 bar (l/min): 10.8
  • 1.0 bar (l/min): 15.1
  • 1.5 bar (l/min): 18.5
  • 2.0 bar (l/min): 21.2
  • 3.0 bar (l/min): 26.1
  • 4.0 bar (l/min): 30.1
  • 5.0 bar (l/min): 33.7

Product Overview
Product Code HBSTAT57
Global Trade Item Number 5060500644222
Type Concealed Shower Valves
Brand Harbour
Brand Range Harbour Status
GuaranteeMore information 10 Years

Guarantee

All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material Brass, Stainless Steel
Number of Outlets 2 Outlets
Temperature Control Thermostatic
Cartridge TypeMore information Ceramic Disc
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Style
Mounting Type Wall Mounted
Finish Matt Black
Shape Square
Handle Type Square, Triple Control
Texture Matt
Style Modern
Orientation Landscape, Portrait
Dimensions
Width (mm) 130
Height (mm) 285
Depth (mm) 131
Flow Rate
Flow Rate at 0.2 Bar (l/min) 7.3
Flow Rate at 0.5 Bar (l/min) 10.8
Flow Rate at 1 Bar (l/min) 15.1
Flow Rate at 1.5 Bar (l/min) 18.5
Flow Rate at 2 Bar (l/min) 21.2
Flow Rate at 3 Bar (l/min) 26.1
Flow Rate at 4 Bar (l/min) 30.1
Flow Rate at 5 Bar (l/min) 33.7
Minimum Water PressureMore information 0.2

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
