Features:
Shower valve dimensions:
200mm shower head dimensions:
300mm shower head dimensions:
Flow rates:

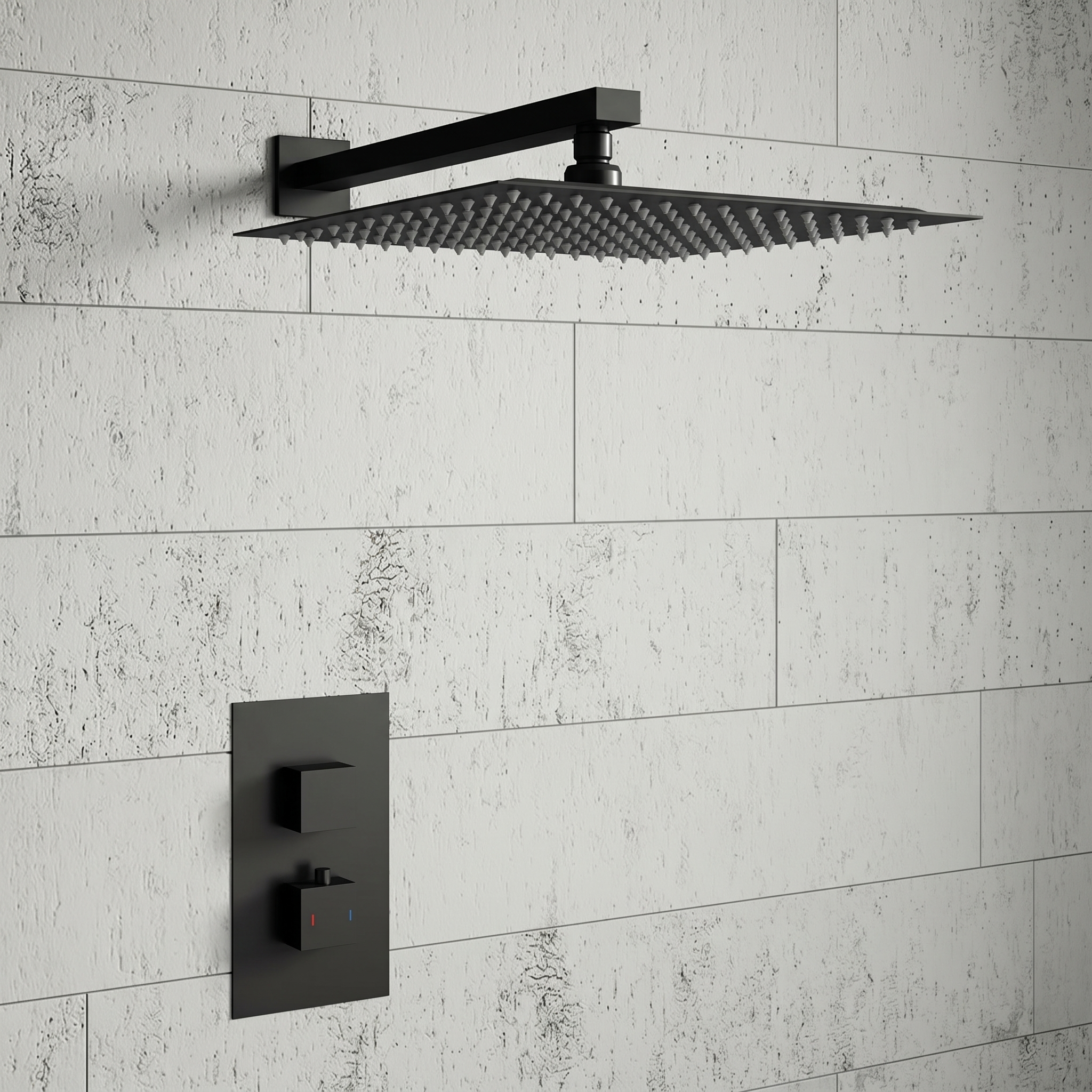

- 1 outlet concealed thermostatic shower valve with wall mounted shower arm and either a 200mm or 300mm shower head
- Shower arm is made from Brass with a Matt Black finish
- Shower head is made from Stainless Steel with easy clean nozzles
- Thermostatic valve protects you from sudden changes in temperature, helping prevent scalding
- Ceramic disc technology prevents any unwanted leaks or drips
- Interchangeable backplate design allows portrait or landscape orientation
- WRAS approved

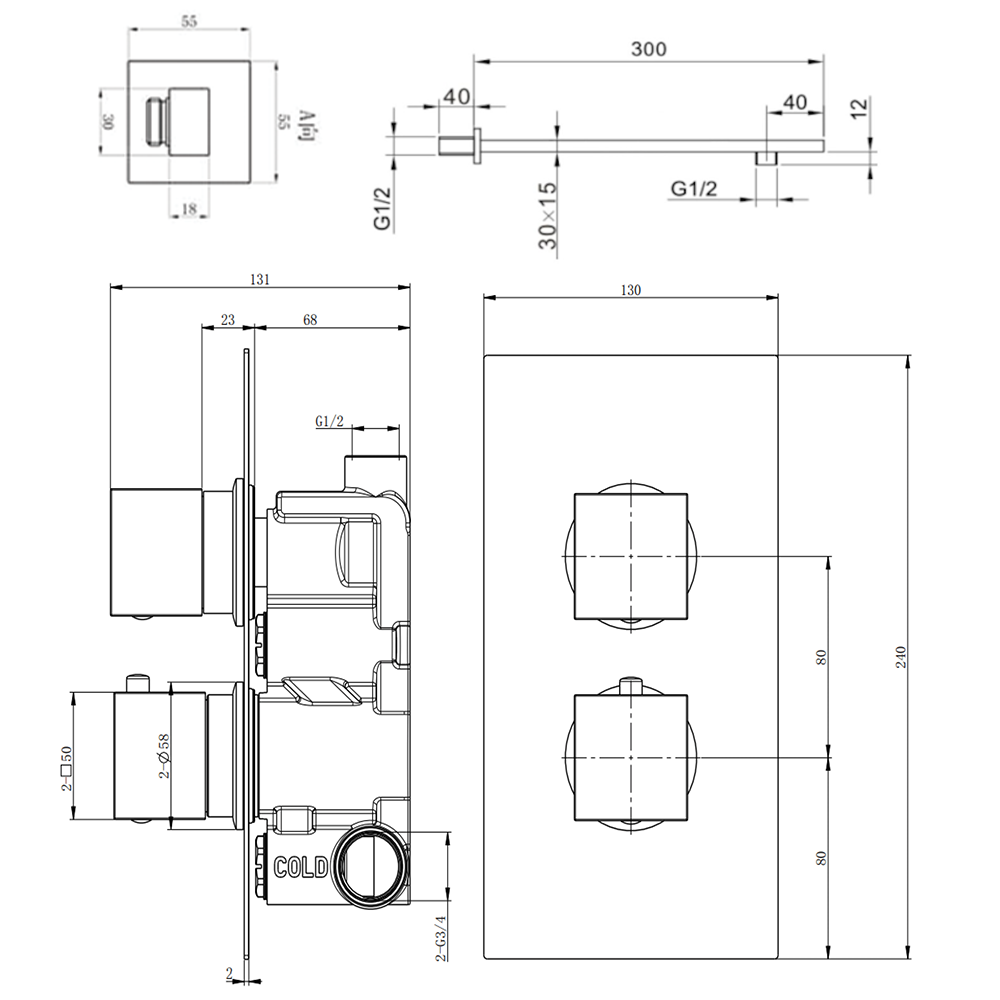

Shower valve dimensions:
- Height - 130mm
- Width - 240mm
- Depth - 131mm

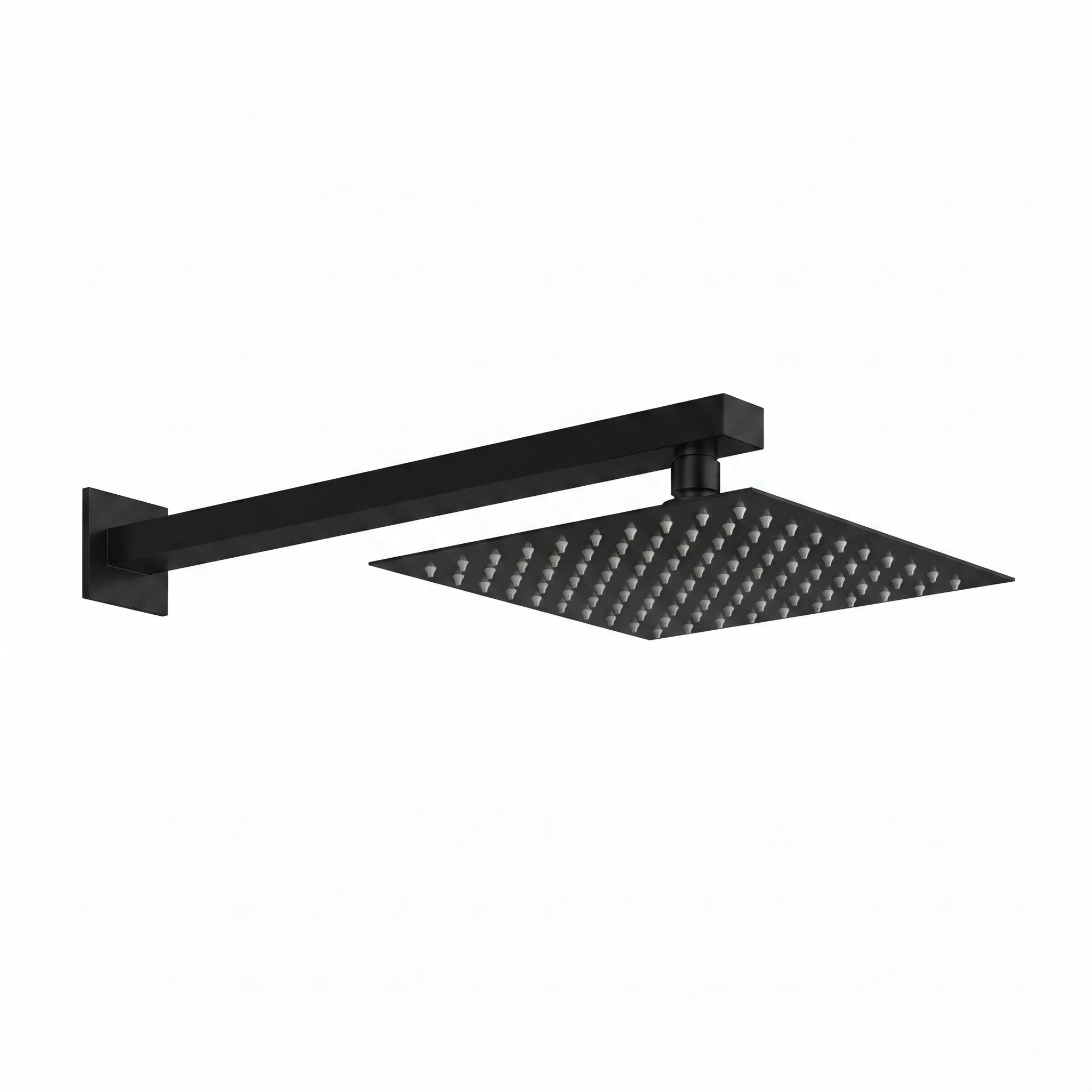

200mm shower head dimensions:
- Height: 47.5mm
- Depth: 200mm
- Width: 200mm
- Minimum pressure required for shower valve and 200mm shower head: 0.5 bar

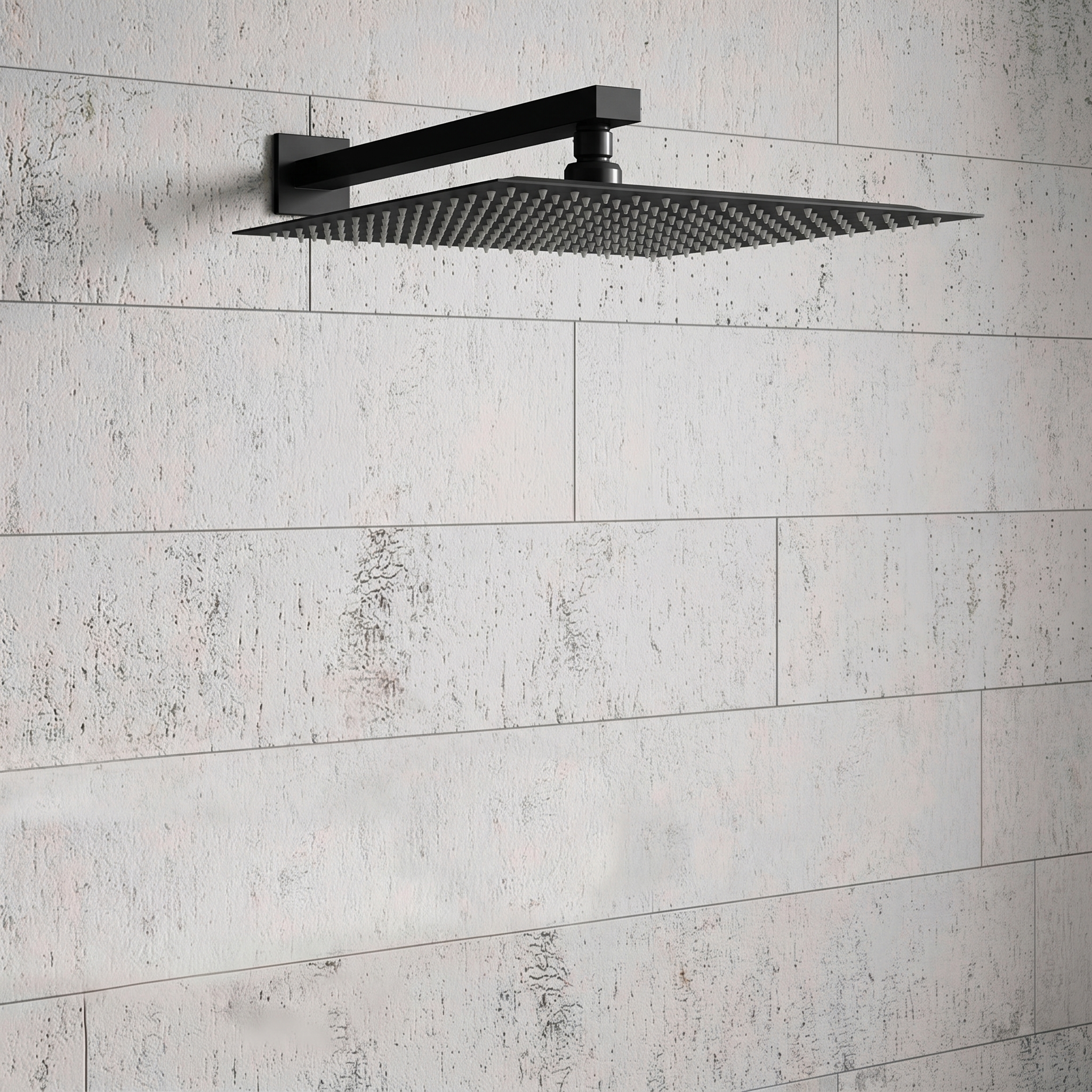

300mm shower head dimensions:
- Height: 51.5mm
- Depth: 300mm
- Width: 300mm
- Minimum pressure required for 300mm shower head: 0.5 bar
Flow rates:
- 0.5 bar (l/min): 11.1
- 1.0 bar (l/min): 15.5
- 1.5 bar (l/min): 18.9
- 2.0 bar (l/min): 21.8
- 3.0 bar (l/min): 26.5
- 4.0 bar (l/min): 30.5
- 5.0 bar (l/min): 33.8
Product Code | harbour-stat-con-wm-shower-kit |
---|---|
Type | Concealed Shower Sets |
Brand | Harbour |
Brand Range | Harbour Status |
GuaranteeMore information | Various |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
Material | Brass |
---|---|
Number of Outlets | 1 Outlet |
Temperature Control | Thermostatic |
Cartridge TypeMore information | Ceramic Disc |
Popular Features | Easy Clean Nozzles, WRAS Approved |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Finish | Matt Black |
---|---|
Shape | Square |
Handle Type | Dual Control, Square |
Texture | Matt |
Style | Modern |
Orientation | Landscape, Portrait |
Mounting Type | Select an option first |
Flow Rate at 0.5 Bar (l/min) | 11.1 |
---|---|
Flow Rate at 1 Bar (l/min) | 15.5 |
Flow Rate at 2 Bar (l/min) | 21.8 |
Flow Rate at 3 Bar (l/min) | 26.5 |
Flow Rate at 4 Bar (l/min) | 30.5 |
Flow Rate at 5 Bar (l/min) | 33.8 |
Minimum Water PressureMore information | 0.5 |
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
