We've hand-picked these items because they are a great choice alongside the Sagittarius Ergo Lever Fully Adjustable Thermostatic Valve And Rigid Riser Kit
- Chrome finish
- Fully adjustable valve centres and riser rail kit. Ideal for replacing an existing fitted shower
- Includes an exposed shower valve, rigid riser, overhead shower head and mini shower handset with hose
- Ceramic disc cartridge
- Minimum of 1.0 bar of water pressure required
- Easy installation and low maintenance
- 10 year guarantee

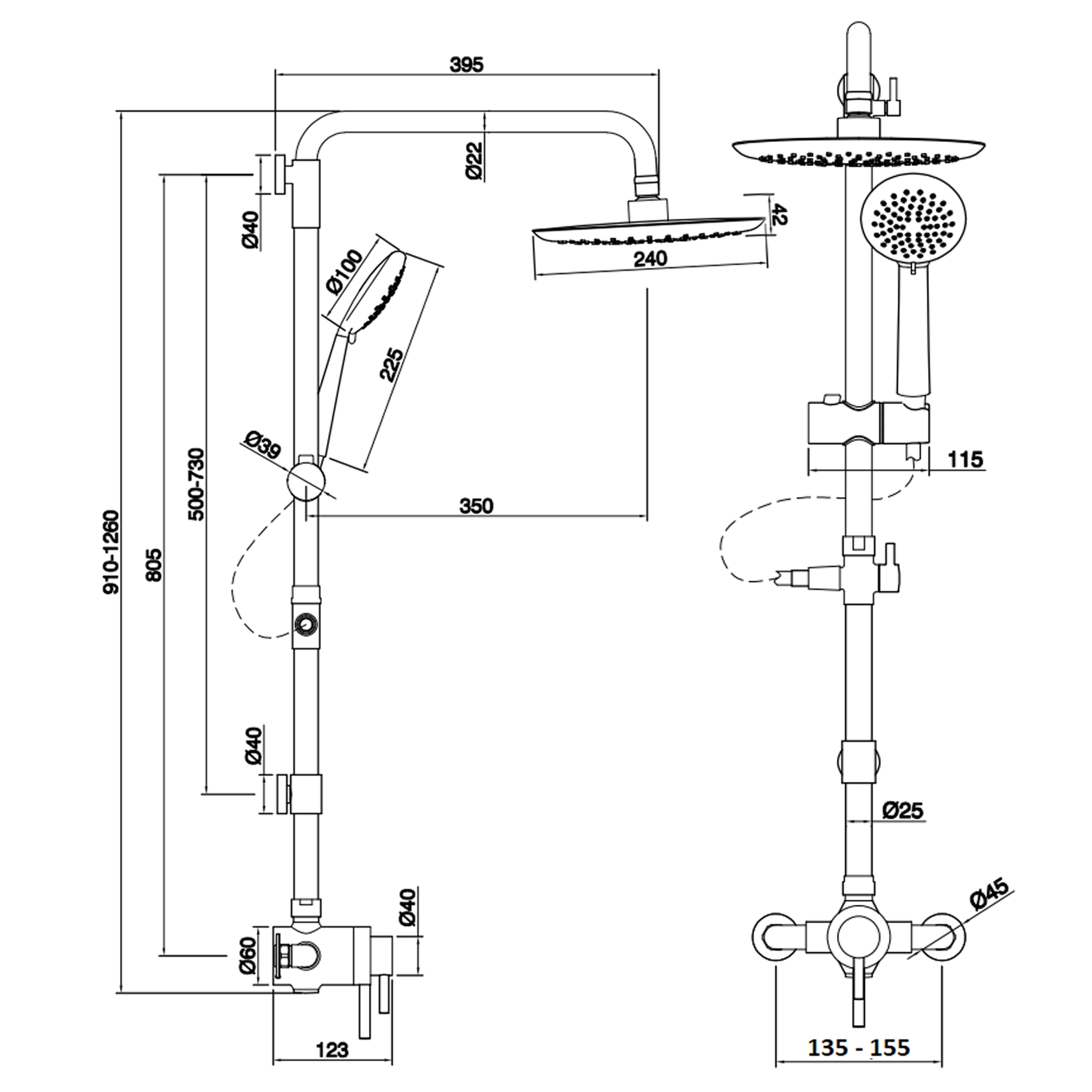

- Height: 910mm - 1260mm
- Pipe Centres: 135mm - 155mm
- Projection: 350
|Type||Exposed Shower Sets|
|Brand Range||Sagittarius Ergo|
|GuaranteeMore information||10 Years|
All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
|Number of Outlets||2 Outlets|
|Cartridge TypeMore information||Ceramic Disc|
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
|Mounting Type||Wall Mounted|
|Handle Type||Lever, Single Control|
|Flow Rate at 1 Bar (l/min)||12.4|
|Flow Rate at 2 Bar (l/min)||19.6|
|Flow Rate at 3 Bar (l/min)||25.0|
|Flow Rate at 4 Bar (l/min)||29.6|
|Flow Rate at 5 Bar (l/min)||33.0|
|Minimum Water PressureMore information||0.5|
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
