Crosswater Belgravia Crosshead Wall Mounted Bath Filler

No reviews yet - Write one

RRP £534.00 save 40%

£319.99 was £382.99

Estimated delivery 3-7 working days Help?

Too long to wait? View similar products with next day shipping

FREE standard delivery*. Read full delivery info

What's great about it?

  • Wall-mounted bath filler bridge tap with period crosshead handles to suit traditional baths
  • Manufactured from reliable solid brass and finished in rust-resistant Polished Chrome

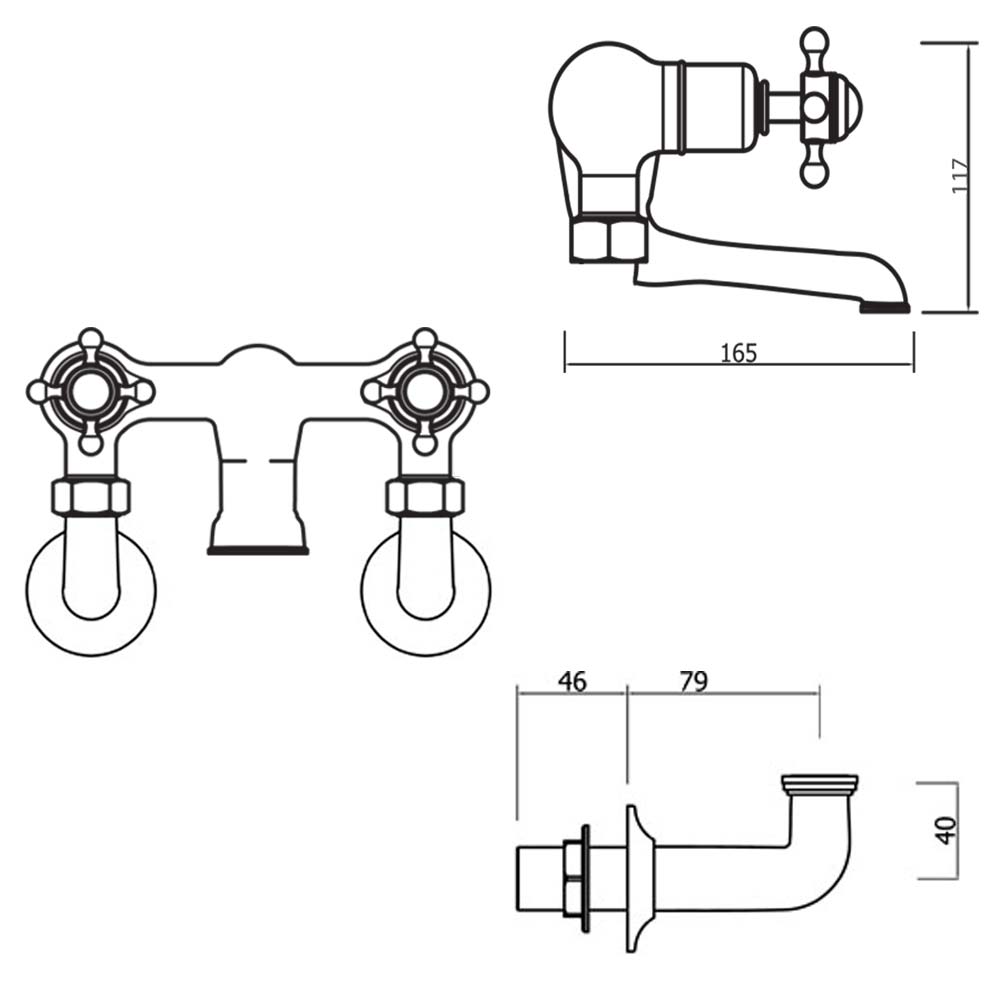

  • H: 117mm, W: 180mm (pipe centres), D: 165mm
  • Fitted with ceramic disc cartridge technology for easy turning and leak-free longevity
  • Separate hot and cold water valves give greater control over your bath's temperature

Read full product description


Recommended extras

We've hand-picked these items because they are a great choice alongside the Crosswater Belgravia Crosshead Wall Mounted Bath Filler

Crosswater Belgravia Crosshead Wall Mounted Bath Filler

Transform everyday bathing into a lavishing experience with Crosswater Belgravia Crosshead Wall Mounted Bath Filler. Although it is inspired by the luxurious styling of the 19th century, this statement piece is constructed with the latest innovations. Not only it will provide an efficient flow, so the water won't lose excessive heat while the tub is filled, the Flühs Valves deliver a smooth and drip-free operation.

Manufactured with the highest of standards, the Crosswater Belgravia Crosshead Wall Mounted Bath Filler is made from solid brass plated with chrome, which adds to its durability and performance even after long-term use. The crosshead-shaped handles are elegantly engraved, showcasing the attention to details of its craftsmanship.

• Traditional Victorian design
• Independent hot and cold flow controls
• Flühs® anti-drip cartridge
• Manual temperature setting
• High-resistant brass construction
• Anti-rust polished chrome overlay
• 1 bar minimum water pressure
• Wall mounted installation
• Wide-mouth bath spout
• Spout Projection: 165mm

Make your bathroom even more luxurious with Crosswater Belgravia Collection for bathroom accessories.
Product Code BL322DC-BL004WC
Global Trade Item Number 5055833618941
Type Bath Fillers
Brand Crosswater
Brand Range Crosswater Belgravia Crosshead
Minimum Water PressureMore information 1
Shape Round
Finish Polished Chrome
Style Traditional
Mounting Type Wall Mounted
Tap Holes 2 Holes
Spout Type Curved Spout
Handle Type Crosshead, Dual Control
Cartridge TypeMore information Ceramic Disc
Temperature Control Manual
Number of Outlets 1 Outlet
Height (mm) 157
Projection (mm) 165
Popular Features Ceramic Disc Technology
GuaranteeMore information 15 Years

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.

Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.


All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.
