What's Included?
- Close coupled toilet & seat
- 580mm full pedestal basin
- Basin pillar taps
- Slotted click clack basin waste
- Bath shower mixer
- Plug & chain bath waste
- Front bath panel
- Single ended bath
- Butler & Rose Winston traditional close coupled toilet & seat
- Crafted from high quality vitreous china for durability and longevity
- Standard toilet seat and toilet fittings included
- Supplied with a ceramic lever cistern handle
- 5 year manufacturer’s guarantee
- Butler & Rose Winston 580mm full pedestal & basin - 2 tap hole
- Crafted from vitreous china for a strong, stain-resistant basin
- Full-pedestal design hides unsightly plumbing
- 180mm-tall basin section gives ample space for washing
- 2 tap holes for basin tap pairs or mixers
- Comes with overflow and Chrome cover
- 5 year manufacturer's guarantee

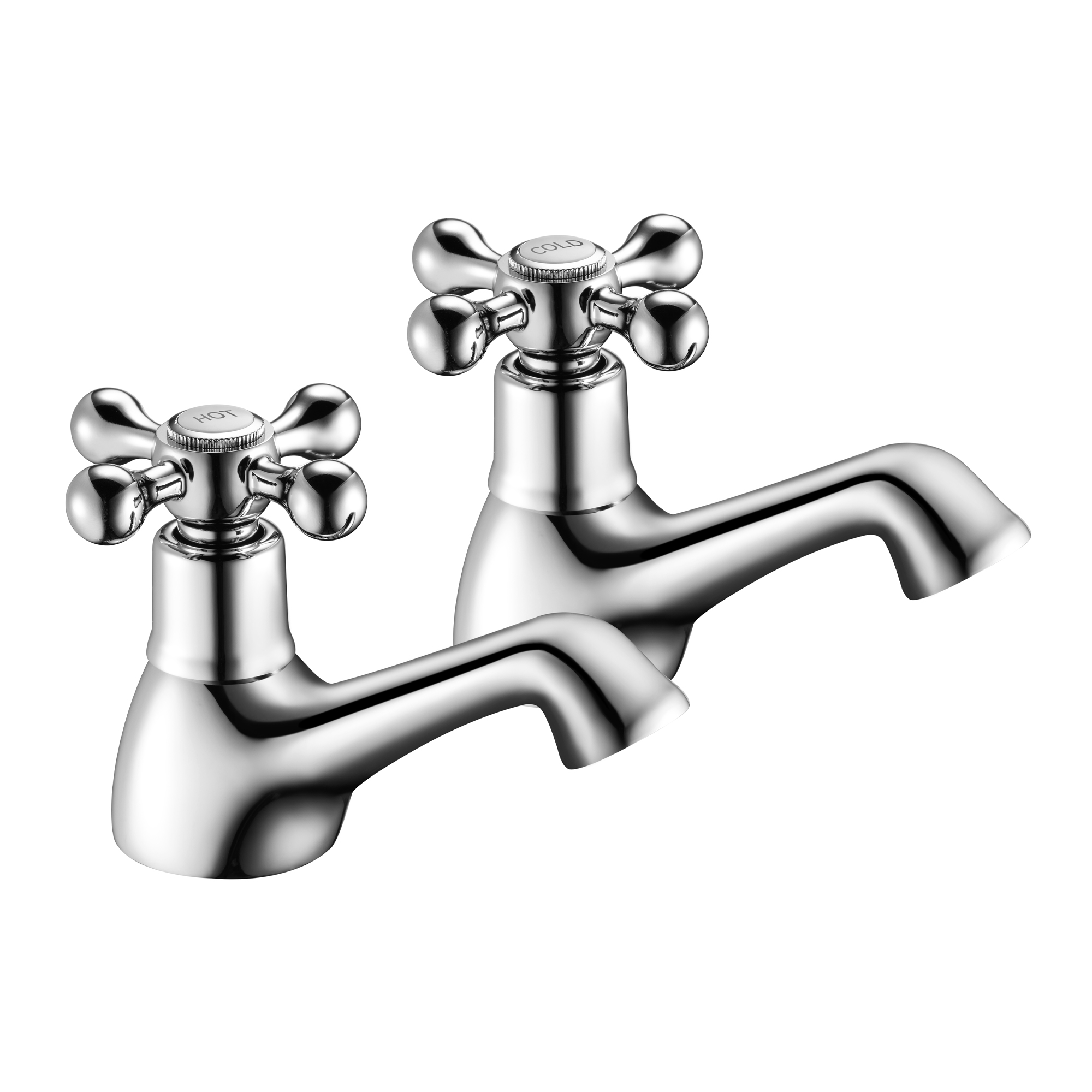

- Butler & Rose Carlton traditional basin pillar taps
- Pillar tap design for independent control & flow
- Made from solid brass with zinc alloy handles to withstand rigorous use
- Laminar flow spouts provides a non-aerated, steady stream, reducing splashing and improving water stream control
- Ceramic disc technology ensures long-lasting use with no drips
- 10 year manufacturer's guarantee
- Vellamo slotted click clack basin waste
- Sprung clicker mechanism for extended durability
- Premium quality Chrome-plated brass waste can withstand daily wear and tear

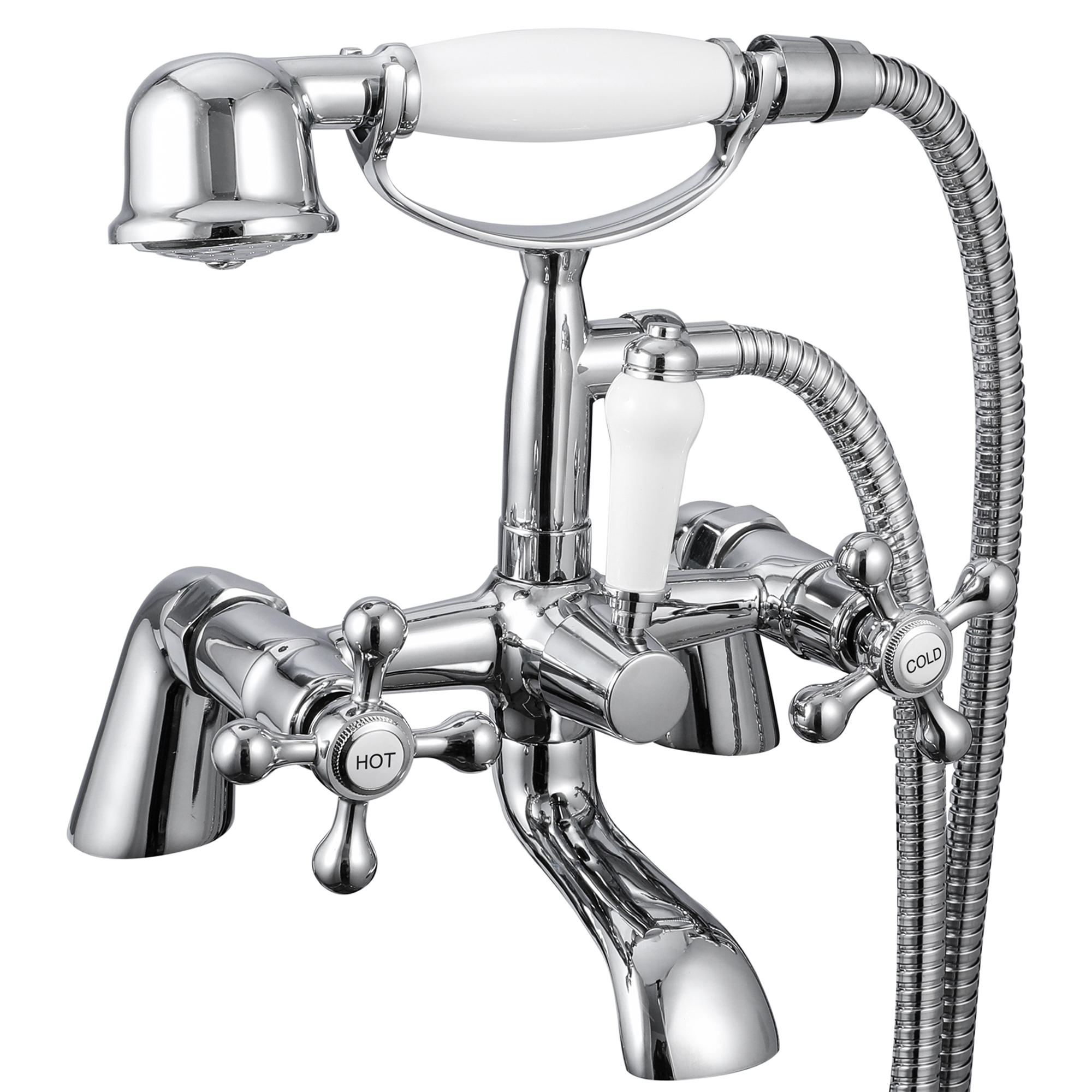

- Butler & Rose Carlton traditional bath shower mixer
- Traditional ABS plastic telephone shower handset providing an easy to clean, high corrosion resistant product
- Includes a handset cradle holder to neatly store your handset away when not in use
- Laminar flow spout provides a non-aerated, steady stream, reducing splashing and improving water stream control
- Ceramic disc technology for a smooth and leak-free performance
- Made from solid brass for longevity and effortless cleaning
- 1.5m stainless steel hose providing ample reach and flexibility
- Independent crosshead dual handles to control for hot & cold supply
- White ceramic diverter lever
- 3/4" deck mounting unions
- 10 year manufacturer's guarantee
- Vellamo plug & chain bath waste
- Crafted from brass designed to withstand everyday use
- No assembly required for easy installation
- Vellamo acrylic straight gloss white front bath panel
- Made from high quality acrylic which is extremely durable and easy to clean
- 100% waterproof, this panel won't warp or distort over time
- Easy to install
- 5 year manufacturer's guarantee
- Drench straight single ended bath
- 4mm thick durable acrylic construction
- Excellent thermal properties help retain your water's temperature for longer, reducing the need to top up
- Lightweight for easy maneuverability when installing
- Suitable for use with bath screens
- This bath arrives with no pre-drilled tap holes
- Supplied with leg set
- 5 year manufacturer's guarantee
- End bath panel
- Toilet pan fixing kit
- Bath panel clips
- Bath screen
- Shower head, handset & valve
Toilet & Seat Features:
Full Pedestal Basin Features:
Basin Tap Features:
Basin Waste Features:
Bath Tap Features:
Bath Waste Features:
Bath Panel - Standard Panel Features:
Bath Features:
Sold Separately:
See our recommended extras for a selection of compatible options or browse our categories to find a product that suits you and your space.
Cleaning Instructions |
---|
Product Code | complete-bathroom-suite-33 |
---|---|
Type | Bath Suites, Complete Suites, Toilet & Basin Suites |
Brand | Butler & Rose |
Brand Range | Butler & Rose Winston |
Bath ThicknessMore information | 4 |
---|---|
Soil Pipe DirectionMore information | Horizontal, Left or Right, Vertical |
Water Inlet LocationMore information | Bottom Left |
Baths are available in a variety of different thicknesses. A bath with a greater thickness will usually be more robust and is likely to last longer. However, other factors such as material type will also affect this.
Soil Pipe Direction:
This details which direction the soil pipe can run from the rear of the toilet.
Horizontal: the soil pipe can run directly into the wall behind the pan.
Vertical: the soil pipe can turn 90 degrees and run vertically into the floor.
Left or Right: the soil pipe can run either side from the rear of the pan, which is then typically boxed in.
This is for guidance only and not intended as a substitute for visual/physical checks; the size and type of your pan connector/pipework will have an impact on whether or not there is sufficient clearance.
Water Inlet Location:
This is the location where the mains water feed can connect to the cistern, when viewed from the front.
Cisterns that feature Bottom Left & Right inlets are usually supplied with a plug to seal the inlet which isn't used.
Finish | Chrome, Gloss White |
---|---|
Texture | Gloss, Polished |
Tap Holes | No Pre-Drilled Tap Holes |
Style | Traditional |
Basin Dimensions | H 835 x W 580 x D 470 mm |
---|---|

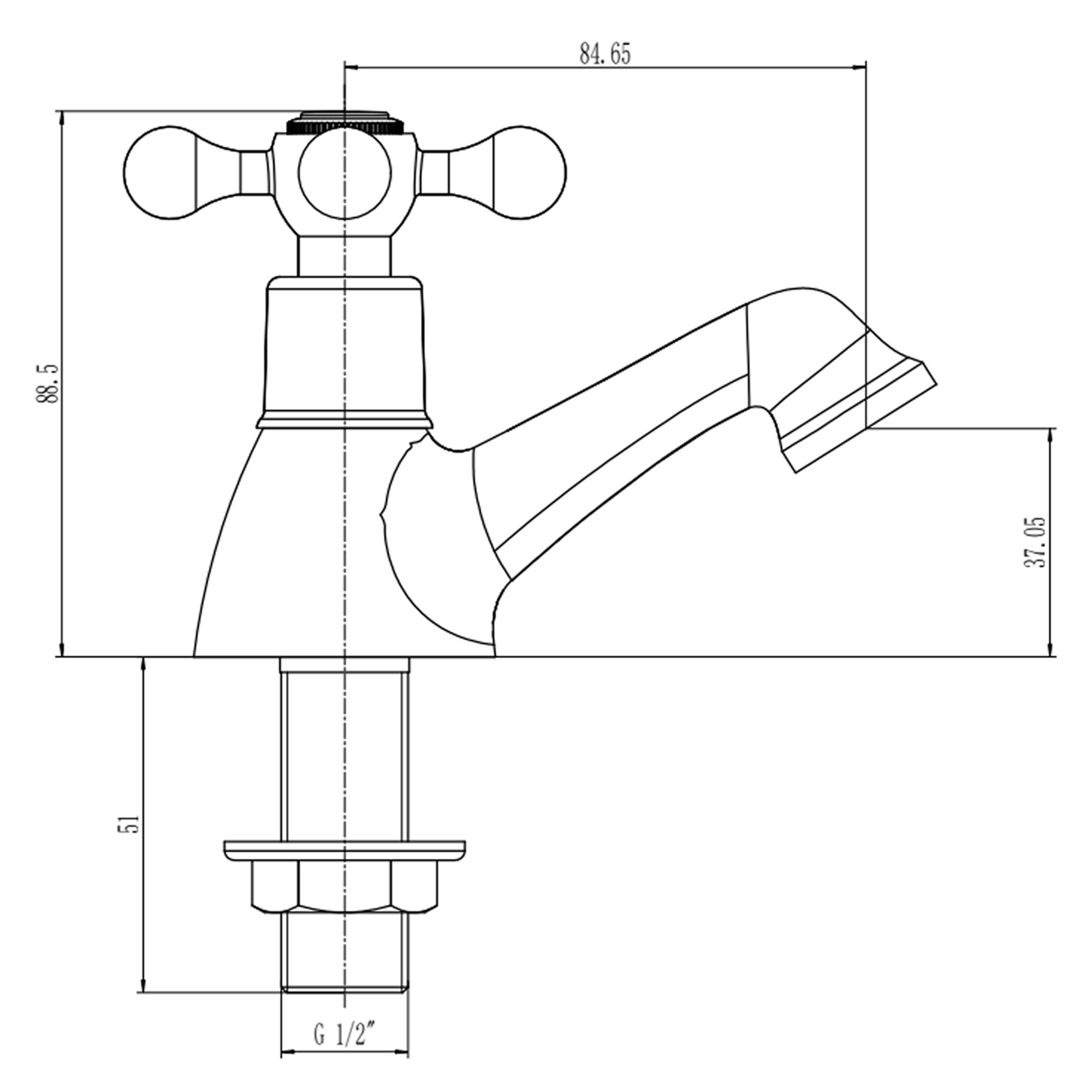

Basin Tap Dimensions | H 86 x W 42 x D 131 mm |

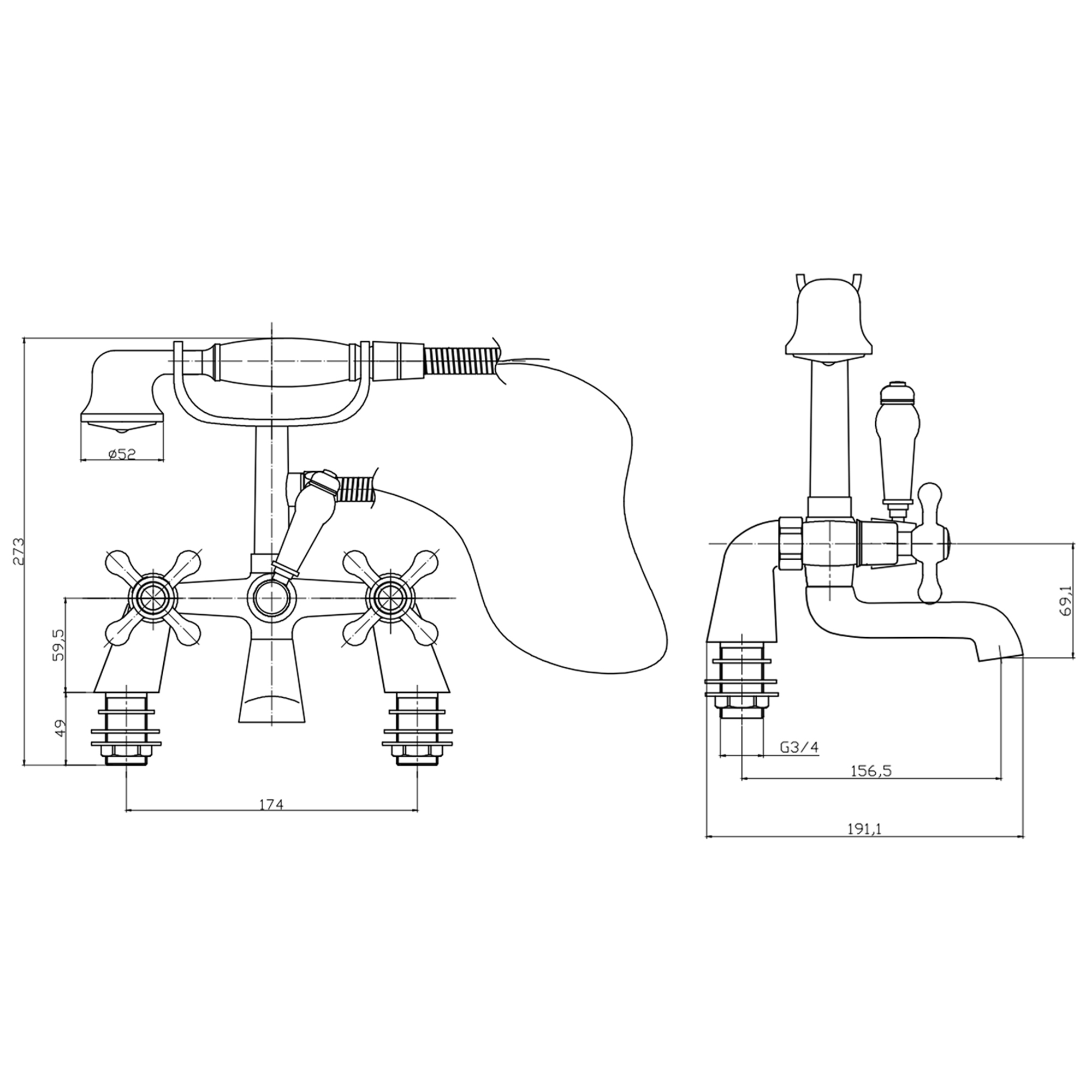

Bath Tap Dimensions | H 226 x W 222 x D 147 mm |
Toilet Dimensions | H 860 x W 480 x D 760 mm |
Bath Dimensions | Select an option first |
Minimum Water PressureMore information | 0.5 |
---|
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
