Hudson Reed Art 2 Outlet Concealed Thermostatic Shower Valve

No reviews yet - Write one

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £84.99 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £63.75 with Clearpay Learn more about Clearpay

What's great about it?

  • Concealed thermostatic shower valve
  • Controls 2 outlets - allows you to turn both outlets on at the same time
  • TMV 2 Rated
  • Made in the UK
  • 20 year manufacturer's guarantee

Read full product description

Made in Britain



If you're the type of person who will only accept the best, the Hudson Reed triple concealed thermostatic shower valve is what you're looking for. The sturdy construction and precise controls meld high quality function with a form that shines futuristic with a metallic gleam and clean look. This diverter valve has full thermal protection to prevent scalding in the event of a hot or cold water shut off, and uses state of the art ceramic cartridges that are highly resistant to calcium build up - even in hard water areas! This product has full functionality with all water systems and has excellent flow rates, even at low pressures. The Hudson Reed Art 2 Outlet Concealed Thermostatic Shower Valve product is manufactured using high quality brass and ABS and it is also WRAS Approved.

WRAS Approved

Downloads
Technical Specifications
Product Overview
Product Code ART3211
Type Concealed Shower Valves
Brand Hudson Reed
Brand Range Hudson Reed Art
GuaranteeMore information 20 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material ABS Plastic, Brass
Number of Outlets 2 Outlets
Temperature Control Thermostatic
Cartridge TypeMore information Ceramic Disc
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Style
Mounting Type Wall Mounted
Finish Chrome
Shape Square
Handle Type Lever, Square, Triple Control
Texture Polished
Style Modern
Orientation Landscape, Portrait

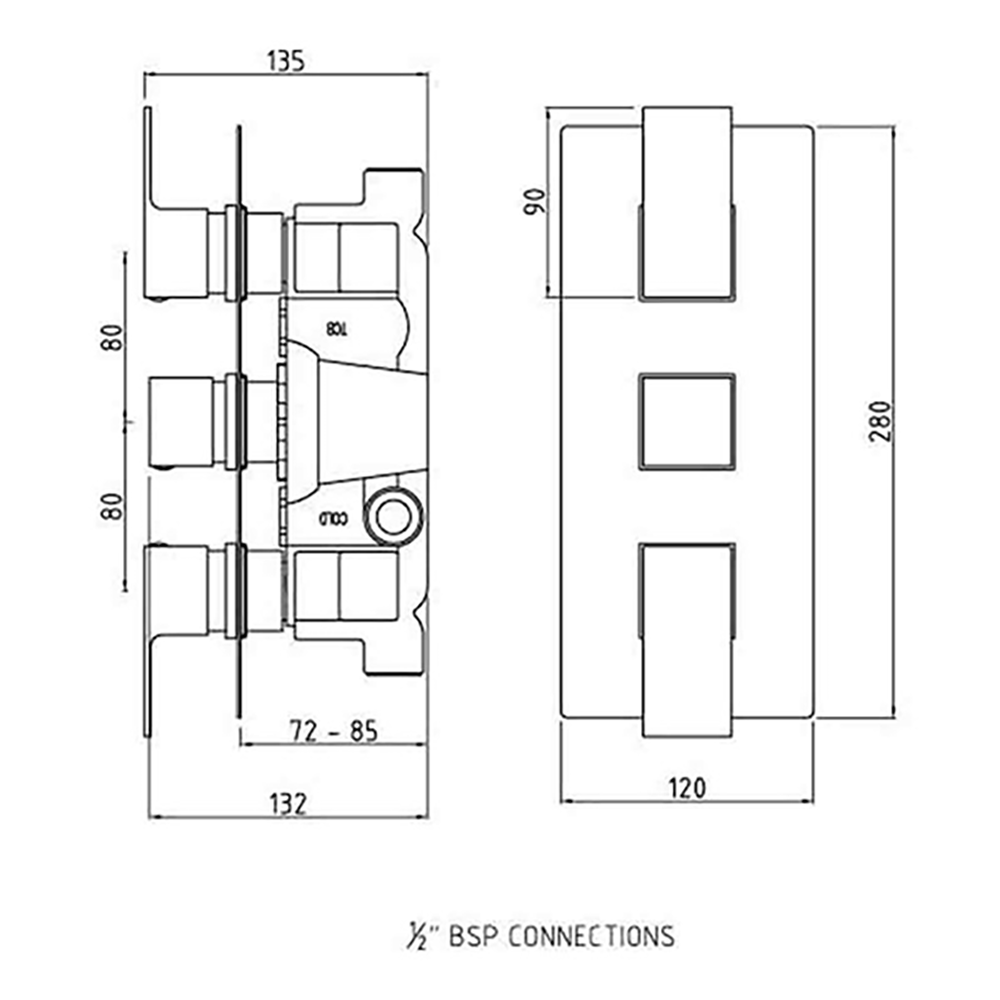

Dimensions
Width (mm) 120
Height (mm) 280
Depth (mm) 135
Flow Rate
Flow Rate at 0.1 Bar (l/min) 5.5
Flow Rate at 0.5 Bar (l/min) 14
Flow Rate at 1 Bar (l/min) 20
Flow Rate at 2 Bar (l/min) 29
Flow Rate at 3 Bar (l/min) 44
Minimum Water PressureMore information 0.1

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
