Features:
- Choose from rear wash, front wash or comfort wash modes for a personalised clean that’s more hygienic than toilet paper alone
- Curved spray nozzle with four flow modes, including oscillating and pulsating, delivers water at an effective angle for targeted cleansing
- Five adjustable water temperatures (24 - 39 °C) and spray strength settings let you fine-tune your experience and accommodate for sensitive skin
- Rimless bowl design leaves fewer places for germs and bacteria to hide, improving hygiene and making cleaning quicker and easier
- Heated toilet seat with five temperature settings (31 - 39 °C) provides soothing comfort, helping prevent the unexpected jolt of a cold seat
- Optional eco mode saves energy by turning off seat heating during user-defined time periods
- Warm air dryer with adjustable settings (30 - 50 °C) starts at the touch of a button for contactless drying that reduces the need for toilet paper
- Automatic user recognition via an integrated seat sensor prevents accidental activation during cleaning or maintenance
- Sensor-activated night light helps you safely find your way in the dark without a main light, minimising sleep disruption
- Built-in filter discreetly extracts and neutralises odours to keep the bathroom smelling fresh for each user, even in windowless bathrooms
- Clear control icons and memory function make this smart toilet easy for everyone in your household to use and personalise
- Before and after each wash, the spray nozzle rinses with fresh water to maintain optimum hygiene between uses
- Integrated descaling cycle and dirt filter help keep the smart toilet running smoothly and maintain hygiene over time
- Soft-close seat prevents slamming, protecting fingers and allowing for quieter use during busy mornings or late nights
- Sturdy wall-hung installation helps save floor space and makes cleaning around and underneath the bowl easier
- Made from durable, impact- and scratch-resistant sanitary ceramic with a robust Duroplast seat for long-lasting everyday use
- IPX4-rated for protection against splashing water in bathroom environments
- Cistern, WC frame and flush plate are sold separately – see our recommended extras for compatible options
- 2 year manufacturer’s guarantee to give you added peace of mind
 Technical Specifications
|
|---|
|
Installation Instructions
|
| Product Code | V22EM101 |
|---|---|
| Type | Rimless Toilets, Smart Toilets, Wall Hung Toilets |
| Brand | Villeroy & Boch |
| Brand Range | Villeroy & Boch Tivo |
| GuaranteeMore information | 2 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Soil Pipe DirectionMore information | Horizontal |
|---|---|
| Water Inlet LocationMore information | Rear Left Hand Side |
| Material | Ceramic, Thermoset |
| Popular Features | Easy to Clean Rimless Design, Quick-Release Hinges, Soft Close Toilet Seat |
Soil Pipe Direction:
This details which direction the soil pipe can run from the rear of the toilet.
Horizontal: the soil pipe can run directly into the wall behind the pan.
Vertical: the soil pipe can turn 90 degrees and run vertically into the floor.
Left or Right: the soil pipe can run either side from the rear of the pan, which is then typically boxed in.
This is for guidance only and not intended as a substitute for visual/physical checks; the size and type of your pan connector/pipework will have an impact on whether or not there is sufficient clearance.
Water Inlet Location:
This is the location where the mains water feed can connect to the cistern, when viewed from the front.
Cisterns that feature Bottom Left & Right inlets are usually supplied with a plug to seal the inlet which isn't used.
| Mounting Type | Wall Mounted |
|---|---|
| Finish | White Alpin |
| Shape | Curved |
| Texture | Gloss |
| Style | Modern |

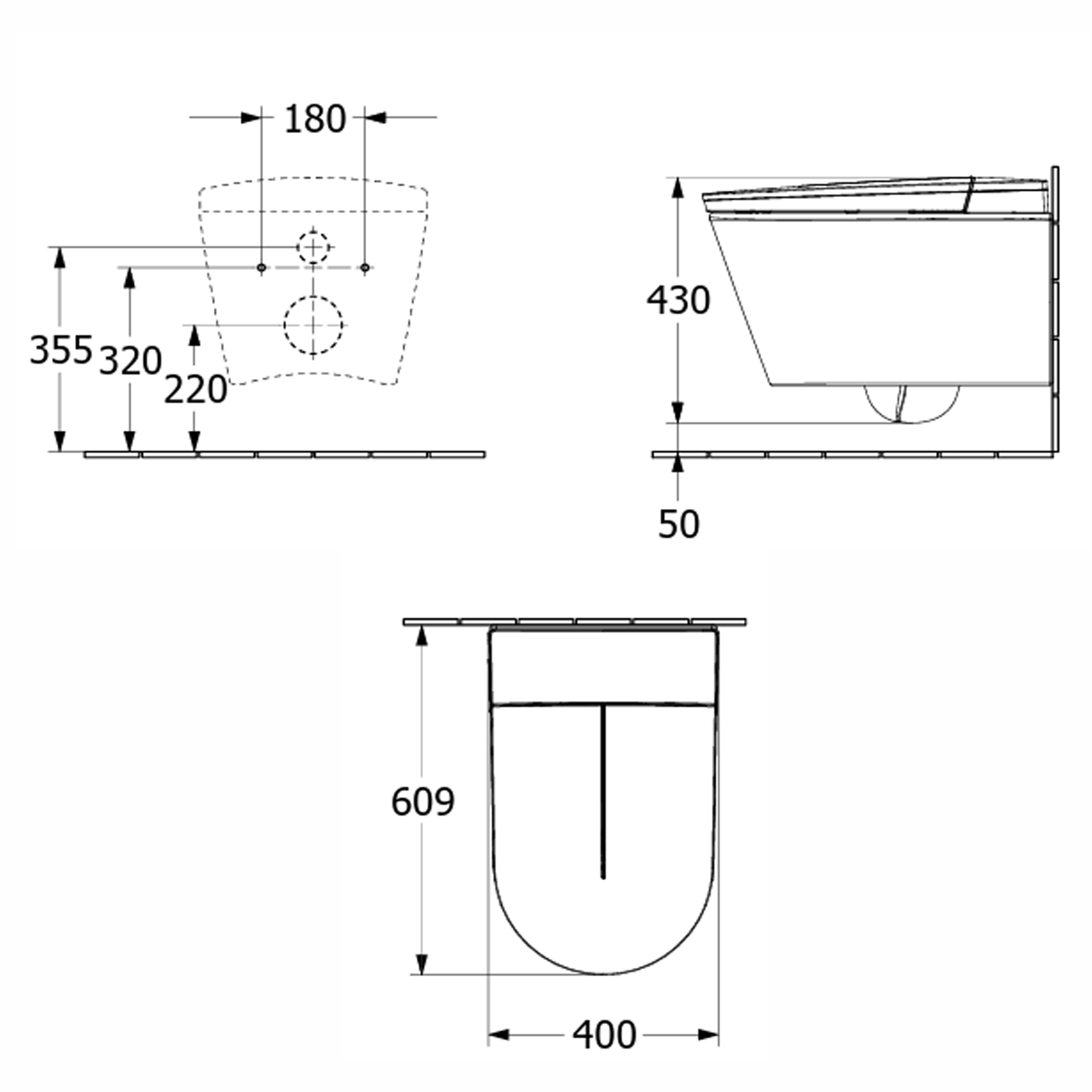

| Width (mm) | 400 |
|---|---|
| Height (mm) | 430 |
| Depth (mm) | 609 |
| Projection (mm) | 609 |
| Minimum Water PressureMore information | 0.5 |
|---|
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
