Features:
- Choose from rear wash, front wash or comfort wash modes for a personalised clean that’s more hygienic than toilet paper alone
- Five water temperature options and five spray strength settings let you customise your experience and accommodate for sensitive skin
- Curved, adjustable spray nozzle delivers water at an effective angle for targeted and comfortable coverage with every wash mode
- Rimless bowl design leaves fewer places for germs and bacteria to hide, improving hygiene and making cleaning quicker and easier
- Warm air dryer with adjustable temperature (40-55 °C) provides a gentle hands-free dry that reduces or eliminates the need for toilet paper
- Built-in night light automatically activates in low light, removing the need to turn on a main light, helping reduce sleep disruption
- Quiet yet effective deodorising fan draws odours away at the source, keeping the bathroom smelling fresh for each user
- Before and after each wash, the spray nozzle self-cleans to maintain hygiene in between uses
- Soft-close seat protects fingers and prevents slamming, allowing for quieter use in the morning or at night
- Clear icons on the remote and simple controls on the rotary knob make this smart toilet easy to use for everyone in the household
- A pre-mist function lightly sprays the bowl before use to help prevent stains and make waste easier to flush away
- Square-shaped design with clean lines creates a bold, modern look that suits contemporary bathrooms
- Integrated descaling cycle helps maintain the performance and hygiene of the smart toilet over time
- Click-release seat cover is easily removed at 90° for more thorough cleaning of hard-to-reach areas
- Back-to-wall installation conceals pipework for an uncluttered, cohesive finish
- Made from durable ceramic with a robust Duroplast seat for long-lasting everyday use
- IPX4-rated for protection against splashing water in bathroom environments
- Cistern and flush plate are sold separately – see our recommended extras for compatible options
- Meets recognised plumbing standards for water safety and backflow prevention (complies with E1717:2000 standard)
 Installation Instructions
|
|---|
| Product Code | CB10166ZR |
|---|---|
| Type | Back to Wall Toilets, Rimless Toilets, Smart Toilets |
| Brand | Imex |
| Brand Range | Imex Essence |
| Soil Pipe DirectionMore information | Horizontal |
|---|---|
| Water Inlet LocationMore information | Bottom Left |
| Material | Ceramic, Duroplast |
| Popular Features | Easy to Clean Rimless Design, Quick-Release Hinges, Soft Close Toilet Seat |
Soil Pipe Direction:
This details which direction the soil pipe can run from the rear of the toilet.
Horizontal: the soil pipe can run directly into the wall behind the pan.
Vertical: the soil pipe can turn 90 degrees and run vertically into the floor.
Left or Right: the soil pipe can run either side from the rear of the pan, which is then typically boxed in.
This is for guidance only and not intended as a substitute for visual/physical checks; the size and type of your pan connector/pipework will have an impact on whether or not there is sufficient clearance.
Water Inlet Location:
This is the location where the mains water feed can connect to the cistern, when viewed from the front.
Cisterns that feature Bottom Left & Right inlets are usually supplied with a plug to seal the inlet which isn't used.
| Mounting Type | Floorstanding |
|---|---|
| Finish | White |
| Shape | Curved |
| Texture | Gloss |
| Style | Modern |

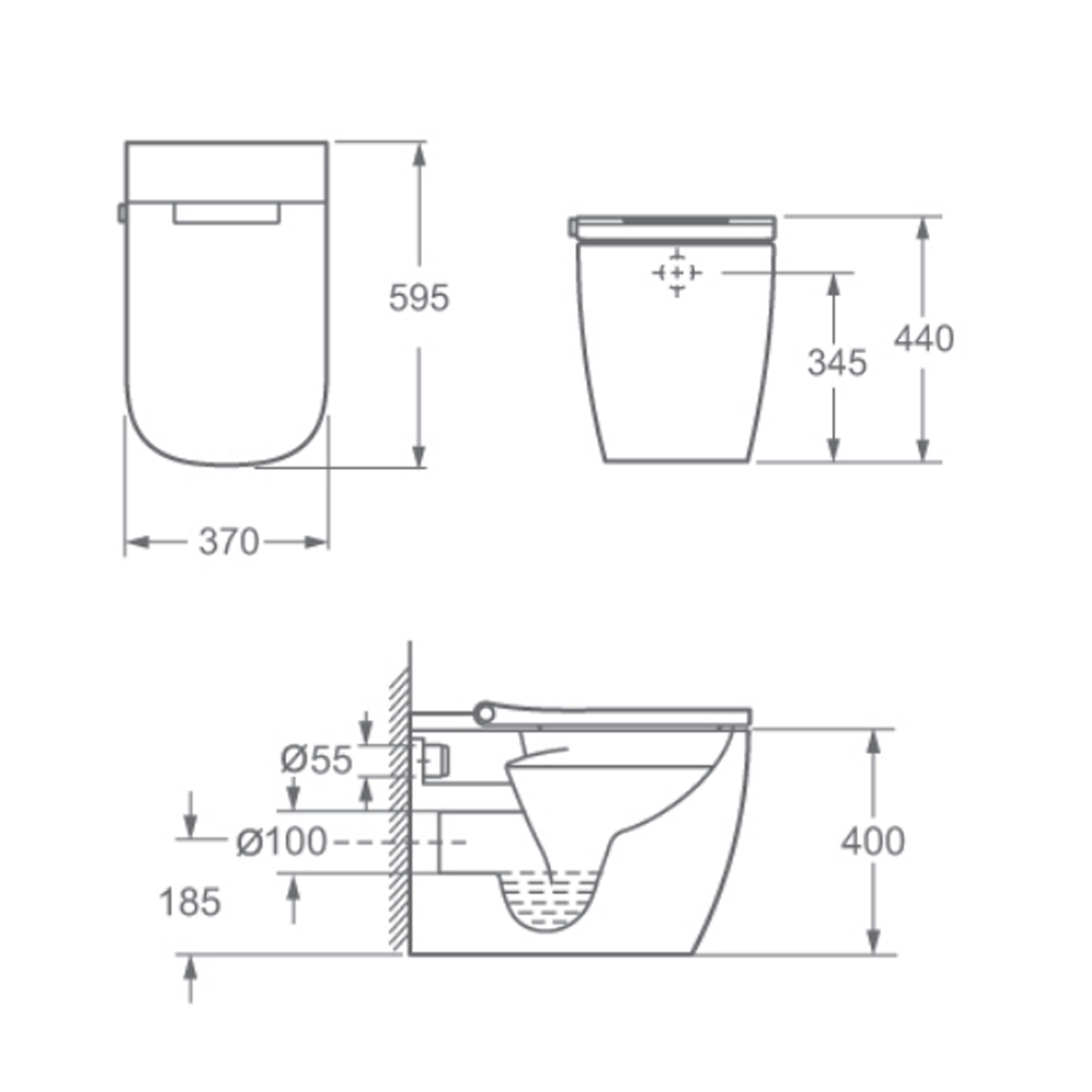

| Width (mm) | 370 |
|---|---|
| Height (mm) | 440 |
| Depth (mm) | 595 |
| Projection (mm) | 595 |
| Minimum Water PressureMore information | 0.7 |
|---|
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
