Core 3 Outlet Landscape Thermostatic Concealed Shower Valve

No reviews yet - Write one
New
Finish:
Handle Style:

Loading delivery estimate...

Pay in 3 interest-free payments of £93.33.
Pay in 3 interest-free payments of £93.33.

What's great about it?

  • 3 outlets power 3 fixtures for your shower and bath
  • Run 2 outlets together for a spa-like experience
  • Choice of handle options to suit your style
  • Thermostatic technology keeps the temperature consistent
  • Backed by a lifetime manufacturer’s guarantee

Full details

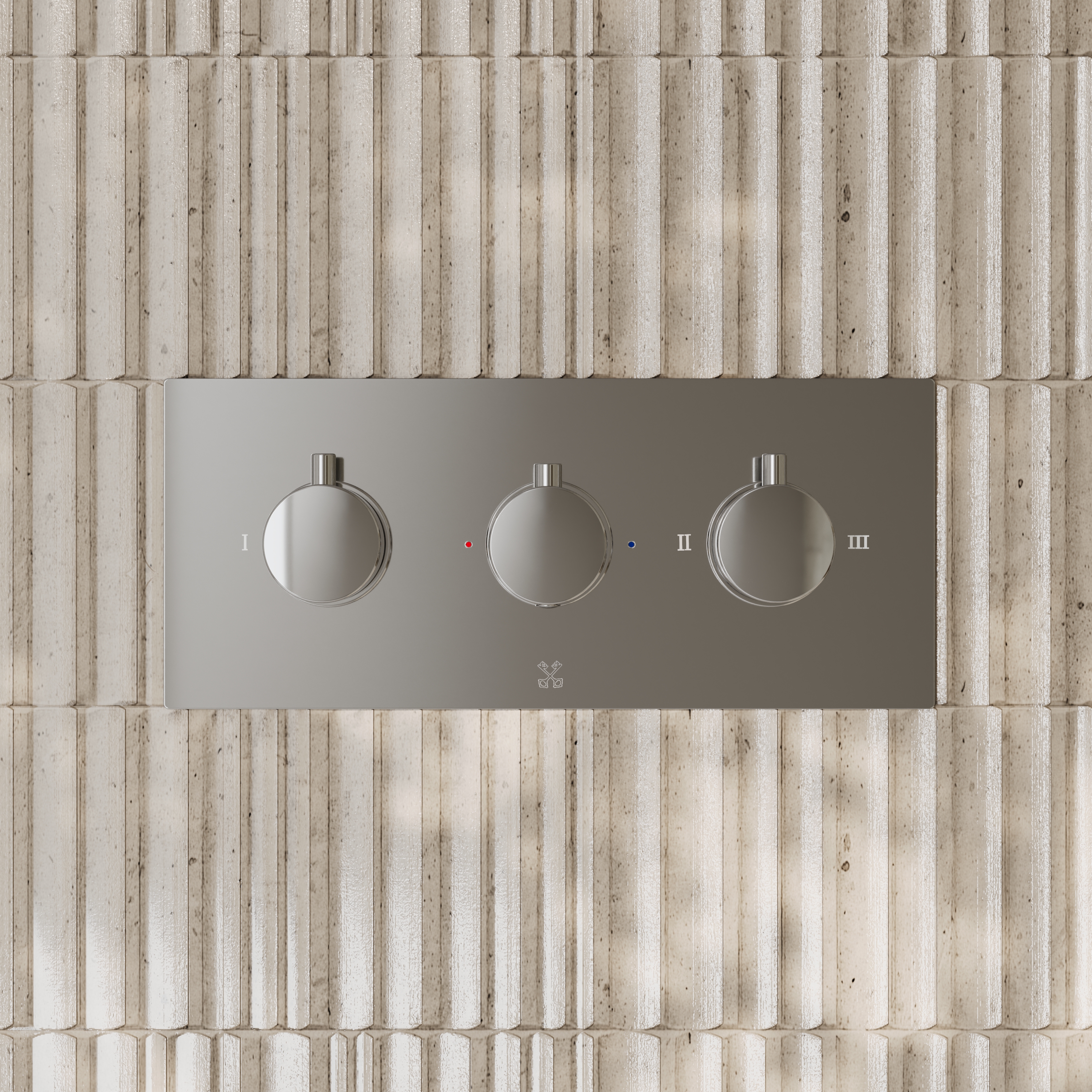

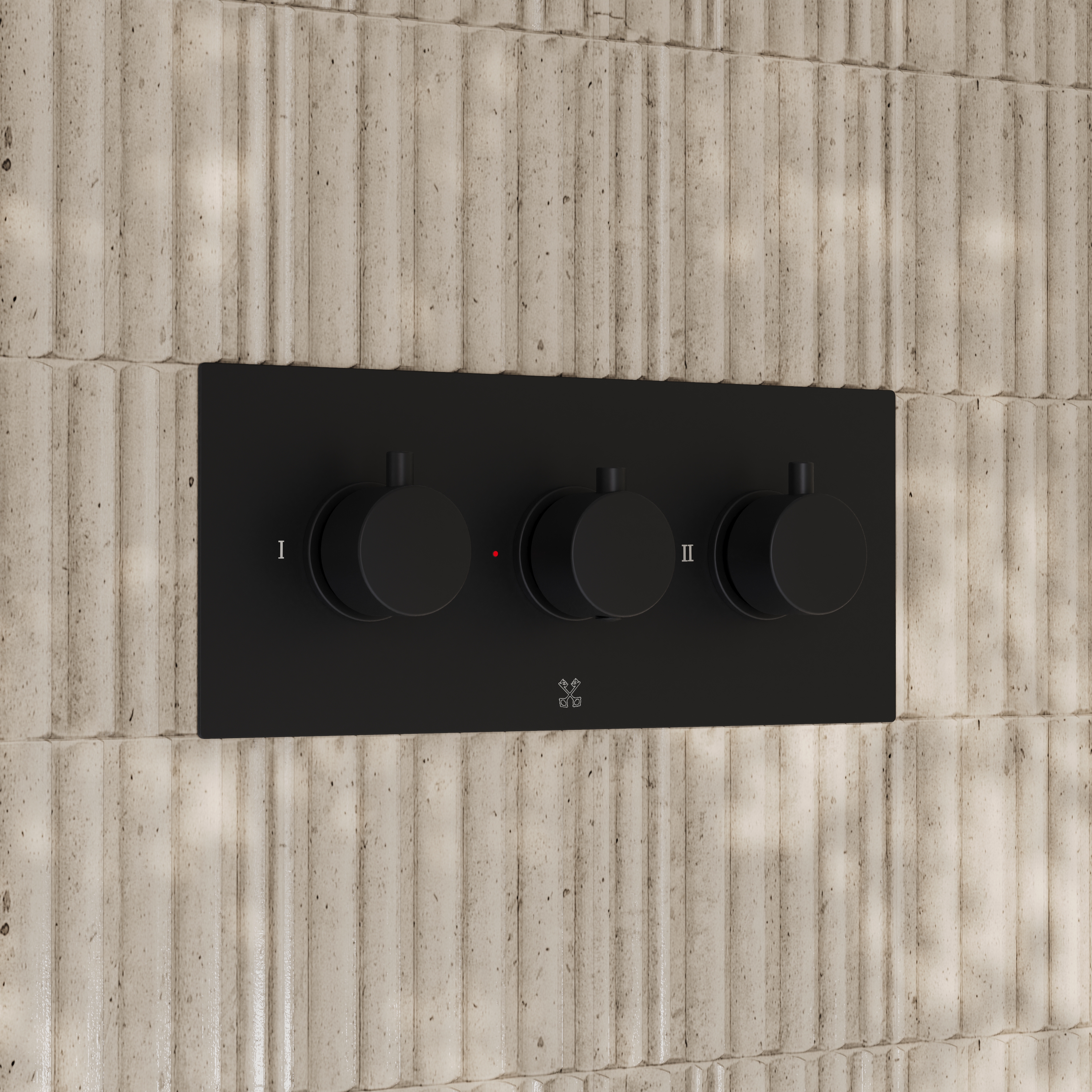

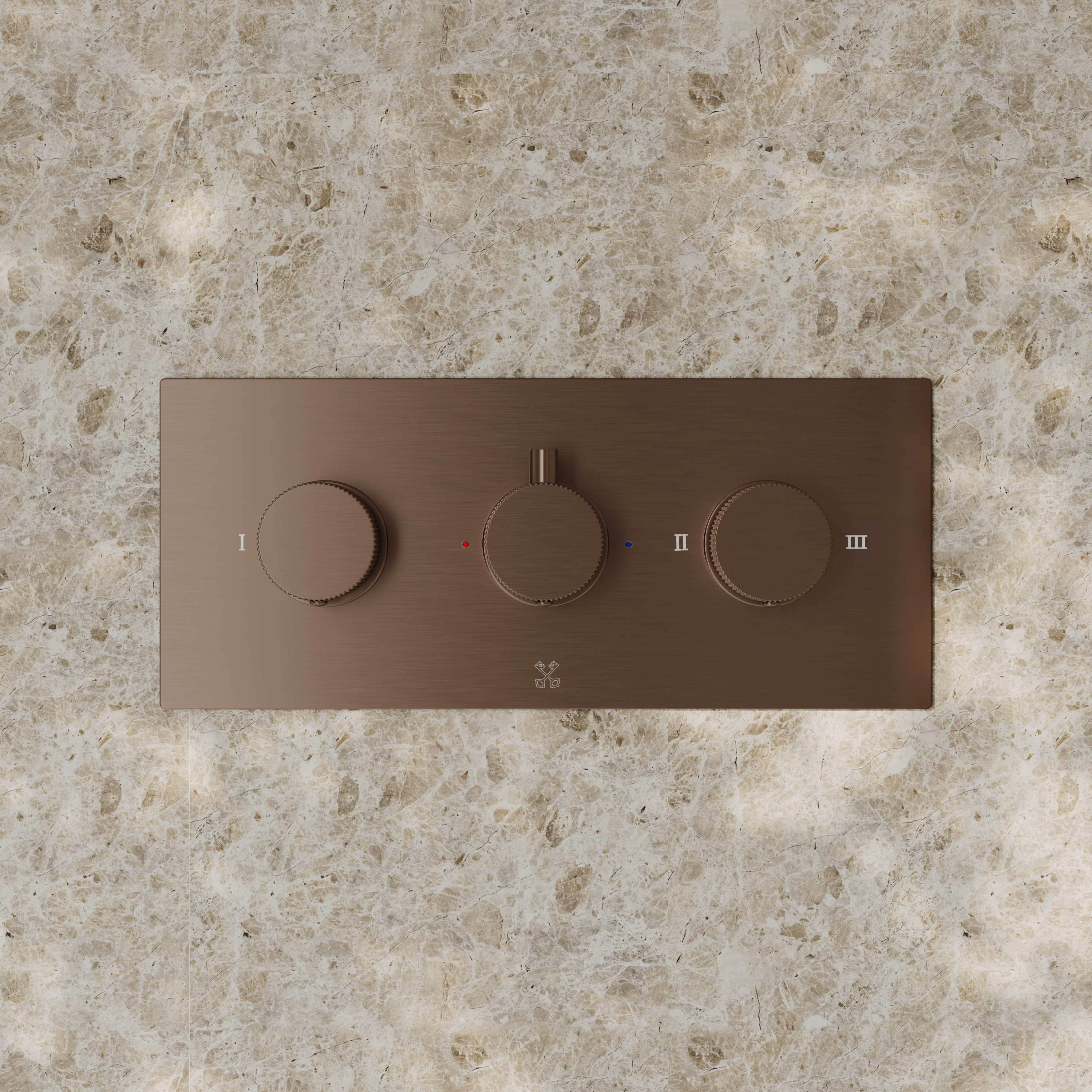

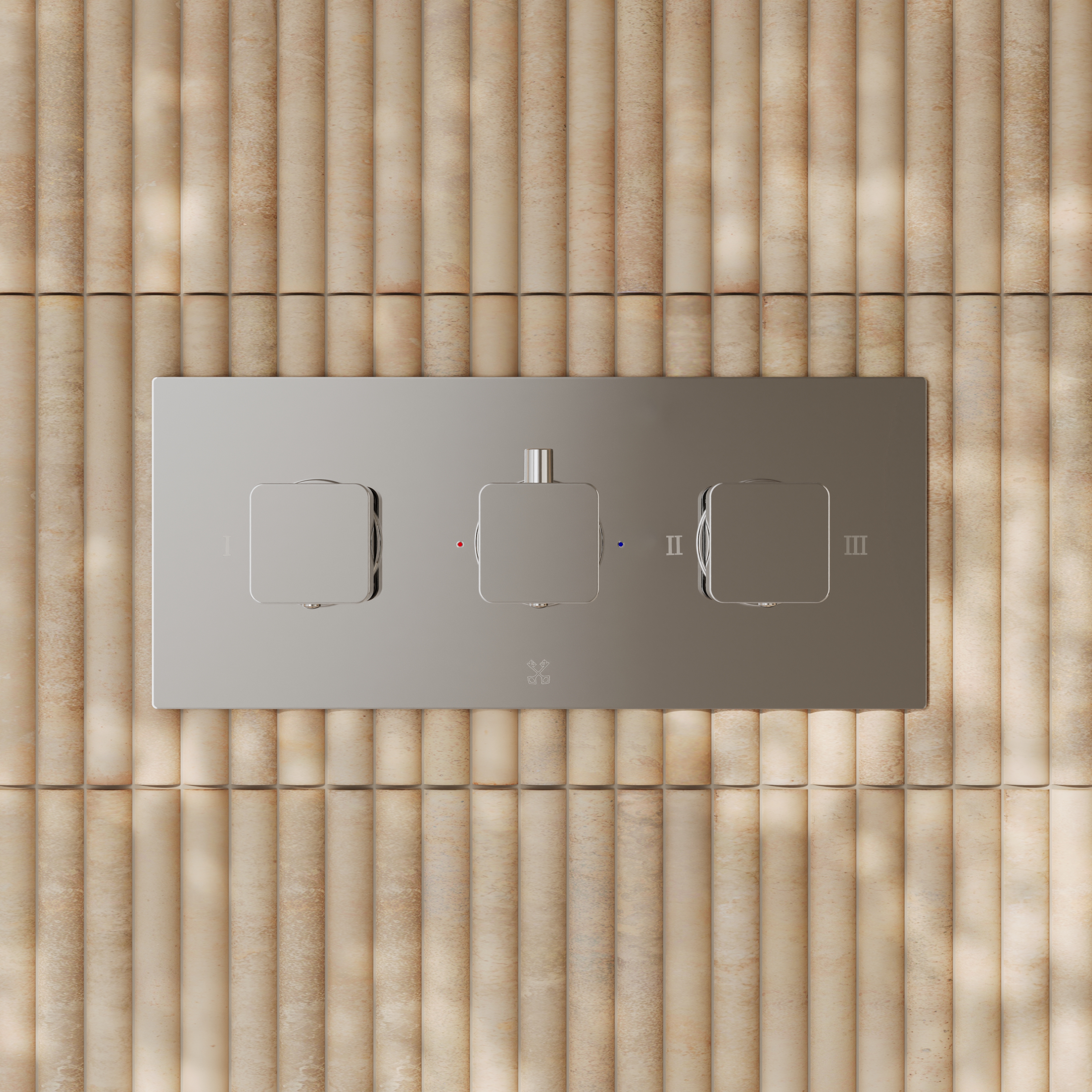

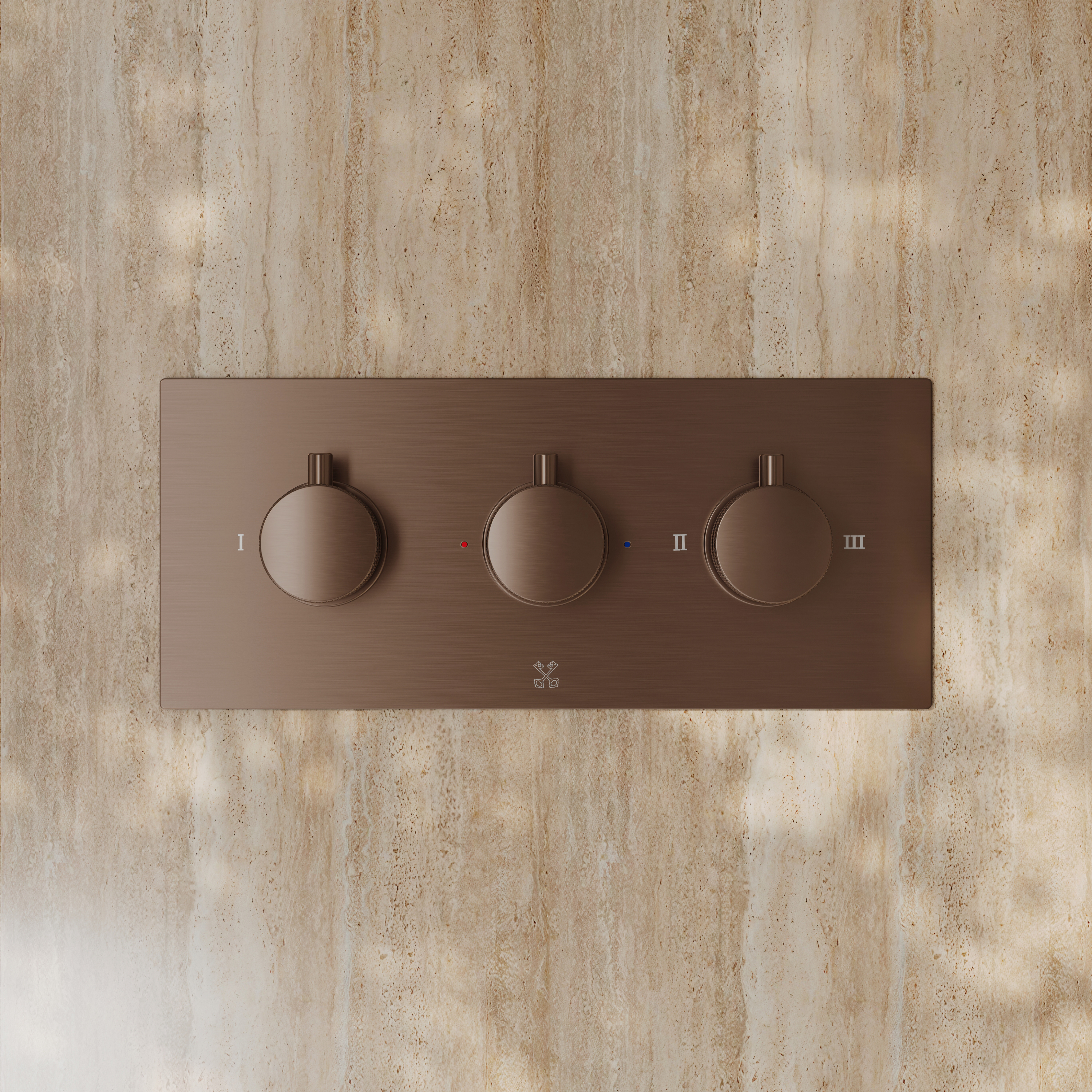

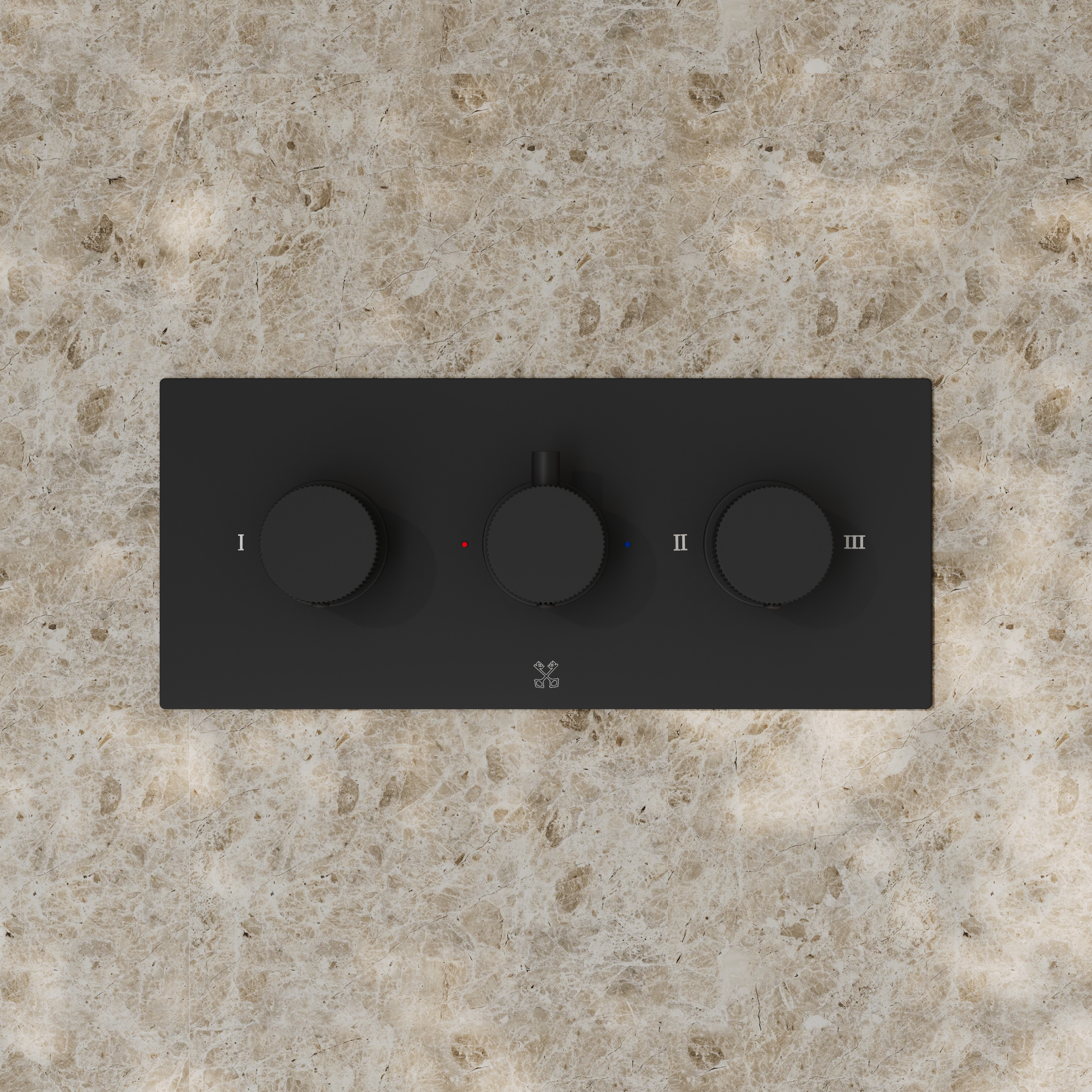

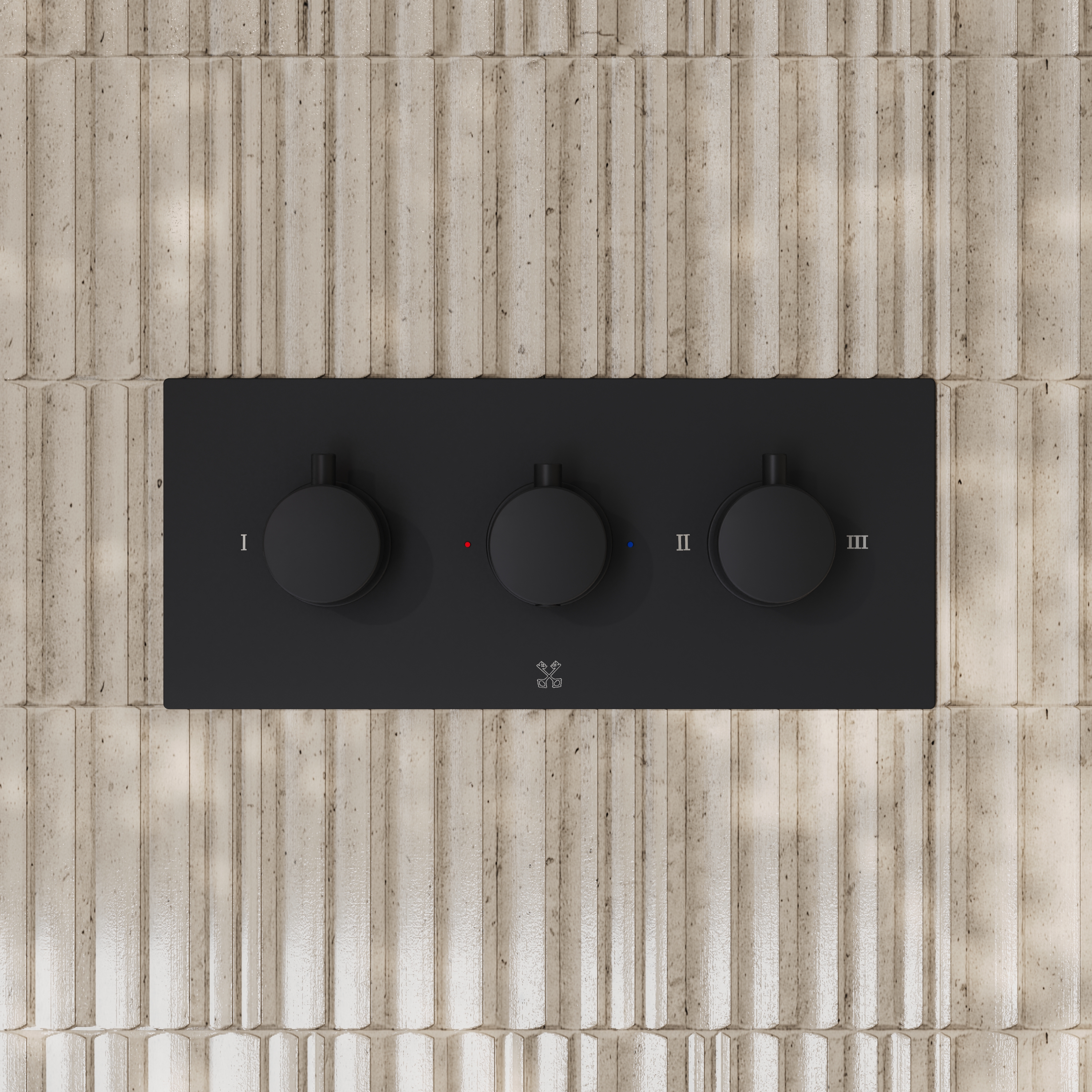

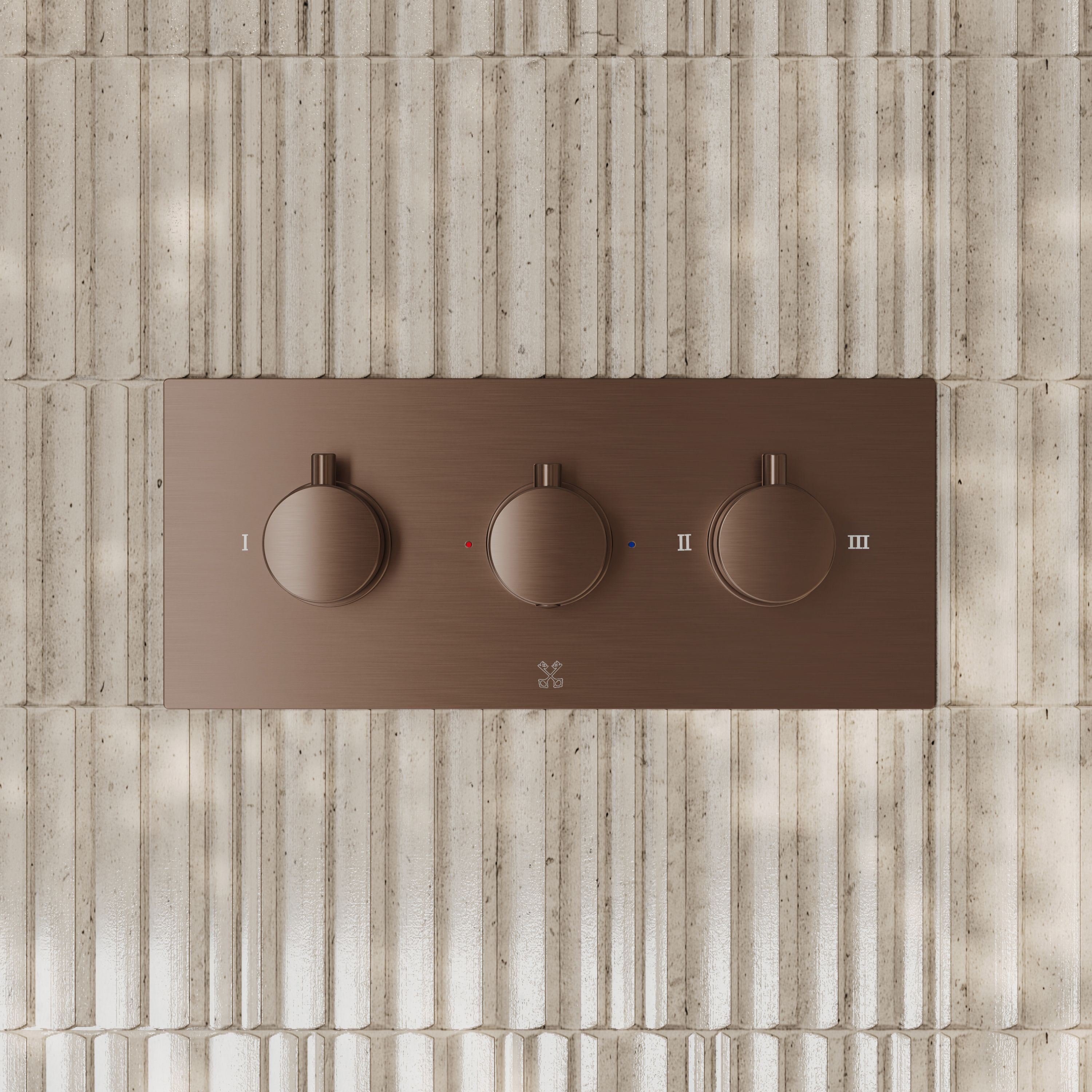

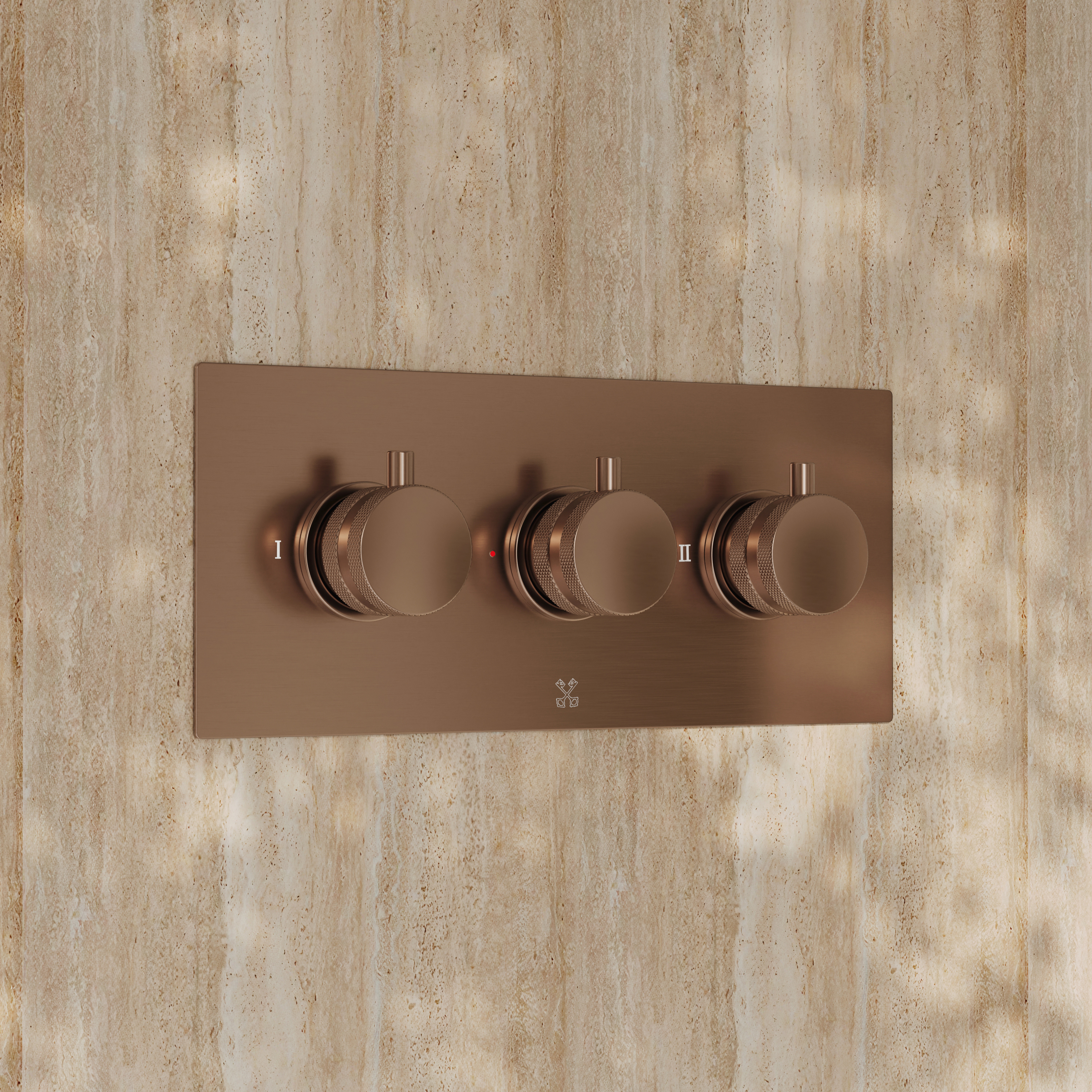

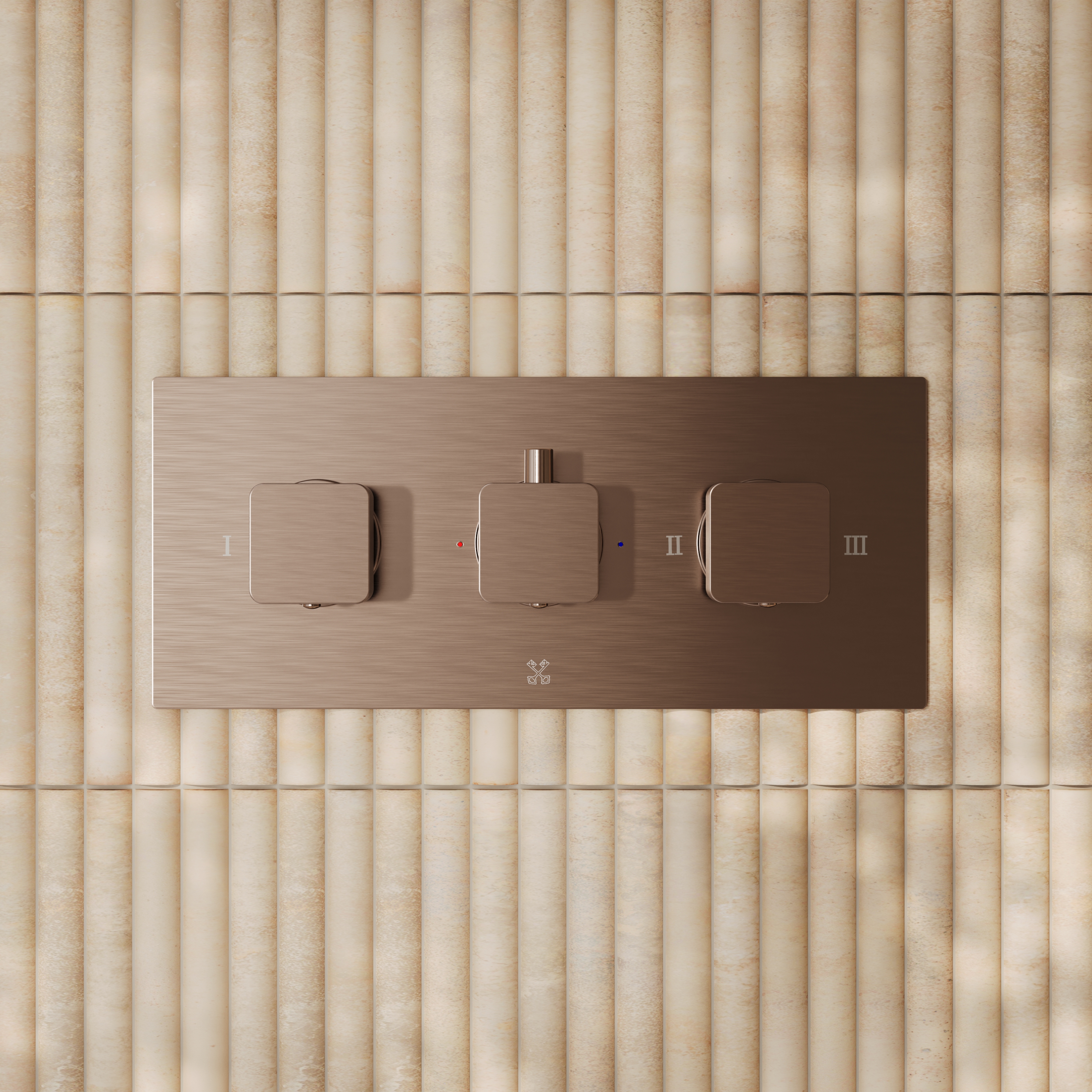

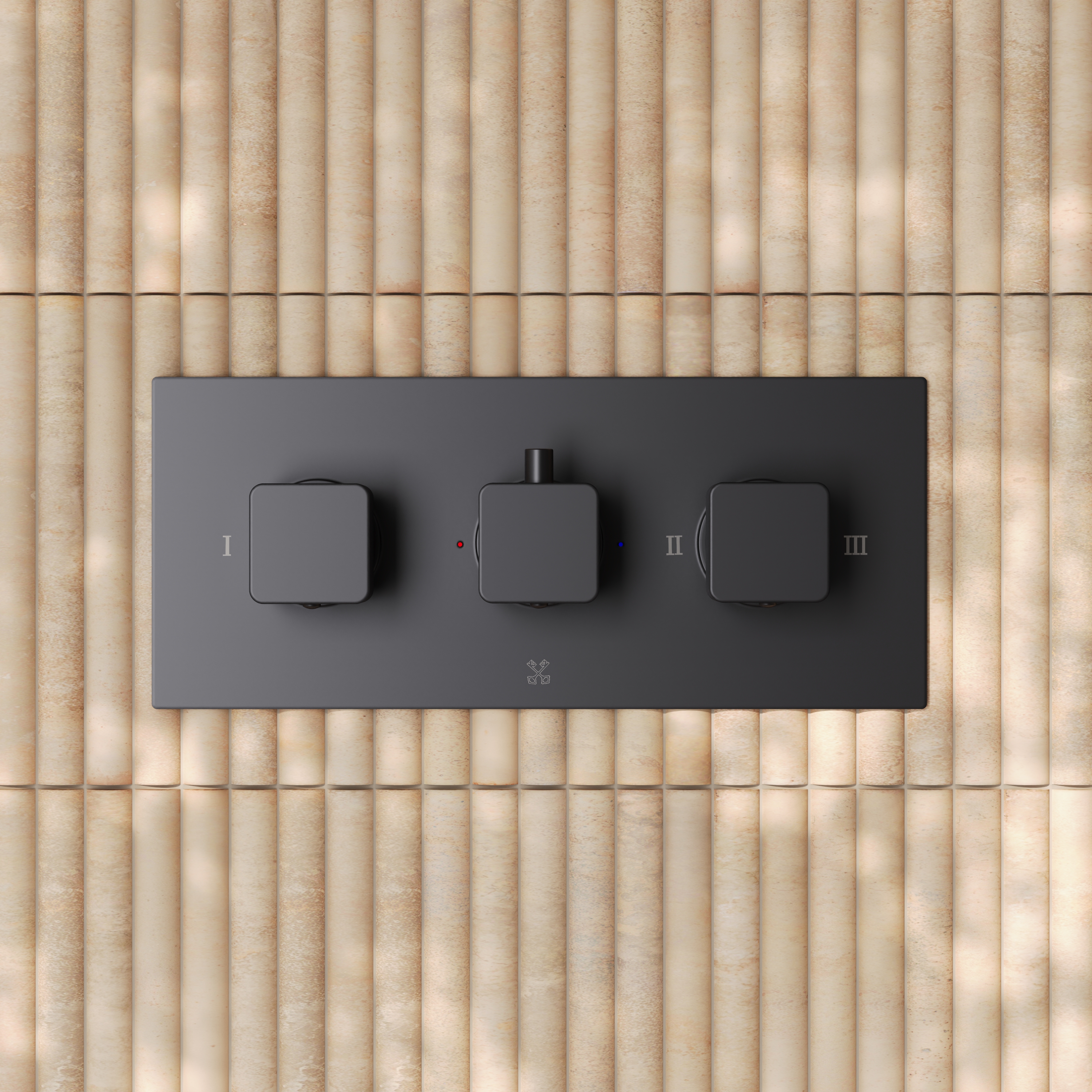

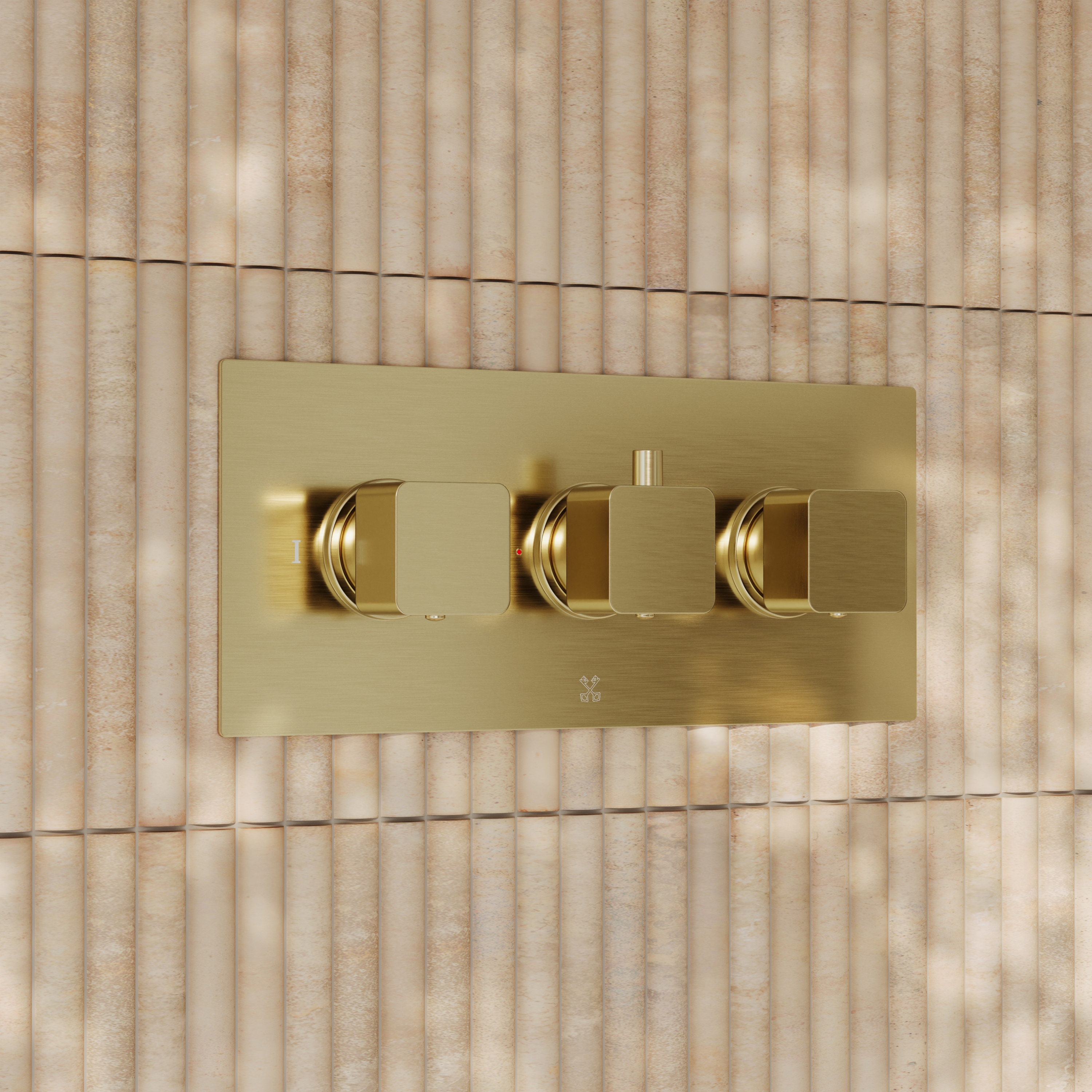

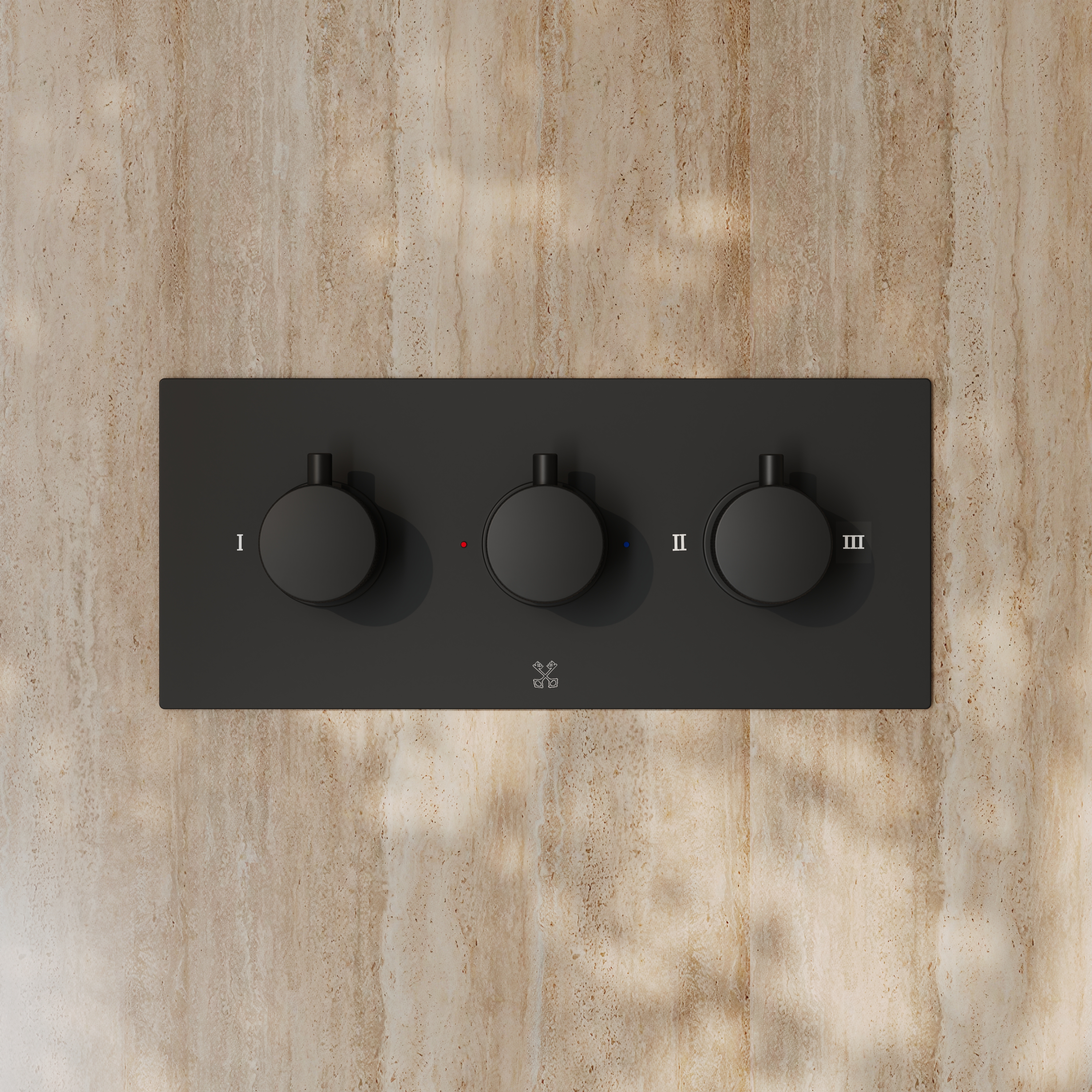

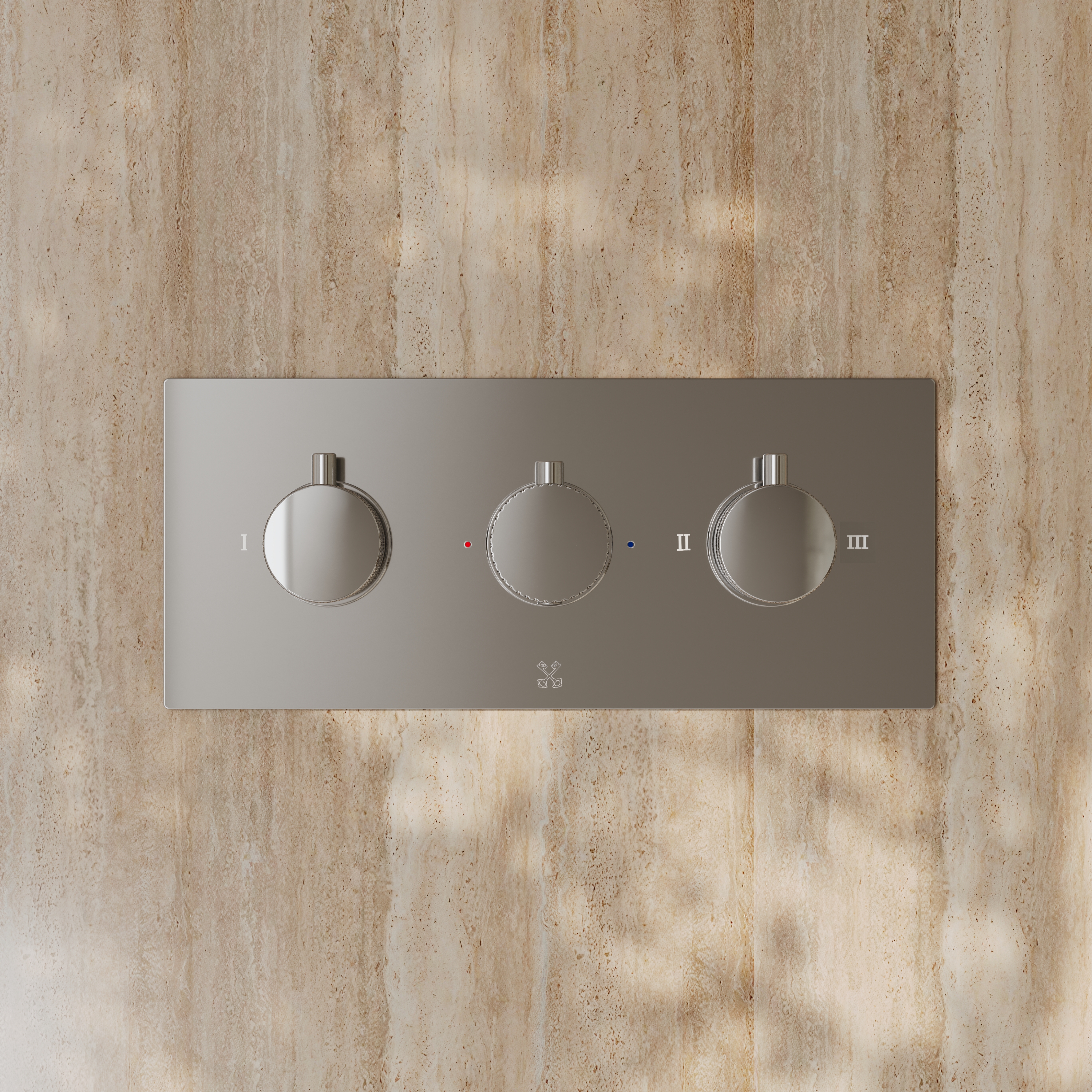

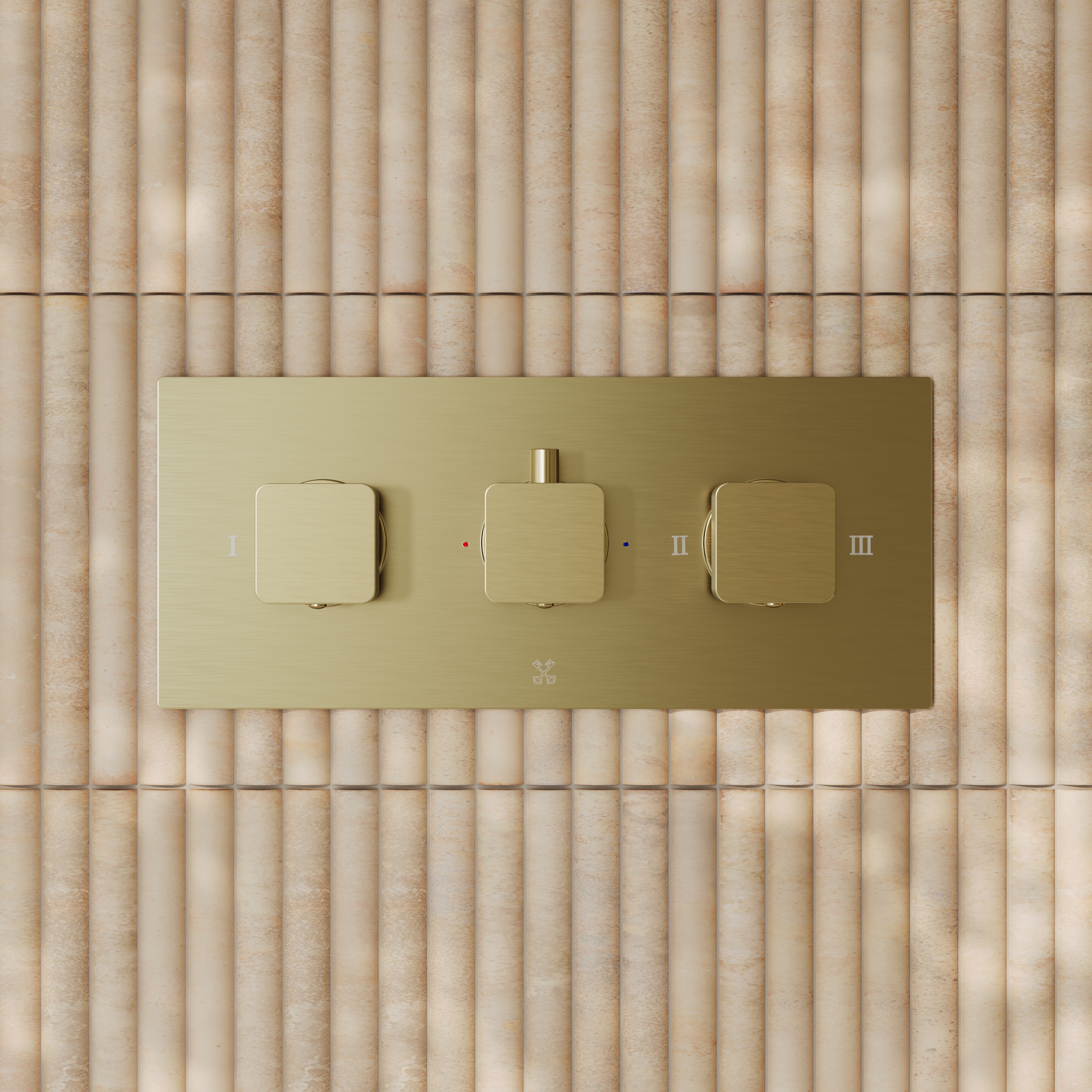

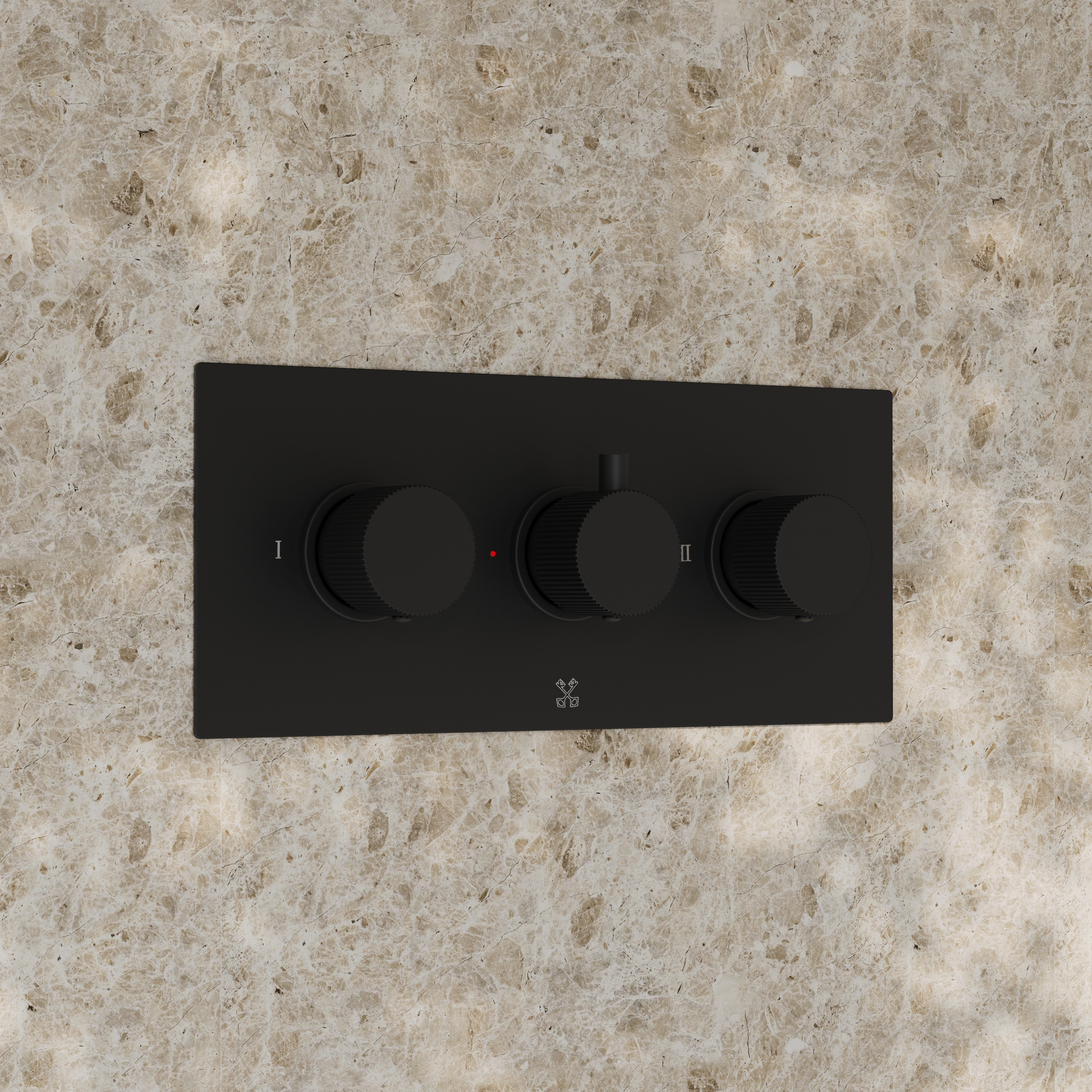

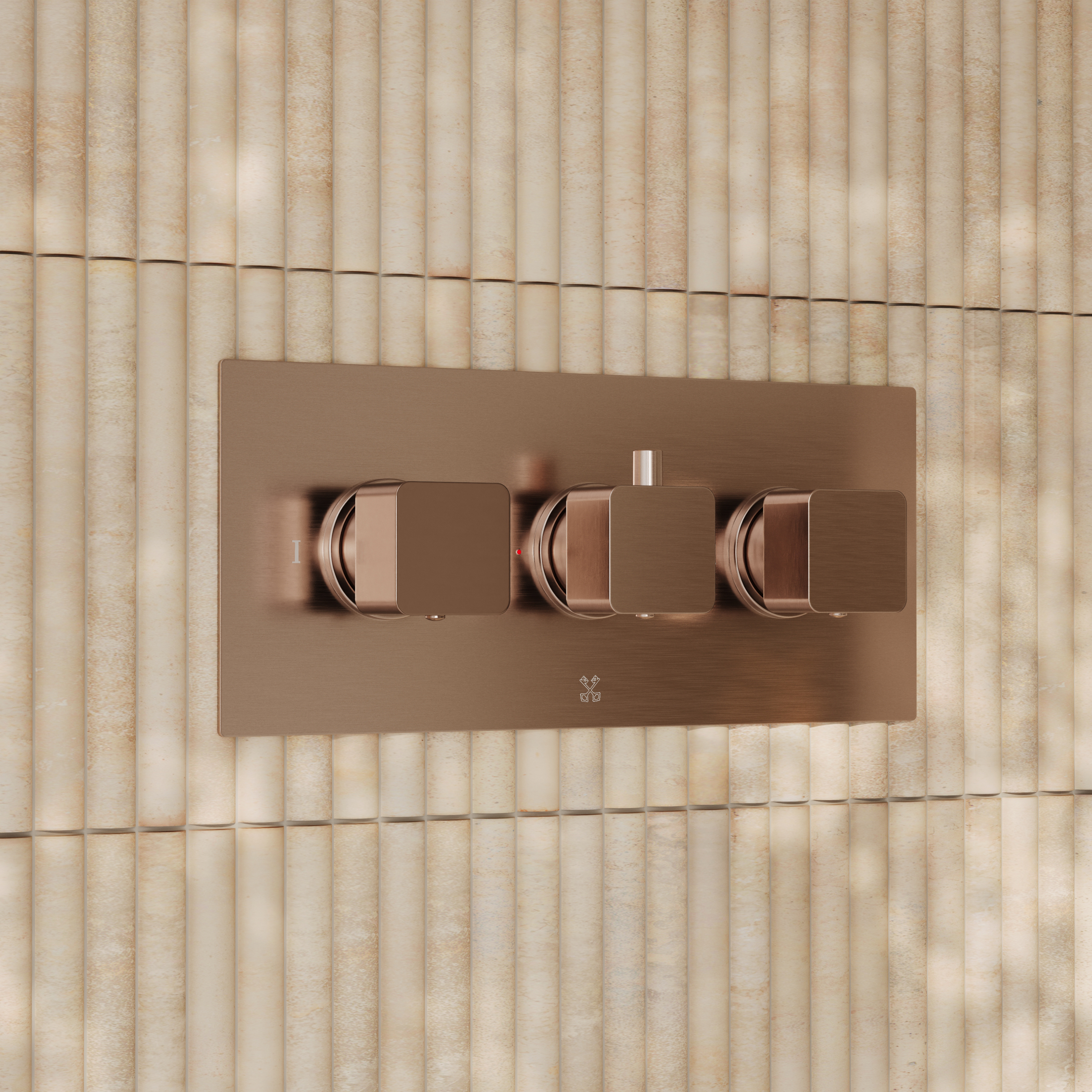

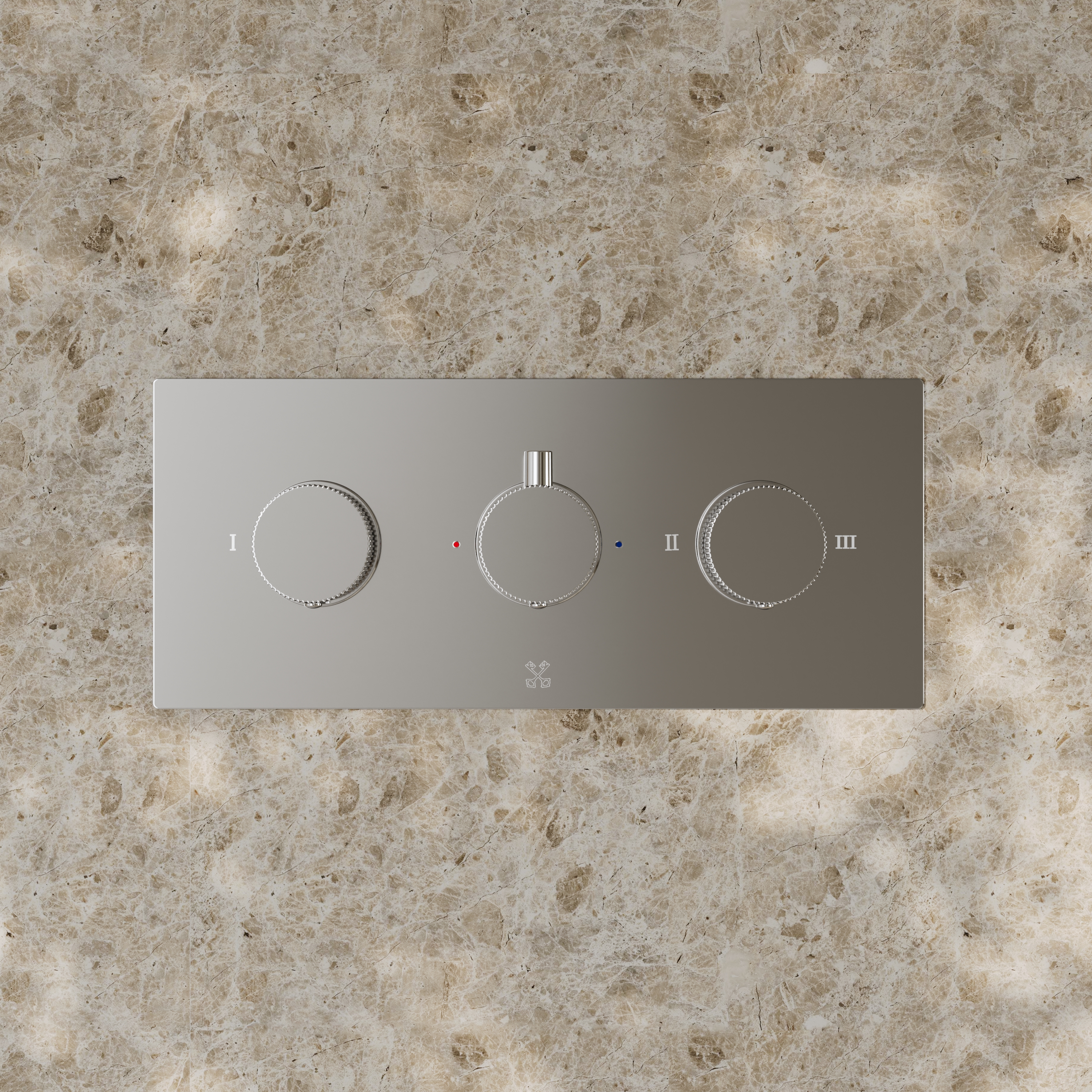

Upgrade your shower with the minimalist aesthetic and multi-fixture power of the Core 3 Outlet Thermostatic Valve. With the valve body concealed inside the wall, only the horizontal plate and dials are visible, creating a clean look that gives you the option to run 2 fixtures at the same time or alternate across 3 outlets. Inside, intelligent thermostatic technology holds your water temperature steady, preventing sudden hot or cold shocks for a consistently comfortable shower.

Features:
  • 3 outlets let you power 3 fixtures, like a rainfall shower head, a handset and a bath filler
  • Simultaneous functionality lets you run 2 outlets at the same time for a more immersive shower

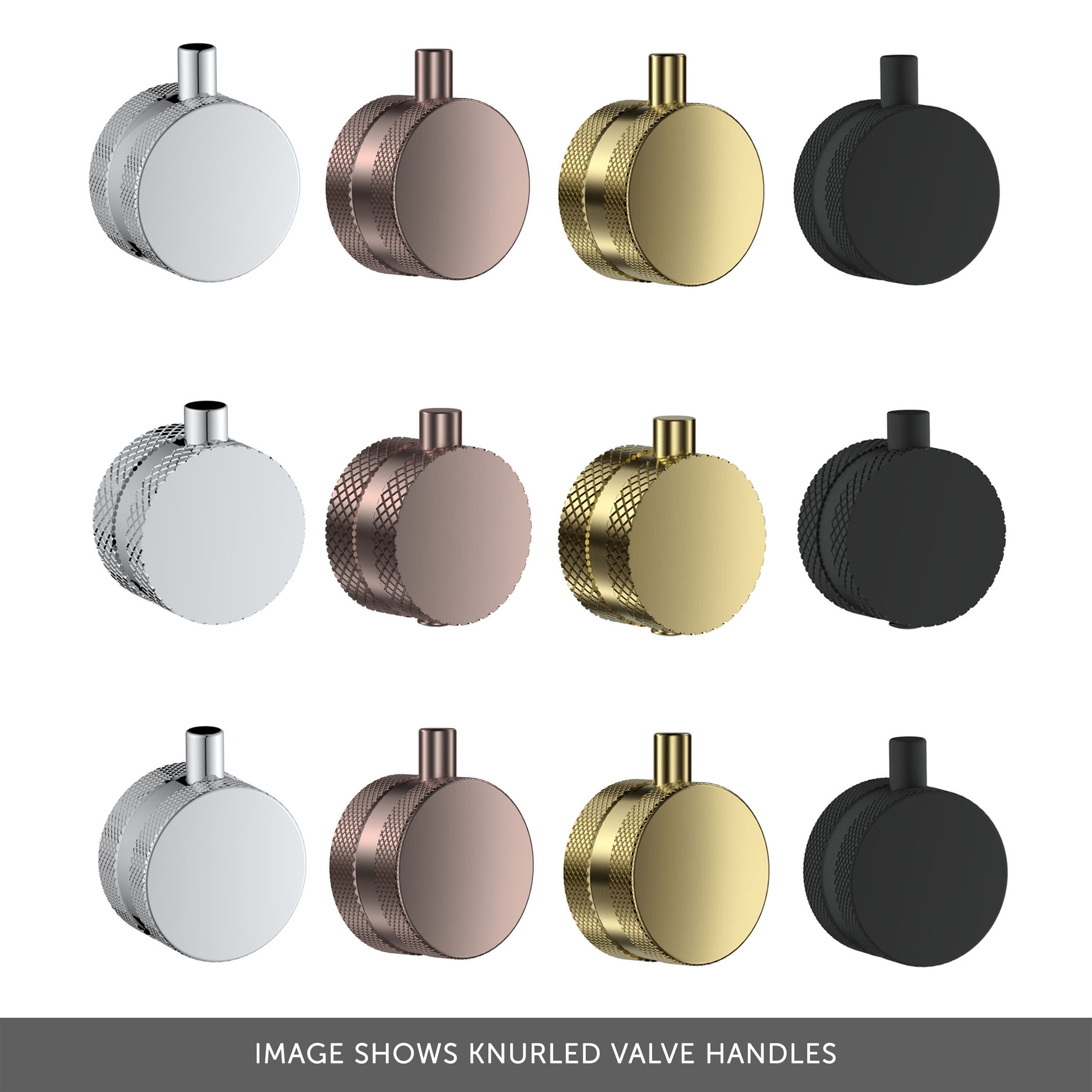

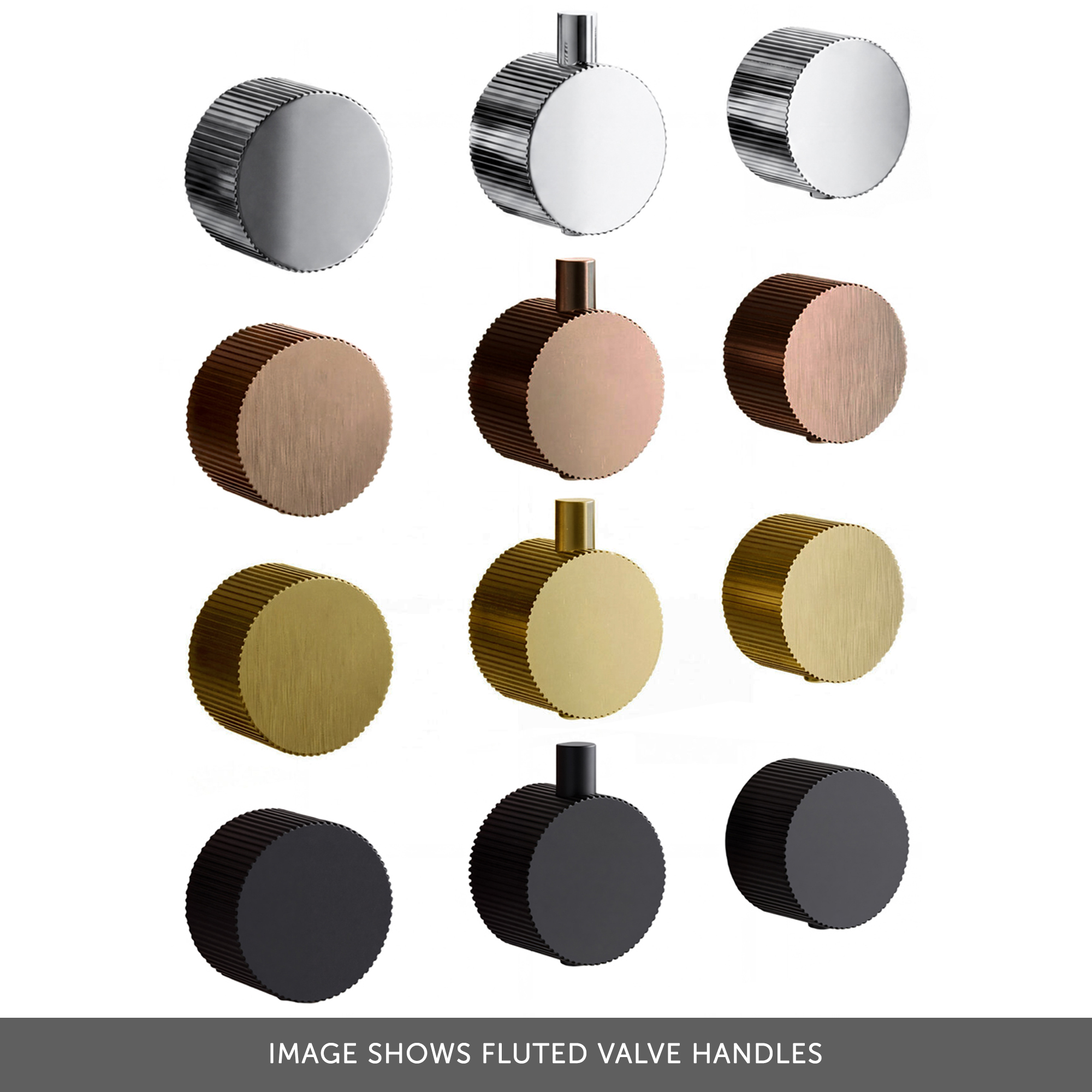

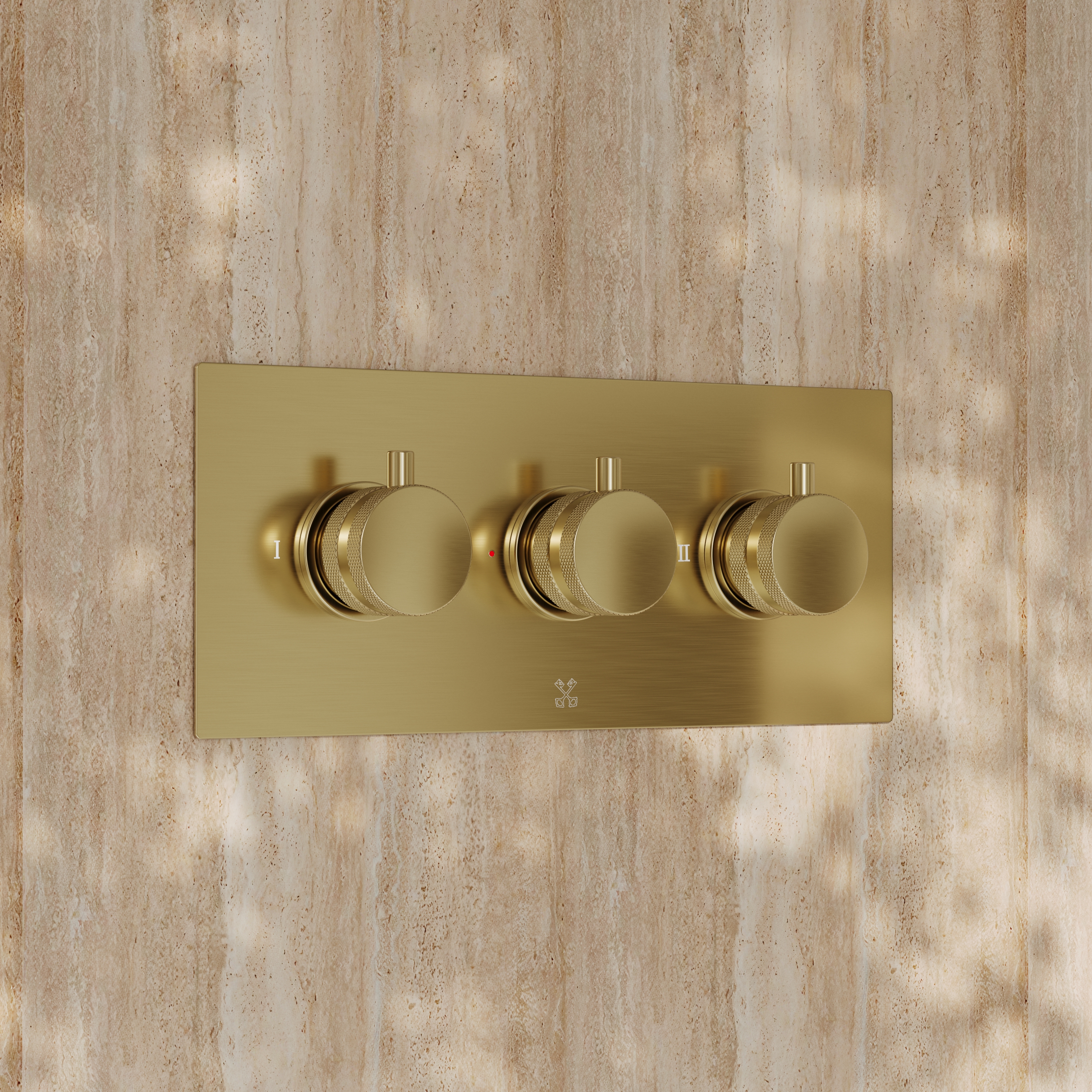

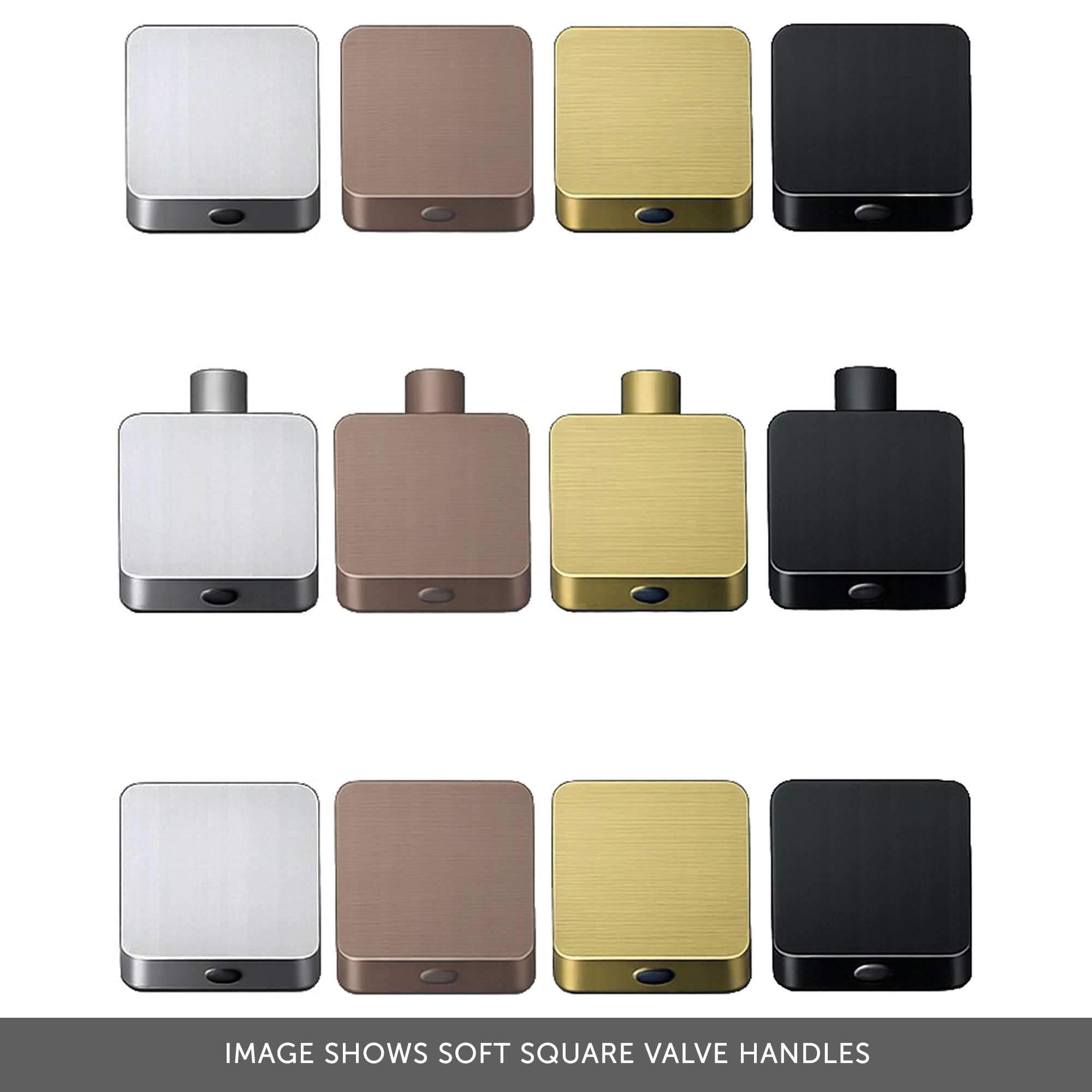

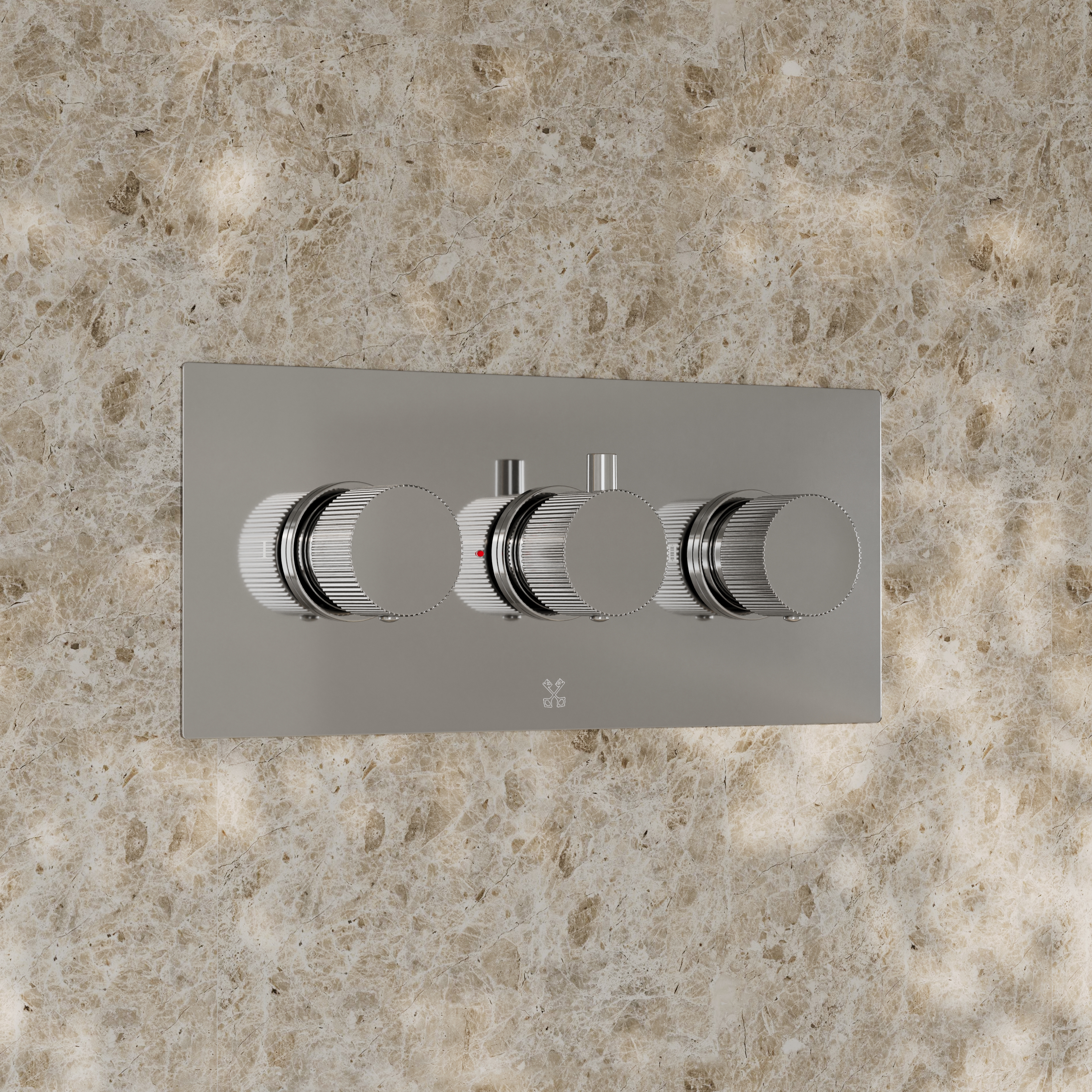

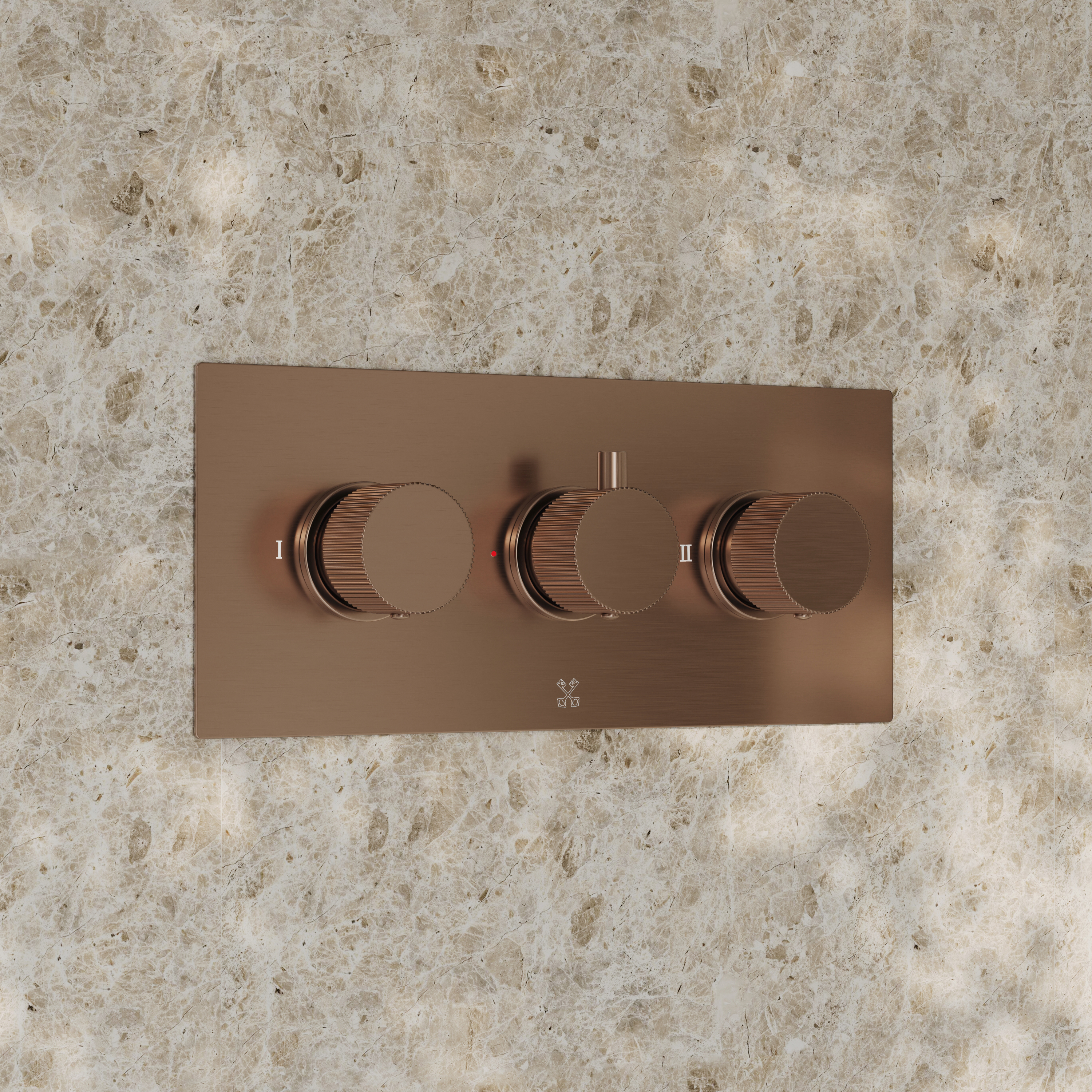

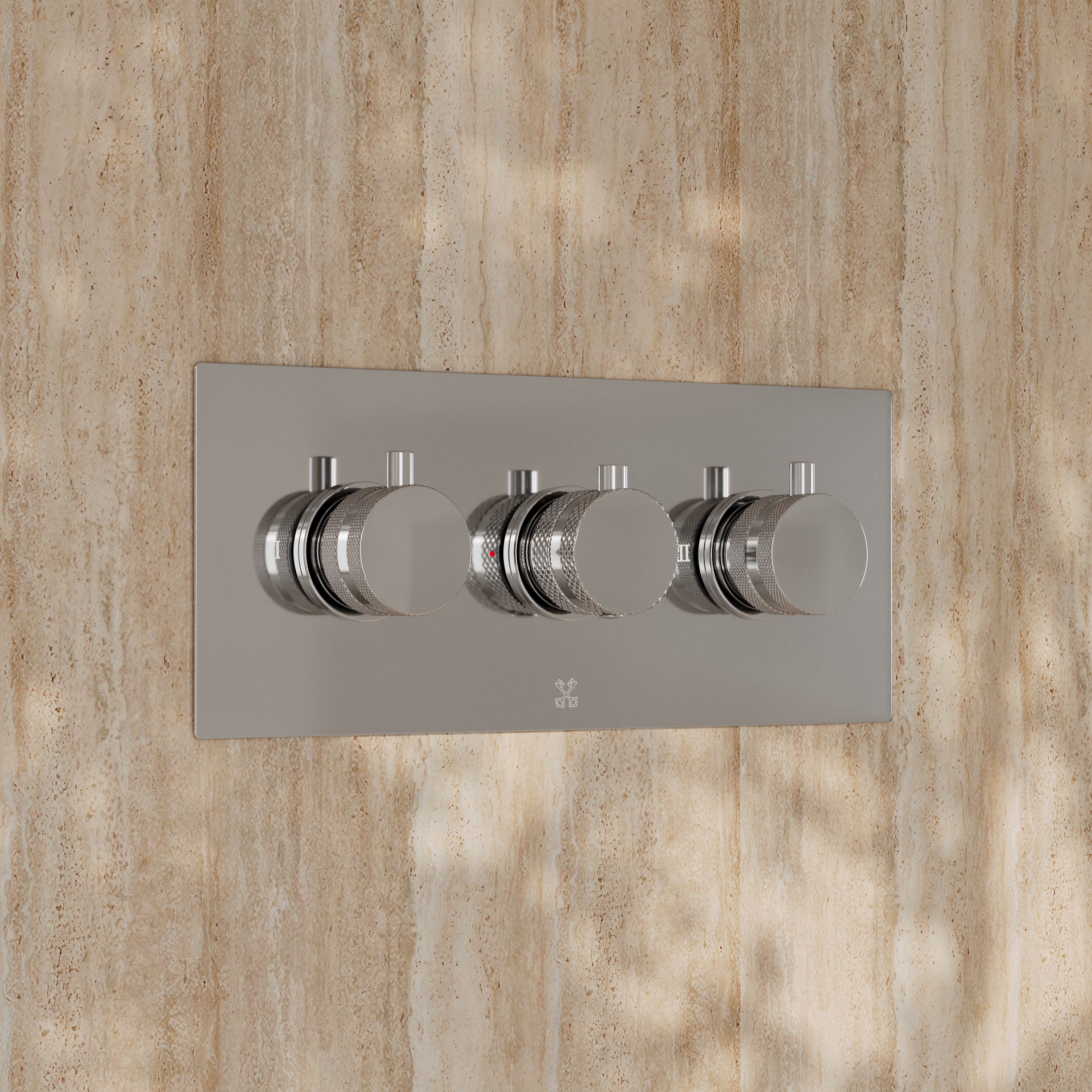

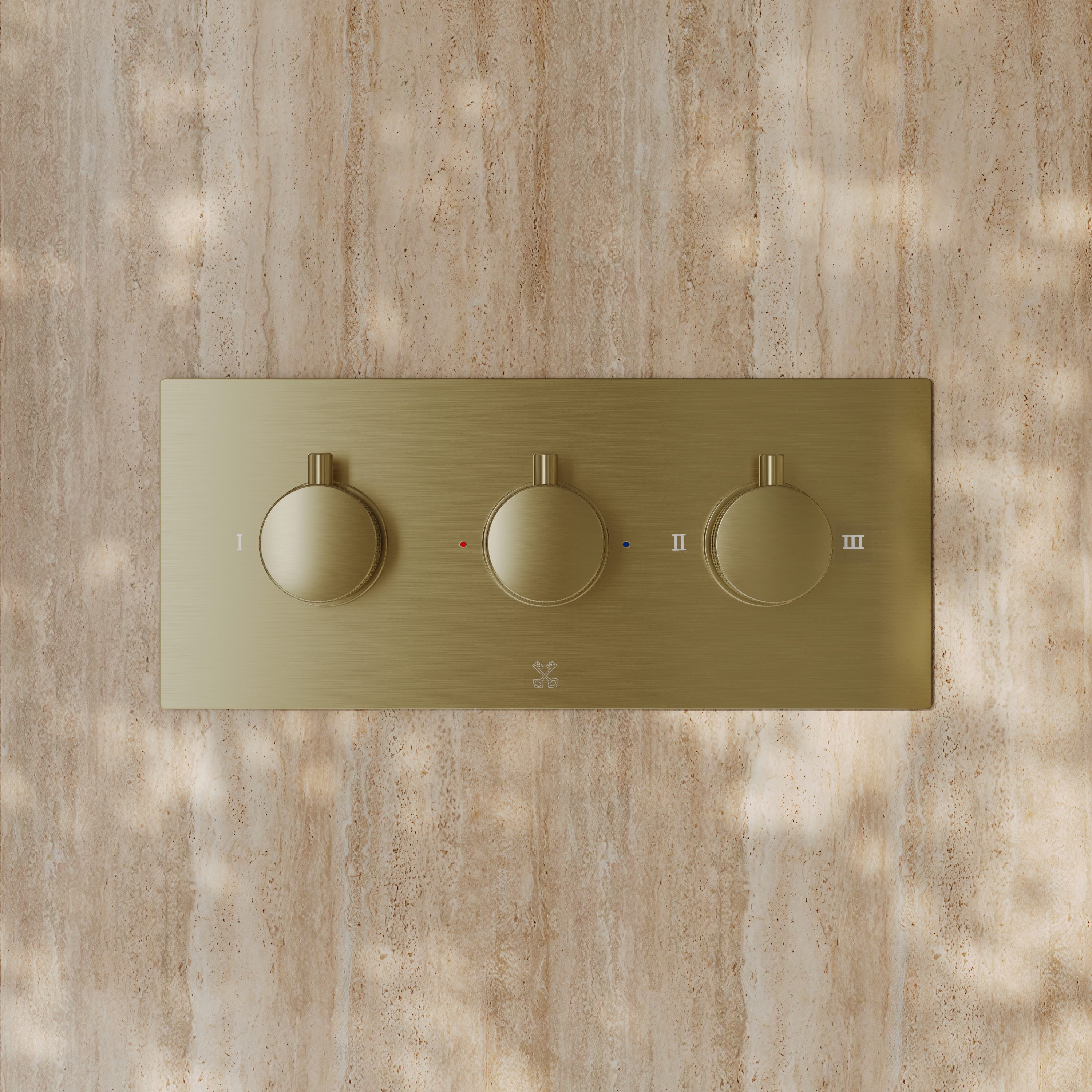

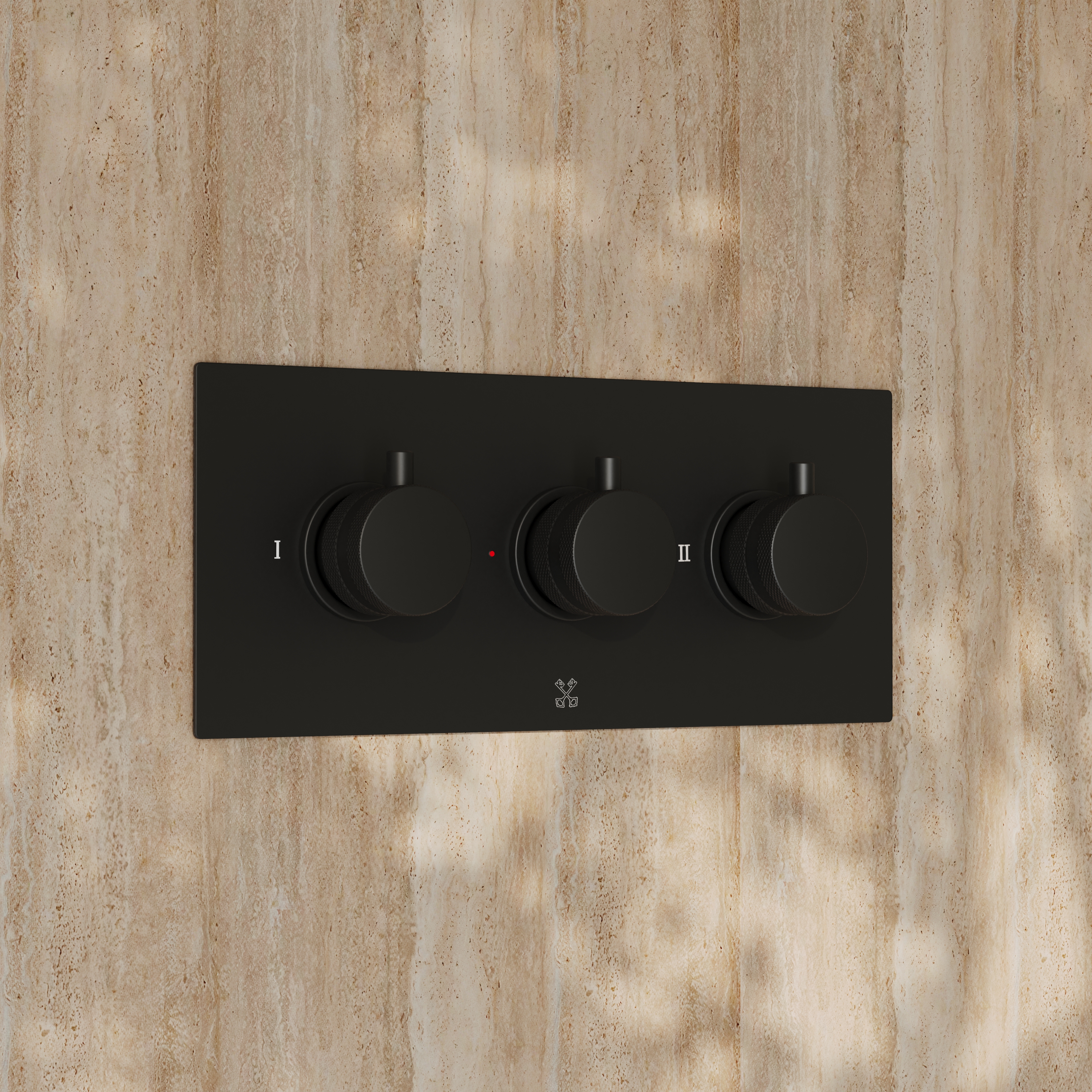

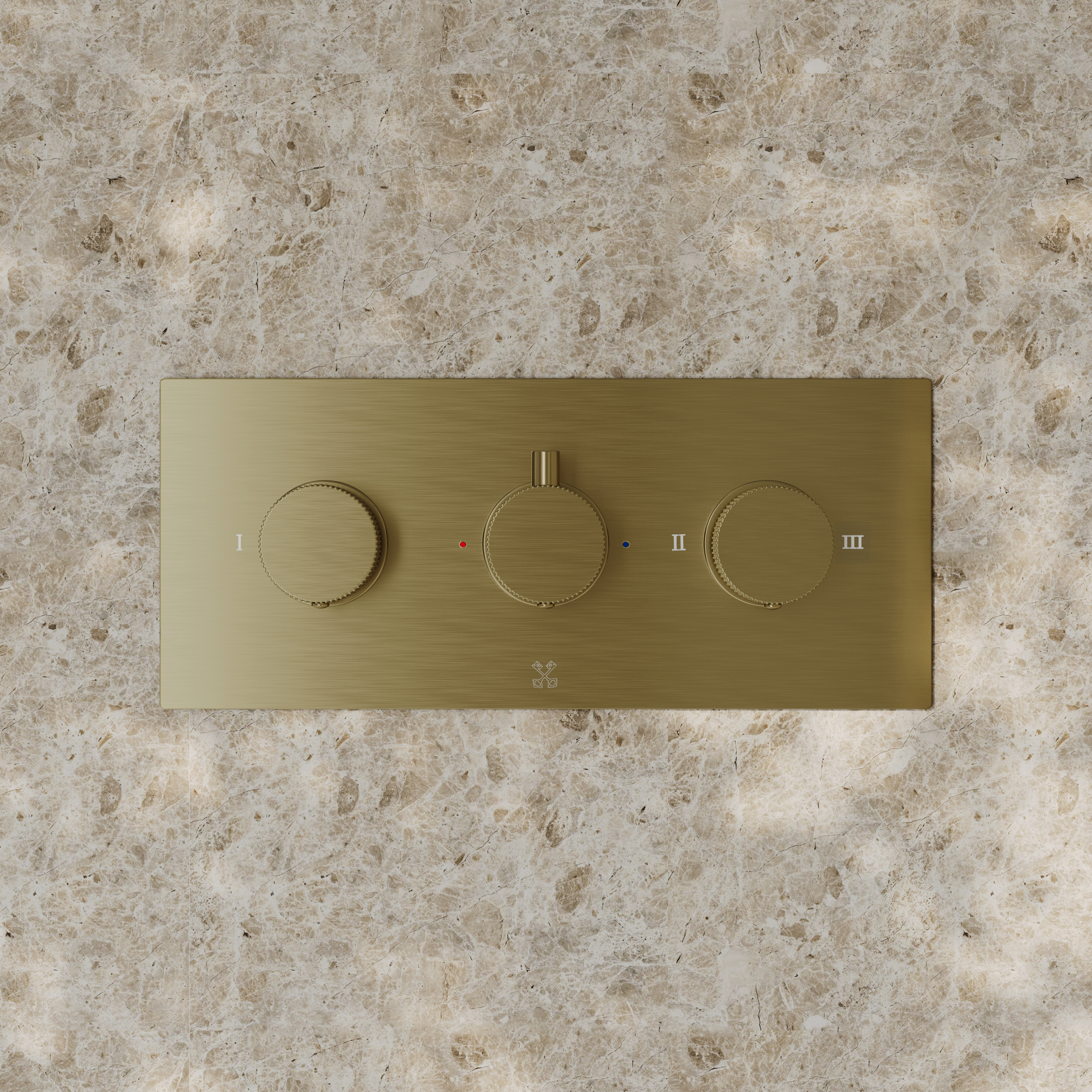

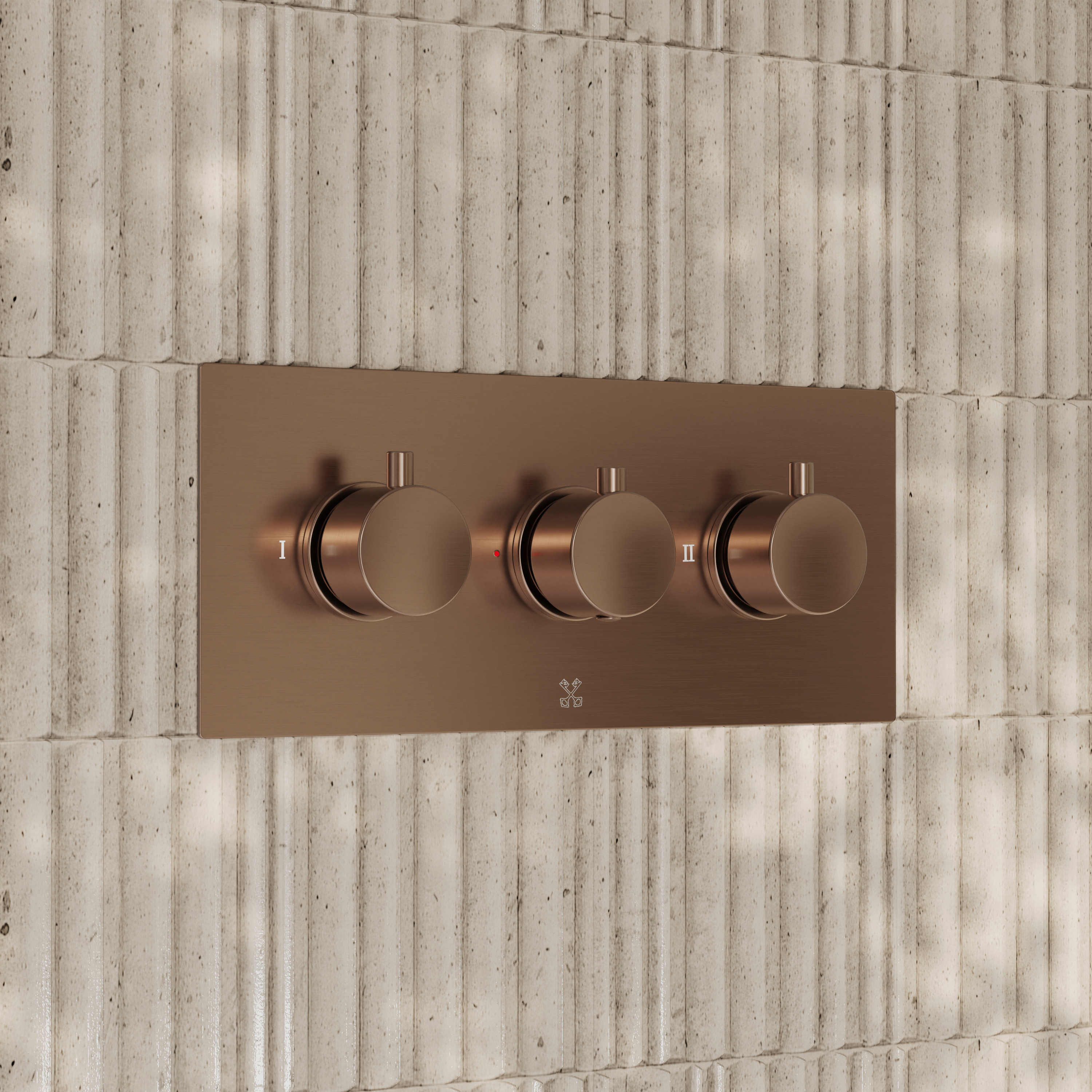

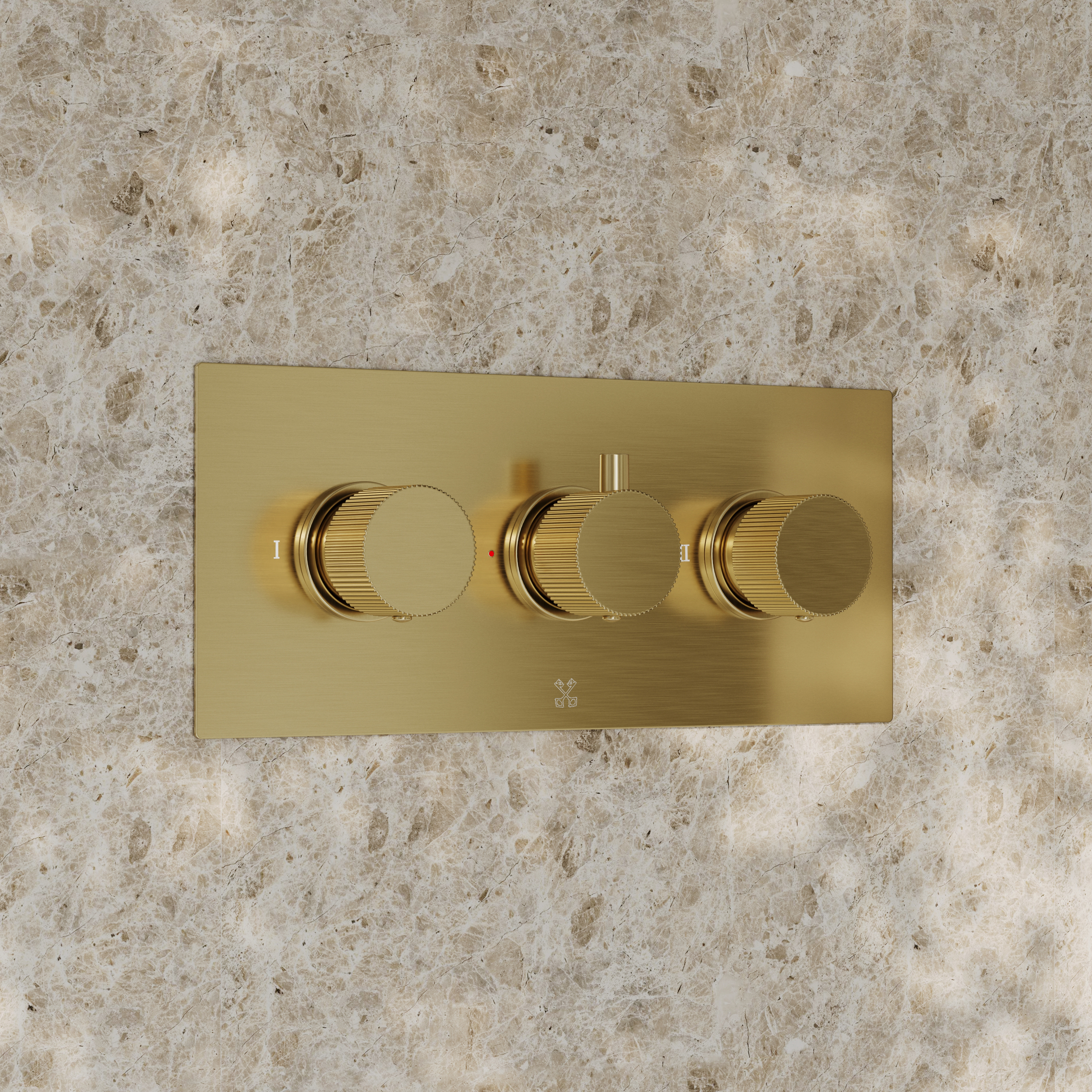

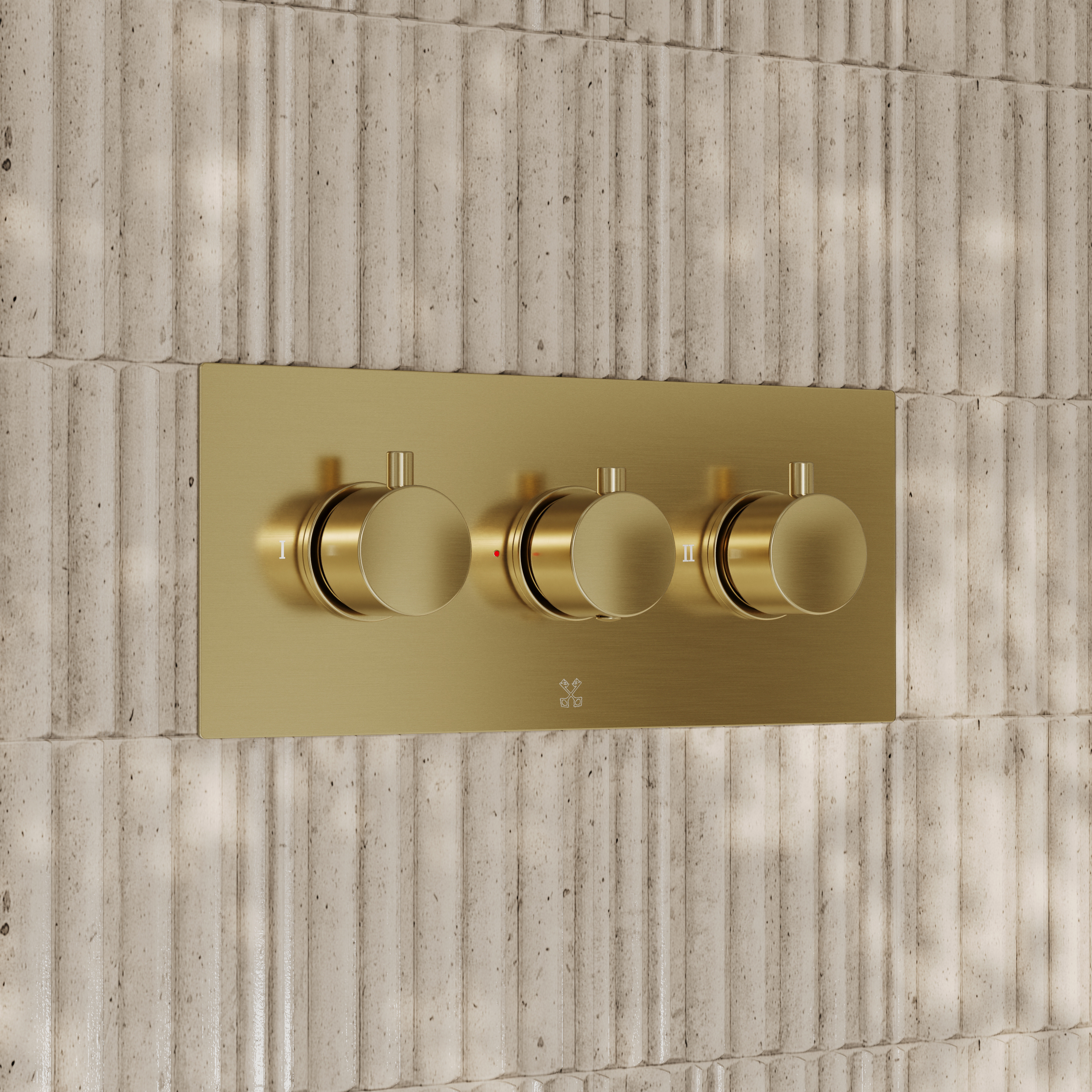

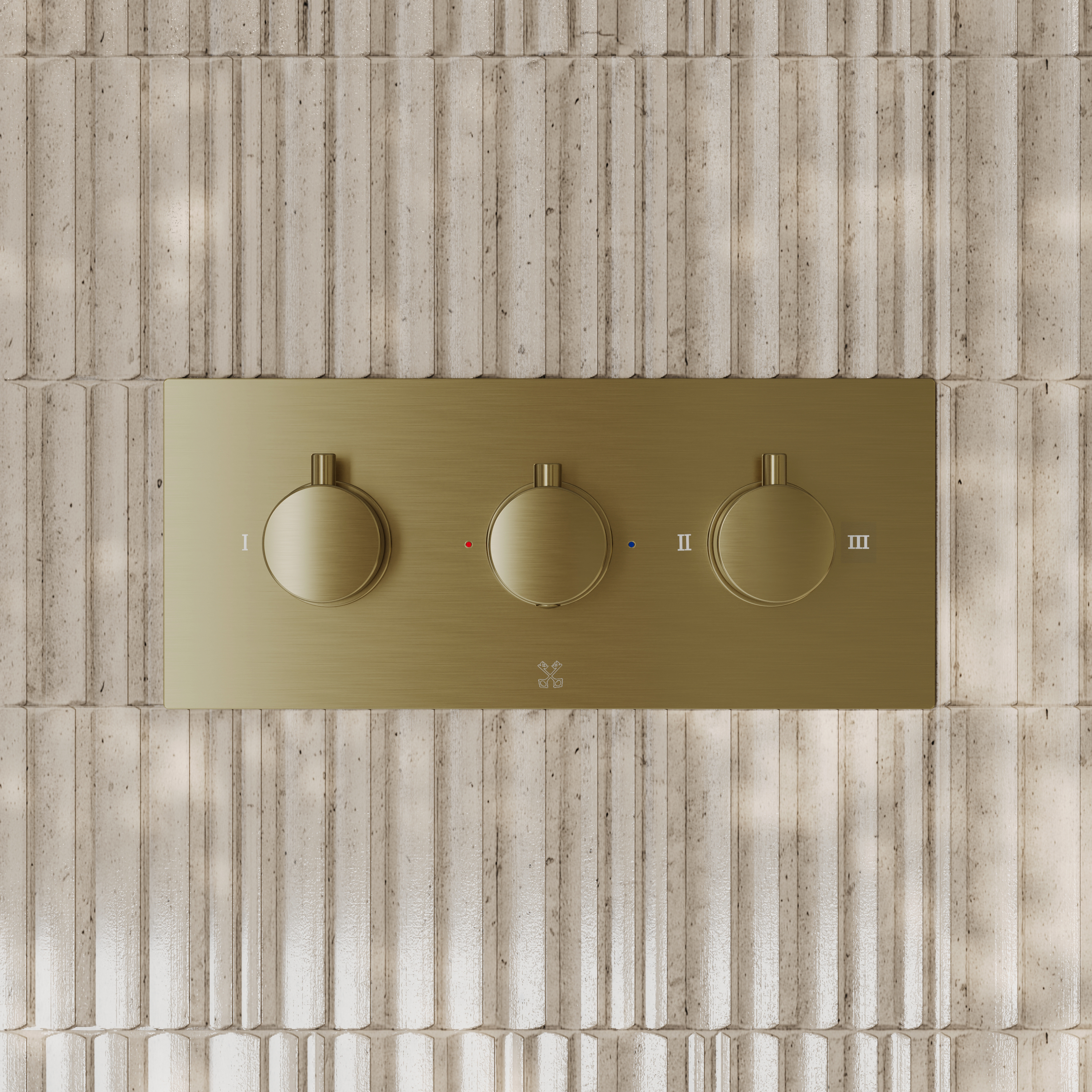

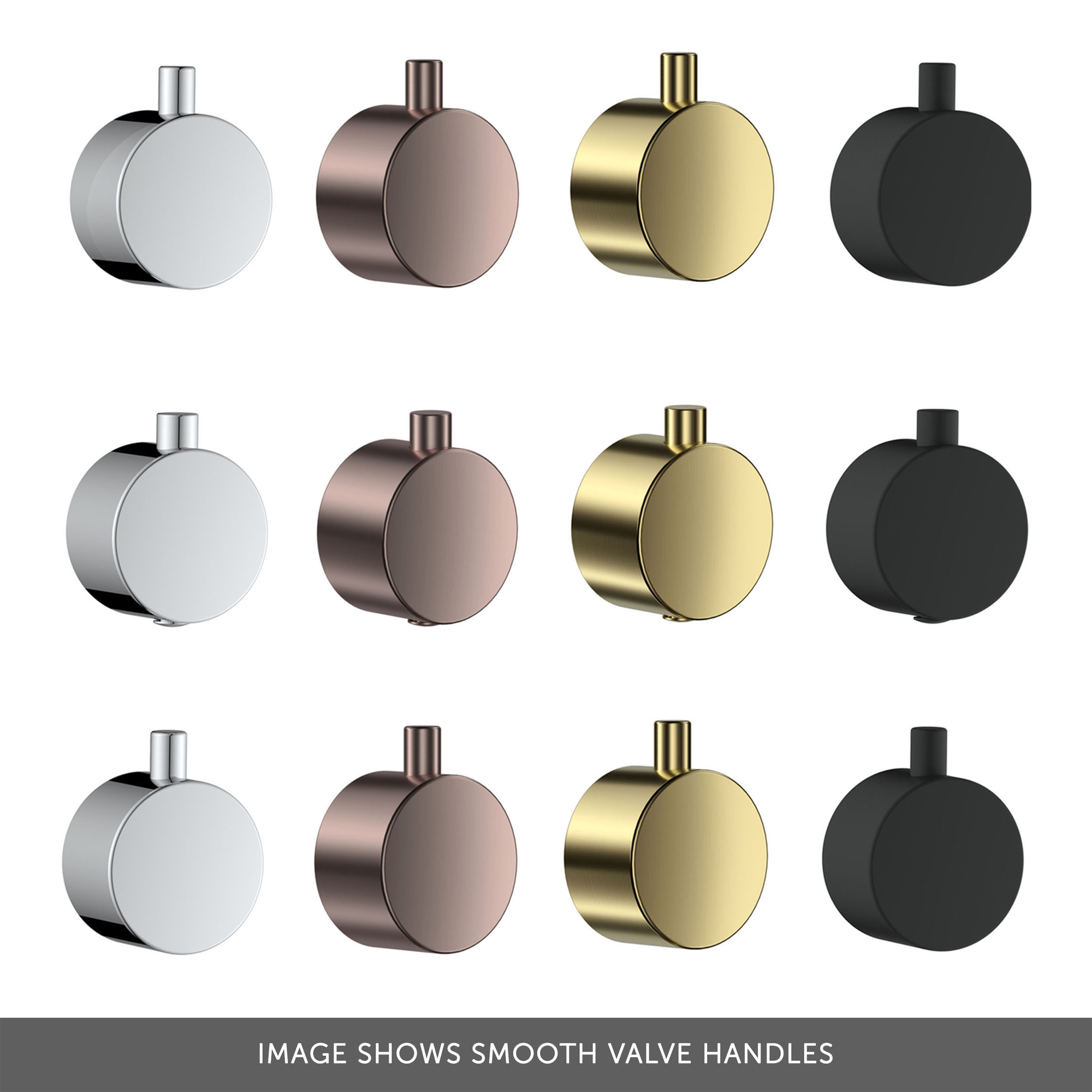

  • Personalise the look with 4 handle styles: soft square, fluted, smooth, or knurled
  • Etched dial markings make it simple to adjust the water flow and temperature to your preference
  • Ceramic disc technology keeps the handle turning smoothly and stops dripping
  • Thermostatic control stops sudden scalding or freezing temperatures to keep you comfortable
  • Pre-set 38°C lock protects from high temperatures, with a push-button override for warmer water
  • Durable stainless steel plate and handles resist rust and corrosion for long-lasting reliability
  • Flush horizontal backplate spans 280mm to hide pipework cutouts and eliminate any gaps

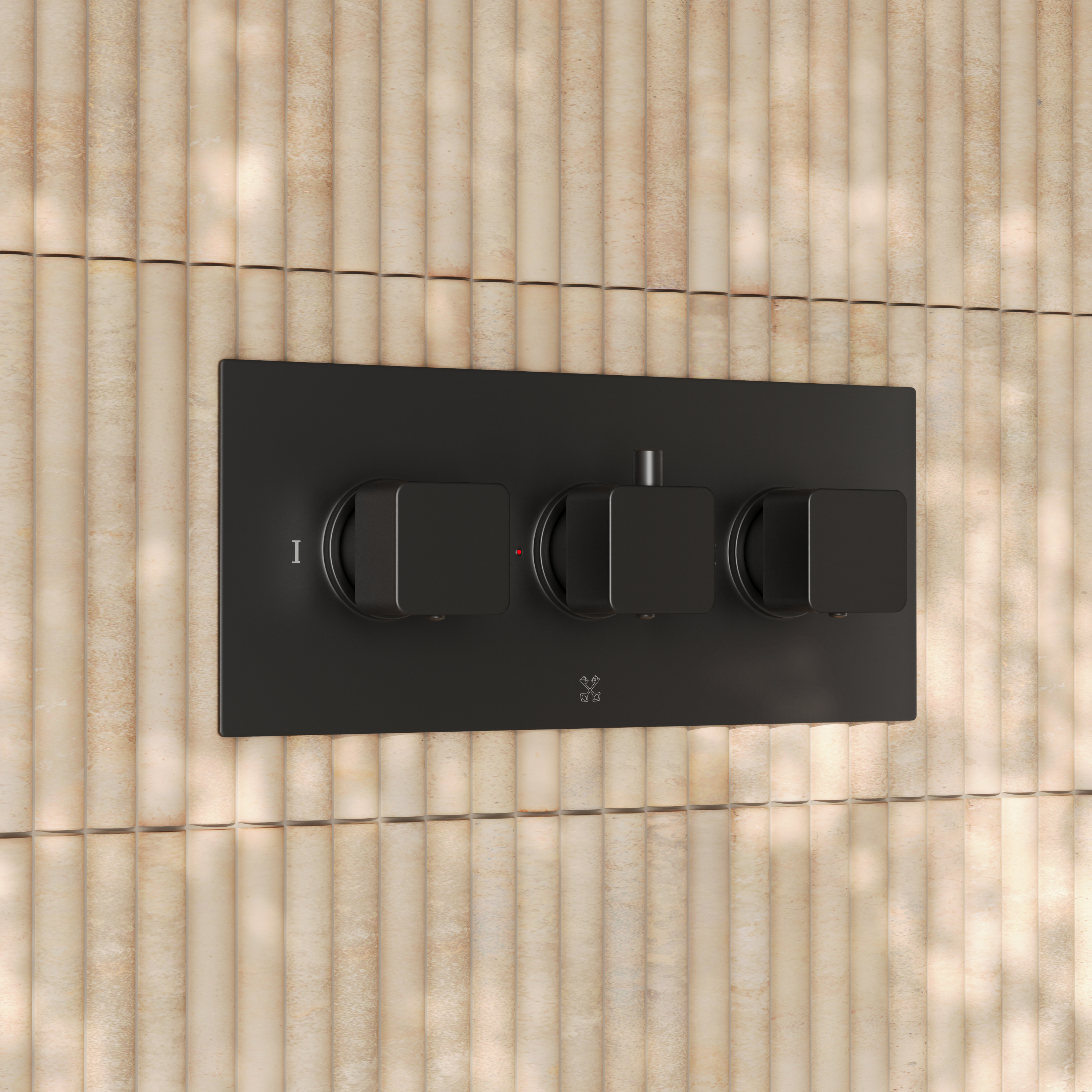

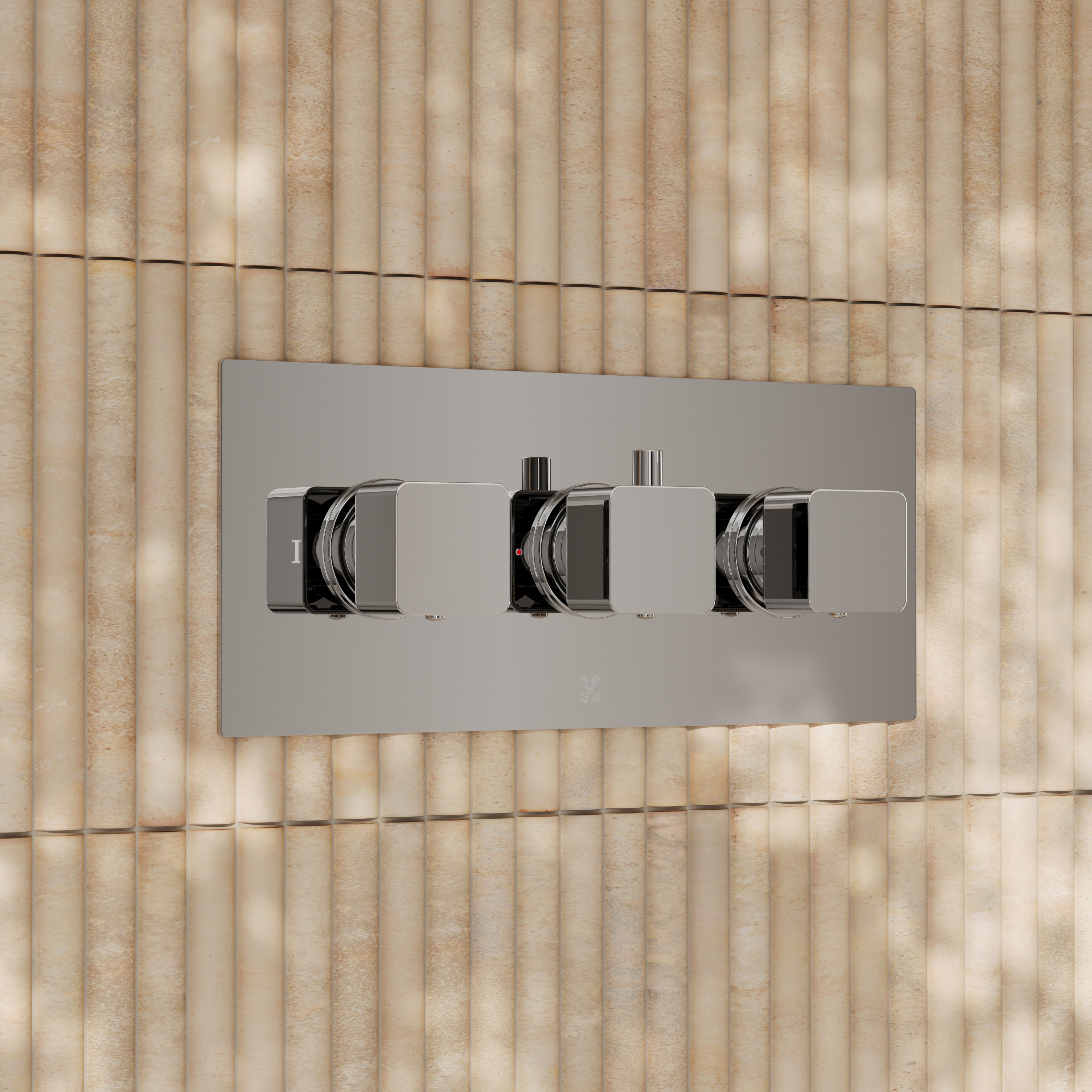

  • Choice of finishes to create a coordinated look or pair with the wider Drench Core range
  • Optimised for systems with a minimum 0.5 bar pressure to deliver a steady water flow

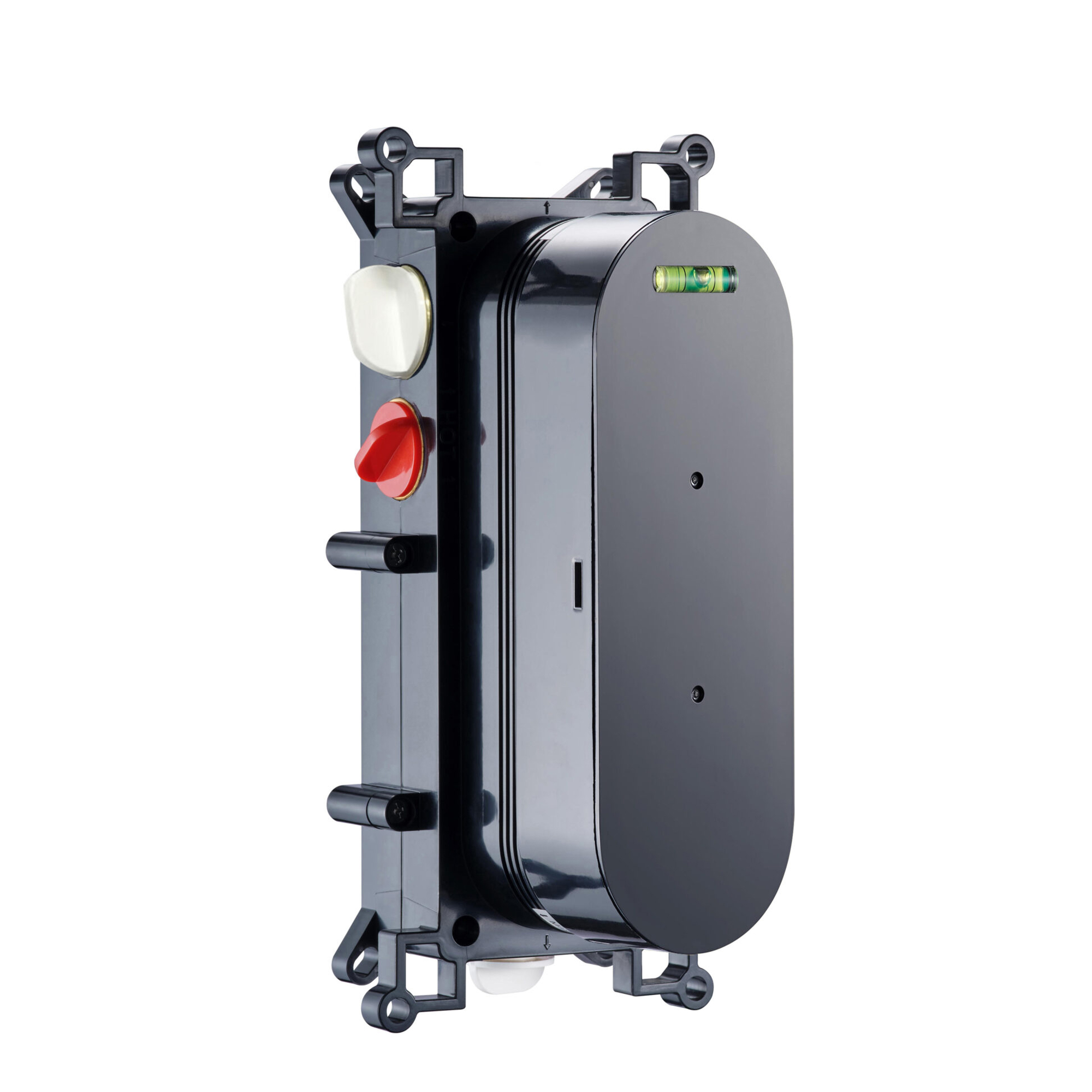

  • Complete bundle includes internal valve body, horizontal plate and handles for a seamless setup
  • WRAS approved, meeting strict UK water regulations and safety standards
  • Shower head and handset sold separately, see our recommended extras for compatible options
  • Includes a lifetime manufacturer’s guarantee for peace of mind

Product Overview
Product Code dr-core-3-outlet-shr-vlv-pv
Type Concealed Shower Valves
Brand Drench
Brand Range Drench Core
GuaranteeMore information Lifetime
Global Trade Item Number Select an option first

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material Brass, Plastic, Stainless Steel
Number of Outlets 3 Outlets
Temperature Control Thermostatic
Cartridge TypeMore information Ceramic Disc
Popular Features WRAS Approved
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Style
Mounting Type Wall Mounted
Shape Rectangular
Handle Type Triple Control
Style Modern
Finish Select an option first
Texture Select an option first
Orientation Select an option first
Dimensions
Width (mm) 280
Height (mm) 120
Depth (mm) 164
Projection (mm) 164
Flow Rate
Flow Rate at 0.5 Bar (l/min) 7.3
Flow Rate at 1 Bar (l/min) 10.2
Flow Rate at 2 Bar (l/min) 14.8
Flow Rate at 3 Bar (l/min) 18
Flow Rate at 5 Bar (l/min) 23.9
Minimum Water PressureMore information 0.5

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
