This slimline design has been crafted to fit into smaller spaces in your bathroom, predominantly WC units and tileable boxes, all of which will produce a smooth and clean finish. As the frame is concealed, there is no need for unsightly pipe work and exposed pipes due to its full pre-wall installation kit. This slimline frame can be paired with a large number of designer and durable flush plates and also allows for top or front access.
The slimline frame has been designed for easy installation and the height adjustable feet have an adjustable margin of 0-280mm. The cistern has been fully tested to support up to 400kg of weight and it also has large sound deadening feet. To round up this user and budget friendly slimline cistern, it comes with a 15 year guarantee.
Features:
The slimline frame has been designed for easy installation and the height adjustable feet have an adjustable margin of 0-280mm. The cistern has been fully tested to support up to 400kg of weight and it also has large sound deadening feet. To round up this user and budget friendly slimline cistern, it comes with a 15 year guarantee.
Features:
- Dual flush cistern and frame for wall mounted toilets
- Made for British installation

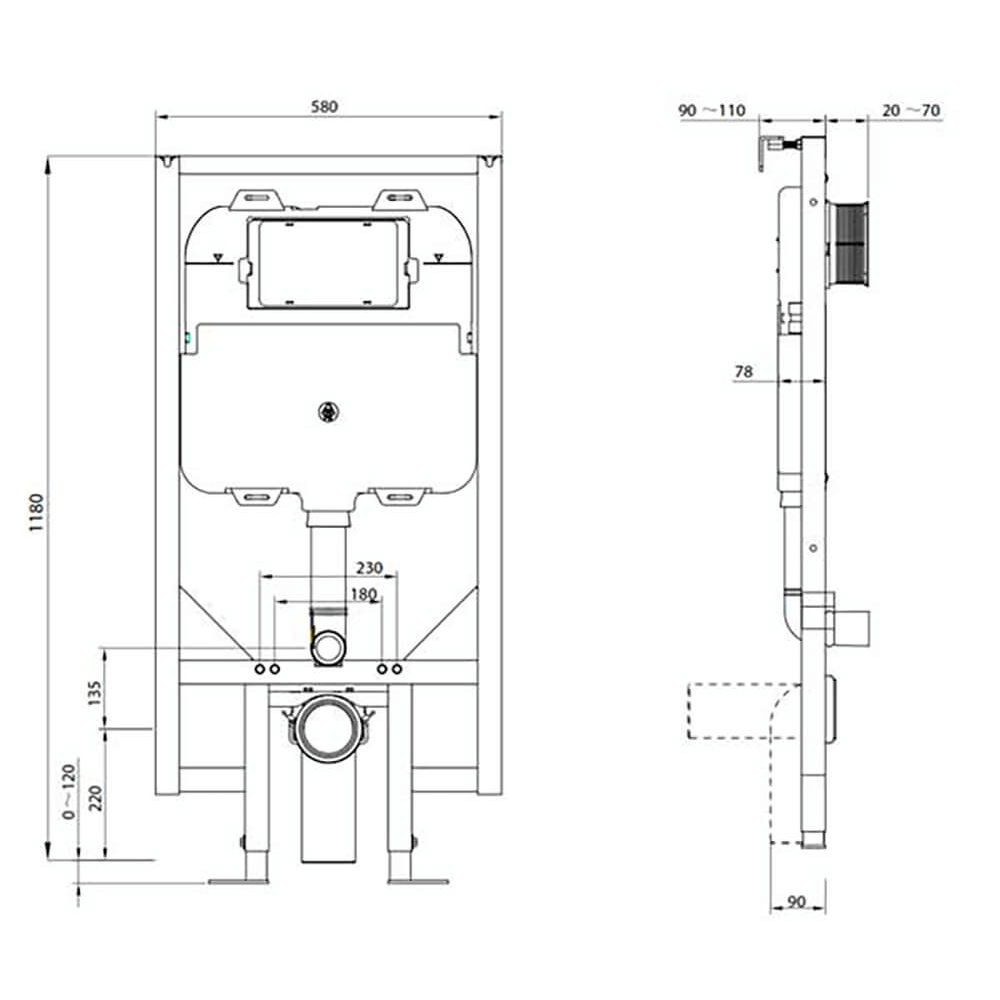

- Dimensions: H1180 x W580 x 90mm
- Top or front access
- For a compatible Abacus flush plate click here
- Supplied with both straight & angled soil pipe
- Supplied with full pre-wall installation kit (extension bolts supplied)
- Can be modified to provide a full flush of either 6L/3L or 4.5L/3L
- Includes 90 degree waste bend
- WRAS approved
- Easy install wall brackets for vertical or horizontal fixing
- Large feet for easy rear fixing
- 0-280mm height adjustable feet with sound deadening pads
- 15 year guarantee
| Product Code | EPWC-30-2005 |
|---|---|
| Type | Wall Hung Cistern Frames |
| Brand | Abacus |
| GuaranteeMore information | 15 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Material | Plastic |
|---|
| Finish | White |
|---|---|
| Shape | Square |
| Style | Modern |
| Width (mm) | 580 |
|---|---|
| Height (mm) | 1180 |
| Depth (mm) | 180 |
