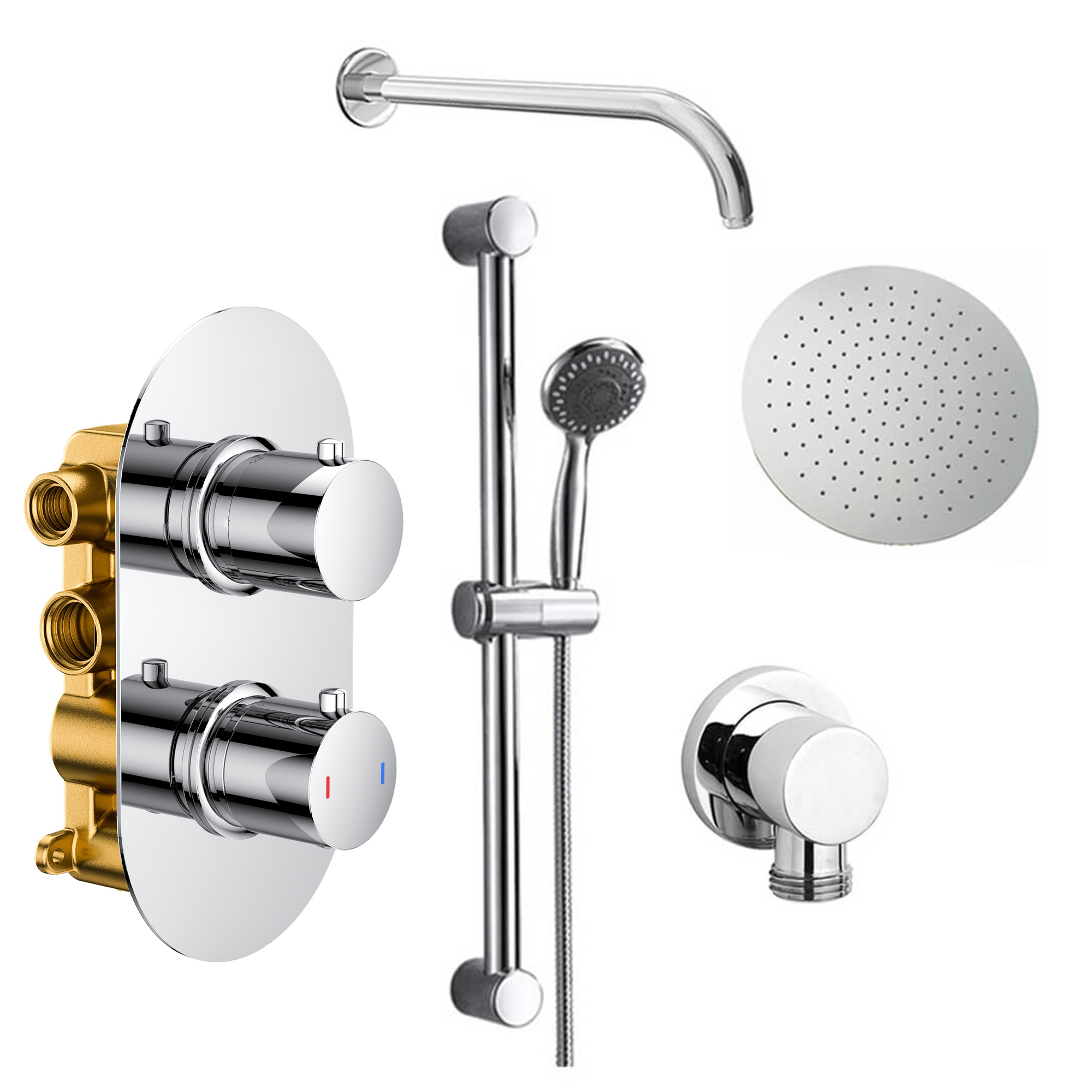

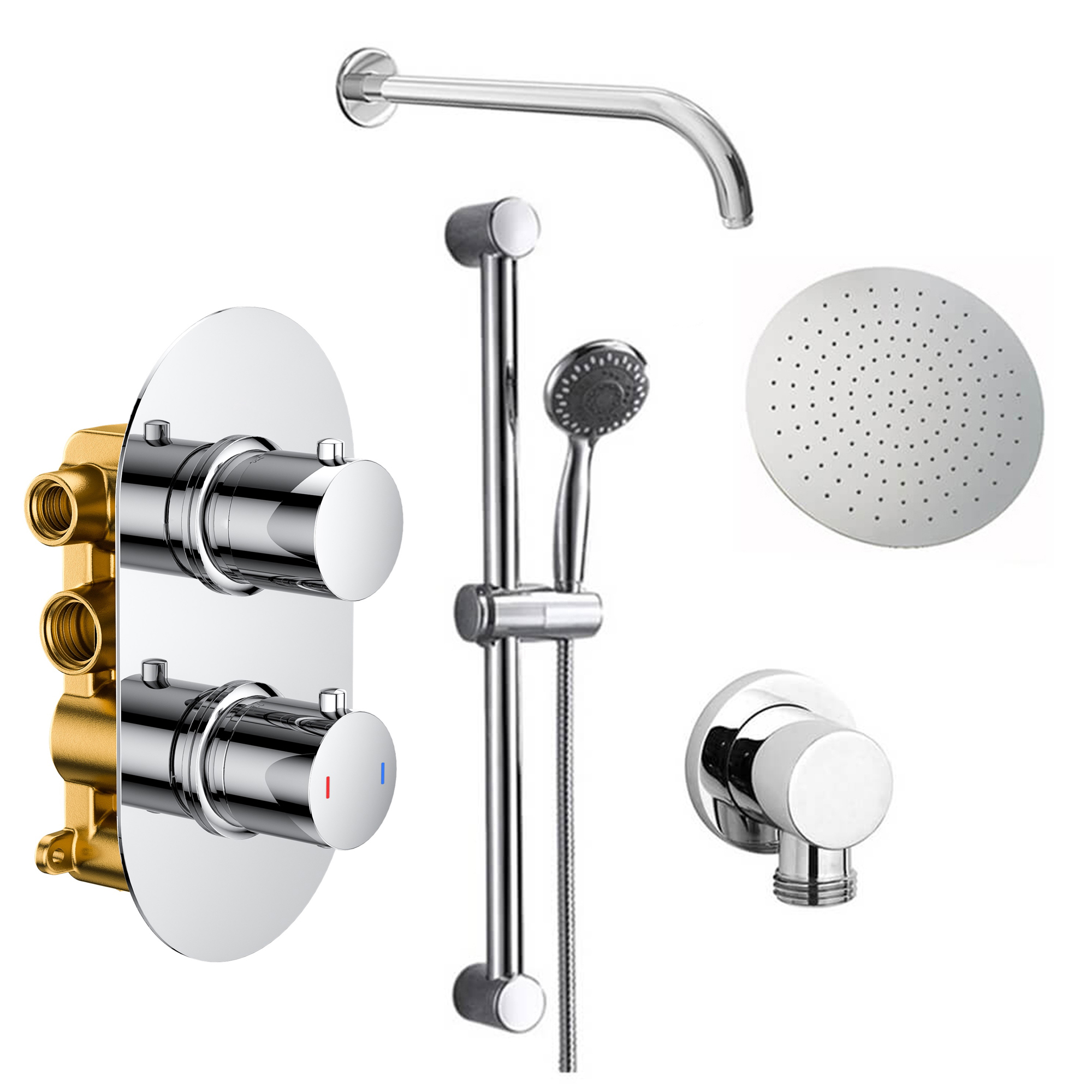

Give your bathroom a boost with the Drench Orla Concealed Shower Valve, Fixed Head & Slide Rail Kit, a comprehensive pack designed to elevate your showering experience. This ensemble includes a sleek, slimline rainfall shower head and a slide rail kit equipped with a versatile multi-spray pattern handset.
The slide rail kit offers the convenience of adjusting the handset's height to your preference, delivering a personalised and comfortable shower experience. With your choice of shower head and arm, you can customise how you’d like your space to look and function. Notably, the valve allows for both vertical and horizontal installation, providing a level of versatility that sets it apart from other shower packs.
Within the valve, our state-of-the-art Anti Calc Thermostatic Cartridge takes on a pivotal role. This meticulously engineered component addresses common issues such as water temperature fluctuations and reduced water flow due to concealed blockages. Simply press down on the safety button on the thermo handle, then turn the handle to the hottest setting and then to the coldest setting, allowing the cartridge to efficiently flush out dirt, limescale, and debris that can accumulate over time.
Valve Features:
Dimensions:
Flow rates:
Shower Riser Rail Kit Features:
Dimensions:
Shower Head Features:
Shower Arm Features:
The slide rail kit offers the convenience of adjusting the handset's height to your preference, delivering a personalised and comfortable shower experience. With your choice of shower head and arm, you can customise how you’d like your space to look and function. Notably, the valve allows for both vertical and horizontal installation, providing a level of versatility that sets it apart from other shower packs.
Within the valve, our state-of-the-art Anti Calc Thermostatic Cartridge takes on a pivotal role. This meticulously engineered component addresses common issues such as water temperature fluctuations and reduced water flow due to concealed blockages. Simply press down on the safety button on the thermo handle, then turn the handle to the hottest setting and then to the coldest setting, allowing the cartridge to efficiently flush out dirt, limescale, and debris that can accumulate over time.
Valve Features:
- Modern 2 outlet concealed design with dual handle control
- Sleek Chrome finish
- Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
- Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
- Ceramic disc technology prevents any unwanted leaks or drips
- Interchangeable backplate design allows portrait or landscape orientation
- Crafted from high grade brass (valve body), stainless steel (backplate) & zinc alloy (handles)
- Minimum water pressure required: 0.5 bar
- WRAS approved
- Complies with BSEN 1111
- Covered by a 10 year manufacturer’s guarantee

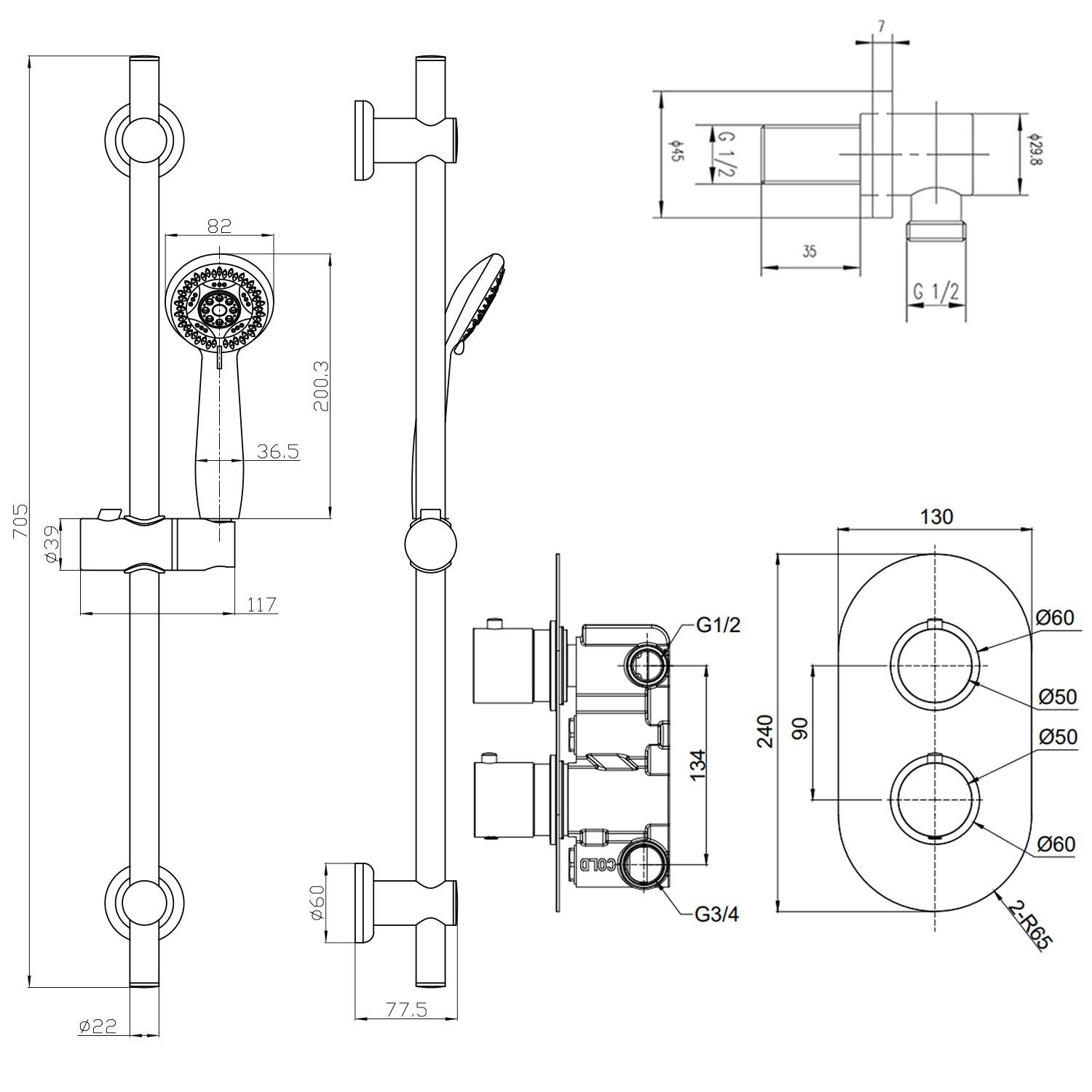

Dimensions:
- Height: 240mm
- Width: 130mm
Flow rates:
- 0.5 bar (l/min): 9.4
- 1.0 bar (l/min): 13.4
- 2.0 bar (l/min): 19.0
- 3.0 bar (l/min): 23.2
- 4.0 bar (l/min): 27.1
- 5.0 bar (l/min): 29.9
Shower Riser Rail Kit Features:
- Stainless steel and ABS plastic with a sparkling Chrome finish
- Multi-spray pattern shower handset with quick height adjustment
- Includes outlet elbow and flexible shower hose
- Covered by a 10 year manufacturer’s guarantee
Dimensions:
- Height: 705mm
- Depth: 77.5mm
- Shower Hose Length: 1.5m
Shower Head Features:

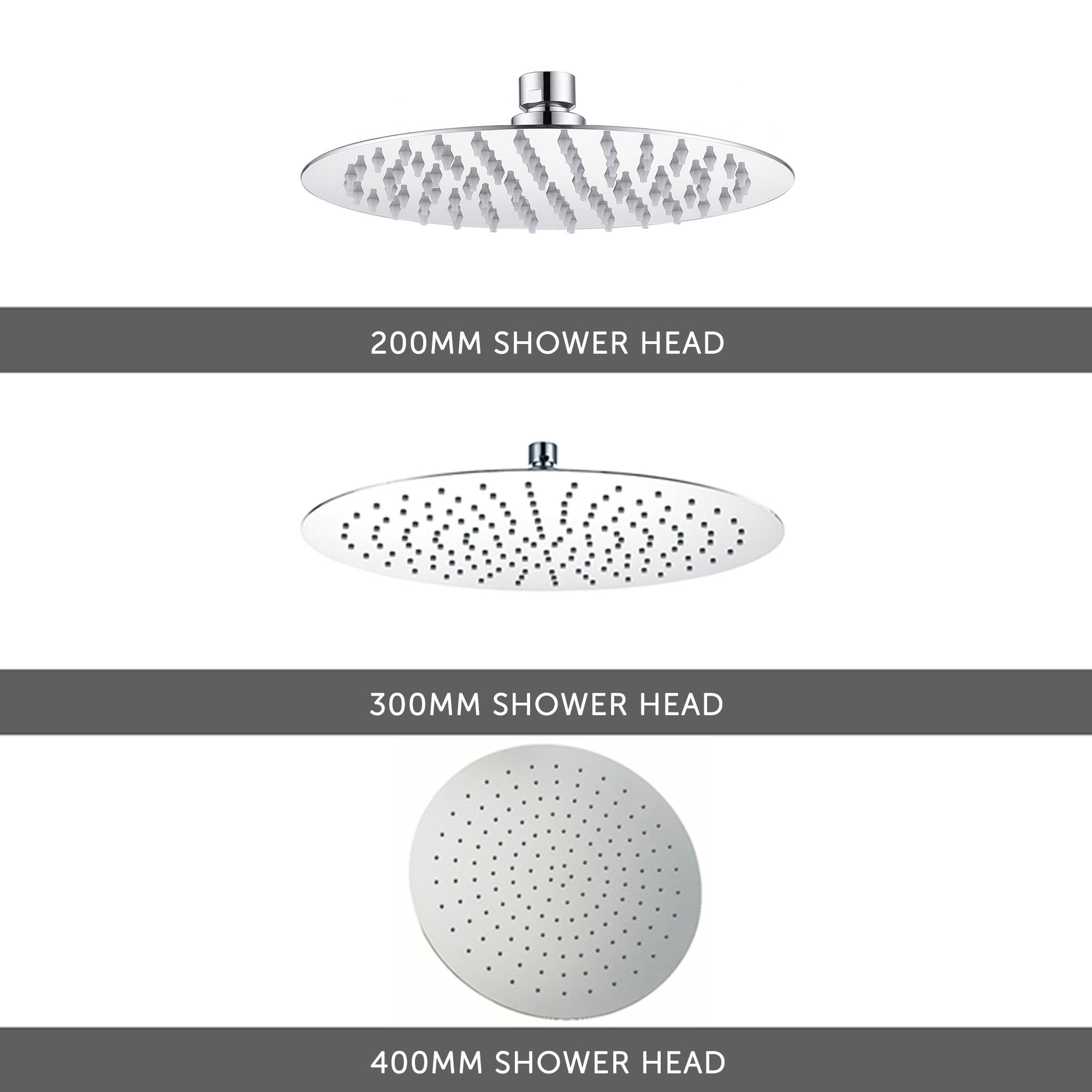

- Choose from 200, 300, or 400mm
- Stainless steel shower head in a sleek Chrome finish
- 400mm head features air injection technology - providing softer showering experience & reducing water usage by mixing air with water
- Swivel joint easily adjusts the angle of the head
- Easy-clean rubber nozzles for easy cleaning
- 200 & 300mm heads covered by a lifetime manufacturer’s guarantee
Shower Arm Features:
- 4 shower arms to choose from to fully customise your shower
- Constructed from brass with a dazzling Chrome finish
- 150 & 300mm ceiling arms - 10 year manufacturer’s guarantee
- 300mm & 380mm curved wall arms - 5 year manufacturer’s guarantee
| Product Code | dr-orla-concealed-shower-kit |
|---|---|
| Type | Concealed Shower Sets |
| Brand | Drench |
| Brand Range | Drench Orla |
| Guarantee |
Various |
| Global Trade Item Number | Select an option first |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Material | Brass, Stainless Steel, Zinc Alloy |
|---|---|
| Number of Outlets | 2 Outlets |
| Temperature Control | Thermostatic |
| Cartridge Type |
Ceramic Disc |
| Popular Features | Easy Clean Nozzles, Multifunction Water Flow |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
| Finish | Chrome |
|---|---|
| Shape | Round |
| Handle Type | Dual Control, Round |
| Texture | Polished |
| Style | Modern |
| Orientation | Landscape, Portrait |
| Mounting Type | Select an option first |
| Width (mm) | 130 |
|---|
| Flow Rate at 0.5 Bar (l/min) | 9.4 |
|---|---|
| Flow Rate at 1 Bar (l/min) | 13.4 |
| Flow Rate at 2 Bar (l/min) | 19 |
| Flow Rate at 3 Bar (l/min) | 23.2 |
| Flow Rate at 4 Bar (l/min) | 27.1 |
| Flow Rate at 5 Bar (l/min) | 29.9 |
| Minimum Water Pressure | Select an option first |
