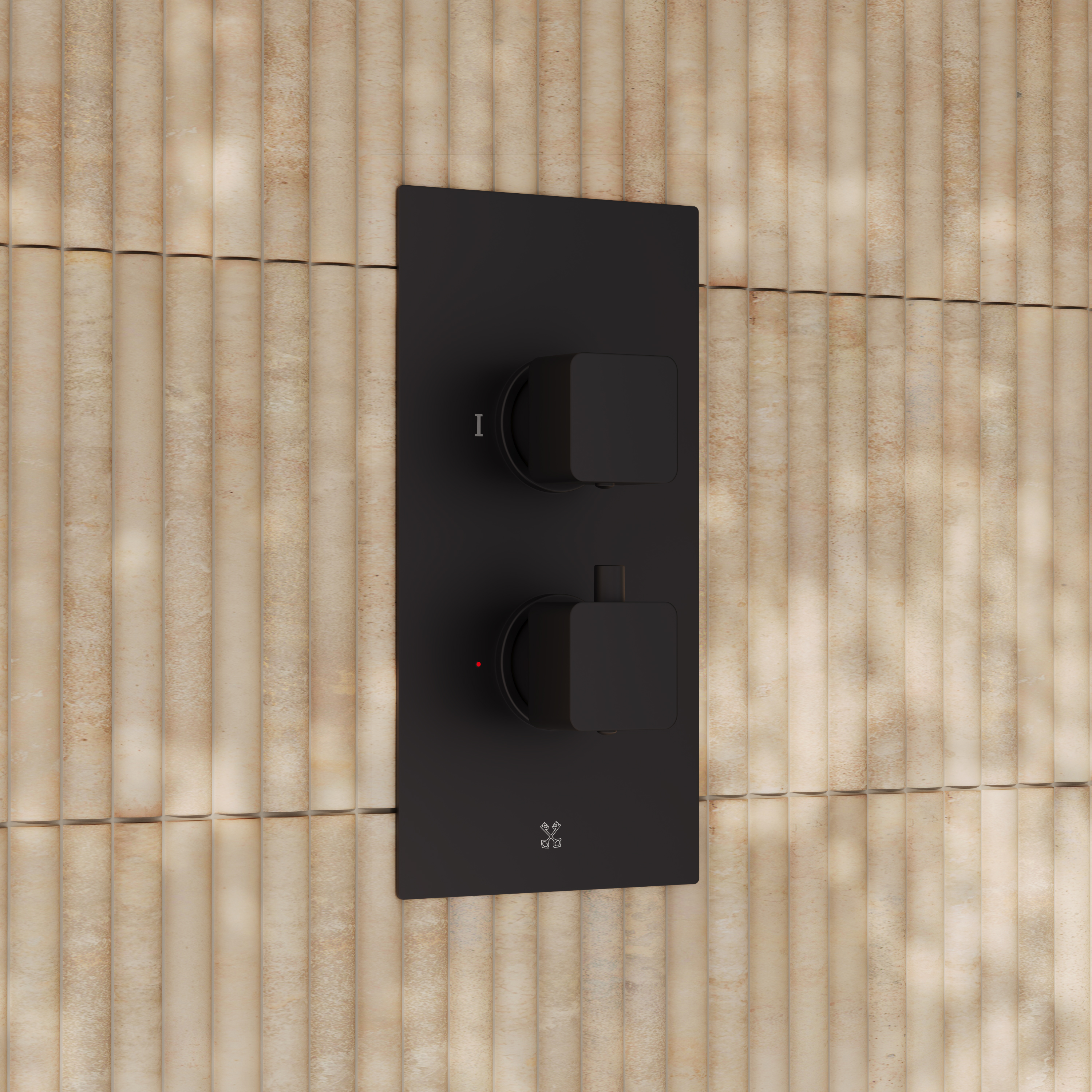

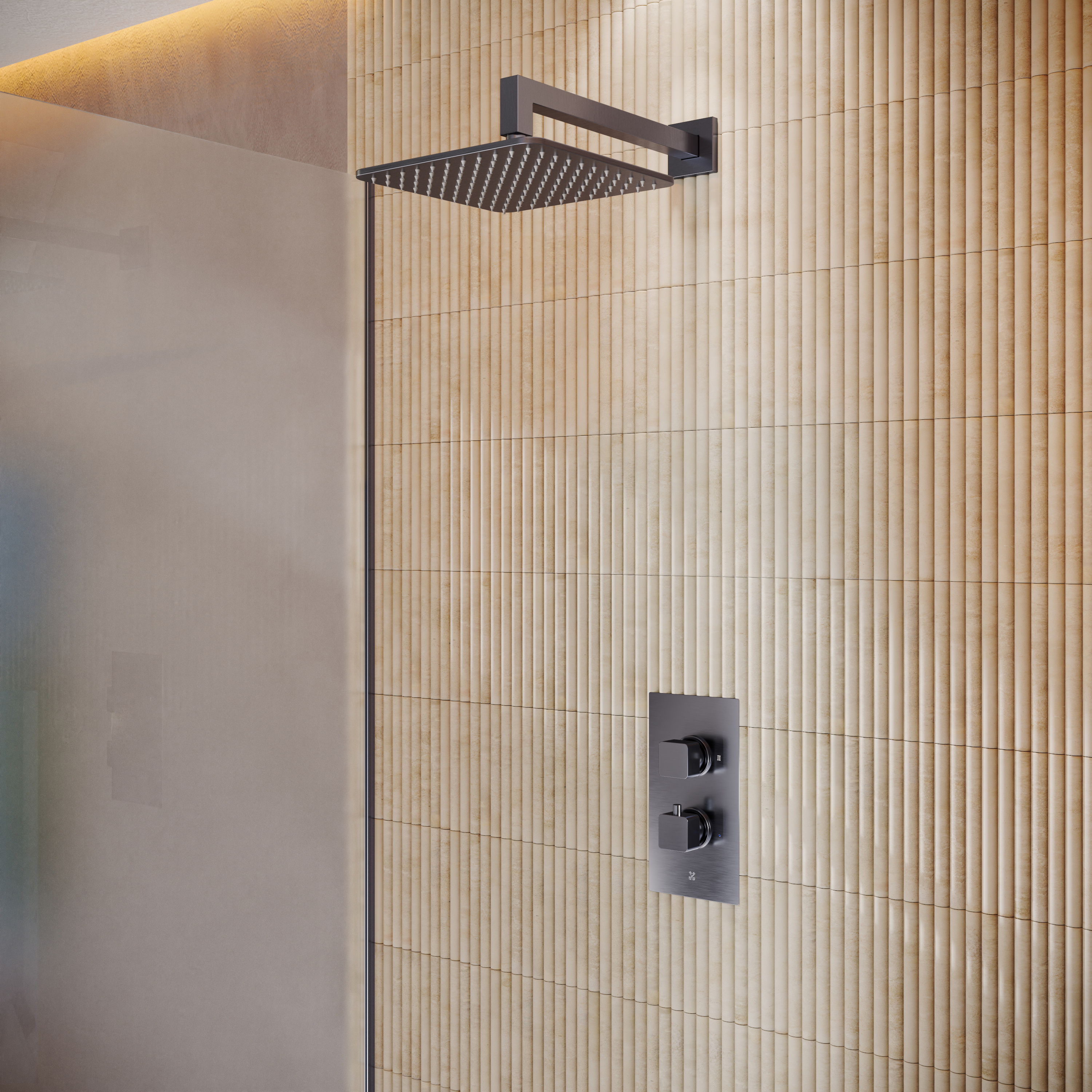

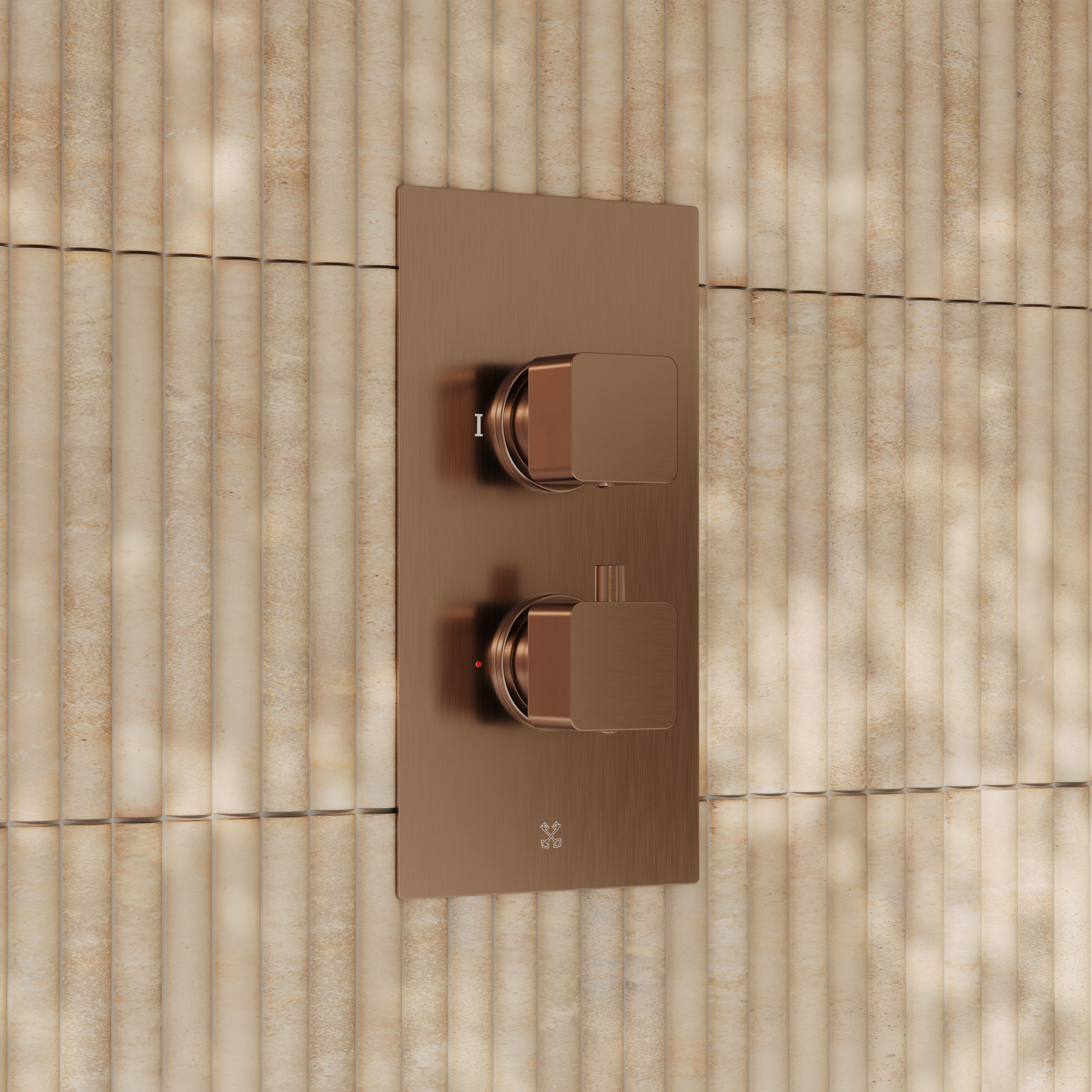

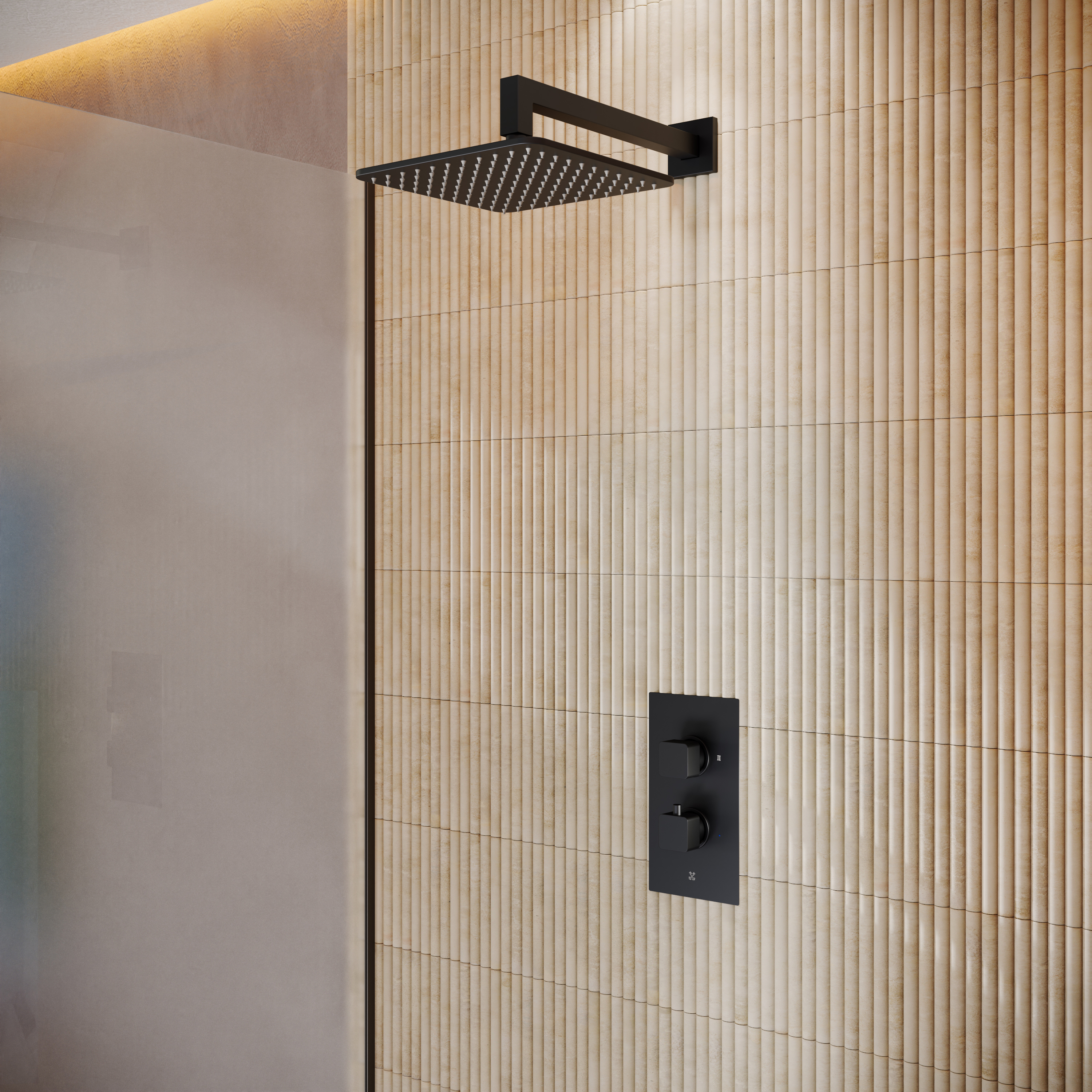

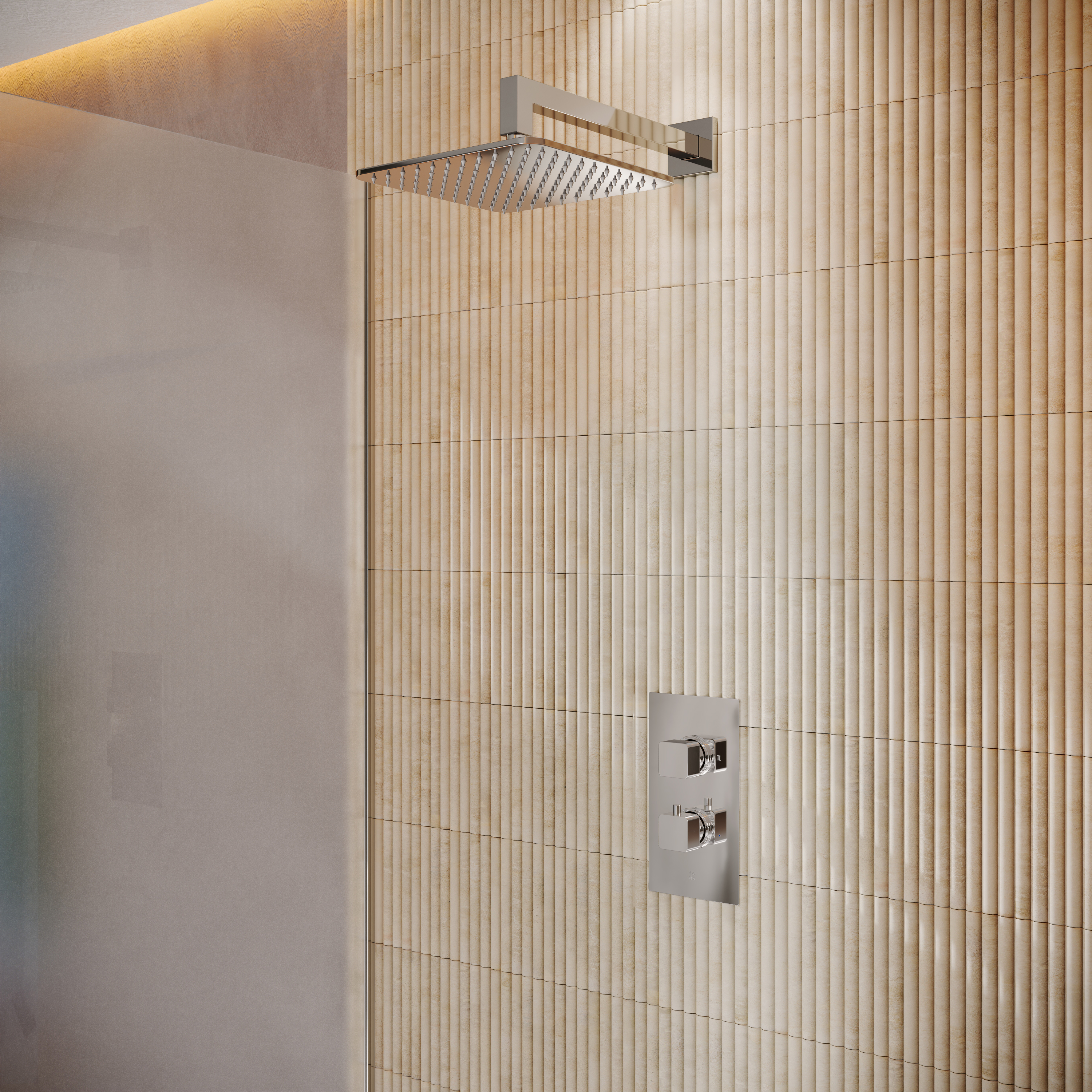

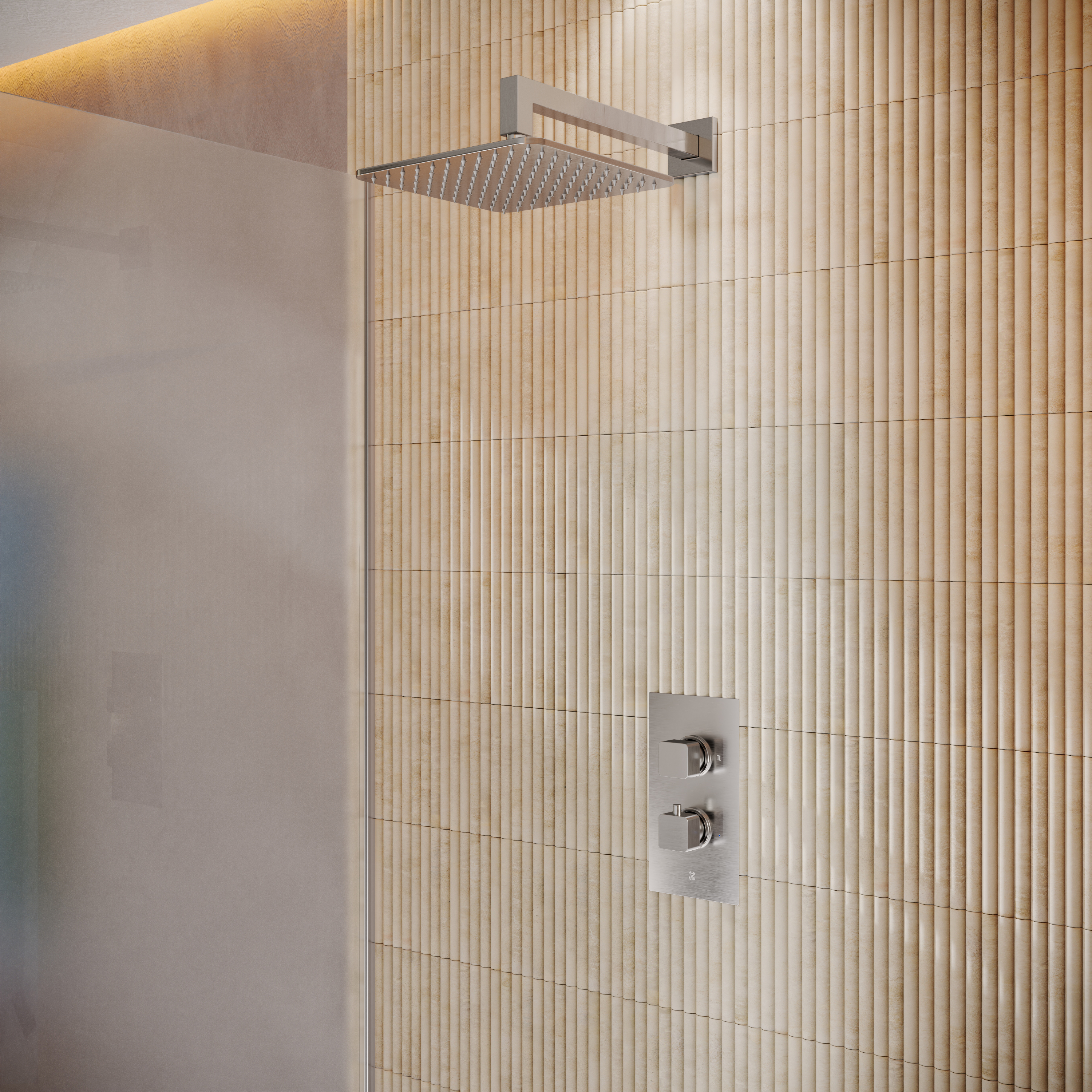

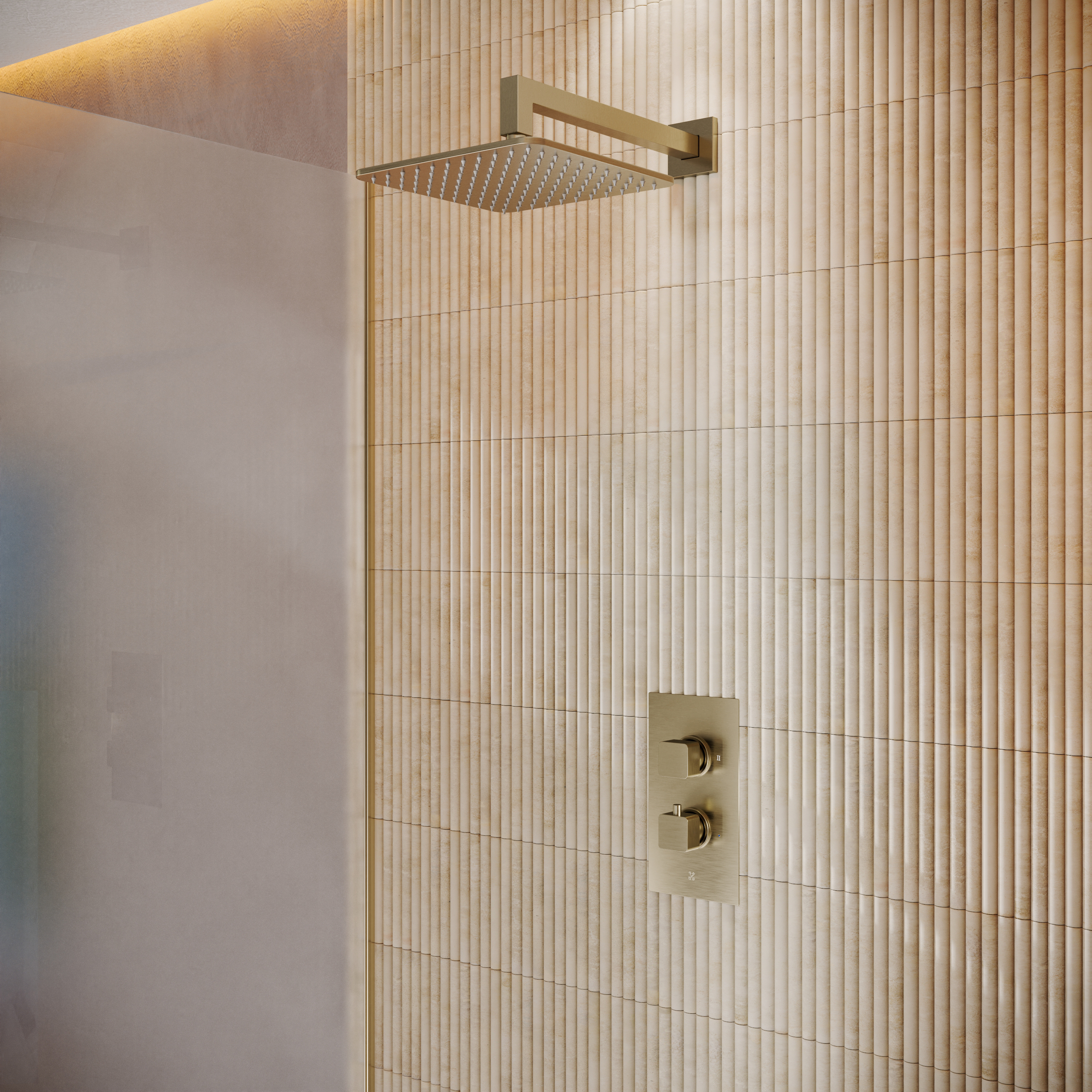

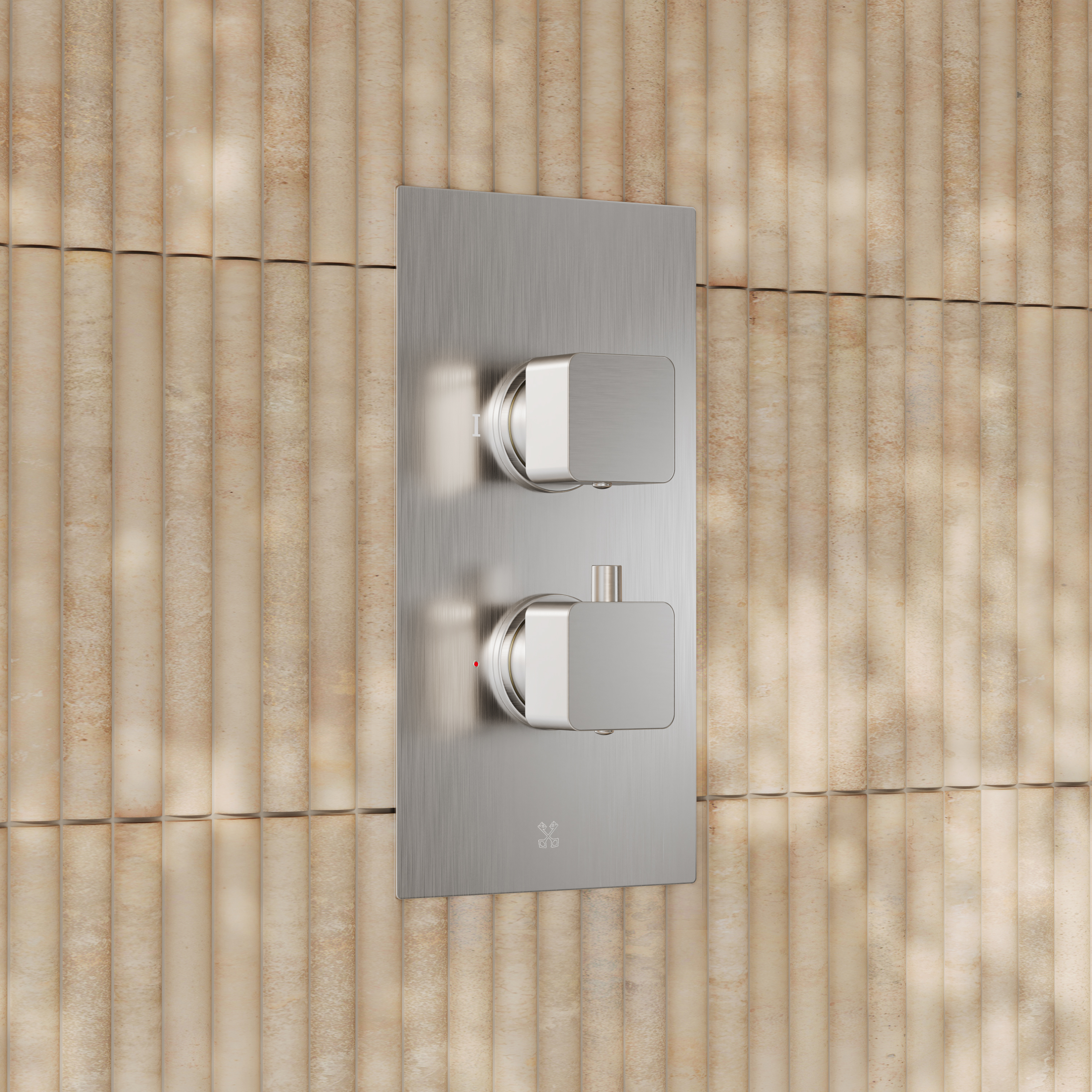

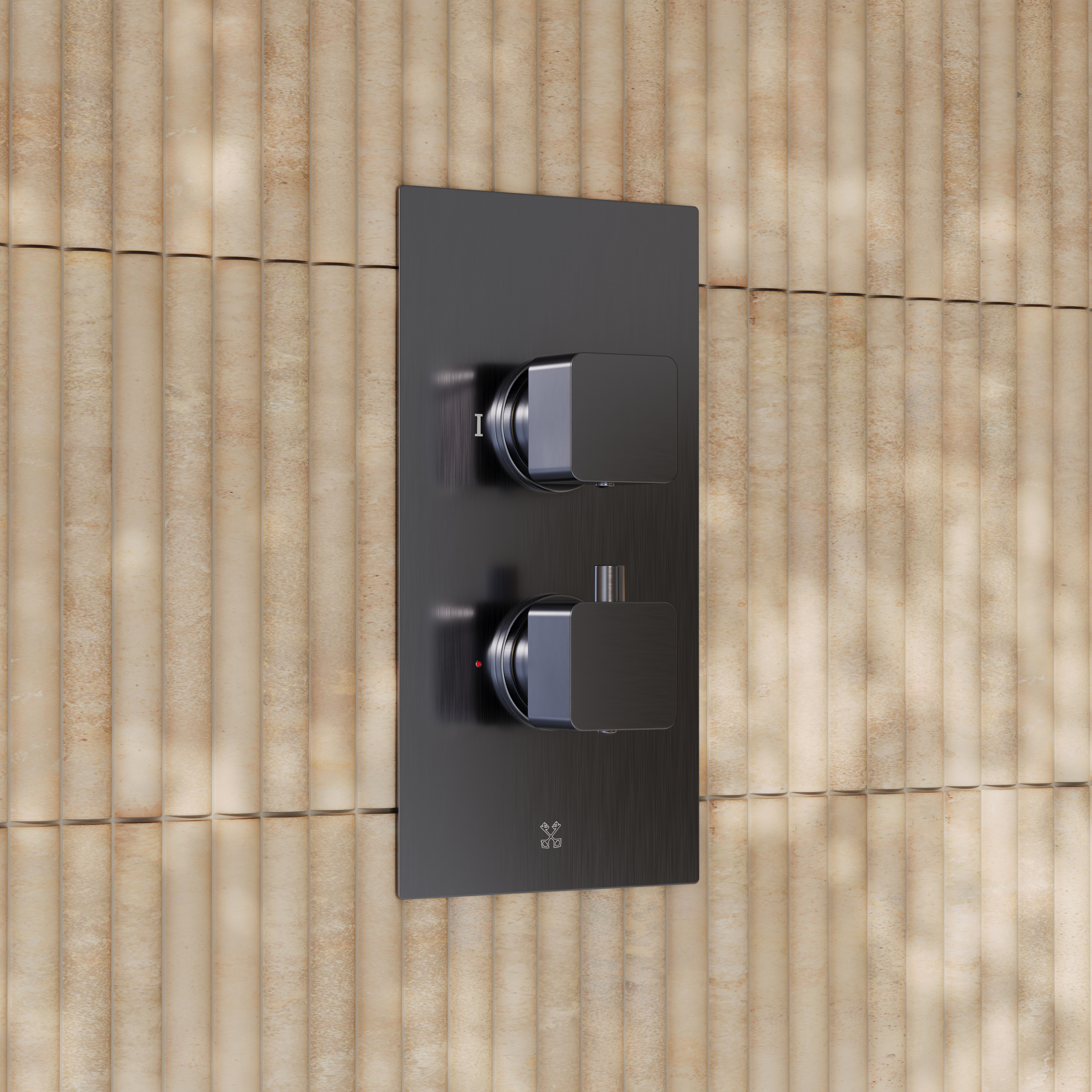

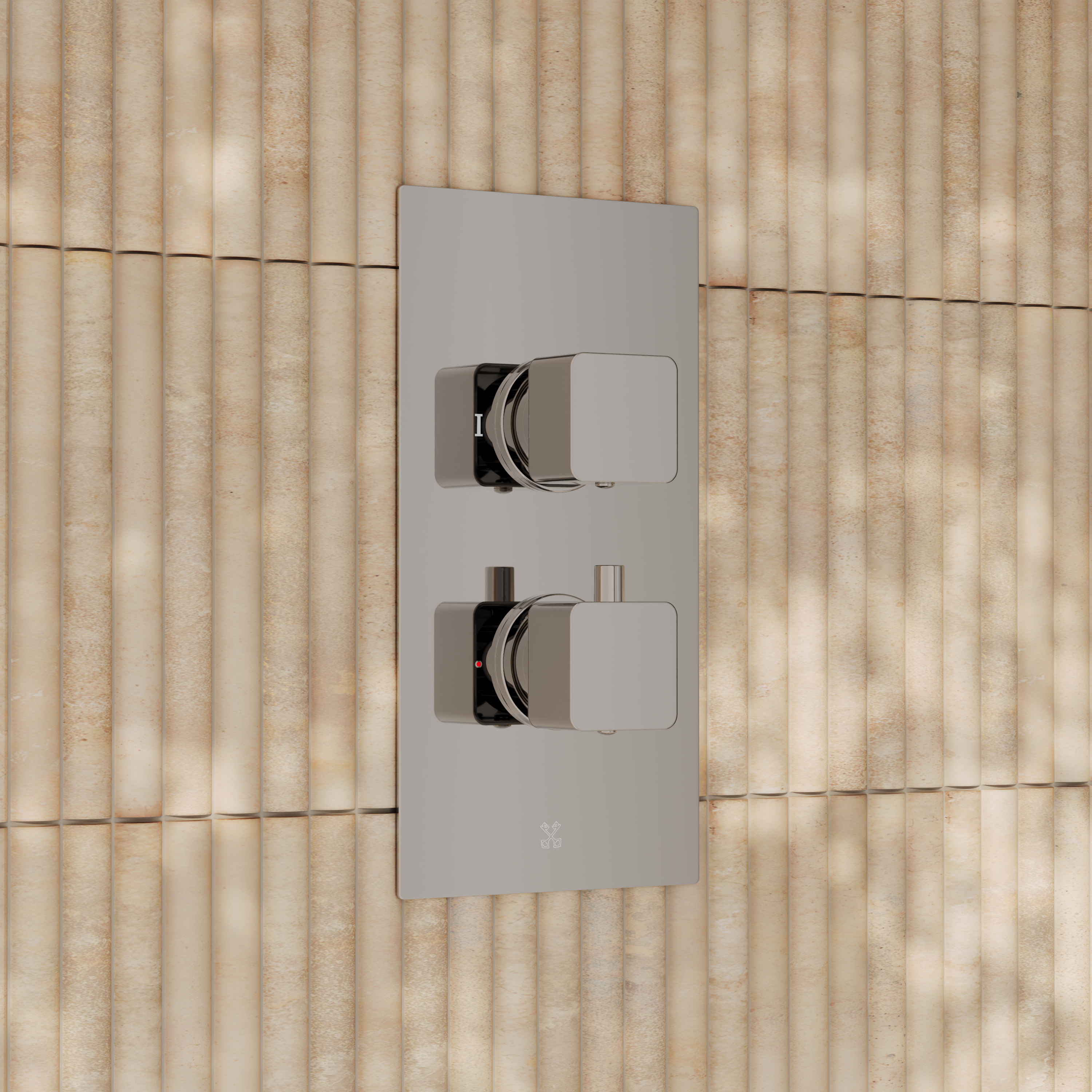

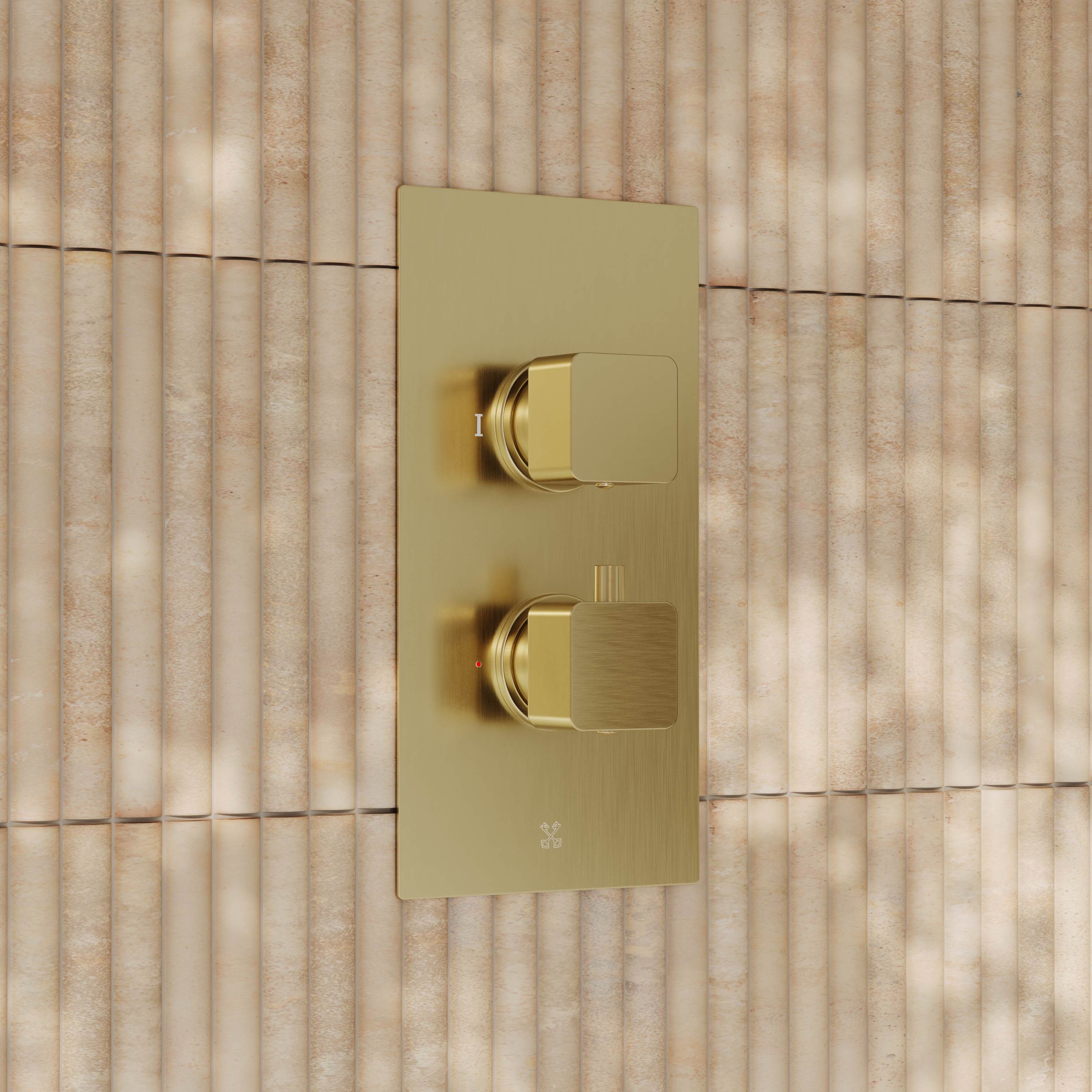

Core Portrait 1 Outlet Concealed Valve & Fixed Wall Mounted Square Shower Head

No reviews yet - Write one
Select an option:

Loading delivery estimate...

Pay in 3 interest-free payments of £93.33.
Pay in 3 interest-free payments of £93.33.

What's great about it?

  • Includes a concealed valve, cover plate, shower head and handles
  • Single outlet powers 1 fixture for your shower or bath
  • Square rainfall shower head creates a structured, modern look
  • Thermostatic technology keeps the temperature consistent
  • Backed by a lifetime manufacturer’s guarantee

Full details

This complete shower set pairs a single-outlet concealed thermostatic valve with a geometric shower head. Designed for sleek simplicity, it emulates a relaxing rainfall while intelligent thermostatic technology works to maintain a consistent and comfortable water temperature. The square head offers a modern alternative to traditional round shower heads, while the ultra-slim cover plate creates a low-profile finish.

Features:
  • Includes a concealed thermostatic valve, cover plate, square shower head and soft square handles
  • Intuitive 2-dial layout with 1 dedicated control for water flow and 1 for temperature adjustment
  • Fixed 250mm square shower head delivers a relaxing rainfall experience with wide coverage
  • Integrated swivel ball joint lets you tilt and adjust the water angle to your preference
  • Rub-clean nozzles make it easy to wipe away limescale in seconds
  • Square dials provide natural leverage for easy gripping and turning, even with wet hands
  • Ultra-slim 1.5mm cover plate sits flush against the wall for a low-profile finish
  • Ceramic disc technology keeps the handles turning smoothly and stops dripping
  • Thermostatic control stops sudden scalding or freezing temperatures to keep you comfortable
  • 38°C lock protects from high temperatures, with a push-button override for warmer water
  • Automatic safety shut-off instantly stops water flow if the cold water supply fails
  • Anti-calc thermostatic cartridge prevents limescale build-up to maintain peak performance
  • Durable brass valve body features a built-in spirit level for a precise installation on the first try
  • Stainless steel plate, shower head and handles resist rust and corrosion for lasting reliability
  • Choice of finishes to complement your existing decor or pair with the wider Drench Core range
  • Handles are supplied in a pack of 3, providing 2 for installation and 1 as a convenient spare
  • Optimised for systems with a minimum 0.5 bar pressure to deliver a steady water flow
  • WRAS approved concealed valve, meeting strict UK water regulations and safety standards
  • Backed by a lifetime manufacturer’s guarantee for peace of mind

Product Overview
Product Code dr-core-cnc-1vlv-sq-sh-hnd
Type Concealed Shower Sets
Brand Drench
Brand Range Drench Core
GuaranteeMore information Lifetime
Global Trade Item Number Select an option first

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material ABS Plastic, Brass, Stainless Steel
Number of Outlets 1 Outlet
Temperature Control Thermostatic
Cartridge TypeMore information Ceramic Disc
Popular Features Easy Clean Nozzles, WRAS Approved
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Style
Mounting Type Wall Mounted
Shape Rectangular, Square
Handle Type Dual Control, Lever, Square
Style Modern
Orientation Portrait
Finish Select an option first
Texture Select an option first
Flow Rate
Flow Rate at 0.5 Bar (l/min) 7.3
Flow Rate at 1 Bar (l/min) 10.2
Flow Rate at 2 Bar (l/min) 14.8
Flow Rate at 3 Bar (l/min) 18
Flow Rate at 5 Bar (l/min) 23.9
Minimum Water PressureMore information 0.5

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
