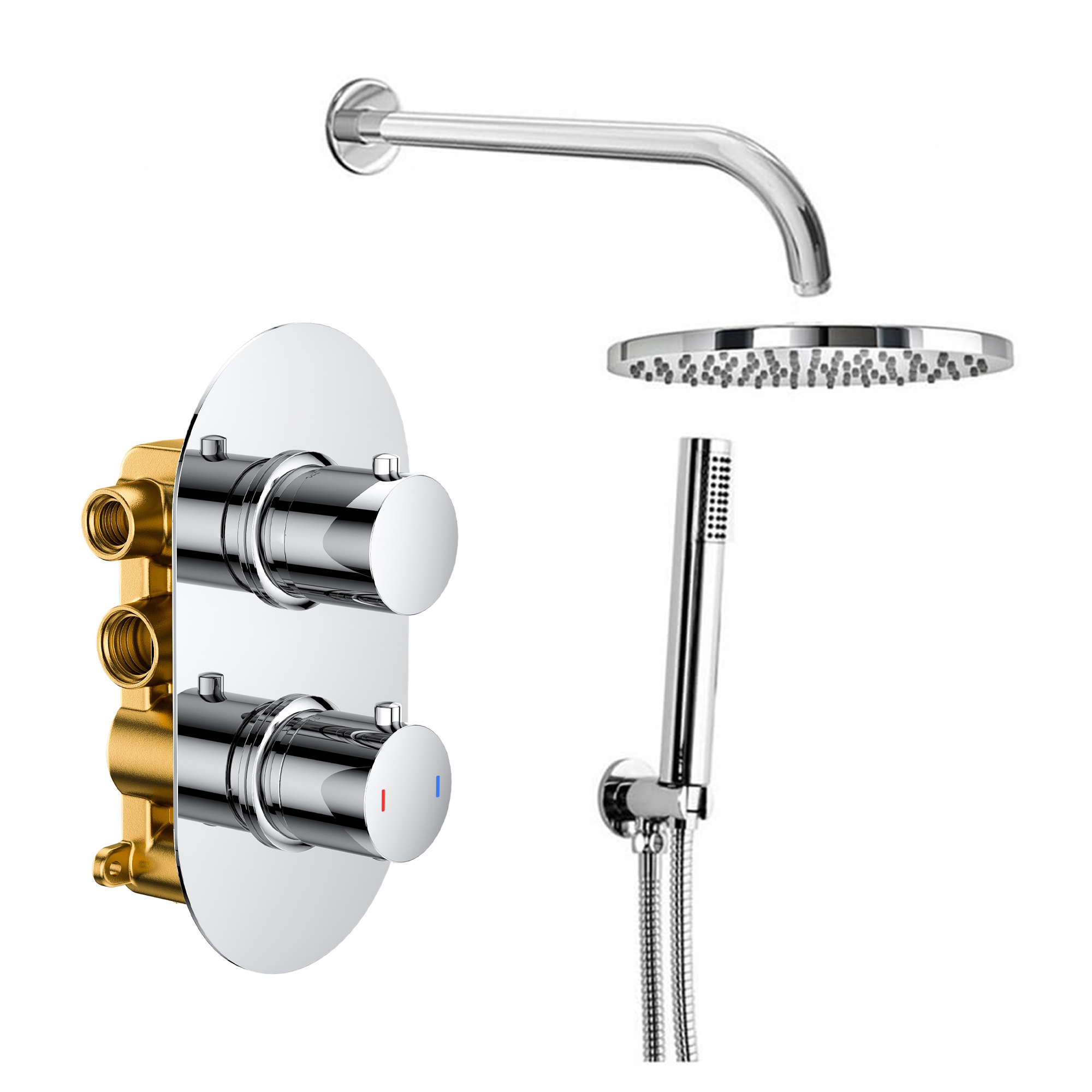

Enhance your bathroom's functionality with the Drench Harper Concealed Shower Valve, Fixed Shower Head & Handset. This combination of a 200mm shower head and a pencil handset offers a versatile and comfortable showering experience.
With a choice of four shower arm options at your disposal and with the ability to position Harper's valve horizontally or vertically, you can personalise your shower to perfectly complement your space.
Within the valve, you'll discover our state-of-the-art Anti Calc Thermostatic Cartridge, providing an effective solution to common issues like temperature fluctuations and reduced water flow due to internal blockages. Simply press down on the safety button on the thermo handle, then turn the handle to the hottest setting and then to the coldest setting, allowing the cartridge to efficiently flush out dirt, limescale, and debris that can accumulate over time.
Valve Features:
Dimensions:
Flow rates:
Shower Head Features:
Shower Arm Features:
Shower Handset with Wall Outlet & Hose Features:
With a choice of four shower arm options at your disposal and with the ability to position Harper's valve horizontally or vertically, you can personalise your shower to perfectly complement your space.
Within the valve, you'll discover our state-of-the-art Anti Calc Thermostatic Cartridge, providing an effective solution to common issues like temperature fluctuations and reduced water flow due to internal blockages. Simply press down on the safety button on the thermo handle, then turn the handle to the hottest setting and then to the coldest setting, allowing the cartridge to efficiently flush out dirt, limescale, and debris that can accumulate over time.
Valve Features:
- Modern 2 outlet concealed design with dual handle control
- Sleek Chrome finish
- Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
- Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
- Ceramic disc technology prevents any unwanted leaks or drips
- Interchangeable backplate design allows portrait or landscape orientation
- Crafted from high grade brass (valve body), stainless steel (backplate) & zinc alloy (handles)
- WRAS approved
- Complies with BSEN 1111
- Covered by a 10 year manufacturer’s guarantee

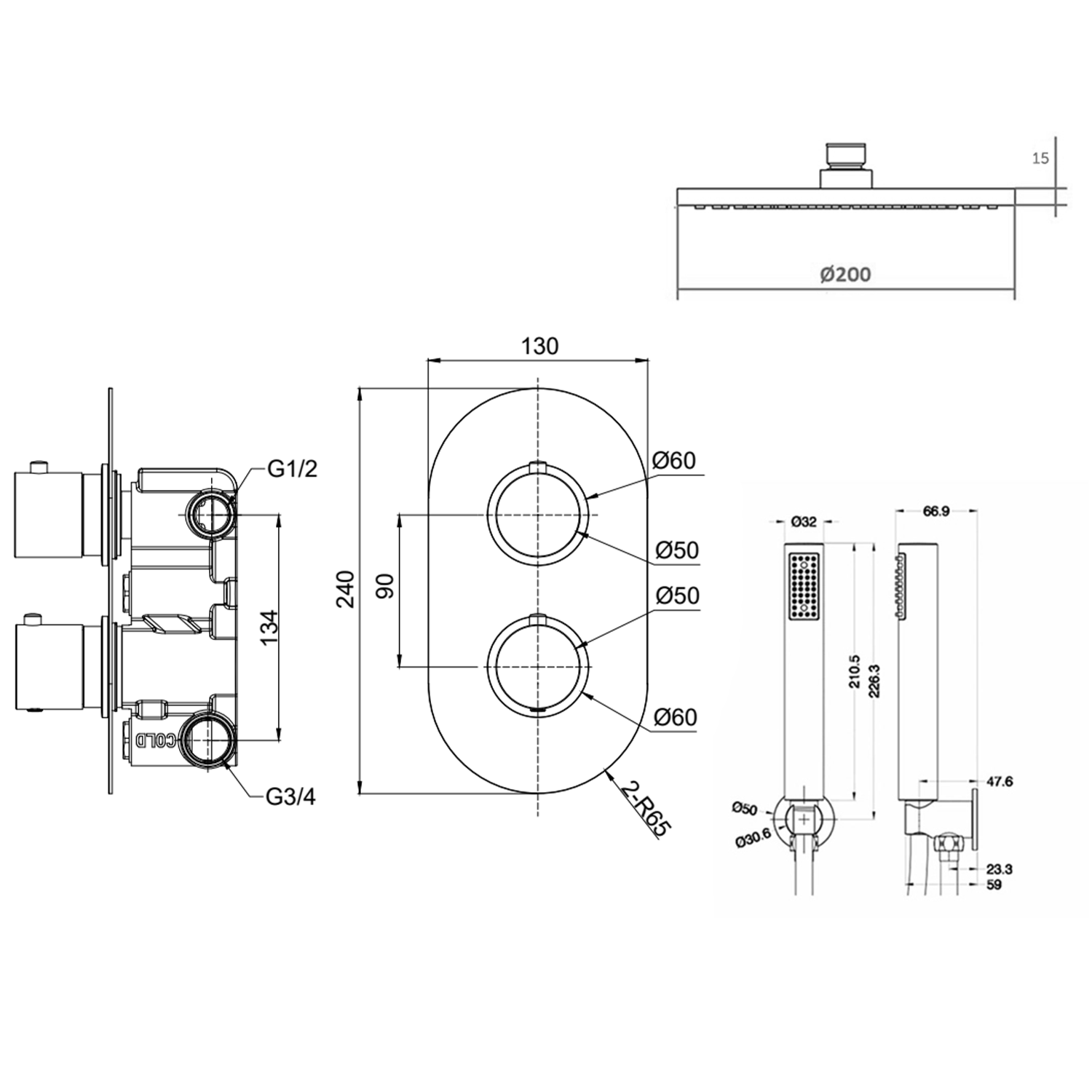

Dimensions:
- Height: 240mm
- Width: 130mm
Flow rates:
- 1.0 bar (l/min): 13.8
- 1.5 bar (l/min): 16.8
- 2.0 bar (l/min): 19.4
- 3.0 bar (l/min): 23.5
- 4.0 bar (l/min): 27.4
- 5.0 bar (l/min): 30.6
Shower Head Features:
- 200mm ABS plastic shower head in a dazzling Chrome finish
- Swivel joint easily adjusts the angle of the head
- Minimum water pressure required: 1 bar
- 2 year manufacturer’s guarantee
Shower Arm Features:
- 4 shower arms to choose from to customise your shower
- Constructed from brass with a dazzling Chrome finish
- 150 & 300mm ceiling arms - 10 year manufacturer’s guarantee
- 300mm & 380mm curved wall arms - 5 year manufacturer’s guarantee
Shower Handset with Wall Outlet & Hose Features:
- Kit includes: shower handset with easy clean nozzles, 1.5m anti-rust shower hose & wall outlet elbow with integrated shower handset
- Modern concealed design in a high-shine chrome finish
- Constructed from brass (outlet elbow) and ABS plastic (handset) ensure that the handset is light and easy to manoeuvre
- Minimum water pressure required: 0.5 bar
- Covered by a 2 year manufacturer’s guarantee
Product Code | dr-harper-concealed-shower-kit |
---|---|
Type | Concealed Shower Sets |
Brand | Drench |
Brand Range | Drench Harper |
GuaranteeMore information | Various |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
Material | Brass, Stainless Steel, Zinc Alloy |
---|---|
Number of Outlets | 2 Outlets |
Temperature Control | Thermostatic |
Cartridge TypeMore information | Ceramic Disc |
Popular Features | Easy Clean Nozzles |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Finish | Chrome |
---|---|
Shape | Round |
Handle Type | Dual Control, Round |
Texture | Polished |
Style | Modern |
Orientation | Landscape, Portrait |
Mounting Type | Select an option first |
Flow Rate at 1 Bar (l/min) | 13.8 |
---|---|
Flow Rate at 1.5 Bar (l/min) | 16.8 |
Flow Rate at 2 Bar (l/min) | 19.4 |
Flow Rate at 3 Bar (l/min) | 23.5 |
Flow Rate at 4 Bar (l/min) | 27.4 |
Flow Rate at 5 Bar (l/min) | 30.6 |
Minimum Water PressureMore information | 1 |
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
