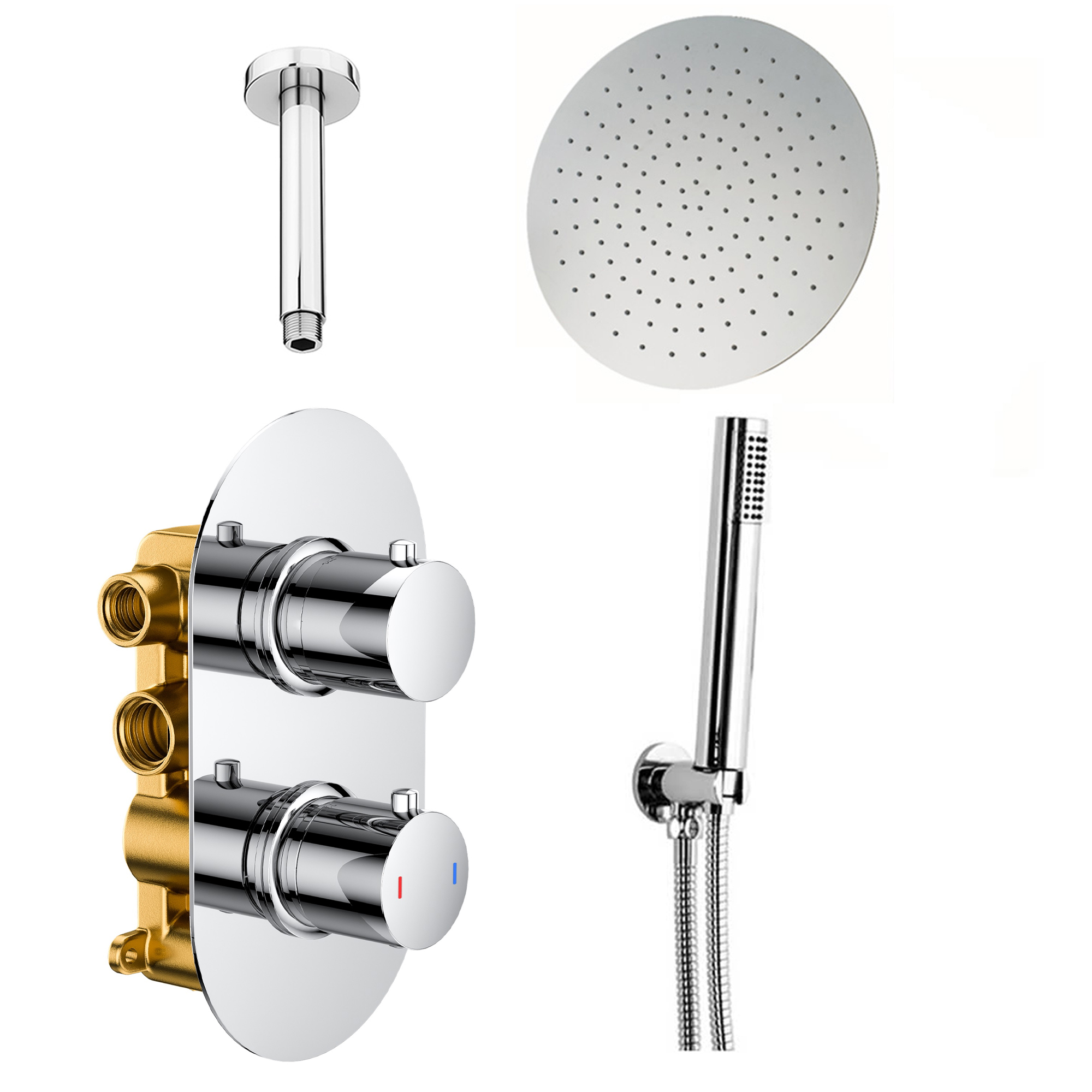

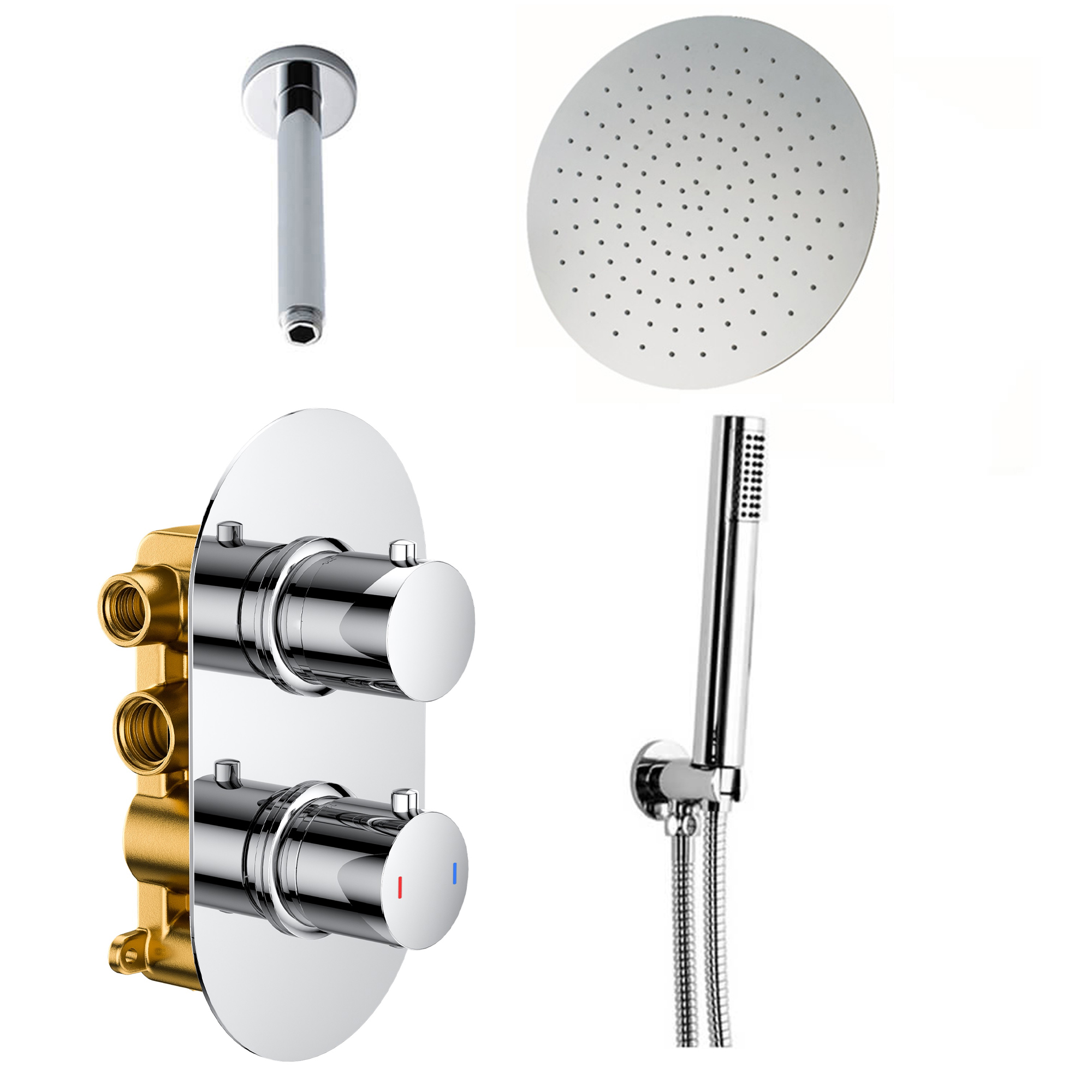

Complete your bathroom with the Drench Adele Concealed Shower Valve, Fixed Head & Shower Handset. The combination of a luxurious 400mm rainfall shower head and a sleek pencil handset offers versatility and comfort.
Our concealed shower valve is ideal for those who appreciate a sleek and minimalist bathroom design. It conceals all the fixtures, elevating the overall aesthetics of your bathroom. You can easily position the valve in either portrait or landscape orientation to match your personal style and with a choice of shower arm options available, you can customise your shower setup to perfectly suit your space. The Adele gives you the freedom to create the bathroom you desire.
Inside the valve, you'll find the latest technology in our advanced Anti Calc Thermostatic Cartridge. It's a brilliant solution to common issues like temperature fluctuations and reduced water flow caused by hidden blockages. Simply press down on the safety button on the thermo handle, then turn the handle to the hottest setting and then to the coldest setting, allowing the cartridge to efficiently flush out dirt, limescale, and debris that can accumulate over time.
Valve Features:
Dimensions:
Flow rates:
Shower Head Features:
Shower Arm Features:
Shower Handset with Wall Outlet & Hose Features:
Our concealed shower valve is ideal for those who appreciate a sleek and minimalist bathroom design. It conceals all the fixtures, elevating the overall aesthetics of your bathroom. You can easily position the valve in either portrait or landscape orientation to match your personal style and with a choice of shower arm options available, you can customise your shower setup to perfectly suit your space. The Adele gives you the freedom to create the bathroom you desire.
Inside the valve, you'll find the latest technology in our advanced Anti Calc Thermostatic Cartridge. It's a brilliant solution to common issues like temperature fluctuations and reduced water flow caused by hidden blockages. Simply press down on the safety button on the thermo handle, then turn the handle to the hottest setting and then to the coldest setting, allowing the cartridge to efficiently flush out dirt, limescale, and debris that can accumulate over time.
Valve Features:
- Modern 2 outlet concealed design with dual handle control
- Sleek Chrome finish
- Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
- Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
- Ceramic disc technology prevents any unwanted leaks or drips
- Interchangeable backplate design allows portrait or landscape orientation
- Crafted from high grade brass (valve body), stainless steel (backplate) & zinc alloy (handles)
- Minimum water pressure required: 0.5 bar
- WRAS approved
- Complies with BSEN 1111
- Covered by a 10 year manufacturer’s guarantee

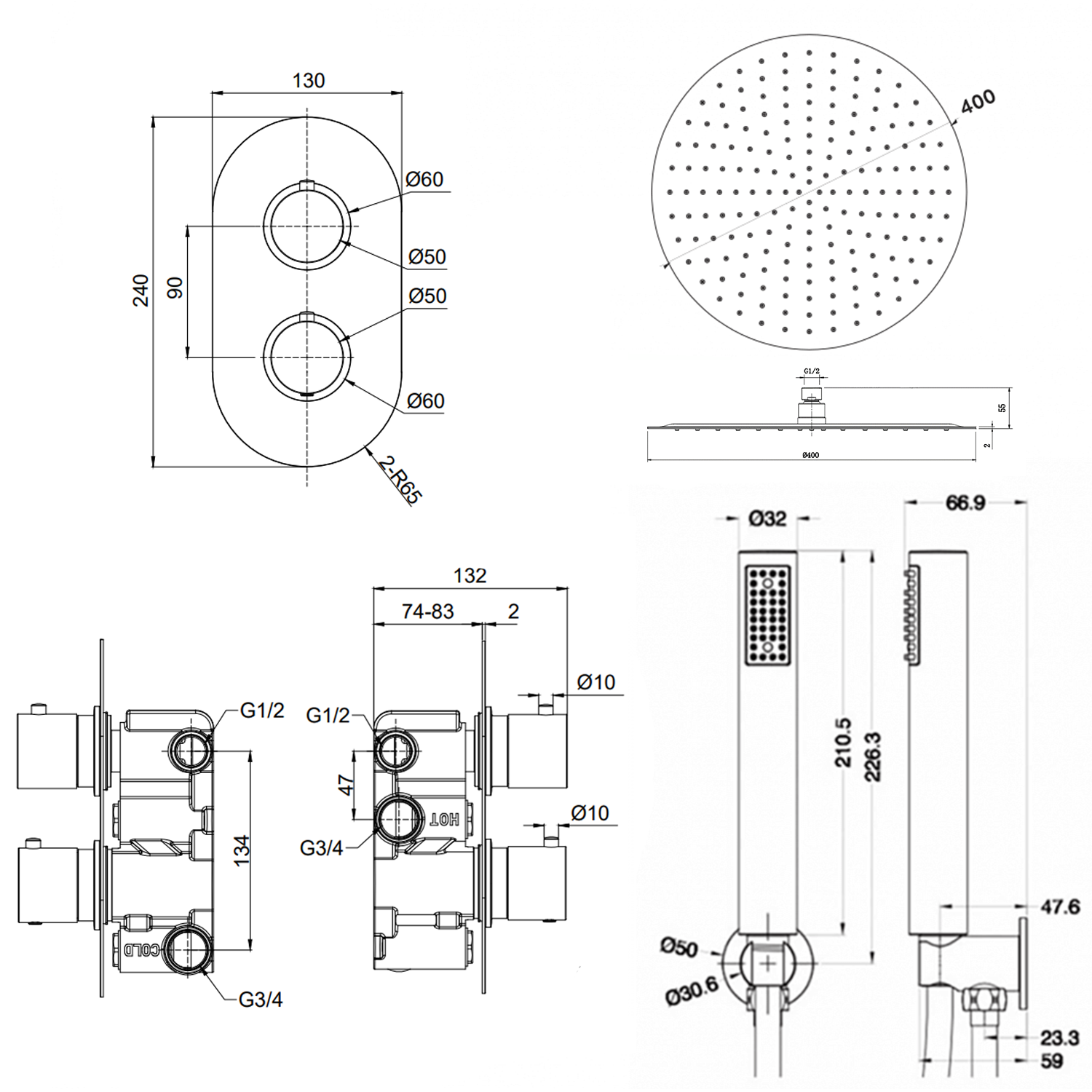

Dimensions:
- Height: 240mm
- Width: 130mm
Flow rates:
- 0.5 bar (l/min): 9.4
- 1.0 bar (l/min): 13.4
- 2.0 bar (l/min): 19.0
- 3.0 bar (l/min): 23.2
- 4.0 bar (l/min): 27.1
- 5.0 bar (l/min): 29.9
Shower Head Features:
- Slimline 400mm stainless steel shower head in a sleek Chrome finish
- Air Injection Technology - provides softer showering experience & reduces water usage by mixing air with water
- Swivel joint easily adjusts the angle of the head
- Easy-clean rubber nozzles for easy cleaning
Shower Arm Features:
- 2 shower arms to choose from to customise your shower
- Constructed from brass with a dazzling Chrome finish
- 150 & 300mm ceiling arms - 10 year manufacturer’s guarantee
Shower Handset with Wall Outlet & Hose Features:
- Kit includes: shower handset with easy clean nozzles, 1.5m anti-rust shower hose & wall outlet elbow with integrated shower handset
- Modern concealed design in a high-shine Chrome finish
- Constructed from brass (outlet elbow) and ABS plastic (handset) ensure that the handset is light and easy to manoeuvre
- Covered by a 2 year manufacturer’s guarantee
| Product Code | dr-adele-concealed-shower-kit |
|---|---|
| Type | Concealed Shower Sets |
| Brand | Drench |
| Brand Range | Drench Adele |
| Guarantee |
Various |
| Global Trade Item Number | Select an option first |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Material | Brass, Stainless Steel, Zinc Alloy |
|---|---|
| Number of Outlets | 2 Outlets |
| Temperature Control | Thermostatic |
| Cartridge Type |
Ceramic Disc |
| Popular Features | Easy Clean Nozzles |
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
| Finish | Chrome |
|---|---|
| Shape | Round |
| Handle Type | Dual Control, Round |
| Texture | Polished |
| Style | Modern |
| Orientation | Landscape, Portrait |
| Mounting Type | Select an option first |
| Flow Rate at 0.5 Bar (l/min) | 9.4 |
|---|---|
| Flow Rate at 1 Bar (l/min) | 13.4 |
| Flow Rate at 2 Bar (l/min) | 19 |
| Flow Rate at 3 Bar (l/min) | 23.2 |
| Flow Rate at 4 Bar (l/min) | 27.1 |
| Flow Rate at 5 Bar (l/min) | 29.9 |
| Minimum Water Pressure |
0.5 |
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
