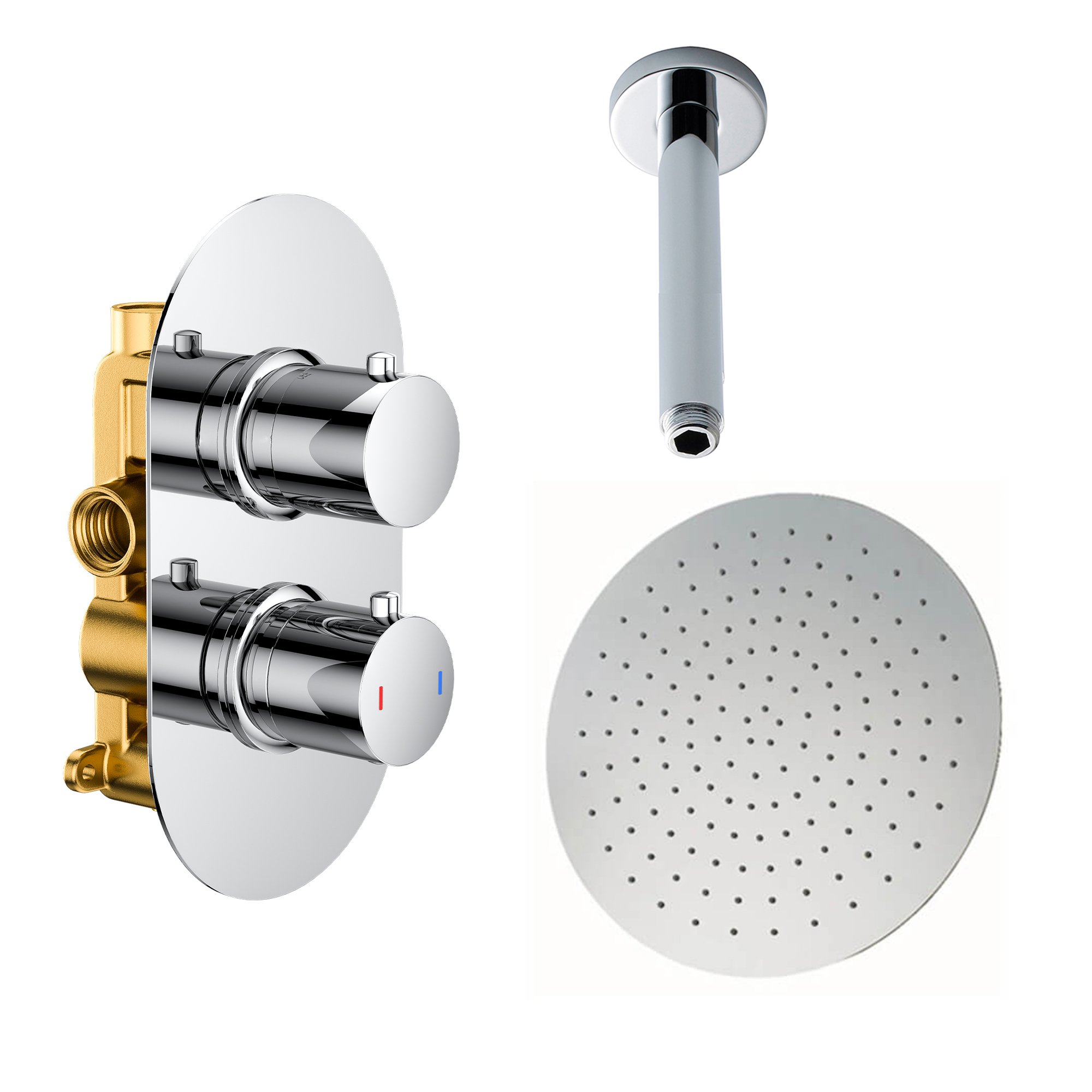

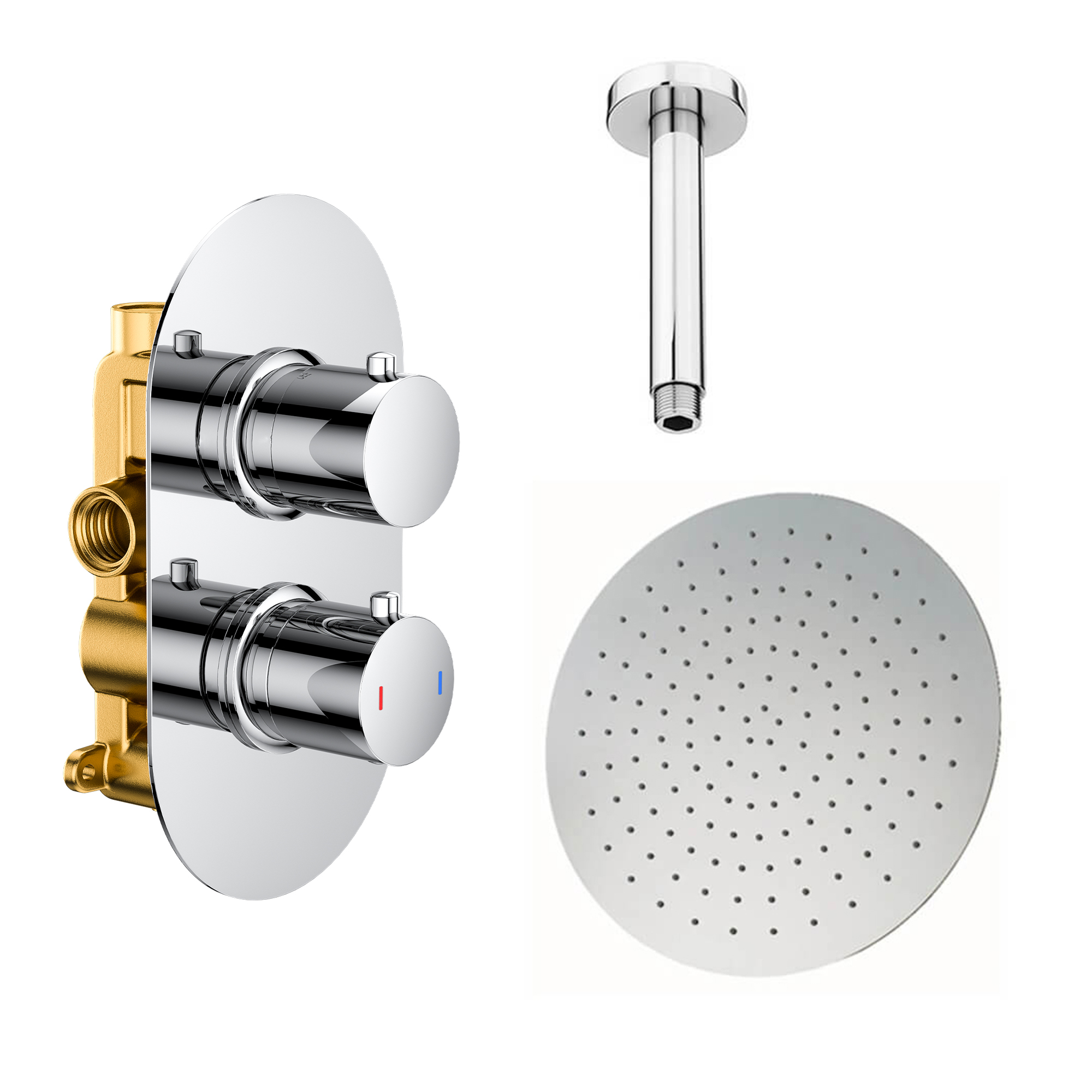

Upgrade your bathroom or en suite with the sleek Drench Brooke Concealed Thermostatic Shower Valve and Ceiling Mounted Fixed Shower Head. The 400mm rainfall showerhead brings a luxurious feel to your space, and with the flexibility to choose from two ceiling arms and install your valve either vertically or horizontally, you can tailor your shower setup to suit you.
Inside the valve, you will find an Anti Calc Thermostatic Cartridge, specifically designed to tackle common issues like sudden changes in water temperature and reduced water flow caused by blockages. To make the most of this advanced technology, simply press the safety button on the thermostatic handle and then adjust the temperature from hot to cold. This process effectively clears out any accumulated dirt, limescale, or debris that may have built up over time, ensuring your shower functions smoothly.
Shower Valve Features:
Dimensions:
Flow rates:
Shower Head Features:
Ceiling Arm Features:
Inside the valve, you will find an Anti Calc Thermostatic Cartridge, specifically designed to tackle common issues like sudden changes in water temperature and reduced water flow caused by blockages. To make the most of this advanced technology, simply press the safety button on the thermostatic handle and then adjust the temperature from hot to cold. This process effectively clears out any accumulated dirt, limescale, or debris that may have built up over time, ensuring your shower functions smoothly.
Shower Valve Features:
- Modern 1 outlet concealed design with dual handle control
- Sleek Chrome finish
- Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
- Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
- Ceramic disc technology prevents any unwanted leaks or drips
- Dual handle control - top diverts the flow of water between outlets and the bottom controls the water temperature
- Interchangeable backplate design allows portrait or landscape orientation
- Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
- Minimum water pressure required: 0.5 bar
- WRAS Approved
- Complies with BSEN 1111
- Covered by a 10 year manufacturer’s guarantee

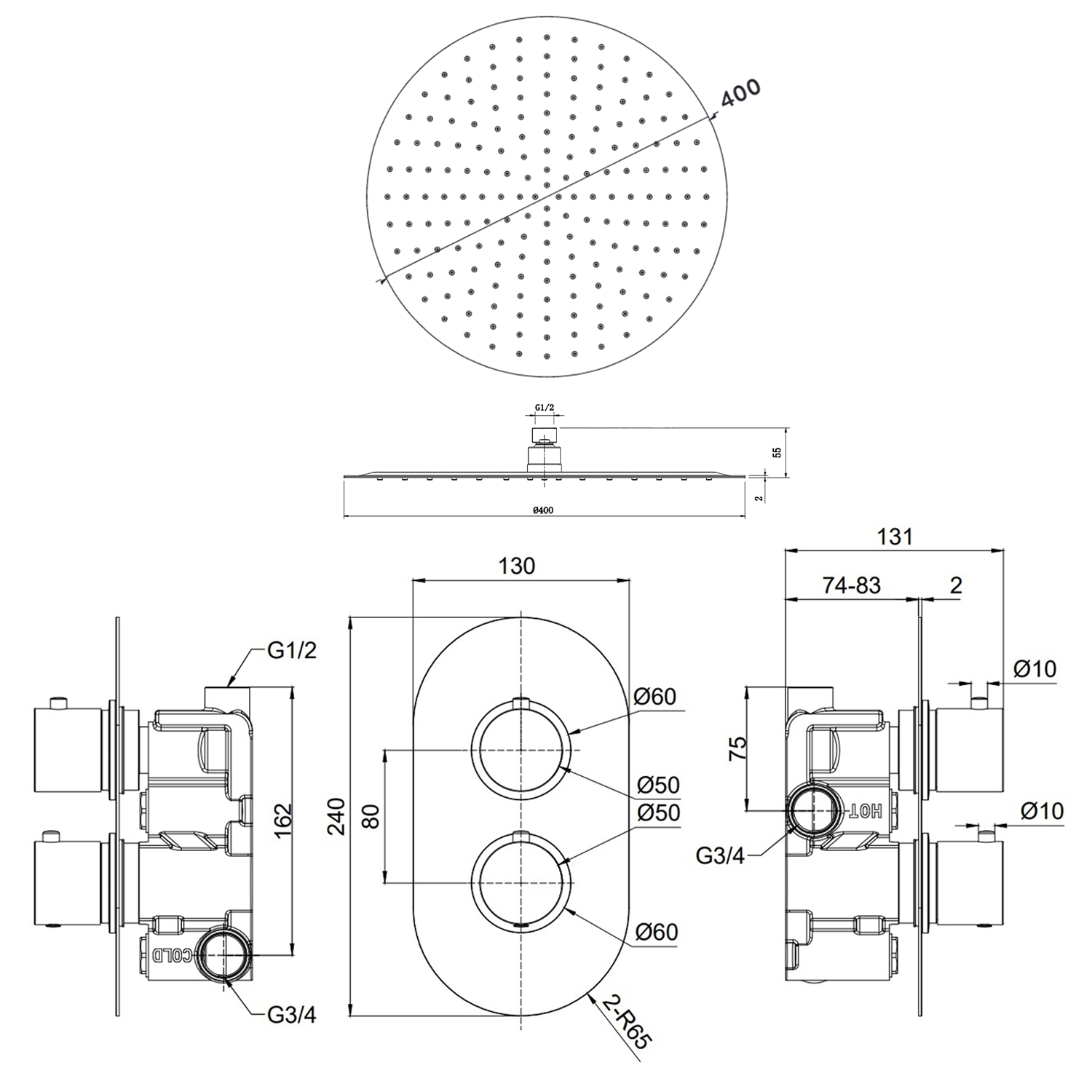

Dimensions:
- Height: 240mm
- Width: 130mm
- Depth: 131mm
Flow rates:
- 0.5 bar (l/min): 10.2 l/min
- 1.0 bar (l/min): 14.4 l/min
- 2.0 bar (l/min): 20.8 l/min
- 3.0 bar (l/min): 23.8 l/min
- 4.0 bar (l/min): 26.6 l/min
- 5.0 bar (l/min): 29.9 l/min
Shower Head Features:
- 400mm stainless steel shower head in a sleek Chrome finish
- Air Injection Technology - provides softer showering experience & reduces water usage by mixing air with water
- Swivel joint easily adjusts the angle of the head
- Easy-clean rubber nozzles for easy cleaning
Ceiling Arm Features:
- Choose from 150 & 300mm ceiling arms
- Constructed from brass with a dazzling Chrome finish
- 5 year manufacturer's guarantee
| Product Code | dr-brooke-concealed-shower-kit |
|---|---|
| Type | Concealed Shower Sets |
| Brand | Drench |
| Brand Range | Drench Brooke |
| Guarantee |
Various |
| Global Trade Item Number | Select an option first |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Material | Brass, Stainless Steel, Zinc Alloy |
|---|---|
| Number of Outlets | 1 Outlet |
| Temperature Control | Thermostatic |
| Popular Features | Easy Clean Nozzles |
| Finish | Chrome |
|---|---|
| Shape | Round |
| Handle Type | Dual Control, Round |
| Texture | Polished |
| Style | Modern |
| Orientation | Landscape, Portrait |
| Mounting Type | Select an option first |
| Flow Rate at 0.5 Bar (l/min) | 10.2 |
|---|---|
| Flow Rate at 1 Bar (l/min) | 14.4 |
| Flow Rate at 2 Bar (l/min) | 20.8 |
| Flow Rate at 3 Bar (l/min) | 23.8 |
| Flow Rate at 4 Bar (l/min) | 26.6 |
| Flow Rate at 5 Bar (l/min) | 29.9 |
| Minimum Water Pressure |
0.5 |
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
