Features:
- Integrated full-length mirror set into a single panel radiator, saving you from having to find room for both on the same wall
- Sculpted oval tubes that provide a soft, rounded aesthetic to contrast the sharp, clean lines of the central mirror
- Textured anthracite finish with a durable, matt surface that is designed to stay looking great for years
- Tall 1800mm x 380mm design, making it an ideal choice for narrow spots in your home
- Compact 83mm depth once installed, so it sits neat to the wall
- Crafted from high-grade mild steel to ensure excellent heat conductivity and reliability
- Radiator valves are sold separately, please see our recommended extras
- Fully EN 442 certified and CE/UKCA marked for verified safety and heat ratings you can trust
- Pressure tested at 1.3x to be more than a match for the demands of your home heating system
- Built in an ISO-certified factory that cares as much about the environment as it does about quality
- 10 year guarantee
| Product Code | DES-161-AN |
|---|---|
| Global Trade Item Number | 5056880704281 |
| Type | Designer Radiators, Panel Radiators, Vertical Radiators |
| Brand | Toasty |
| Brand Range | Toasty Echo |
| Guarantee |
10 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Number of Columns | Single Panel |
|---|---|
| Number of Sections | 4 Sections |
| Number of Tubes | 4 Tubes |
| Material | Steel |
| RAL Code |
7016 |
|---|---|
| Mounting Type | Wall Mounted |
| Finish | Anthracite |
| Shape | Oval Panel |
| Texture | Matt & Satin |
| Style | Modern |
| Orientation | Vertical |
RAL Codes
RAL codes are used to define colours for paints & coatings. The codes are very specific, so two shades of blue will have a completely different RAL code. The codes can be useful if you want to ensure two different products will be a colour match.
Some of our heating products can be purchased in bespoke colours chosen from a selection of RAL codes. If you are interested in this service please contact our sales team here.

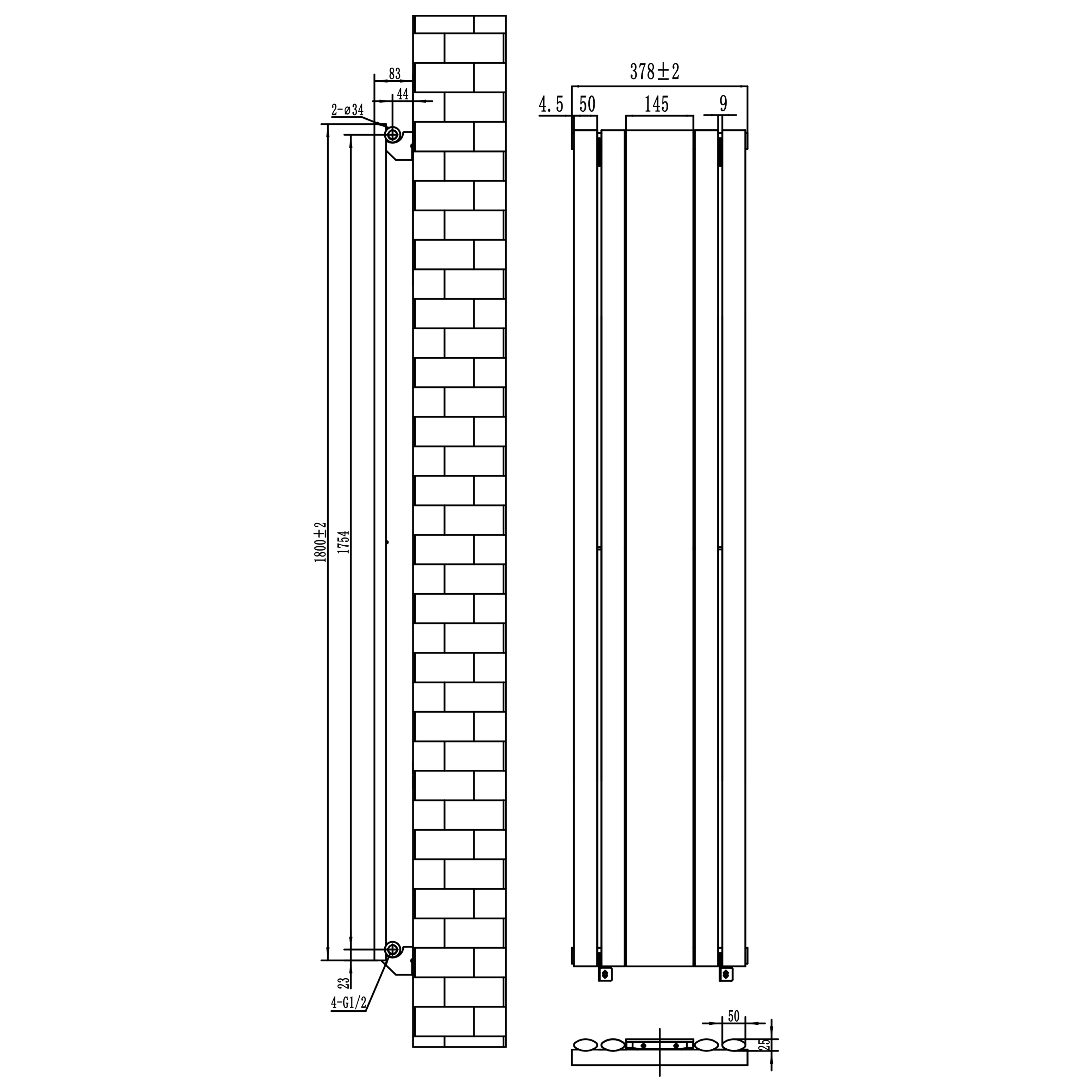

| Width (mm) | 378 |
|---|---|
| Height (mm) | 1800 |
| Depth (mm) | 83 |
| Wall to Face (mm) | 83 |
| Wall Distance (mm) | 50 |
| Tube Diameter (mm) | 50 |
| Wall to Pipe Centres (mm) | 44 |
| Projection (mm) | 83 |
| Pipe Centres (mm) | 378 |
| Fuel Source | Central Heating |
|---|---|
| Heat Output (BTU∆t 50ºC) | 1816 |
| Heat Output (Watts∆t 50ºC) | 532 |
| Heat Output (BTU∆t 30ºC) |
935 |
| Heat Output (Watts∆t 30ºC) |
274 |
BTU (British Thermal Units) is a measure of the heat output of radiators. BTU ∆t 30ºC is an indication of the output in BTU your radiators will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our BTU Calculator.
Watts is a measure of heat output used for electric radiators, with a higher watt figure meaning a higher heat output. Purchasing a radiator that has the correct wattage will ensure your room will be at a comfortable temperature without wasting energy.
By using our BTU Calculator,you can calculate the number of watts your radiator needs to adequately heat your room.
