Features:
- Tall 1800mm x 380mm design featuring an integrated full-length mirror as a space-saving solution for narrow walls
- Double panel radiator using two rows of tubes to provide a higher heat output from a compact width
- Vertical oval tubes create a rounded frame for the central mirror glass
- Textured anthracite finish with a durable matt surface that is designed for longevity
- Crafted from high-grade mild steel to ensure excellent heat conductivity and reliability
- Radiator valves are sold separately, please see our recommended extras
- Fully EN 442 certified and CE/UKCA marked for verified safety and heat ratings you can trust
- Pressure tested at 1.3x to be more than a match for the demands of your home heating system
- Built in an ISO-certified factory with a focus on sustainable production and quality control
- 10 year guarantee
| Product Code | DES-163-AN |
|---|---|
| Type | Designer Radiators, Panel Radiators, Vertical Radiators |
| Brand | Toasty |
| Brand Range | Toasty Echo |
| GuaranteeMore information | 10 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Number of Columns | Double Panel |
|---|---|
| Number of Sections | 8 Sections |
| Number of Tubes | 8 Tubes |
| Material | Steel |
| RAL CodeMore information | 7016 |
|---|---|
| Mounting Type | Wall Mounted |
| Finish | Anthracite |
| Shape | Oval Panel |
| Texture | Matt & Satin |
| Style | Modern |
| Orientation | Vertical |
RAL Codes
RAL codes are used to define colours for paints & coatings. The codes are very specific, so two shades of blue will have a completely different RAL code. The codes can be useful if you want to ensure two different products will be a colour match.
Some of our heating products can be purchased in bespoke colours chosen from a selection of RAL codes. If you are interested in this service please contact our sales team here.

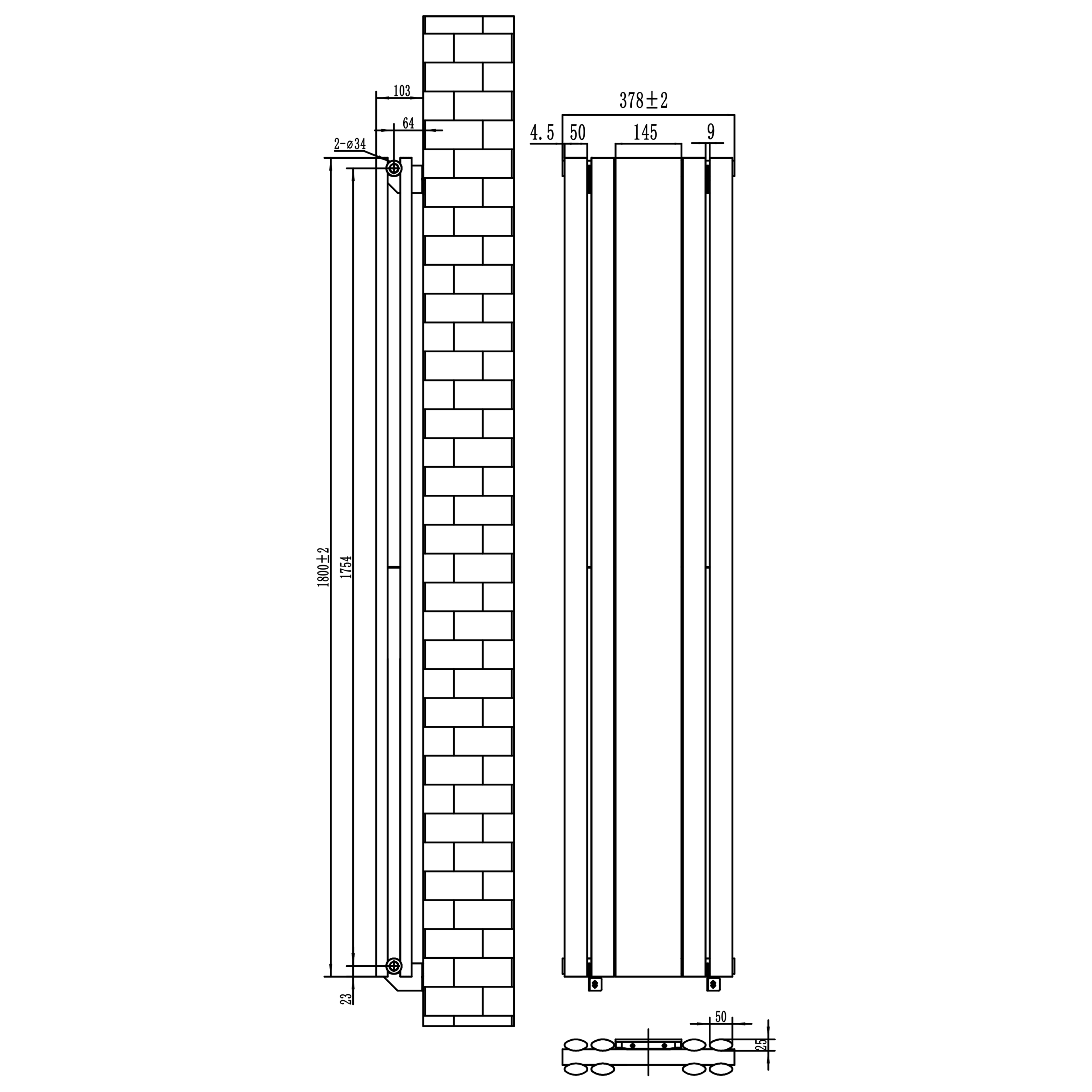

| Width (mm) | 378 |
|---|---|
| Height (mm) | 1800 |
| Depth (mm) | 103 |
| Wall to Face (mm) | 103 |
| Wall Distance (mm) | 50 |
| Tube Diameter (mm) | 50 |
| Wall to Pipe Centres (mm) | 64 |
| Projection (mm) | 103 |
| Pipe Centres (mm) | 378 |
| Fuel Source | Central Heating |
|---|---|
| Heat Output (Watts∆t 50ºC) | 868 |
| Heat Output (Watts∆t 30ºC)More information | 447 |
| Heat Output (BTU∆t 50ºC) | 2962 |
Watts is a measure of heat output used for electric radiators, with a higher watt figure meaning a higher heat output. Purchasing a radiator that has the correct wattage will ensure your room will be at a comfortable temperature without wasting energy.
By using our BTU Calculator,you can calculate the number of watts your radiator needs to adequately heat your room.
