Features:
- Looped cocoon design gives you extra depth behind the bars, so you can easily tuck in your fluffiest bath towels
- Textured anthracite finish adds a bold, modern look to your wall that’s hard-wearing and engineered to stay looking sharp
- Made with high grade mild steel to ensure excellent heat conductivity and a reliable, steady output
- Compact 850 x 500mm design is the perfect fit for en suites or cloakrooms while still giving you plenty of drying room
- Dual fuel compatible, just add an element and T-piece from our recommended extras to keep your towels warm even when the central heating is off
- All the wall fixings are in the box, so you can get your new rail up and running in no time
- Radiator valves are sold separately, please see our recommended extras
- Fully EN 442 certified and CE/UKCA marked for verified safety standards and heat ratings
- Pressure tested at 1.3x to ensure full reliability and compatibility with domestic heating systems
- Built in an ISO-certified factory that prioritises both quality and eco-friendly manufacturing
- 10 year guarantee
| Product Code | DES-071-AN |
|---|---|
| Global Trade Item Number | 5056880701280 |
| Type | Designer Heated Towel Rails, Dual Fuel Heated Towel Rails, Heated Towel Rails, Ladder Heated Towel Rails |
| Brand | Toasty |
| Brand Range | Toasty Cocoon |
| Guarantee |
10 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Number of Sections | 6 Sections |
|---|---|
| Number of Gaps | 5 Gaps |
| Number of Tubes | 6 Tubes |
| Material | Steel |
| Popular Features | Dual Fuel Compatible |
| RAL Code |
7016 |
|---|---|
| Mounting Type | Wall Mounted |
| Finish | Anthracite |
| Shape | Rectangular |
| Texture | Matt & Satin |
| Style | Modern |
| Orientation | Vertical |
RAL Codes
RAL codes are used to define colours for paints & coatings. The codes are very specific, so two shades of blue will have a completely different RAL code. The codes can be useful if you want to ensure two different products will be a colour match.
Some of our heating products can be purchased in bespoke colours chosen from a selection of RAL codes. If you are interested in this service please contact our sales team here.

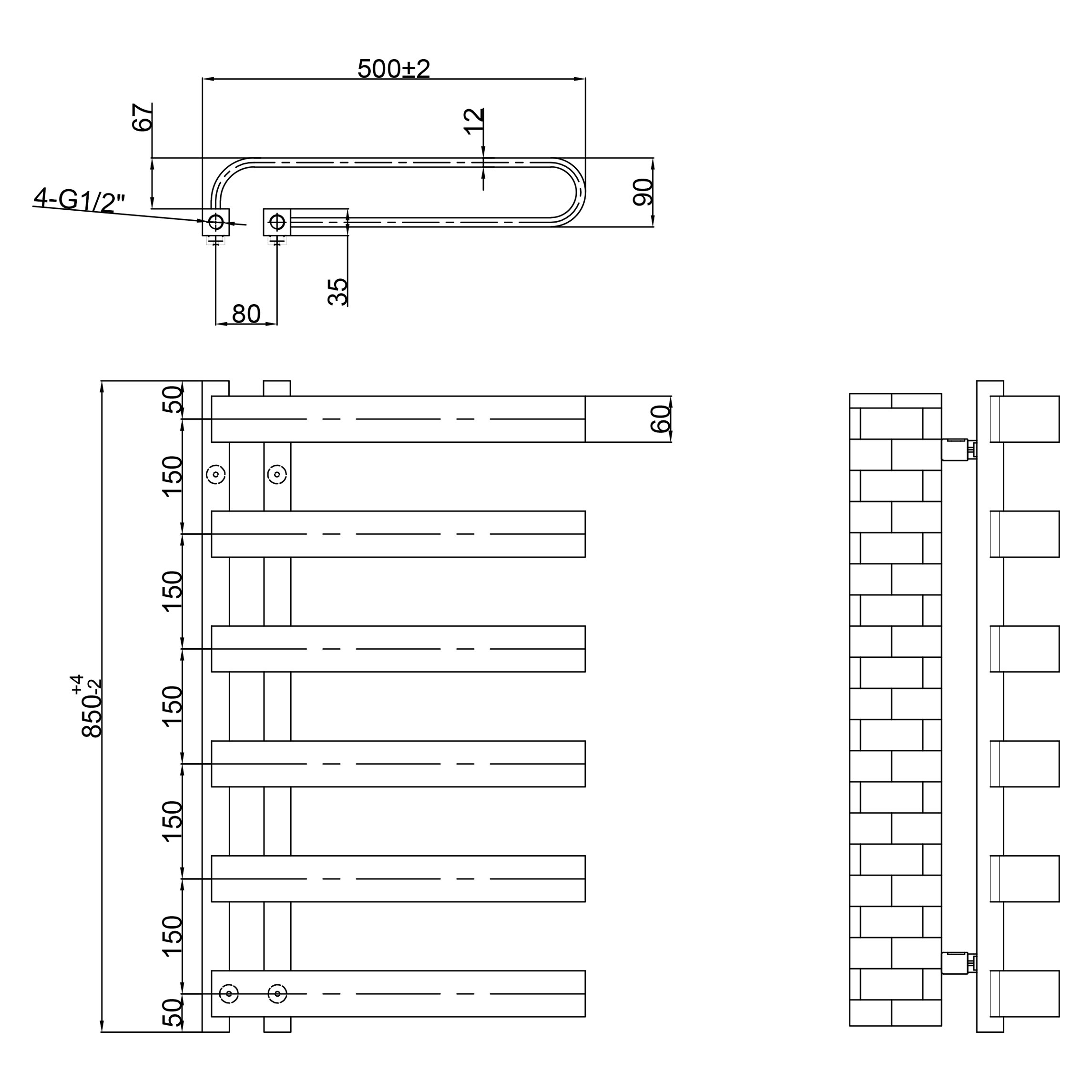

| Pipe Centres (mm) |
80 |
|---|---|
| Width (mm) | 500 |
| Height (mm) | 850 |
| Depth (mm) | 151 |
| Wall to Face (mm) | 151 |
| Wall Distance (mm) | 46 |
| Tube Diameter (mm) | 60 |
| Wall to Pipe Centres (mm) | 70 |
| Projection (mm) | 151 |
| Inlet Location | Bottom |
Pipe centres are measured between the centres of the two heating pipes connecting to your radiator valves. For side connection radiators, valve dimensions vary by model and can affect the final distance required. Please account for your chosen valve measurements when planning installation.
| Fuel Source | Central Heating, Dual Fuel |
|---|---|
| Heat Output (BTU∆t 50ºC) | 1815 |
| Heat Output (Watts∆t 50ºC) | 532 |
| Heat Output (BTU∆t 30ºC) |
926 |
| Heat Output (Watts∆t 30ºC) |
274 |
BTU (British Thermal Units) is a measure of the heat output of radiators. BTU ∆t 30ºC is an indication of the output in BTU your radiators will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our BTU Calculator.
Watts is a measure of heat output used for electric radiators, with a higher watt figure meaning a higher heat output. Purchasing a radiator that has the correct wattage will ensure your room will be at a comfortable temperature without wasting energy.
By using our BTU Calculator,you can calculate the number of watts your radiator needs to adequately heat your room.
