Features:
Dimensions:
- CE Approved
- Add a classic feature to your room with this timeless design
- All tappings are 1/2" British Standard Pipe
- Radiator valves sold separately
- Includes fixing screws
- Floor mounted design
- Made from mild steel
- 5 year guarantee

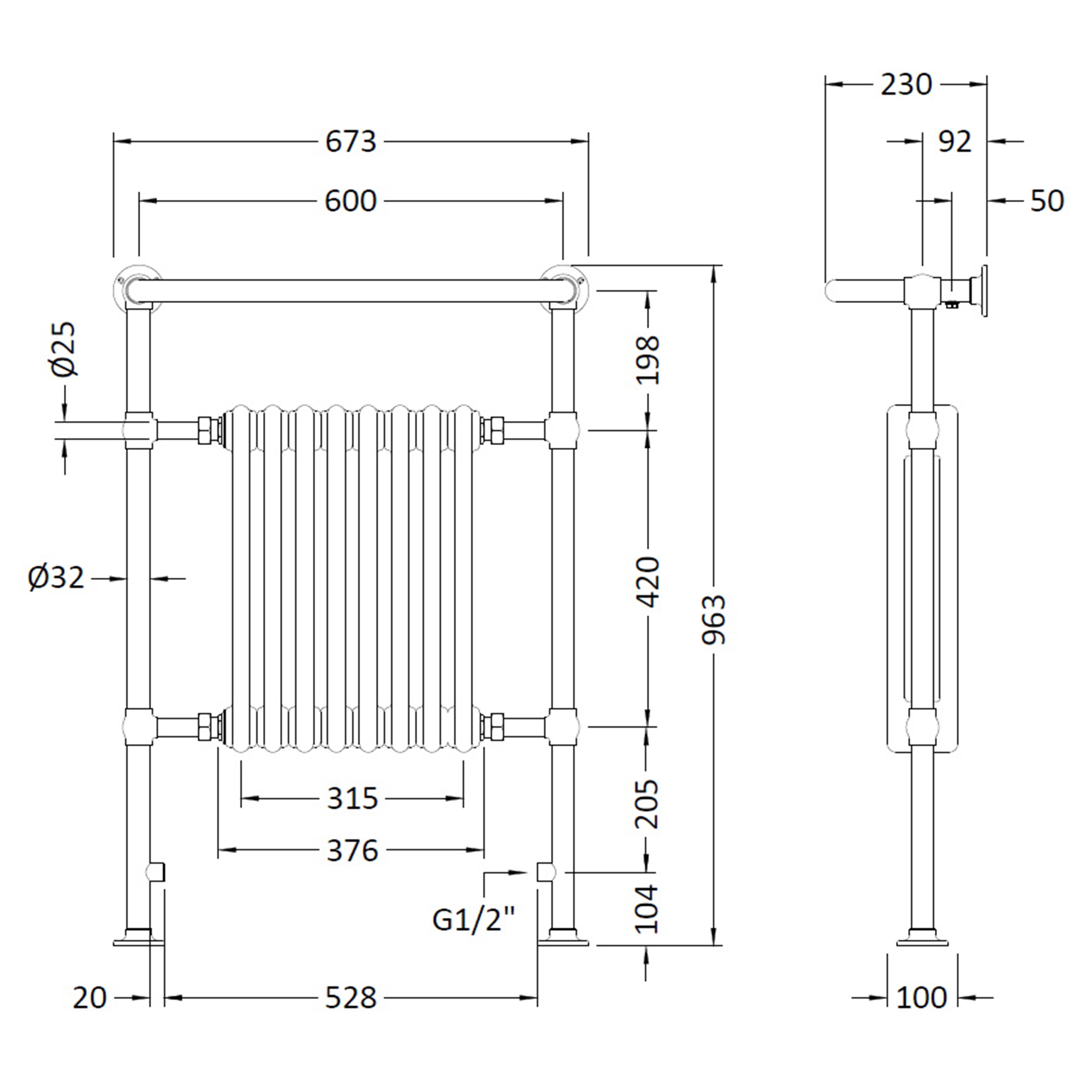

Dimensions:
- Height - 963mm
- Depth - 230mm
- Width - 673mm
- Wall to centre of tappings - 100mm
- Floor to centre of tappings - 105mm
- Tube diameter - 32mm
| Product Code | MTY022 |
|---|---|
| Global Trade Item Number | 5055146167129 |
| Type | Heated Towel Rails |
| Brand | Hudson Reed |
| Brand Range | Hudson Reed Harrow |
| Guarantee |
5 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Material | Steel |
|---|
| Mounting Type | Floor Mounted |
|---|---|
| Finish | Chrome, White |
| Shape | Straight |
| Texture | Polished Metallic |
| Style | Traditional |
| Orientation | Vertical |
| Pipe Centres (mm) |
438 |
|---|---|
| Width (mm) | 673 |
| Height (mm) | 963 |
| Depth (mm) | 230 |
| Inlet Location | Bottom |
Pipe centres are measured between the centres of the two heating pipes connecting to your radiator valves. For side connection radiators, valve dimensions vary by model and can affect the final distance required. Please account for your chosen valve measurements when planning installation.
| Fuel Source | Central Heating |
|---|---|
| Heat Output (BTU∆t 50ºC) | 1778 |
| Heat Output (Watts∆t 50ºC) | 521 |
| Heat Output (BTU∆t 30ºC) |
906 |
| Heat Output (Watts∆t 30ºC) |
268 |
BTU (British Thermal Units) is a measure of the heat output of radiators. BTU ∆t 30ºC is an indication of the output in BTU your radiators will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our BTU Calculator.
Watts is a measure of heat output used for electric radiators, with a higher watt figure meaning a higher heat output. Purchasing a radiator that has the correct wattage will ensure your room will be at a comfortable temperature without wasting energy.
By using our BTU Calculator,you can calculate the number of watts your radiator needs to adequately heat your room.
