Features:

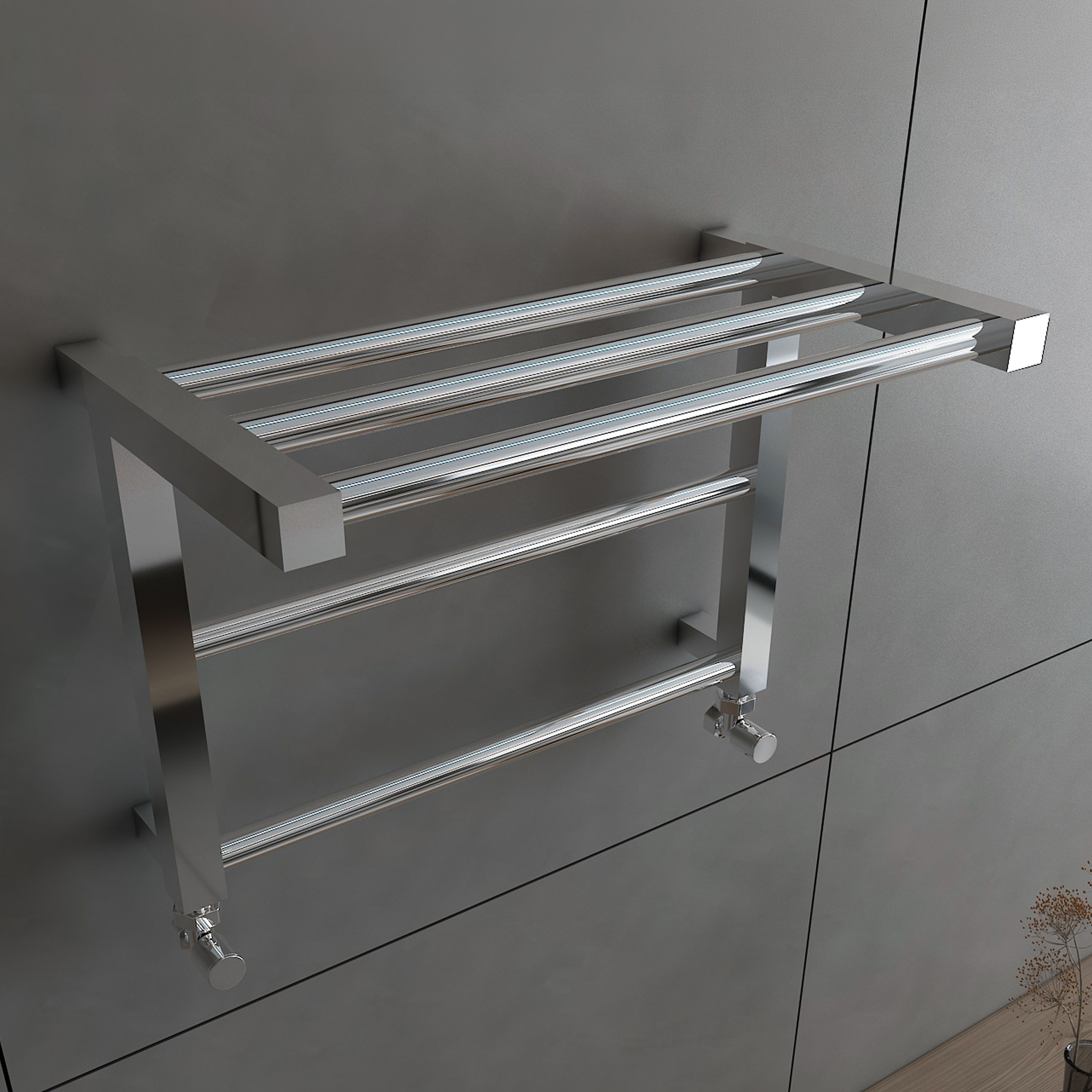

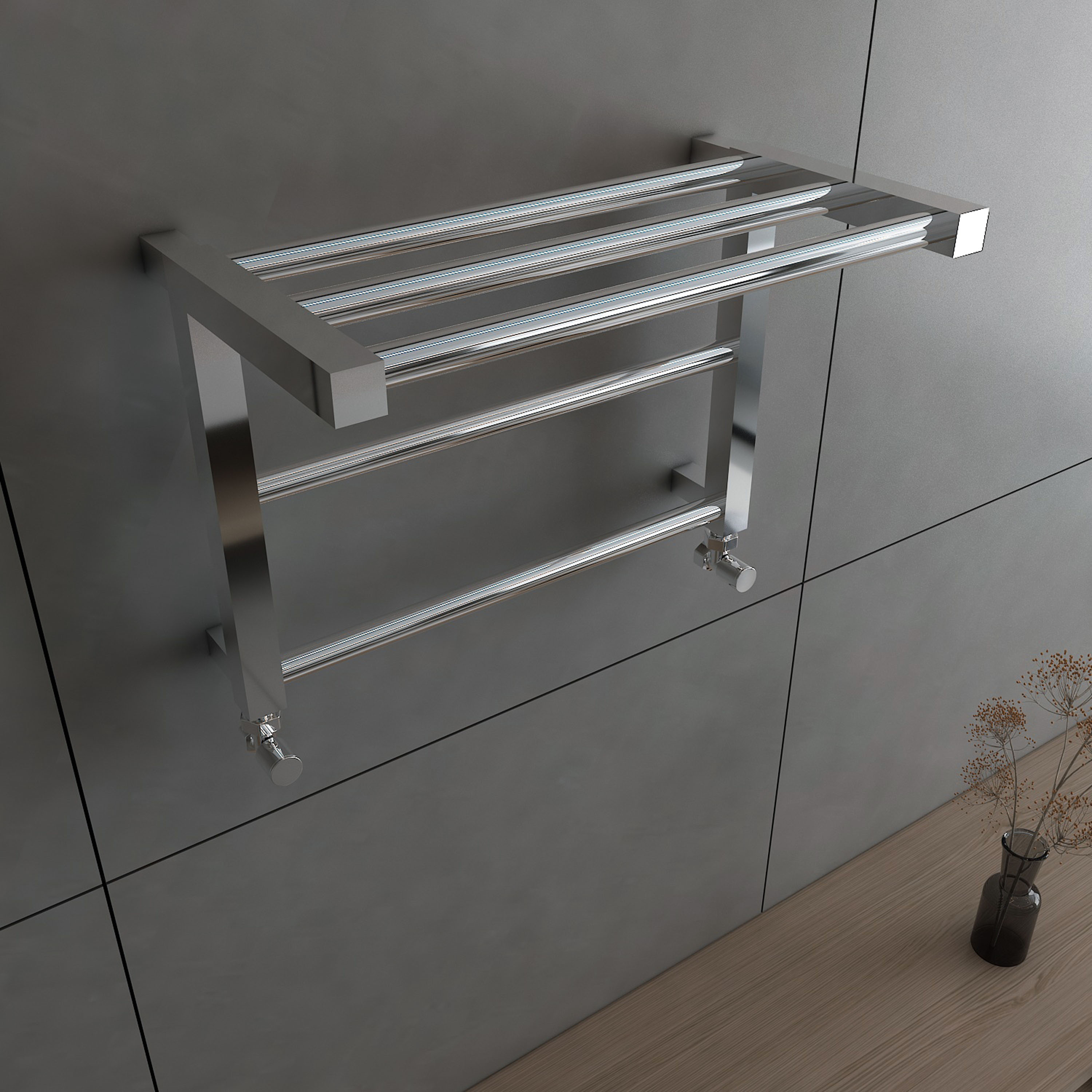

- Carisa Etage chrome plated steel heated towel shelf and rail from the Redhot collection
- Combined shelf and rail design for practical towel storage and hanging in one compact unit
- Upper shelf provides space for neatly folded towels
- Lower rail offers additional hanging space for everyday use
- Steel construction with chrome plated finish for a durable, polished appearance
- Compact 350 x 500mm size ideal for smaller bathrooms and en-suites
- Part of the Redhot collection, engineered for enhanced heat output efficiency
- Use our BTU Calculator to select the correct size and heat output for your space
- Compatible with standard central heating systems for straightforward installation
- Tested to BS EN 442 (ΔT70) standards for certified performance, safety and quality
- Maximum working pressure of 10 bar
- Maximum working temperature of 95°C
- Standard ½" connections for UK system compatibility

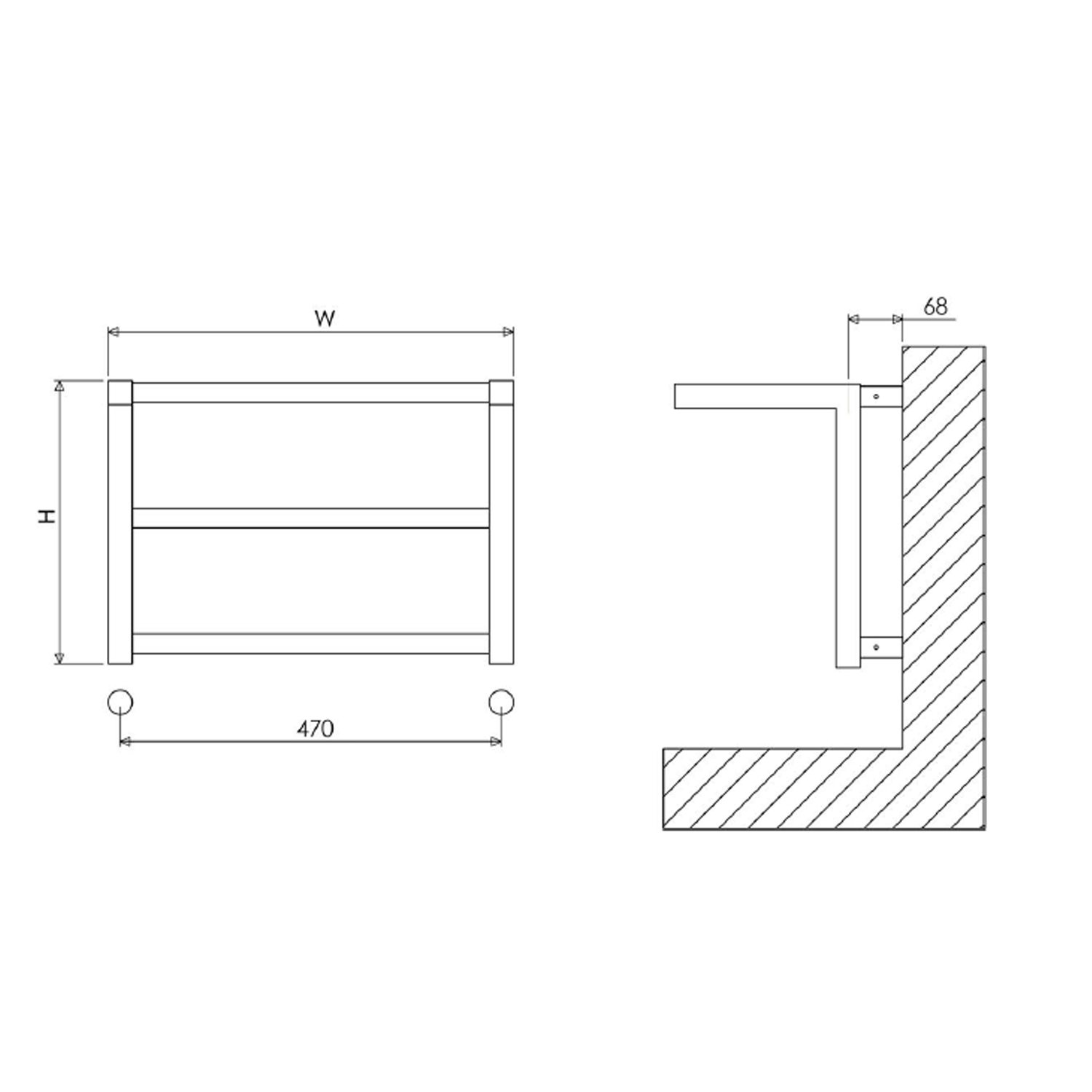

- Pipe centres of 470mm
- Wall to centre tapping of 65mm
- Wall to face of 280mm
- Supplied with wall brackets and fixings
- 5 year manufacturer’s guarantee
|
|
|---|
| Product Code | 17ETG03500500053610 |
|---|---|
| Type | Designer Heated Towel Rails, Heated Towel Rails, Ladder Heated Towel Rails |
| Brand | Carisa |
| Brand Range | Carisa Etage |
| Guarantee |
5 Years |
Guarantee
Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
| Number of Sections | 5 Sections |
|---|---|
| Number of Gaps | 4 Gaps |
| Number of Tubes | 5 Tubes |
| Material | Steel |
| Mounting Type | Wall Mounted |
|---|---|
| Finish | Chrome Plated |
| Shape | Rectangular, Square |
| Texture | Polished Metallic |
| Style | Modern |
| Orientation | Horizontal |
| Pipe Centres (mm) |
470 |
|---|---|
| Width (mm) | 500 |
| Height (mm) | 350 |
| Depth (mm) | 280 |
| Wall to Face (mm) | 280 |
| Wall Distance (mm) | 50 |
| Wall to Pipe Centres (mm) | 65 |
| Projection (mm) | 280 |
| Inlet Location | Bottom |
Pipe centres are measured between the centres of the two heating pipes connecting to your radiator valves. For side connection radiators, valve dimensions vary by model and can affect the final distance required. Please account for your chosen valve measurements when planning installation.
| Fuel Source | Central Heating |
|---|---|
| Heat Output (BTU∆t 50ºC) | 509 |
| Heat Output (Watts∆t 50ºC) | 149 |
| Heat Output (BTU∆t 30ºC) |
265 |
| Heat Output (Watts∆t 30ºC) |
77 |
BTU (British Thermal Units) is a measure of the heat output of radiators. BTU ∆t 30ºC is an indication of the output in BTU your radiators will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our BTU Calculator.
Watts is a measure of heat output used for electric radiators, with a higher watt figure meaning a higher heat output. Purchasing a radiator that has the correct wattage will ensure your room will be at a comfortable temperature without wasting energy.
By using our BTU Calculator,you can calculate the number of watts your radiator needs to adequately heat your room.
